Citation: Zhao-Yu WANG, Jun-Li XU, Ming-Wen ZHANG, Wen-Tao CHEN. Direct Z-Scheme LaNiO 3/Mn_0.2Cd_0.8S Heterojunction Photocatalysts: Enhanced Photocatalytic Performance for H₂ Evolution and Investigation of Mechanism[J]. Chinese Journal of Inorganic Chemistry, ;2021, 37(10): 1809-1818. doi: 10.11862/CJIC.2021.215 shu

Direct Z-Scheme LaNiO 3/Mn_0.2Cd_0.8S Heterojunction Photocatalysts: Enhanced Photocatalytic Performance for H₂ Evolution and Investigation of Mechanism

1.
Fujian Provincial Key Lab of Coastal Basin Environment, Fujian Polytechnic Normal University, Fuqing, Fujian 350000, China
2.
State Key Laboratory of Photocatalysis on Energy and Environment, College of Chemistry, Fuzhou University, Fuzhou 350002, China

Corresponding author: Zhao-Yu WANG, 1058238843@qq.com
Received Date: 11 May 2021
Revised Date: 6 August 2021

Figures(11)

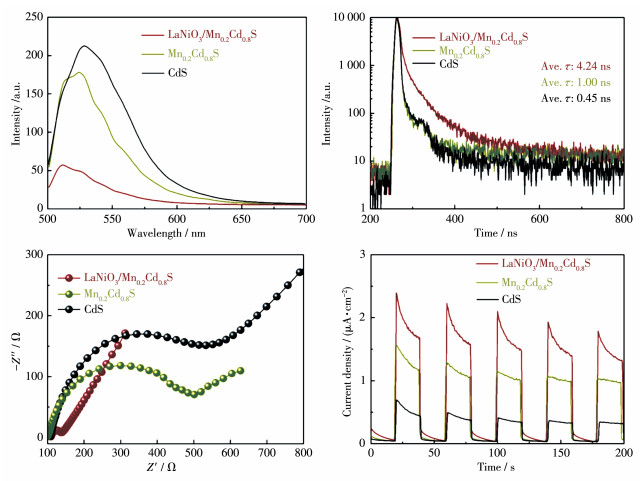

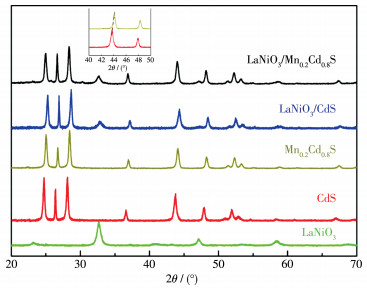

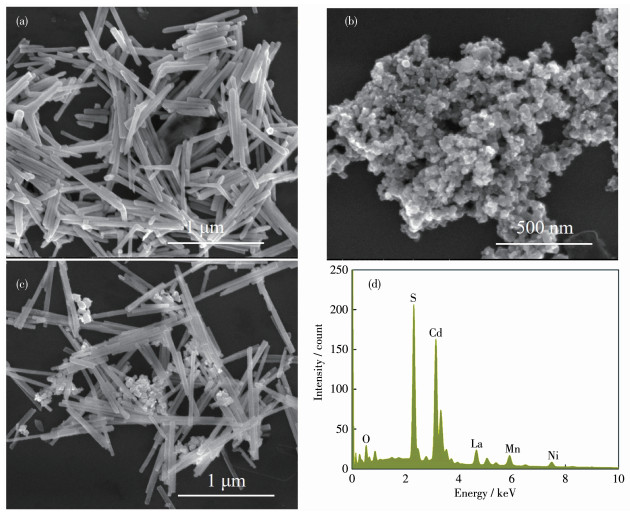

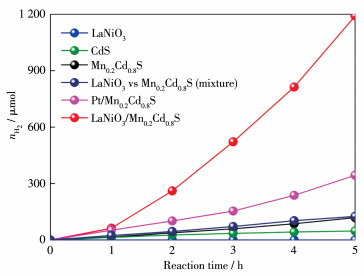

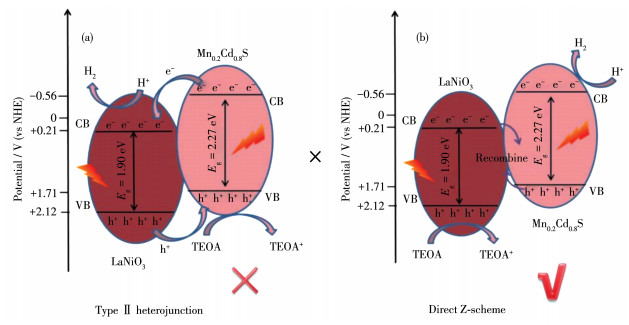

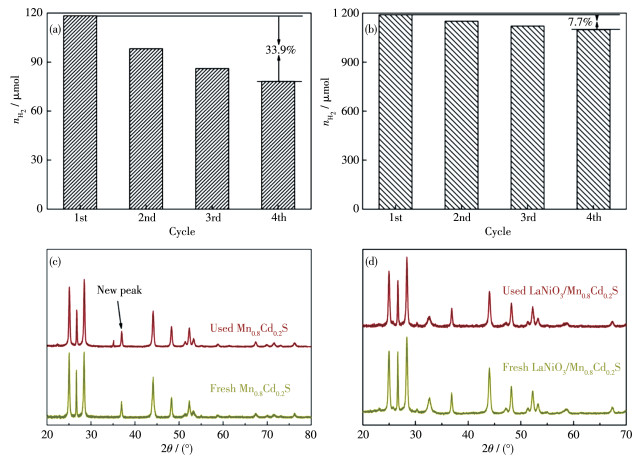

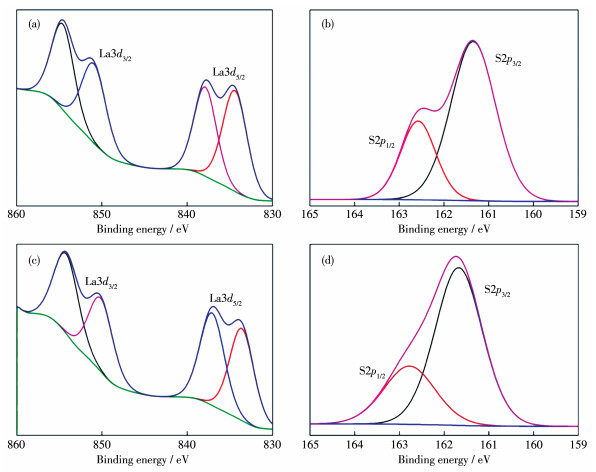

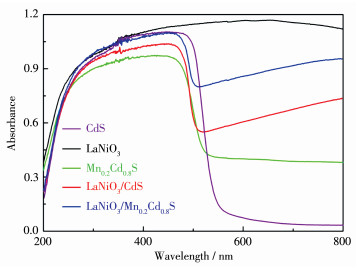

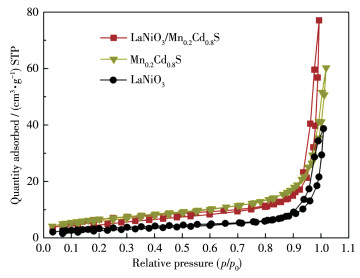

Direct Z-scheme LaNiO₃/Mn_0.2Cd_0.8S heterojunction photocatalysts were synthesized in situ by the introduction of Mn²⁺ ions in the hydrothermal preparation of CdS using LaNiO₃ nanoparticles matrix and fully characterized by field emission scanning electron microscope, powder X-ray diffraction, X-ray photoelectron spectroscopy, UV-Vis diffuse reflectance spectra, N₂ adsorption-desorption test and electrochemistry test. LaNiO₃/Mn_0.2Cd_0.8S heterojunction photocatalysts showed improved photocatalytic H₂ evolution and stability. The photocatalytic H₂ evolution over LaNiO₃/Mn_0.2Cd_0.8S heterojunction photocatalysts reached to 1 190.3 μmol in 5 h, which was 25-fold and 10-fold enhanced compared with pure CdS and Mn_0.2Cd_0.8S. The enhanced performance of LaNiO₃/Mn_0.2Cd_0.8S heterojunction photocatalysts was ascribed to the formation of heterojunction between LaNiO₃ and Mn_0.2Cd_0.8S as well as the introduced Mn²⁺ ion, which both can inhibit the recombination of the photoinduced electron-hole. Based on the above results, the direct Z-scheme photocatalytic reaction mechanism was proposed to elucidate the improved performance of LaNiO₃/Mn_0.2Cd_0.8S heterojunction photocatalysts.
- direct Z-scheme heterojunction,
- LaNiO₃/Mn_0.2Cd_0.8S,
- photocatalytic H₂ evolution,
- photocorrosion,
- stability
1. [1]
  Fujishima A K, Honda K E. Nature, 1972, 238: 37-38 doi: 10.1038/238037a0
2. [2]
  CHEN J J, LI Y Y, CUI T L, SHI Y, WANG R R, LIU X M, LIU G, CHEN K K. Chinese J. Inorg. Chem. , 2020, 36(5): 835-840
3. [3]
  Jiang X H, Zhang L S, Liu H Y, Wu D S, Wu F Y, Tian L, Liu L L, Zou J P, Luo S L, Chen B B. Angew. Chem. Int. Ed. , 2020, 59: 23112-23116 doi: 10.1002/anie.202011495
4. [4]
  Zhu M, Zhang L S, Liu S S, Wang D K, Qin Y C, Chen Y, Dai W L, Wang Y H, Xing Q J, Zou J P. Chin. Chem. Lett. , 2020, 31: 1961-1965 doi: 10.1016/j.cclet.2020.01.017
5. [5]
  Zheng L L, Wang D K, Wu S L, Jiang X H, Zhang J, Xing Q J, Zou J P, Luo S L. J. Mater. Chem. A, 2020, 8: 25425-25430 doi: 10.1039/D0TA10165F
6. [6]
  Wang S, Wang Y, Zhang S L, Zang S Q, Lou X W. Adv Mater. , 2019, 31: 1903404 doi: 10.1002/adma.201903404
7. [7]
  Yu F, Wang L C, Xing Q J, Wang D K, Jiang X H, Li G C, Zheng A M, Ai F R, Zou J P. Chin. Chem. Lett. , 2020, 31: 1648-1653 doi: 10.1016/j.cclet.2019.08.020
8. [8]
  Ye L, Fu J L, Xu Z, Yuan R S, Li Z H. ACS Appl. Mater. Interfaces, 2014, 6: 3483-3490 doi: 10.1021/am5004415
9. [9]
  Chen S S, Qi Y, Hisatomi T, Ding Q, Asai T, Li Z, Ma S K, Zhang F X, Domen K, Li C. Angew. Chem. Int. Ed. , 2015, 54: 8498-8501 doi: 10.1002/anie.201502686
10. [10]
  ZHANG Q F, HUANG J F, CAO L Y, HU B Y, WU J P, ZHANG Y L. Chinese J. Inorg. Chem. , 2013, 29(2): 271-276
11. [11]
  SUN X J, LIU J J, WEI J Z, HUO W G. J. Chin. Ceram. Soc. , 2013, 41(7): 18406-18412
12. [12]
  WU K. Acta Phys. -Chim. Sin. , 2019, 35(2): 135-136
13. [13]
  Luo M, Liu Y, Hu J C, Hang L H, Li J L. ACS Appl. Mater. Interface, 2012, 44: 1813-1821
14. [14]
  Li K, Chen R, Li S L, Xie S L, Dong L Z, Kang Z H, Bao J C, Lan Y Q. ACS Appl. Mater. Interfaces, 2016, 8: 14535-14541 doi: 10.1021/acsami.6b02765
15. [15]
  Zhang Q Q, Wang J X, Ye X J, Hui Z Z, Ye L Q, Wang X C, Chen S F. ACS Appl. Mater. Interfaces, 2019, 11: 46735-46745 doi: 10.1021/acsami.9b14450
16. [16]
  Di T M, Zhu C, Cheng B, Yu J G, Xu J S. J. Catal. , 2017, 352: 532-541 doi: 10.1016/j.jcat.2017.06.006
17. [17]
  Jin J, Yu J G, Guo D P, Cui C, Ho W K. Small, 2015, 11: 5262-5271 doi: 10.1002/smll.201500926
18. [18]
  Zhou P, Yu J G, Jaroniec M. Adv. Mater. , 2014, 26: 4920-4935 doi: 10.1002/adma.201400288
19. [19]
  Wang Z Y, Su B, Xu J L, Hou Y D, Ding Z X. Int. J. Hydrogen Energy, 2020, 45: 4113-4121 doi: 10.1016/j.ijhydene.2019.12.077
20. [20]
  Lv T, Wu M H, Guo M X, Liu Q, Jia L S. Chem. Eng. J. , 2019, 356: 580-591 doi: 10.1016/j.cej.2018.09.031
21. [21]
  Jabeen U, Adhikari T, Pathak D, Shah S M, Nunzi J M. Opt. Mater. , 2018, 78: 132-141 doi: 10.1016/j.optmat.2018.02.019
22. [22]
  Suo Z Q, Dai J F, Li Z P, Gao S S. Results Phys. , 2019, 15: 102801-102808 doi: 10.1016/j.rinp.2019.102801
23. [23]
  Ganguly A, Nath S S. Mater. Sci. Eng. B, 2020, 255: 114532-114536 doi: 10.1016/j.mseb.2020.114532
24. [24]
  Dandia A, Parewa V, Rathore K S. Catal. Commun. , 2012, 28: 90-94 doi: 10.1016/j.catcom.2012.08.020
25. [25]
  Xiong M H, Qin Y, Chai B, Yan J R, Fan G Z, Xu F, Wang C L, Song G S. Chem. Eng. J. , 2022, 428: 131069-131078 doi: 10.1016/j.cej.2021.131069
26. [26]
  Wan Y H, Du S W, Lu C R, Ren K K, Shi B Y, Liu S Y, Li C H, Dou W D, Fang P, Ye N. J. Alloys Compd. , 2021, 871: 159461-159470 doi: 10.1016/j.jallcom.2021.159461
27. [27]
  Reckmeier C J, Wang Y, Zboril R, Rogach A L. J. Phys. Chem. C, 2016, 120: 10591-10604 doi: 10.1021/acs.jpcc.5b12294
28. [28]
  Zhang H, Yu J L, Sun C X, Xu W H, Chen J, Sun H, Zong C, Liu Z, Tang Y, Zhao D Y. J. Am. Chem. Soc. , 2020, 142: 16177-16181 doi: 10.1021/jacs.0c07274
