Citation: Shao-Ying JU, Xue LI, An-Li GAO, Jing JIANG, Juan YU, Wei-Ping LIU. Synthesis, Structure and Catalytic Activity of Three Organophosphine Bromo Palladium(Ⅱ) Complexes for Coupling Reactions[J]. Chinese Journal of Inorganic Chemistry, ;2021, 37(5): 785-790. doi: 10.11862/CJIC.2021.102 shu

Synthesis, Structure and Catalytic Activity of Three Organophosphine Bromo Palladium(Ⅱ) Complexes for Coupling Reactions

State Key Laboratory of Advanced Technologies for Comprehensive Utilization of Platinum Metals, Kunming Institute of Precious Metals, Kunming 650106, China

Corresponding author: Juan YU, liuweiping1963@126.com Wei-Ping LIU, juanyu1210@126.com
Received Date: 1 September 2020
Revised Date: 23 March 2021

Figures(2)

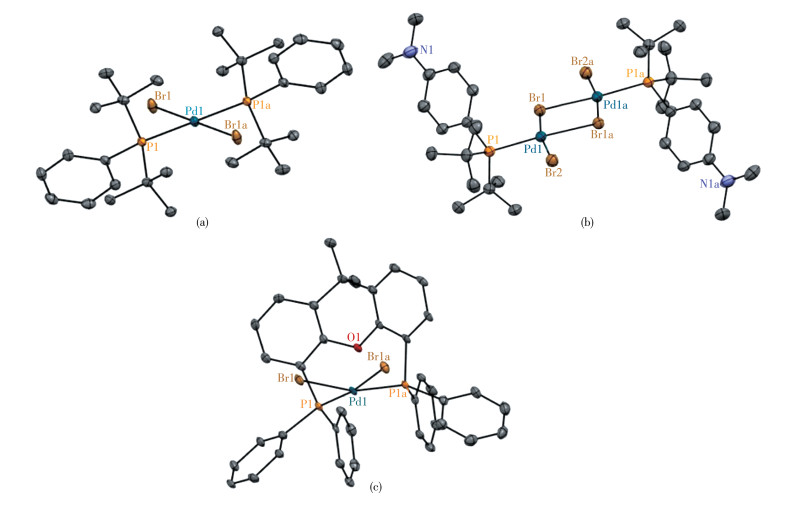

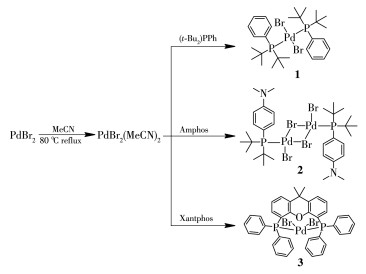

Three new palladium(Ⅱ) complexes with Br^- as the dissociation ligand and with di-tert-butylphenyl phosphine((t-Bu)₂PPh), di-tert-butyl-(4-dimethylaminophenyl)phosphine (Amphos) or 4, 5-bis(diphenyl-phosphino)-9, 9-dimethylxanthene (Xantphos) as the organic phosphine ligand, were prepared from the starting material PdBr₂ via the coordination addition and ligand substitution process, with an attempt to develop more effective organophosphinopalladium catalysts for the coupling reactions. The palladium (Ⅱ) complexes were tested and characterized by elemental analysis, ¹H NMR and single-crystal X-ray diffraction analysis to be trans-Pd((t-Bu)₂PPh)₂Br₂ (1), trans-[Pd(Amphos)Br₂]₂ (2), cis-Pd(Xantphos)Br₂ (3). Among them, trans-[Pd(Amphos)Br₂]₂ is a unique binuclear palladium complex in which two bromine ions act as the bridging ligand bringing two[Pd(Amphos)Br] blocks together. Two typical Suzuki organic coupling reaction models were used for evaluating the catalytic activity of three complexes along with commercially available Pd((t-Bu)₂PPh)₂Cl₂, Pd(Amphos)₂Cl₂ and Pd(Xantphos)Cl₂ as comparison catalysts. The results showed all three complexes displayed high catalytic activity in two selected typical Suzuki organic coupling reactions, greater than the corresponding values of Pd((t-Bu)₂PPh)₂Cl₂, Pd(Amphos)₂Cl₂ and Pd(Xantphos)Cl₂.
- organophosphine ligand,
- bromine ligand,
- palladium(Ⅱ) complex,
- structure,
- catalytic activity
1. [1]
  Ohe T, Miyaura N, Suzuki A. J. Org. Chem. , 1993, 58(8): 2201-2208 doi: 10.1021/jo00060a041
2. [2]
  Surry D S, Buchwald S L. Chem. Sci. , 2011, 2(1): 27-50 doi: 10.1039/C0SC00331J
3. [3]
  Nicolaou K C, Bulger P G, Sarlah D. Angew. Chem. , 2005, 44(29): 4442-4489 doi: 10.1002/anie.200500368
4. [4]
  Lundgren R, Peters B, Alsabeh P, Stradiotto M. Angew. Chem. , 2010, 122(24): 4165-4168 doi: 10.1002/ange.201000526
5. [5]
  Ahmed B M, Gellert M. Inorg. Chem. , 2016, 55: 7717-7728 doi: 10.1021/acs.inorgchem.6b01172
6. [6]
  JING X J, ZHANG Y Y, ZUO C, CHENG Y, HAN X, GAO A L, YU J, LIU W P. Precious Metals, 2018, 39(3): 33-37 doi: 10.3969/j.issn.1004-0676.2018.03.006
7. [7]
  WANG T, LING Z G, HU C W. Chinese J. Inorg. Chem. , 2019, 35(9): 1619-1622
8. [8]
  HU J H, DENG W, JIANG X F, YU S Y. Chinese J. Inorg. Chem. , 2015, 31: 1278-1286
9. [9]
  CHENG H, YU Z C, DENG W, JIANG X F. Chinese J. Inorg. Chem. , 2017, 33(6): 939-946
10. [10]
  Cheng X, Ma S M. Angew. Chem. , 2008, 47(24): 4581-4583 doi: 10.1002/anie.200800364
11. [11]
  Guram A S, Rennels R A, Buchwald S L. Angew. Chem. , 1995, 34(12): 1348-1350 doi: 10.1002/anie.199513481
12. [12]
  Peacock D M, Jiang Q, Hanley P S, Cundari T R, Hartwig J F. J. Am. Chem. Soc. , 2018, 140(14): 4893-4904 doi: 10.1021/jacs.8b00928
13. [13]
  Santanilla A B, Regalado E L, Pereira T, Hevlin M, Bateman K, Campeau L C. Science, 2015, 347(6217): 49-53 doi: 10.1126/science.1259203
14. [14]
  Mane P A, Dey S, Pathak A, Kumar M. Inorg. Chem. , 2019, 58(5): 2965-2978 doi: 10.1021/acs.inorgchem.8b02726
15. [15]
  Yin J, Buchwald S L. Cheminform, 2002, 33(41): 6043-6048
16. [16]
  Hartwig J F. Acc. Chem. Res. , 2008, 41(11): 1534-1544 doi: 10.1021/ar800098p
17. [17]
  Kang K, Liu S S, Xu T, Wang D C, Leng X B, Bai R P, Lan Y, Shen Q L. Organometallics, 2017, 36(24): 4727-4740 doi: 10.1021/acs.organomet.7b00588
18. [18]
  SU L L, ZUO C, HAN Y, LUO Y, LIU J, ZHAO F, XIONG J. Precious Metals, 2018, 39(S1): 218-220
19. [19]
  Sheldrick G M. SHELXS-97, Program for the Solution of Crystal Structure, University of Göttingen, Germany, 1997.
20. [20]
  Sheldrick G M. SHELXL-97, Program for the Refinement of Crystal Structures, University of Göttingen, Germany, 1997.
21. [21]
  Otsuka S, Yoshida T, Matsumoto M. Nakatsu K. J. Am. Chem. Soc. , 1976, 98(19): 5850-5858 doi: 10.1021/ja00435a017
22. [22]
  Chartoire A, Lesieur M, Slawin A M. Nolan S P, Cazin C S. Organometallics, 2011, 30(16): 4432-4436
23. [23]
  Wolfe J P, Buchwald S L. Angew. Chem. Int. Ed. , 1999, 38(16): 2413-2416 doi: 10.1002/(SICI)1521-3773(19990816)38:16<2413::AID-ANIE2413>3.0.CO;2-H
