Citation: Zhen Zhang, Rui Su, Xiongjun Xiao, Jiaxin Yang, Yuwei Li, Tiemin Sun, Yang Liu, Chengjun Wu. A continuous-flow process for the synthesis of balsalazide disodium[J]. Chinese Chemical Letters, ;2026, 37(7): 111965. doi: 10.1016/j.cclet.2025.111965 shu

A continuous-flow process for the synthesis of balsalazide disodium

Key Laboratory of Structure-Based Drug Design and Discovery, Shenyang Pharmaceutical University, Ministry of Education, Shenyang 110016, China

suntiemin@126.com

y.liu@syphu.edu.cn

wuchengjun@syphu.edu.cn

Received Date: 15 July 2025
Revised Date: 29 September 2025
Accepted Date: 13 October 2025
Available Online: 15 October 2025

Figures(8)

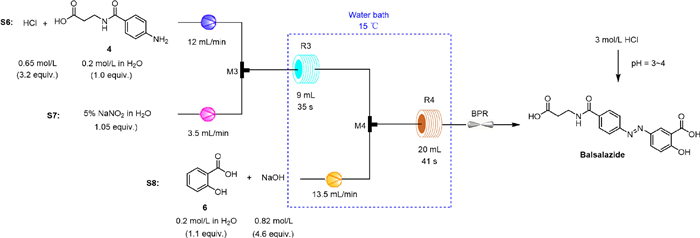

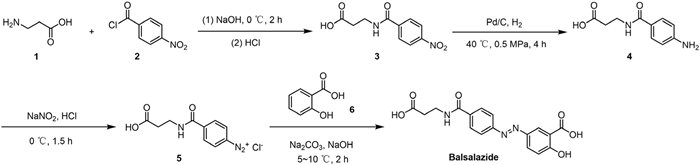

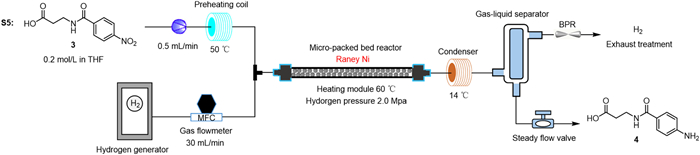

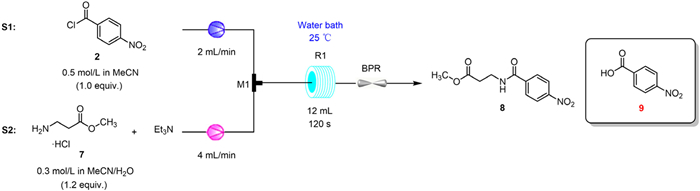

Balsalazide disodium is an effective drug for alleviating ulcerative colitis. It slowly releases 5-aminosalicylic acid in the intestine. The traditional synthesis methods of balsalazide disodium exhibit high risk, high pollution and low efficiency concern. Thus, we innovatively develop a four-step route for the large-scale production of balsalazide disodium in continuous flow. In this work, methyl 3-aminopropionate hydrochloride was subjected to acylation and hydrolysis reactions to obtain the nitro intermediate with a selectivity of 99.55%. Micro-hydrogenation reactor filled with Raney Ni catalyzed three-phase reaction improves conversion and selectivity. In the diazotization and azo coupling reactions, the optimal equivalents of salicylic acid and base were determined. With the aid of response surface methodology, the influences of reaction temperature and residence time on yield were systematically investigated. Under the optimum conditions, the experimental yields coincided with the predicted yields. Compared to batch experiments, the continuous process achieved a total yield of 66.1% and a purity of 99.63% in 13.1 min.
- Balsalazide disodium,
- Continuous hydrogenation,
- Flow chemistry,
- Industrial process
