Citation: Meng-Si Guo, Chun-Xiao Yin, Zi-Yi Zhang, Yuan-Yuan Ma, Jing Du, Zhan-Gang Han. Hourglass-shaped organophosphomolybdate(Ⅴ) as photoelectrochemical sensor for selective detection of trace levofloxacin[J]. Chinese Chemical Letters, ;2026, 37(5): 111158. doi: 10.1016/j.cclet.2025.111158 shu

Hourglass-shaped organophosphomolybdate(Ⅴ) as photoelectrochemical sensor for selective detection of trace levofloxacin

Hebei Technology Innovation Center for Energy Conversion Materials and Devices, Hebei Engineering Research Center of Thin Film Solar Cell Materials and Devices, National Demonstration Center for Experimental Chemistry Education, College of Chemistry and Materials Science, Hebei Normal University, Shijiazhuang 050024, China

mayy334@hebtu.edu.cn

duj622@hebtu.edu.cn

hanzg116@hebtu.edu.cn

Received Date: 20 January 2025
Revised Date: 18 March 2025
Accepted Date: 27 March 2025
Available Online: 27 March 2025

Figures(4)

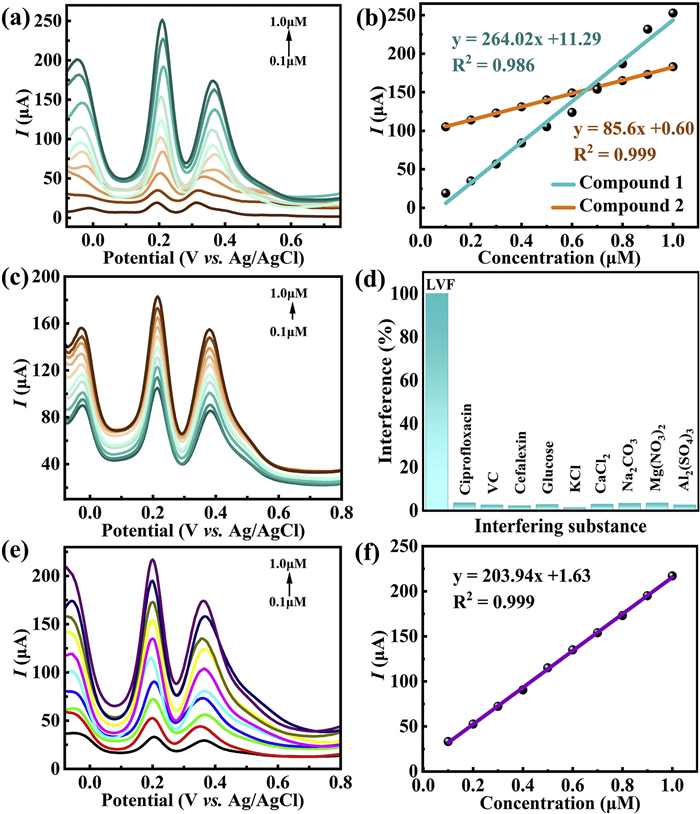

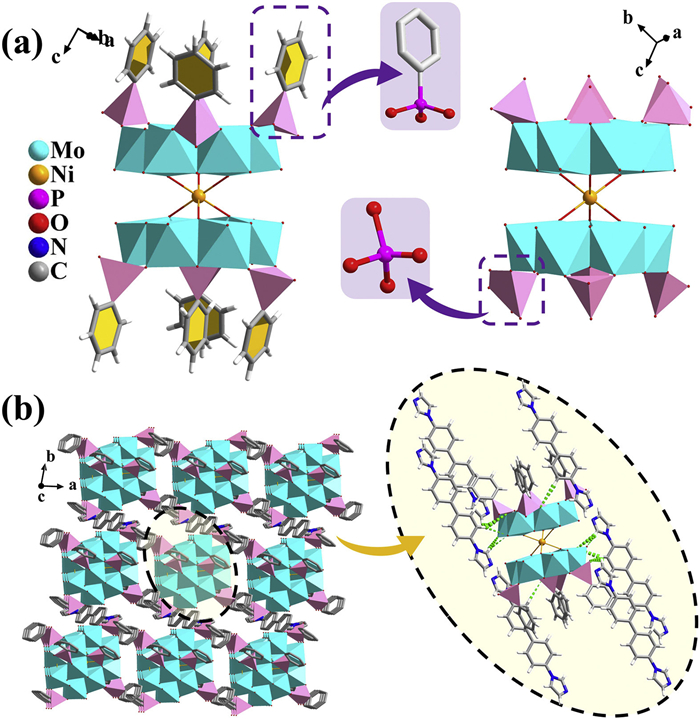

Phenylphosphonate functionalized fully-reduced hourglass-shaped organophosphomolybdate(V) hybrid (H₂bib){Ni[Mo₆(PO₃C₆H₅)₄O₁₅H₆]₂}·9H₂O (bib = 4,4′-bis(imidazolyl)bibpheny) was synthesized as a photoelectrochemical (PEC) sensor. Benefiting from the electron transfer interaction between organic phenyl groups and inorganic {P₄Mo₆} skeleton, compound achieved a low detection limit of 4.61 nmol/L and high sensitivity of 264.02 µA L/µmol toward the PEC detection of levofloxacin in aqueous solution, together with excellent practicality in milk sample.
- Polyoxometalate,
- Hourglass-shaped organophosphomolybdate,
- Functionalization,
- Photoelectrochemical sensor,
- Levofloxacin detection
1. [1]
  S.S. Wang, G.Y. Yang, Chem. Rev. 115 (2015) 4893–4962. doi: 10.1021/cr500390v
2. [2]
  J.M. Cameron, G. Guillemot, T. Galambos, et al., Chem. Soc. Rev. 51 (2022) 293–328. doi: 10.1039/d1cs00832c
3. [3]
  T. Ma, R. Yan, X.Z. Wu, et al., Adv. Mater. 36 (2024) 2310283. doi: 10.1002/adma.202310283
4. [4]
  H.X. Bi, M.S. Guo, J. Du, Y.Y. Ma, Z.G. Han, Coord. Chem. Rev. 518 (2024) 216092. doi: 10.1016/j.ccr.2024.216092
5. [5]
  H. Song, M.S. Guo, J.F. Wang, et al., Polyoxometalates 3 (2024) 9140065. doi: 10.26599/pom.2024.9140065
6. [6]
  H.X. Bi, X.Y. Yin, J.Y. He, et al., Rare Met. 42 (2023) 3638–3650. doi: 10.1007/s12598-023-02423-9
7. [7]
  W.T. An, X.J. Zhang, J.Q. Niu, Y.Y. Ma, Z.G. Han, Chin. Chem. Lett. 33 (2022) 4400–4404. doi: 10.1016/j.cclet.2021.12.021
8. [8]
  Y.L. Wang, Y.Y. Ma, Q. Zhao, L. Hou, Z.G. Han, Sens. Actuator. B 305 (2020) 127469. doi: 10.1016/j.snb.2019.127469
9. [9]
  K. Wieszczycka, K. Staszak, M.J. Woźniak-Budych, et al., Coord. Chem. Rev. 436 (2021) 213846. doi: 10.1016/j.ccr.2021.213846
10. [10]
  M.A. Neouze, U. Schubert, Monatsh. Chem. 139 (2008) 183–195. doi: 10.1007/s00706-007-0775-2
11. [11]
  L. Zhang, J.M. Cole, Mater. Interfaces 7 (2015) 3427–3455. doi: 10.1021/am507334m
12. [12]
  S.J. Li, Y.F. Zhou, N.N. Ma, et al., Angew. Chem. Int. Ed. 59 (2020) 8537–8540. doi: 10.1002/anie.202003550
13. [13]
  G. Cao, R.C. Haushalter, K.G. Strohmaier, Inorg. Chem. 32 (1993) 127–128. doi: 10.1021/ic00054a003
14. [14]
  M.I. Khan, Q. Chen, J. Zubieta, Inorg. Chim. Acta 235 (1995) 135–145. doi: 10.1016/0020-1693(95)90054-A
15. [15]
  A. Gammersbach, P. Angenault, W.F. Holderich, W. Clegg, M.R.J. Elsegood, Polyhedron 17 (1998) 2535–2541. doi: 10.1016/S0277-5387(98)00026-6
16. [16]
  L.Y. Duan, F.C. Liu, X.L. Wang, et al., J. Mol. Struct. 705 (2004) 15–20. doi: 10.1016/j.molstruc.2004.03.030
17. [17]
  D. Gouveia, B. Yilmaz, P. Cevik, W.M. Johnston, Dent. Mater. 38 (2022) 1452–1458. doi: 10.1016/j.dental.2022.06.027
18. [18]
  L.P. Yang, G.H. Dong, D.L. Jacobs, et al., Catalysis 352 (2017) 274–281. doi: 10.1016/j.jcat.2017.05.010
19. [19]
  S. Cong, J.H. Yu, B.J. Liu, W. Teng, Y.B. Tang, New J. Chem. 46 (2022) 15227–15243. doi: 10.1039/d2nj02210a
20. [20]
  N. Asseray, C. Bourigault, D. Boutoille, et al., Int. J. Antimicrob. Agents 47 (2016) 478–481. doi: 10.1016/j.ijantimicag.2016.03.003
21. [21]
  L. Fu, S.D. Mao, F. Chen, et al., Chemosphere 297 (2022) 134127. doi: 10.1016/j.chemosphere.2022.134127
22. [22]
  F.A. Ansari, S. Manuel, R. Dwivedi, et al., Indian J. Nephrol. 29 (2019) 424–426. doi: 10.4103/ijn.IJN_295_18
23. [23]
  Y.T. Zhang, X.M. Qi, X.F. Zhang, et al., Carbohyd. Polym. 340 (2024) 122306. doi: 10.1016/j.carbpol.2024.122306
24. [24]
  N.A. Dafale, U.P. Semwal, P.K. Agarwal, P. Sharma, G.N. Singh, J. Pharm. Anal. 5 (2015) 18–26. doi: 10.1016/j.jpha.2014.07.007
25. [25]
  A.A. Salem, H.A. Talanta 88 (2012) 104–114.
26. [26]
  Z.Y. Zhu, X. Bai, Y.T. Ji, Sens. Actuator. B Chem. 377 (2023) 133076. doi: 10.1016/j.snb.2022.133076
27. [27]
  K. Bhimaraya, J. Manjunatha, K. Moulya, et al., Chemosensors 11 (2023) 191. doi: 10.3390/chemosensors11030191
28. [28]
  M.H. Ghanbari, A. Khoshroo, H. Sobati, et al., Microchem. J. 147 (2019) 198–206. doi: 10.1016/j.microc.2019.03.016
