Citation: Xiaowen Cao, Yuheng Zhu, Siyue Fan, Feng Chen, Yongxi Zhao. Accurate counting of RNA in tissues with highly denoising amplified imaging[J]. Chinese Chemical Letters, ;2025, 36(12): 111091. doi: 10.1016/j.cclet.2025.111091 shu

Accurate counting of RNA in tissues with highly denoising amplified imaging

Xiaowen Cao ^a ,
Yuheng Zhu ^a ,
Siyue Fan ^a ,
Feng Chen ^{a, *,} ,
Yongxi Zhao ^{a, b, *,}

a.
Institute of Analytical Chemistry and Instrument for Life Science, The Key Laboratory of Biomedical Information Engineering of Ministry of Education, School of Life Science and Technology, Xi'an Jiaotong University, Xi'an 710049, China
b.
Frontier Institute of Science and Technology, Xi'an Jiaotong University, Xi'an 710049, China

fengchencf@mail.xjtu.edu.cn

yxzhao@mail.xjtu.edu.cn

Received Date: 8 September 2024
Revised Date: 6 February 2025
Accepted Date: 13 March 2025
Available Online: 15 March 2025

Figures(5)

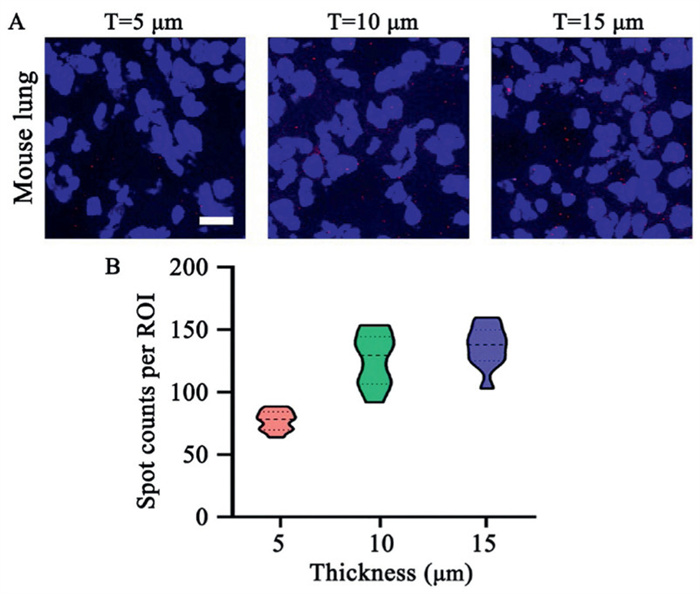

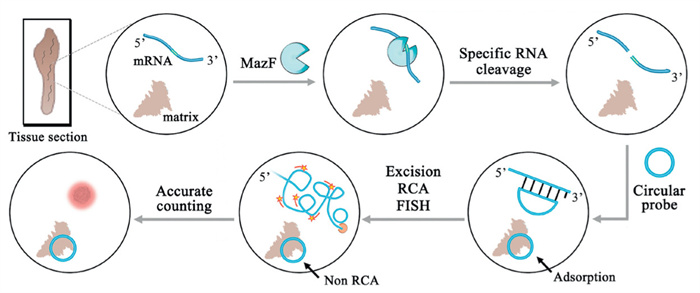

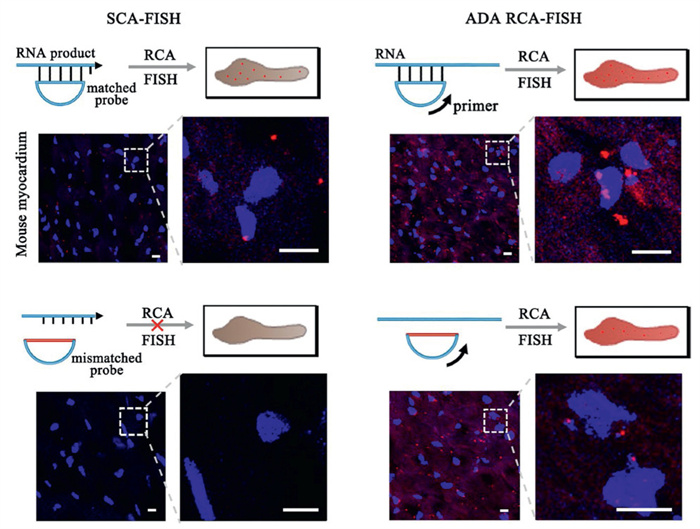

Characterization of the distribution and accurate counting of RNA molecules in the context of tissues is necessary to understand their complexity and heterogeneity. Single-molecule fluorescence in situ hybridization reveals the abundance and distribution of RNA and resolves different cell types in complex tissues. Especially, off-target binding and nonspecific adsorption of probes are prone to producing nonspecific amplification. Herein, we present highly de-noising amplified imaging, which leverages a site-specific cleavage-amplifying design to achieve accurate counting of RNA in tissues. Our method avoids adding probe as primer, decreases nonspecific spots of single cells from 7 to nearly zero, and enables RNA imaging in uncleared tissue sections with nearly zero noise. We demonstrate the efficacy of this method on various thickness of mouse tissue sections. We envision this approach will serve as a tool to revealing the information content from patient samples for biomedical purpose.
- Nucleic acid amplification,
- RNA endonuclease,
- RNA counting,
- Single-cell imaging,
- Tissue sections
1. [1]
  C. Luo, C.L. Keown, L. Kurihara, et al., Science 357 (2017) 600–604. doi: 10.1126/science.aan3351
2. [2]
  D. Schulz, V.R.T. Zanotelli, J.R. Fischer, et al., Cell Syst. 6 (2018) 25–36. doi: 10.1016/j.cels.2017.12.001
3. [3]
  R. Deng, K. Zhang, Y. Sun, et al., Chem. Sci. 8 (2017) 3668–3675. doi: 10.1039/C7SC00292K
4. [4]
  J. Hemphill, Q. Liu, R. Uprety, et al., J. Am. Chem. Soc. 137 (2015) 3656–3662. doi: 10.1021/jacs.5b00580
5. [5]
  A. Raj, P. van den Bogaard, S.A. Rifkin, et al., Nat. Methods 5 (2008) 877–879. doi: 10.1038/nmeth.1253
6. [6]
  C. Larsson, I. Grundberg, O. Söderberg, et al., Nat. Methods 7 (2010) 395–397. doi: 10.1038/nmeth.1448
7. [7]
  H. Wang, H. Wang, X. Duan, et al., Chem. Sci. 8 (2017) 3635–3640. doi: 10.1039/C7SC00094D
8. [8]
  S.A.E. Marras, Y. Bushkin, S. Tyagi, Proc. Natl. Acad. Sci. U. S. A. 116 (2019) 13921–13926. doi: 10.1073/pnas.1814463116
9. [9]
  S.H. Rouhanifard, I.A. Mellis, M. Dunagin, et al., Nat. Biotechnol. 37 (2019) 84–89. doi: 10.1038/nbt.4286
10. [10]
  R. Ke, M. Mignardi, A. Pacureanu, et al., Nat. Methods 10 (2013) 857–860. doi: 10.1038/nmeth.2563
11. [11]
  J. Ge, L.L. Zhang, S.J. Liu, et al., Anal. Chem. 86 (2014) 1808–1815. doi: 10.1021/ac403741y
12. [12]
  S. Shah, E. Lubeck, M. Schwarzkopf, et al., Development 143 (2016) 2862–2867. doi: 10.1242/dev.138560
13. [13]
  J.R. Moffitt, J. Hao, D. Bambah-Mukku, et al., Proc. Natl. Acad. Sci. U. S. A. 113 (2016) 14456–14461. doi: 10.1073/pnas.1617699113
14. [14]
  G.J.S. Lohman, Y. Zhang, A.M. Zhelkovsky, et al., Nucleic Acids Res. 42 (2014) 1831–1844. doi: 10.1093/nar/gkt1032
15. [15]
  X. Cao, H. Yu, J. Xue, et al., Anal. Chem. 92 (2020) 9356–9361. doi: 10.1021/acs.analchem.0c01734
16. [16]
  Y. Zhang, J. Zhang, K.P. Hoeflich, et al., Mol. Cell 12 (2003) 913–923. doi: 10.1016/S1097-2765(03)00402-7
17. [17]
  J.H. Park, S. Yoshizumi, Y. Yamaguchi, et al., Proteins 81 (2013) 874–883. doi: 10.1002/prot.24246
18. [18]
  P.H. Culviner, M.T. Laub, Mol. Cell 70 (2018) 868–880. doi: 10.1016/j.molcel.2018.04.026
19. [19]
  Y. Zhang, J. Zhang, H. Hara, et al., J. Biol. Chem. 280 (2005) 3143–3150. doi: 10.1074/jbc.M411811200
20. [20]
  D.M. Dayeh, W.A. Cantara, J.P. Kitzrow, et al., Nucleic Acids Res. 46 (2018) e98. doi: 10.1093/nar/gky496
21. [21]
  V. Zorzini, A. Mernik, J. Lah, et al., J. Biol. Chem. 291 (2016) 10950–10960. doi: 10.1074/jbc.M116.715912
22. [22]
  K. Zhang, R. Deng, H. Gao, et al., J. Chem. Soc. Rev. 49 (2020) 1932–1954. doi: 10.1039/c9cs00438f
23. [23]
  N. Crosetto, M. Bienko, A. Van Oudenaarden, J. Nat. Rev. Genet. 16 (2015) 57–66. doi: 10.1038/nrg3832
24. [24]
  X. Cao, F. Chen, J. Xue, et al., J. Nucleic Acids Res. 51 (2023) e13. doi: 10.1093/nar/gkac1138
