Citation: Qiongqiong Wan, Yanan Xiao, Guifang Feng, Xin Dong, Wenjing Nie, Ming Gao, Qingtao Meng, Suming Chen. Visible-light-activated aziridination reaction enables simultaneous resolving of C=C bond location and the sn-position isomers in lipids[J]. Chinese Chemical Letters, ;2024, 35(4): 108775. doi: 10.1016/j.cclet.2023.108775 shu

Visible-light-activated aziridination reaction enables simultaneous resolving of C=C bond location and the sn-position isomers in lipids

The Institute for Advanced Studies, Renmin Hospital of Wuhan University, Wuhan University, Wuhan 430072, China

qtmeng@whu.edu.cn

sm.chen@whu.edu.cn

Received Date: 4 March 2023
Revised Date: 13 June 2023
Accepted Date: 5 July 2023
Available Online: 6 July 2023

Figures(4)

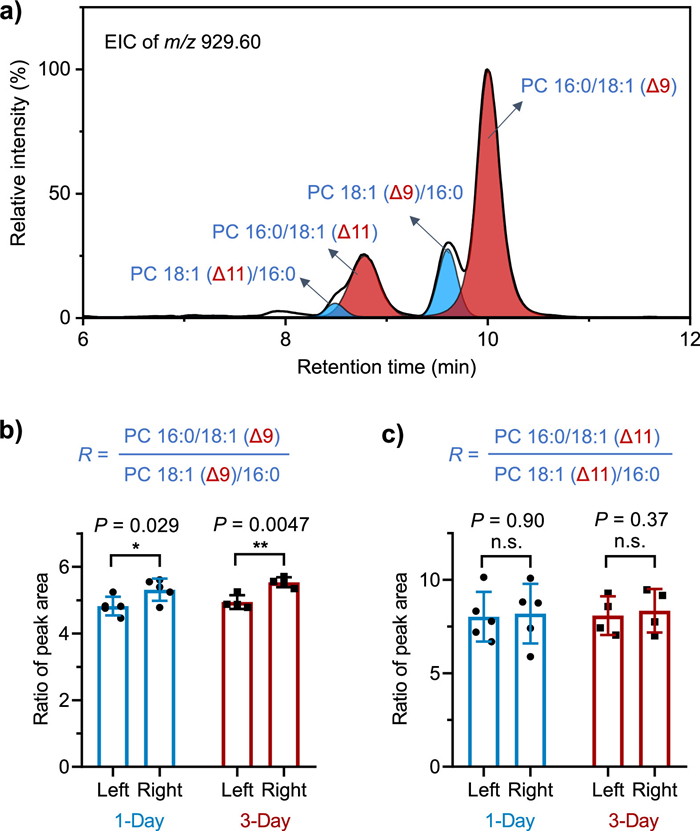

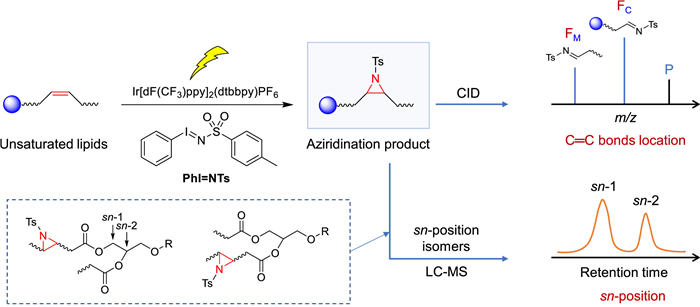

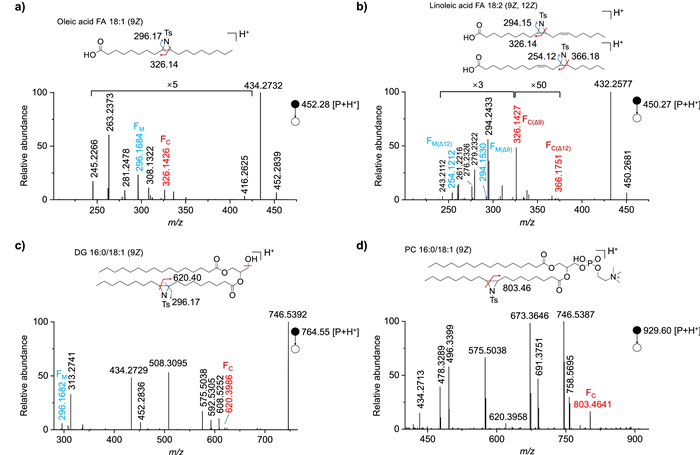

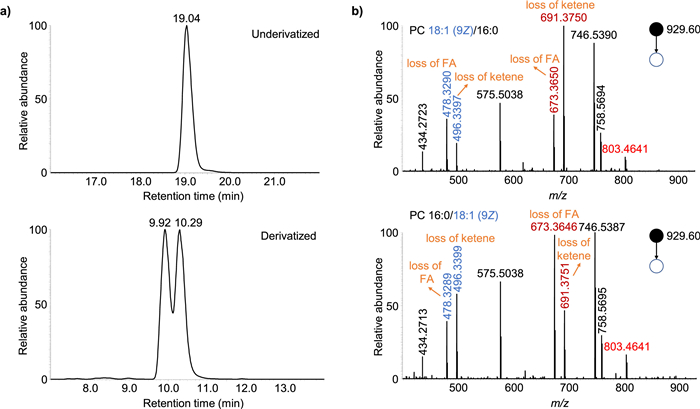

There is a close relationship between the biological functions of lipids and their structures, and various isomers greatly increases the complexity of lipid structures. The C=C bond location and sn-position are two of the essential attributes that determine the structures of unsaturated lipids. However, simultaneous identification of both attributes remains challenging. Here, we develop a visible-light-activated aziridination reaction system, which enables the dual-resolving of the C=C bond location and sn-position isomerism of in lipids when combines with liquid chromatography-mass spectrometry (LC-MS). Based on the derivatization of C=C bonds with PhI=NTs, their location in lipids could be easily identified by tandem MS. Especially, the sn-position isomers of unsaturated phosphatidylcholine (PC) can be separated and quantified by LC-MS after the derivatization. By using the proposed method, the significant changes of the sn-position isomers ratios of PC in mouse brain ischemia were revealed. This study offers a powerful tool for deep lipid structural biology.
- Aziridination,
- Lipid isomers,
- C=C bond location,
- sn-Position,
- Mass spectrometry
1. [1]
  M.P. Wymann, R. Schneiter, Nat. Rev. Mol. Cell Biol. 9 (2008) 162–176. doi: 10.1038/nrm2335
2. [2]
  X.L. Han, Nat. Rev. Endocrinol. 12 (2016) 668–679. doi: 10.1038/nrendo.2016.98
3. [3]
  Z. Wang, E. Klipfell, B.J. Bennett, et al., Nature 472 (2011) 57–63. doi: 10.1038/nature09922
4. [4]
  M.R. Wenk, Cell 143 (2010) 888–895. doi: 10.1016/j.cell.2010.11.033
5. [5]
  P. Xie, J. Zhang, P. Wu, et al., Chin. Chem. Lett. 34 (2023) 107349. doi: 10.1016/j.cclet.2022.03.072
6. [6]
  Y. Hao, Z. Zhang, G. Feng, et al., iScience 24 (2021) 102974. doi: 10.1016/j.isci.2021.102974
7. [7]
  B. Antonny, S. Vanni, H. Shindou, et al., Trends Cell Biol. 25 (2015) 427–436. doi: 10.1016/j.tcb.2015.03.004
8. [8]
  L.M. Bond, M. Miyazaki, L.M. O'Neill, F. Ding, J.M. Ntambi, Fatty acid desaturation and elongation in mammals, in: N.D. Ridgway, McLeod R.S. (Eds. ), Biochemistry of Lipids, Lipoproteins and Membranes, Elsevier, Netherlands, 2015, pp. 185–208.
9. [9]
  G. Feng, M. Gao, L. Wang, et al., Nat. Commun. 13 (2022) 2652. doi: 10.1038/s41467-022-30249-z
10. [10]
  G. Feng, Y. Hao, L. Wu, et al., Chem. Sci. 11 (2020) 7244–7251. doi: 10.1039/D0SC01149E
11. [11]
  C. Sun, C. Ma, L. Li, et al., Chin. Chem. Lett. 33 (2022) 2073–2076. doi: 10.1016/j.cclet.2021.08.034
12. [12]
  X. Ma, Y. Xia, Angew. Chem. Int. Ed. 53 (2014) 2592–2596. doi: 10.1002/anie.201310699
13. [13]
  M.C. Thomas, T.W. Mitchell, S.J. Blanksby, J. Am. Chem. Soc. 128 (2006) 58–59. doi: 10.1021/ja056797h
14. [14]
  P.E. Williams, D.R. Klein, S.M. Greer, et al., J. Am. Chem. Soc. 139 (2017) 15681–15690. doi: 10.1021/jacs.7b06416
15. [15]
  W. Cao, S. Cheng, J. Yang, et al., Nat. Commun. 11 (2020) 375. doi: 10.1038/s41467-019-14180-4
16. [16]
  N.S. Kelley, N.E. Hubbard, K.L. Erickson, J. Nutr. 137 (2007) 2599–2607. doi: 10.1093/jn/137.12.2599
17. [17]
  R. Bandu, H.J. Mok, K.P. Kim, Mass Spectrom. Rev. 37 (2018) 107–138. doi: 10.1002/mas.21510
18. [18]
  Q.Y. Cheng, J. Xiong, F. Wang, et al., Chin. Chem. Lett. 29 (2018) 115–118. doi: 10.1016/j.cclet.2017.06.009
19. [19]
  X.M. Tang, T.T. Ye, X.J. You, et al., Chin. Chem. Lett. 34 (2023) 107531. doi: 10.1016/j.cclet.2022.05.045
20. [20]
  T. Porta Siegel, K. Ekroos, S.R. Ellis, Angew. Chem. Int. Ed. 58 (2019) 6492–6501. doi: 10.1002/anie.201812698
21. [21]
  S. Tang, X. Chen, Y. Ke, et al., Anal. Chem. 94 (2022) 12750–12756. doi: 10.1021/acs.analchem.2c02375
22. [22]
  P. Müller, C. Fruit, Chem. Rev. 103 (2003) 2905–2920. doi: 10.1021/cr020043t
23. [23]
  M. Nakanishi, A.F. Salit, C. Bolm, Adv. Syn. Catal. 350 (2008) 1835–1840. doi: 10.1002/adsc.200700519
24. [24]
  Y. Zhao, H. Zhao, X. Zhao, et al., Anal. Chem. 89 (2017) 10270–10278. doi: 10.1021/acs.analchem.7b01870
25. [25]
  S. Masakado, Y. Kobayashi, Y. Takemoto, Chem. Pharm. Bull. 66 (2018) 688–690. doi: 10.1248/cpb.c18-00198
26. [26]
  G. Feng, M. Gao, R. Fu, et al., Biorxiv (2022) https://doi.org/10.1101/2022.04.24.489320. doi: 10.1101/2022.04.24.489320
