Citation: Junghwa Lee, Seungah Lee, Seong Ho Kang. Wavelength-dependent three-dimensional single-molecule superlocalization imaging for yoctomole detection of thyroid-stimulating hormone on a quantum dot nanobiosensor[J]. Chinese Chemical Letters, ;2023, 34(12): 108383. doi: 10.1016/j.cclet.2023.108383 shu

Wavelength-dependent three-dimensional single-molecule superlocalization imaging for yoctomole detection of thyroid-stimulating hormone on a quantum dot nanobiosensor

Junghwa Lee ^{a, 1} ,
Seungah Lee ^{b, 1} ,
Seong Ho Kang ^{a, b, *,}

a.
Department of Chemistry, Graduate School, Kyung Hee University, Yongin-si, Gyeonggi-do 17104, Republic of Korea
b.
Department of Applied Chemistry and Institute of Natural Sciences, Kyung Hee University, Yongin-si, Gyeonggi-do 17104, Republic of Korea

shkang@khu.ac.kr

Received Date: 12 January 2023
Revised Date: 10 February 2023
Accepted Date: 27 March 2023
Available Online: 30 March 2023

Figures(3)

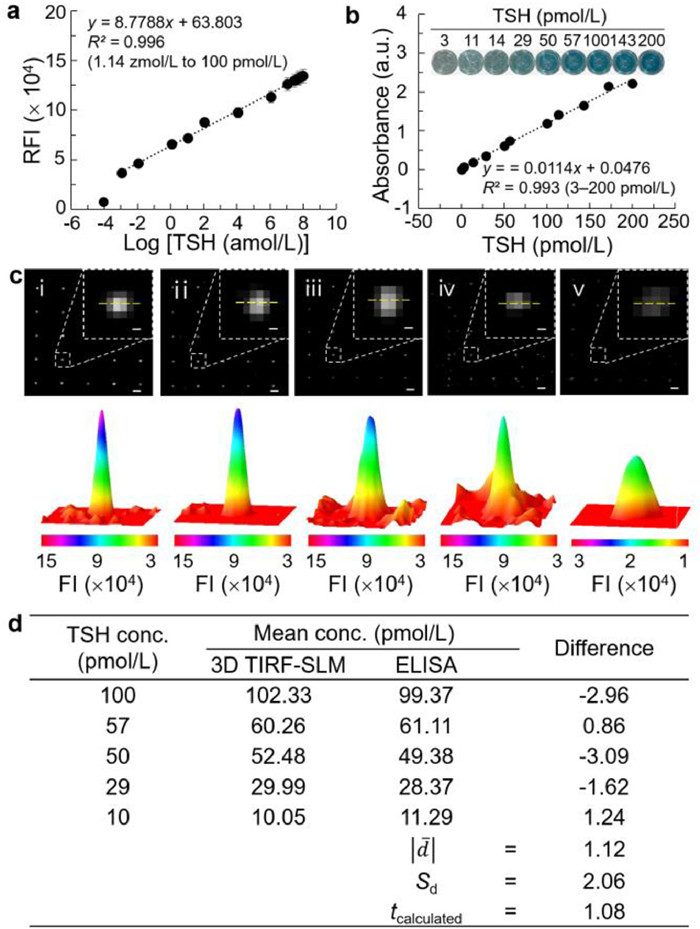

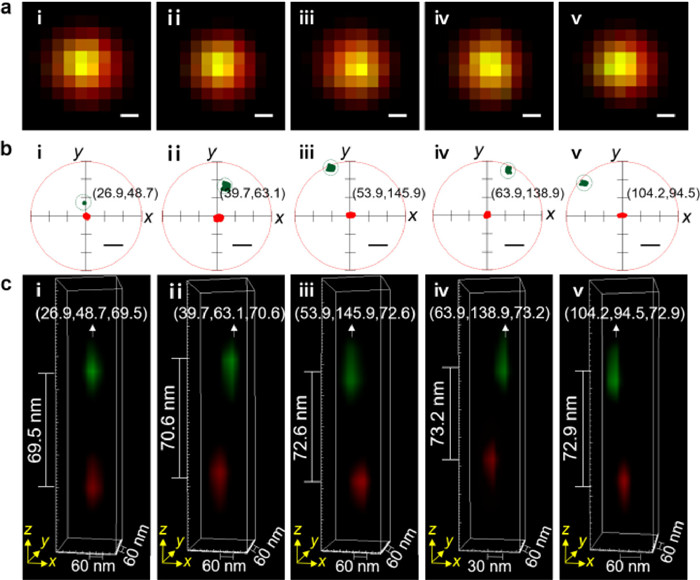

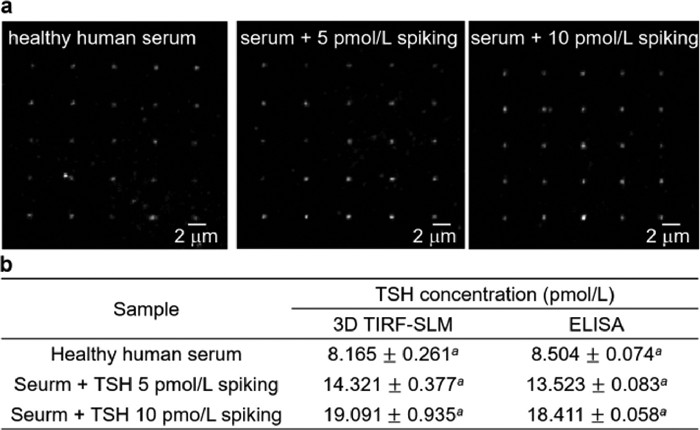

A wavelength-dependent three-dimensional (3D) superlocalization imaging method on gold nanoislands (GNIs) chip was developed as a supersensitive single-molecule thyroid-stimulating hormone (TSH) nanobiosensor. Scattered and fluorescent signals from gold nanoislands on the substrate and quantum dots (QDs) nanoprobes were simultaneously isolated and acquired within an evanescent field layer generated by total internal reflection (TIR) of incident light using a dual-view device. The 3D TIR fluorescence images of TSH-bound QDs on the GNIs were obtained using z-axis optical sectioning at 10 nm intervals before/after immunoreaction to identify the optimal conditions for detection. The localized centroid position of QD nanoprobes and GNI were distinguished at a subdiffraction limit resolution using 3D Gaussian fitting to the point spread function. The QD TSH nanobiosensor using wavelength-dependent 3D TIR fluorescence-based single-molecule localization microscopy (3D TIRF-SLM) imaging technique showed an excellent detection limit of 90 yoctomoles (~54 molecules) and a wide linear dynamic range of 1.14 zmol/L − 100 pmol/L for TSH. The detection sensitivity was about 4.4 × 10⁹ times higher than conventional enzyme-linked immunosorbent assay and could successfully quantify TSH in human serum. The wavelength-dependent 3D TIRF-SLM technique may emerge as a reliable platform for ultrahigh-sensitive nanobiosensors at the single-molecule level and early diagnosis with quantification of disease-related ultra-trace biomolecules.
- Single-molecule nanobiosensor,
- Thyroid stimulating hormone,
- Yoctomole detection,
- 3D superlocalization,
- Imaging
1. [1]
  N. Akkilic, S. Geschwindner, F. Höök, Biosens. Bioelectron. 151 (2020) 111944. doi: 10.1016/j.bios.2019.111944
2. [2]
  Y. Liu, B. Li, B. Liu, K. Zhang, Biosens. Basel 12 (2022) 1105. doi: 10.3390/bios12121105
3. [3]
  S. Lee, J. Lee, Y. Cao, C. An, S.H. Kang, Biosens. Bioelectron. : X 11 (2022) 100191.
4. [4]
  S.O. Kelley, ACS Sens. 2 (2017) 193–197. doi: 10.1021/acssensors.6b00691
5. [5]
  F. Karim, T.B. Smith, C. Zhao, J. Nanophotonics 12 (2017) 012504. doi: 10.1117/1.JNP.12.012504
6. [6]
  A. Shivanandan, H. Deschout, M. Scarselli, A. Radenovic, FEBS Lett. 588 (2014) 3595–3602. doi: 10.1016/j.febslet.2014.06.014
7. [7]
  D. Lando, U. Endesfelder, H. Berger, et al., Open Biol. 2 (2012) 120078. doi: 10.1098/rsob.120078
8. [8]
  J. Gunzenhäuser, N. Olivier, T. Pengo, S. Manley, Nano Lett. 12 (2012) 4705–4710. doi: 10.1021/nl3021076
9. [9]
  J. Rossy, D.M. Owen, D.J. Williamson, Z. Yang, K. Gaus, Nat. Immunol. 14 (2013) 82–89. doi: 10.1038/ni.2488
10. [10]
  A. Szymborska, A. de Marco, N. Daigle, et al., Science 341 (2013) 655–658. doi: 10.1126/science.1240672
11. [11]
  S. Ju, S. Lee, S.K. Chakkarapani, et al., Anal. Chem. 90 (2018) 5100–5107. doi: 10.1021/acs.analchem.7b05107
12. [12]
  S.K. Chakkarapani, Y. Sun, S.H. Kang, Sens. Actuator. B: Chem. 284 (2019) 81–90. doi: 10.1016/j.snb.2018.12.118
13. [13]
  S. Lee, J. Lee, I. Batjikh, H. Yu, S.H. Kang, ACS Sens. 7 (2022) 1372–1380. doi: 10.1021/acssensors.1c02572
14. [14]
  S. Ahn, P. Zhang, H. Yu, S. Lee, S.H. Kang, Anal. Chem. 88 (2016) 11070–11076. doi: 10.1021/acs.analchem.6b03069
15. [15]
  S. Ju, S. Lee, S.K. Chakkarapani, et al., Anal. Chem. 90 (2018) 5100–5107. doi: 10.1021/acs.analchem.7b05107
16. [16]
  Y. Cui, H. Chen, L. Hou, et al., Anal. Chim. Acta 738 (2012) 76–84. doi: 10.1016/j.aca.2012.06.013
17. [17]
  J. Lee, S. Lee, G. Lee, S.H. Kang, Biosens. Bioelectron. 220 (2023) 114894. doi: 10.1016/j.bios.2022.114894
18. [18]
  S. Lee, S.H. Kang, Talanta 99 (2012) 1030–1034. doi: 10.1016/j.talanta.2012.08.002
19. [19]
  S. Choi, J. Hwang, S. Lee, et al., Sens. Actuator. B: Chem. 240 (2017) 358–364. doi: 10.1016/j.snb.2016.08.178
20. [20]
  W. Jung, J. Han, J. Kai, et al., Lab Chip 13 (2013) 4653–4662. doi: 10.1039/c3lc50403d
21. [21]
  C. Shim, R. Chong, J.H. Lee, Talanta 171 (2017) 229–235. doi: 10.1016/j.talanta.2017.05.007
22. [22]
  S.L. Znoyko, A.V. Orlov, V.A. Bragina, M.P. Nikitin, P.I. Nikitin, Talanta 216 (2020) 120961. doi: 10.1016/j.talanta.2020.120961
23. [23]
  G. Choi, E. Kim, E. Park, J.H. Lee, Talanta 162 (2017) 38–45. doi: 10.1016/j.talanta.2016.09.061
24. [24]
  P. Preechakasedkit, K. Osada, Y. Katayama, et al., Analyst 143 (2018) 564–570. doi: 10.1039/C7AN01799E
