Citation: Shaoyu Tang, Zhujun Luo, Jianbo Liao, Zhun Liu, Lei Xu, Junfeng Niu. Degradation and detoxification mechanisms of organophosphorus flame retardant tris(1,3-dichloro-2-propyl) phosphate (TDCPP) during electrochemical oxidation process[J]. Chinese Chemical Letters, ;2023, 34(8): 108090. doi: 10.1016/j.cclet.2022.108090 shu

Degradation and detoxification mechanisms of organophosphorus flame retardant tris(1,3-dichloro-2-propyl) phosphate (TDCPP) during electrochemical oxidation process

Research Center for Eco-Environmental Engineering, Dongguan University of Technology, Dongguan 523808, China

xulei@ncepu.edu.cn

Received Date: 14 August 2022
Revised Date: 25 November 2022
Accepted Date: 20 December 2022
Available Online: 21 December 2022

Figures(3)

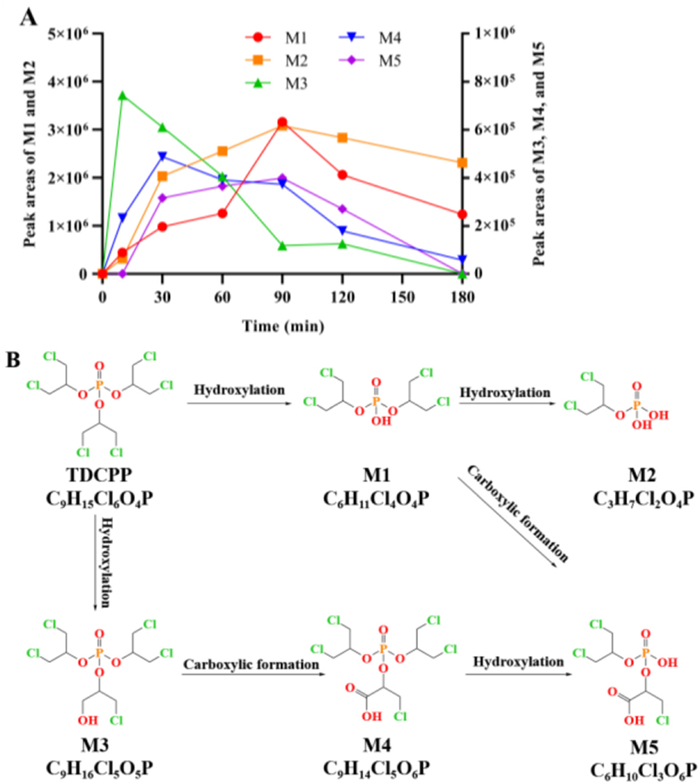

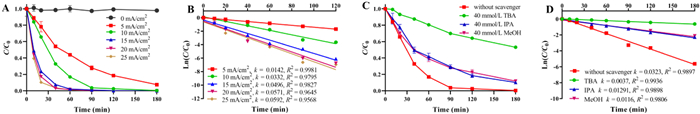

Electrochemical oxidation of aqueous tris(1,3-dichloro-2-propyl) phosphate (TDCPP) by using Ti/SnO₂-Sb/La-PbO₂ as anode was investigated for the first time, and the degradation mechanisms and toxicity changes of the degradation intermediates were further determined. Results suggested that electrochemical degradation of TDCPP followed pseudo-first-order kinetics, and the reaction rate constant (k) was 0.0332 min⁻¹ at the applied current density of 10 mA/cm² and Na₂SO₄ concentration of 10 mmol/L. There was better TDCPP degradation performance at higher current density. Free hydroxy radical (^·OH) was proved to play dominant role in TDCPP oxidation via quenching experiment, with a relative contribution rate of 60.1%. A total of five intermediates (M1, C₆H₁₁Cl₄O₄P; M2, C₃H₇Cl₂O₄P; M3, C₉H₁₆Cl₅O₅P; M4, C₉H₁₄Cl₅O₆P; M5, C₆H₁₀Cl₃O₆P) were identified, and the intermediates were further degraded prolonging with the reaction time. Flow cytometer results suggested that the toxicity of TDCPP and degradation intermediates significantly reduced, and the detoxification efficiency was achieved at 78.1% at 180 min. ECOSAR predictive model was used to assess the relative toxicity of TDCPP and the degradation intermediates. The EC₅₀ to green algae was 3.59 mg/L for TDCPP, and the values raised to 84, 574, 54.6, 391, and 8920 mg/L for M1, M2, M3, M4, and M5, respectively, indicating that the degradation intermediates are less toxic or not toxic. Electrochemical advanced oxidation process is a valid technology to degrade TDCPP and pose a good detoxification effect.
- Electrochemical oxidation process,
- Organophosphorus flame retardants,
- Degradation mechanisms,
- Mineralization,
- Detoxification
1. [1]
  I. van der Veen, J. de Boer, Chemosphere 88 (2012) 1119–1153. doi: 10.1016/j.chemosphere.2012.03.067
2. [2]
  S. Li, F. Zhu, D. Zhang, et al., Environ. Res. 199 (2021) 111318. doi: 10.1016/j.envres.2021.111318
3. [3]
  L. Yang, Z. Yin, Y. Tian, et al., J. Hazard. Mater. 431 (2022) 128517. doi: 10.1016/j.jhazmat.2022.128517
4. [4]
  C. Yao, H. Yang, Y. Li, Sci. Total Environ. 795 (2021) 148837. doi: 10.1016/j.scitotenv.2021.148837
5. [5]
  G. Chen, S. Zhang, Y. Jin, et al., Reprod. Toxicol. 57 (2015) 100–110. doi: 10.1016/j.reprotox.2015.05.011
6. [6]
  C. He, X. Wang, S. Tang, et al., Environ. Sci. Technol. 52 (2018) 12765–12773. doi: 10.1021/acs.est.8b03043
7. [7]
  C. He, X. Wang, T. Phong, et al., Environ. Pollut. 235 (2018) 670–679. doi: 10.1016/j.envpol.2017.12.017
8. [8]
  R. Hou, Y. Xu, Z. Wang, Chemosphere 153 (2016) 78–90. doi: 10.1016/j.chemosphere.2016.03.003
9. [9]
  B.V. Krivoshiev, G.T.S. Beemster, K. Sprangers, R. Blust, S.J. Husson, J. Appl. Toxicol. 38 (2018) 459–470. doi: 10.1002/jat.3553
10. [10]
  Y. Chen, J. Ye, Y. Chen, et al., Chem. Eng. J. 356 (2019) 98–106. doi: 10.1016/j.cej.2018.09.007
11. [11]
  L. Xu, X. Qian, K. Wang, C. Fang, J. Niu, J. Clean. Prod. 263 (2020) 121546. doi: 10.1016/j.jclepro.2020.121546
12. [12]
  R. Stirling, W.S. Walker, P. Westerhoff, S. Garcia-Segura, Electrochim. Acta 338 (2020) 135874. doi: 10.1016/j.electacta.2020.135874
13. [13]
  H. Feng, Z. Chen, X. Wang, S. Chen, J. Crittenden, Chem. Eng. J. 413 (2021) 127492. doi: 10.1016/j.cej.2020.127492
14. [14]
  J. Li, Y. Li, Z. Xiong, G. Yao, B. Lai, Chin. Chem. Lett. 30 (2019) 2139–2146. doi: 10.1016/j.cclet.2019.04.057
15. [15]
  A. Blum, M. Behl, L.S. Birnbaum, et al., Environ. Sci. Technol. Lett. 6 (2019) 638–649. doi: 10.1021/acs.estlett.9b00582
16. [16]
  C. Wang, H. Chen, H. Li, et al., Environ. Int. 143 (2020) 105946. doi: 10.1016/j.envint.2020.105946
17. [17]
  D. Cui, J. Bi, Z.N. Zhang, et al., Sci. Total Environ. 726 (2020) 138526. doi: 10.1016/j.scitotenv.2020.138526
18. [18]
  S. Song, L. Zhan, Z. He, et al., J. Hazard. Mater. 175 (2010) 614–621. doi: 10.1016/j.jhazmat.2009.10.051
19. [19]
  Y. Wang, C. Zhou, J. Wu, J. Niu, Chin. Chem. Lett. 31 (2020) 2673–2677. doi: 10.1016/j.cclet.2020.03.073
20. [20]
  C. Wang, Y. Yu, L. Yin, J. Niu, L.A. Hou, Chemosphere 163 (2016) 584–591. doi: 10.1016/j.chemosphere.2016.08.057
21. [21]
  L. Xu, X. Cui, J. Liao, et al., Chin. Chem. Lett. 33 (2022) 3701–3704. doi: 10.1016/j.cclet.2021.10.065
22. [22]
  X. Qian, K. Peng, L. Xu, et al., Chem. Eng. J. 429 (2022) 132309. doi: 10.1016/j.cej.2021.132309
23. [23]
  L. Xu, S. Tang, D. Li, et al., Sep. Purif. Technol. 265 (2021) 118489. doi: 10.1016/j.seppur.2021.118489
24. [24]
  X. Yuan, S. Lacorte, J. Cristale, et al., Sep. Purif. Technol. 156 (2015) 1028–1034. doi: 10.1016/j.seppur.2015.09.052
25. [25]
  T. Tang, G. Lu, W. Wang, et al., Chemosphere 206 (2018) 26–32. doi: 10.1016/j.chemosphere.2018.04.161
26. [26]
  X. Yu, M. Li, S. Tang, et al., Chem. Eng. J. 423 (2021) 130261. doi: 10.1016/j.cej.2021.130261
27. [27]
  X. Yu, H. Yin, H. Peng, et al., Chemosphere 241 (2020) 124991. doi: 10.1016/j.chemosphere.2019.124991
28. [28]
  Q. Sui, W. Gebhardt, H.F. Schroeder, et al., Environ. Sci. Technol. 51 (2017) 2262–2270. doi: 10.1021/acs.est.6b03548
29. [29]
  K.S. Tay, N. Madehi, Sci. Total Environ. 520 (2015) 23–31. doi: 10.1016/j.scitotenv.2015.03.033
