Citation: Siyu Chang, Jun Bu, Jinjin Li, Jin Lin, Zhenpeng Liu, Wenxiu Ma, Jian Zhang. Highly efficient electrocatalytic deuteration of acetylene to deuterated ethylene using deuterium oxide[J]. Chinese Chemical Letters, ;2023, 34(5): 107765. doi: 10.1016/j.cclet.2022.107765 shu

Highly efficient electrocatalytic deuteration of acetylene to deuterated ethylene using deuterium oxide

Siyu Chang ^a ,
Jun Bu ^a ,
Jinjin Li ^a ,
Jin Lin ^a ,
Zhenpeng Liu ^b ,
Wenxiu Ma ^a ,
Jian Zhang ^{a, b, *,}

a.
Key Laboratory of Special Functional and Smart Polymer Materials of Ministry of Industry and Information Technology, School of Chemistry and Chemical Engineering, Northwestern Polytechnical University, Xi'an 710129, China
b.
State Key Laboratory of Solidification Processing and School of Materials Science and Engineering, Northwestern Polytechnical University, Xi'an 710072, China

zhangjian@nwpu.edu.cn

Received Date: 5 April 2022
Revised Date: 6 August 2022
Accepted Date: 19 August 2022
Available Online: 21 August 2022

Figures(4)

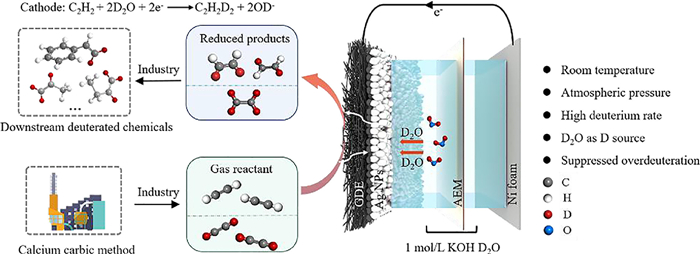

Deuterated ethylene is an important building block for manufacturing various deuterated polyolefins and chemicals. However, low-cost and large-scale production of deuterated ethylene still remain a great challenge. Herein, with D₂O as the D source, we first propose an electrocatalytic deuteration strategy for continuous production of deuterated ethylene from acetylene under ambient conditions. Specially, Ag nanoparticles exhibit a very high deuterated ethylene Faradic efficiency of up to 99.3% at –0.6 V vs. reversible hydrogen electrode. Meanwhile, Ag nanoparticles achieve a deuterated ethylene production rate of 3.72 × 10³ mmol h^–1 g_cat^–1 and an excellent long-term stability with deuterated ethylene Faradaic efficiencies of ~95% in a two-electrode flow cell, which substantially outperform state-of-the-art values for previously reported deuterated alkenes. In-situ electrochemical Infrared absorption and Raman spectroscopies reveal superior acetylene absorption and formation of deuterated ethylene on Ag nanoparticles. This efficient electrocatalytic deuteration strategy opens a new window for continuous and economic production of deuterated alkenes.
- Electrocatalysis,
- Deuteration,
- Acetylene,
- Deuterated ethylene,
- Deuterium oxide
1. [1]
  K.K. Irikura, J. Phys. Chem. Ref. Data 36 (2007) 389–397. doi: 10.1063/1.2436891
2. [2]
  B. Belleau, J. Burba, Science 133 (1961) 102–104. doi: 10.1126/science.133.3446.102
3. [3]
  R. Lowery, M.I. Gibson, R.L. Thompson, et al., Chem. Commun. 51 (2015) 4838–4841. doi: 10.1039/C4CC09588J
4. [4]
  E.M. Simmons, J.F. Hartwig, Angew. Chem. Int. Ed. 51 (2012) 3066–3072. doi: 10.1002/anie.201107334
5. [5]
  M. Liu, Y. Zheng, Q. Chen, et al., J. Nucl. Mater. 535 (2020) 152–159.
6. [6]
  T.R. Puleo, A.J. Strong, J.S. Bandar, J. Am. Chem. Soc. 141 (2019) 1467–1472. doi: 10.1021/jacs.8b12874
7. [7]
  A. Di Giuseppe, R. Castarlenas, J.J. Perez-Torrente, et al., Angew. Chem. Int. Ed. 50 (2011) 3938–3942. doi: 10.1002/anie.201007238
8. [8]
  S.K.S. Tse, P. Xue, Z. Lin, et al., Adv. Synth. Catal. 352 (2010) 1512–1522. doi: 10.1002/adsc.201000037
9. [9]
  E. Shirakawa, H. Otsuka, T. Hayashi, Chem. Commun. 37 (2005) 5885–5886.
10. [10]
  G. Erdogan, D.B. Grotjahn, J. Am. Chem. Soc. 131 (2009) 10354–10355. doi: 10.1021/ja903519a
11. [11]
  J. Atzrodt, V. Derdau, W.J. Kerr, et al., Angew. Chem. Int. Ed. 57 (2018) 3022–3047. doi: 10.1002/anie.201708903
12. [12]
  M. Tinga, G. Schat, O.S. Akkerman, et al., J. Am. Chem. Soc. 115 (1993) 2808–2817. doi: 10.1021/ja00060a030
13. [13]
  K. Harada, H. Urabe, F. Sato, Tetrahedron Lett. 36 (1995) 3203–3206. doi: 10.1016/0040-4039(95)00513-C
14. [14]
  J.C.T.E.M. Richards, R.S. Ward, D.H. Williams, J. Chem. Soc. 11 (1969) 1542–1544.
15. [15]
  Y. Yabe, Y. Sawama, Y. Monguchi, et al., Chem. Eur. J. 19 (2013) 484–488. doi: 10.1002/chem.201203337
16. [16]
  Y. Wang, Z. Huang, X. Leng, et al., J. Am. Chem. Soc. 140 (2018) 4417–4429. doi: 10.1021/jacs.8b01038
17. [17]
  M. Han, Y. Ding, Y. Yan, et al., Org. Lett. 20 (2018) 3010–3013. doi: 10.1021/acs.orglett.8b01036
18. [18]
  Y. Kataoka, K. Takai, K. Oshima, et al., J. Org. Chem. 57 (1992) 1615–1618. doi: 10.1021/jo00031a057
19. [19]
  Y. Wu, C. Liu, C. Wang, et al., Angew. Chem. Int. Ed. 59 (2020) 21170–21175. doi: 10.1002/anie.202009757
20. [20]
  A. Kurimoto, R.S. Sherbo, Y. Cao, et al., Nat. Catal. 3 (2020) 719–726. doi: 10.1038/s41929-020-0488-z
21. [21]
  J. Bu, Z. Liu, W. Ma, et al., Nat. Catal. 4 (2021) 557–564. doi: 10.1038/s41929-021-00641-x
22. [22]
  L. Zhang, Z. Chen, Z. Liu, et al., Nat. Commun. 12 (2021) 6574. doi: 10.1038/s41467-021-26853-0
23. [23]
  Z. Lu, W. Xu, W. Zhu, et al., Chem. Commun. 50 (2014) 6479–6482. doi: 10.1039/C4CC01625D
24. [24]
  Z. -S. Cai, Y. Shi, S. -S. Bao, et al., ACS Catal. 8 (2018) 3895–3902. doi: 10.1021/acscatal.7b04276
25. [25]
  J. Moon, Y. Cheng, L.L. Daemen, et al., ACS Catal. 10 (2020) 5278–5287. doi: 10.1021/acscatal.0c00808
26. [26]
  A.V. Ivanov, A.E. Koklin, E.B. Uvarova, et al., Phy. Chem. Chem. Phys. 5 (2003) 4718–4723. doi: 10.1039/b307138c
27. [27]
  J.D. Krooswyk, I. Waluyo, M. Trenary, ACS Catal. 5 (2015) 4725–4733. doi: 10.1021/acscatal.5b00942
28. [28]
  R. Deng, J. Jones, M. Trenary, J. Phy. Chem. C 111 (2007) 1459–1466. doi: 10.1021/jp065710r
29. [29]
  L. Letendre, D.K. Liu, C.D. Pibel, et al., J. Chem. Phys. 112 (2000) 9209–9212. doi: 10.1063/1.481542
30. [30]
  B.L. Crawford, J.E. Lancaster, R.G. Inskeep, J. Chem. Phys. 21 (1953) 678–686. doi: 10.1063/1.1698989
31. [31]
  W.L. Parker, A.R. Siedle, R.M. Hexter, J. Am. Chem. Soc. 107 (1985) 264–266. doi: 10.1021/ja00287a055
32. [32]
  K. Manzel, W. Schulze, M. Moskovits, Chem. Phy. Lett. 85 (1982) 183–186. doi: 10.1016/0009-2614(82)80328-X
33. [33]
  M.L. Patterson, M.J. Weaver, J. Phys. Chem. 89 (1985) 5046–5051. doi: 10.1021/j100269a032
34. [34]
  M.F. Mrozek, M.J. Weaver, J. Phys. Chem. B 105 (2001) 8931–8937.
35. [35]
  M. de Hemptinne, J. Jungers, J. Delfrosse, Nature 140 (1937) 323–324. doi: 10.1038/140323a0
36. [36]
  C.M. M de Hemptinne, Proc. Indian Acad. Sci. 9 (1939) 286–302. doi: 10.1007/BF03046468
