Citation: Xiaoshuai Han, Zhenxing Wang, Linhu Ding, Lian Chen, Feng Wang, Junwen Pu, Shaohua Jiang. Water molecule-induced hydrogen bonding between cellulose nanofibers toward highly strong and tough materials from wood aerogel[J]. Chinese Chemical Letters, ;2021, 32(10): 3105-3108. doi: 10.1016/j.cclet.2021.03.044 shu

Water molecule-induced hydrogen bonding between cellulose nanofibers toward highly strong and tough materials from wood aerogel

Xiaoshuai Han ^a ,
Zhenxing Wang ^b ,
Linhu Ding ^a ,
Lian Chen ^a ,
Feng Wang ^a ,
Junwen Pu ^b ,
Shaohua Jiang ^{a, *,}

a.
Co-Innovation Center of Efficient Processing and Utilization of Forest Resources, College of Materials Science and Engineering, Nanjing Forestry University, Nanjing 210037, China
b.
MOE Engineering Research Center of Forestry Biomass Materials and Bioenergy, Beijing Forestry University, Beijing 100083, China

shaohua.jiang@njfu.edu.cn

Received Date: 15 February 2021
Revised Date: 13 March 2021
Accepted Date: 17 March 2021
Available Online: 19 March 2021

Figures(4)

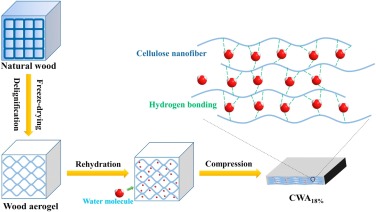

Lightweight, highly strong and bio-based structural materials remain a long-lasting challenge. Here, inspired by nacre, a lightweight and high mechanical performance cellulosic material was fabricated via a facile and effective top-down approach and the resulting material has a high tensile strength of 149.21MPa and toughness of 1.91 MJ/m³. More specifically, the natural balsawood (NW) was subjected to a simple chemical treatment, removing most lignin and partial hemicellulose, follow by freeze-drying, forming wood aerogel (WA). The delignification process produced many pores and exposed numerous aligned cellulose nanofibers. Afterwards, the WA absorbed a quantity of moisture and was directly densified to form above high-performance cellulosic material. Such treatment imitates highly ordered "brick-and-mortar" arrangement of nacre, in which water molecules plays the role of mortar and cellulose nanofibrils make the brick part. The lightweight and good mechanical properties make this material promising for new energy car, aerospace, etc. This paper also explains the strengthening mechanism for making biomimetic materials by water molecules-induced hydrogen bonding and will open a new path for designing high-performance bio-based structural materials.
- Wood aerogel,
- Cellulose nanofibers,
- Water molecules,
- Hydrogen bonding,
- Strength and toughness
1. [1]
  R.O. Ritchie, Nat. Mater. 10 (2011) 817-822 doi: 10.1038/nmat3115
2. [2]
  W. Cui, M.Z. Li, J.Y. Liu, et al., ACS Nano 8 (2014) 9511-9517 doi: 10.1021/nn503755c
3. [3]
  Y.P. Feng, L.P. Ding, D.Y. Ji, L.L. Wang, W. Guo, Chin. Chem. Lett. 29 (2018) 892-894 doi: 10.1016/j.cclet.2018.01.053
4. [4]
  W. Li, J. Liu, B. Liang, Y. Shu, J. Wang, Compos. Part B: Eng. 204 (2021) 108492 doi: 10.1016/j.compositesb.2020.108492
5. [5]
  Y.X. Liu, S.H. Yu, L. Bergstrom, Adv. Funct. Mater. 28 (2018) 1703277 doi: 10.1002/adfm.201703277
6. [6]
  P. Xu, T. Erdem, E. Eiser, Soft Matter. 16 (2020) 5497-5505 doi: 10.1039/c9sm01585j
7. [7]
  Y. Wang, T. Li, P.M. Ma, et al., ACS Nano 12 (2018) 6228-6235 doi: 10.1021/acsnano.8b03025
8. [8]
  H.L. Gao, S.M. Chen, L.B. Mao, et al., Nat. Commun. 8 (2017) 287 doi: 10.1038/s41467-017-00392-z
9. [9]
  Y.P. Chen, B.K. Dang, C.D. Jin, Q.F. Sun, ACS Nano 13 (2019) 371-376 doi: 10.1021/acsnano.8b06409
10. [10]
  Y.P. Chen, J.Z. Fu, B.K. Dang, et al., ACS Nano 14 (2020) 2036-2043 doi: 10.1021/acsnano.9b08647
11. [11]
  Y. Zou, P. Yang, L. Yang, et al., Polymer 217 (2021) 123464 doi: 10.1016/j.polymer.2021.123464
12. [12]
  L. Chen, Z. Xu, F. Wang, et al., Compos. Commun. 20 (2020) 100355 doi: 10.1016/j.coco.2020.05.001
13. [13]
  F. Wang, J.Y. Cheong, Q. He, et al., Chem. Eng. J. 414 (2021) 128767 doi: 10.1016/j.cej.2021.128767
14. [14]
  C. Wang, Z. Yang, X. Wang, Q. Yu, J. For. Eng. 4 (2019) 10-18
15. [15]
  B. Joseph, S.V. K, C. Sabu, N. Kalarikkal, S. Thomas, J. Bioresour. Bioprod. 5 (2020) 223-237 doi: 10.1016/j.jobab.2020.10.001
16. [16]
  X.S. Han, R. Bi, H. Oguzlu, ACS Sustain. Chem. Eng. 8 (2020) 14955-14963 doi: 10.1021/acssuschemeng.0c05183
17. [17]
  M.Y. Li, S.C. Cheng, D. Li, et al., Chin. Chem. Lett. 26 (2015) 221-225 doi: 10.1016/j.cclet.2014.11.024
18. [18]
  D.W. Wei, H. Wei, A.C. Gauthier, et al., J. Bioresour. Bioprod. 5 (2020) 1-15 doi: 10.1016/j.jobab.2020.03.001
19. [19]
  F. Xu, Y. Chen, T. You, J. Mao, X. Zhang, J. For. Eng. 4 (2019) 1-7 doi: 10.31186/jenggano.4.1.1-11
20. [20]
  X.S. Han, Y.H. Ye, F. Lam, J.W. Pu, F. Jiang, J. Mater. Chem. A 7 (2019) 27023-27031 doi: 10.1039/c9ta11118b
21. [21]
  Q.Q. Mei, X.J. Shen, H.Z. Liu, B.X. Han, Chin. Chem. Lett. 30 (2019) 15-24 doi: 10.1016/j.cclet.2018.04.032
22. [22]
  B. Thomas, M.C. Raj, K.B. Athira, et al., Chem. Rev. 118 (2018) 11575-11625 doi: 10.1021/acs.chemrev.7b00627
23. [23]
  R.J. Moon, A. Martini, J. Nairn, J. Simonsen, J. Youngblood, Chem. Soc. Rev. 40 (2011) 3941-3994 doi: 10.1039/c0cs00108b
24. [24]
  H.L. Zhu, S.Z. Zhu, Z. Jia, et al., Proc. Natl. Acad. Sci. U. S. A. 112 (2015) 8971-8976 doi: 10.1073/pnas.1502870112
25. [25]
  W.T. Cao, F.F. Chen, Y.J. Zhu, et al., ACS Nano 12 (2018) 4583-4593 doi: 10.1021/acsnano.8b00997
26. [26]
  L. Chang, Z. Peng, T. Zhang, C. Yu, W. Zhong, Nanoscale 13 (2021) 3079-3091 doi: 10.1039/d0nr08090j
27. [27]
  S.K. Biswas, H. Sano, M.I. Shams, H. Yano, ACS Appl. Mater. Inter. 9 (2017) 30177-30184 doi: 10.1021/acsami.7b09390
28. [28]
  Q.H. Tang, L. Fang, Y.F. Wang, M. Zou, W.J. Guo, Nanoscale 10 (2018) 4344-4353 doi: 10.1039/C7NR08367J
29. [29]
  R.Y. Mi, T. Li, D. Dalgo, et al., Adv. Funct. Mater. 30 (2020) 1907511 doi: 10.1002/adfm.201907511
30. [30]
  O.C. Compton, S.W. Cranford, K.W. Putz, et al., ACS Nano 6 (2012) 2008-2019 doi: 10.1021/nn202928w
31. [31]
  Q. Zhang, T. Li, A. Duan, et al., J. Am. Chem. Soc. 141 (2019) 8058-8063 doi: 10.1021/jacs.9b02677
32. [32]
  M. Frey, D. Widner, J.S. Segmehl, et al., ACS Appl. Mater. Inter. 10 (2018) 5030-5037 doi: 10.1021/acsami.7b18646
33. [33]
  Y. Hou, Q.F. Guan, J. Xia, et al., ACS Nano 15 (2021) 1310-1320 doi: 10.1021/acsnano.0c08574
34. [34]
  Y.B. Zhou, C.J. Chen, S.Z. Zhu, et al., Mater. Today 30 (2019) 17-25 doi: 10.1117/12.2510310
35. [35]
  T. Li, C.J. Chen, A.H. Brozena, et al., Nature 590 (2021) 47-56 doi: 10.1038/s41586-020-03167-7
