Citation: Zhen Fang, Yuting Liang, Xiaomei Wang, Shuhan Zhang, Jun Yu, Hu Xu, Yuhong Wang. A novel phosphorus oxide quantum dots as an emissive nanomaterial for inorganic ions screening and bioimaging[J]. Chinese Chemical Letters, ;2021, 32(9): 2856-2860. doi: 10.1016/j.cclet.2021.02.024 shu

A novel phosphorus oxide quantum dots as an emissive nanomaterial for inorganic ions screening and bioimaging

Research Institute of Applied Catalysis, School of Chemical and Environmental Engineering, Shanghai Institute of Technology, Shanghai 201418, China

xuhu@sit.edu.cn

yuhong_wang502@sit.edu.cn

Received Date: 6 November 2020
Revised Date: 10 January 2021
Accepted Date: 9 February 2021
Available Online: 15 February 2021

Figures(4)

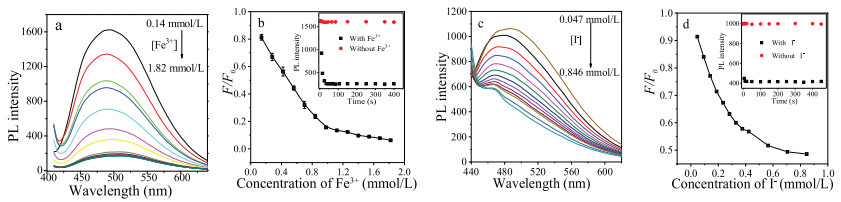

In this work, a novel blue-green fluorescence phosphorous oxide quantum dots (PO QDs) was synthesized by solvothermal method in N-methyl-2-pyrrolidone (NMP) solution without any protection treatment during synthesis. Upon excitation at 400 nm, PO QDs emitted blue-green fluorescence with quantum yield of 0.28. PO QDs exhibited the high inertness to air or moisture, the excellent water solubility, and stable emission intensity in a wide pH range and in high ionic strength solution. Interestingly, PO QDs could give the positive optical response to iron ions (Fe³⁺) and iodine ion (I⁻). The photoluminescence (PL) of PO QDs could be directly quenched by Fe³⁺. While I⁻ quenched the PO QDs PL by means of Ag⁺-mediated PO QDs system via the internal filtration effects (IFE) induced by the formation of AgI. Moreover, the biocompatibility and low toxicity of PO QDs verified in bean sprout and Hela cells indicated the promising application of PO QDs in medicine related fields. Furthermore, PO QDs could also be utilized in luminescent composite film for various application scenarios
- Phosphorus oxide quantum dots,
- Emissive material,
- Bioimaging,
- Ion screening,
- Iodine ion,
- Iron ion
1. [1]
  Z. Sun, H. Xie, S. Tang et al., Angew. Chem. Int. Ed. 54 (2015) 11526-11530 doi: 10.1002/anie.201506154
2. [2]
  H. Wang, X. Yang, W. Shao et al., J. Am. Chem. Soc. 137 (2015) 11376-11382 doi: 10.1021/jacs.5b06025
3. [3]
  D.P. Dubal, N.R. Chodankar, D.H. Kim, P.T. Gomez-Romero, Chem. Soc. Rev. 47 (2018) 2065-2129 doi: 10.1039/c7cs00505a
4. [4]
  A. Hirsch, F. Hauke, Angew Chem. Int. Ed. 57 (2018) 4338-4354 doi: 10.1002/anie.201708211
5. [5]
  J.H. Ryu, H.J. Kim, K. Kim et al., Adv. Funct. Mater. 29 (2019) 1900495 doi: 10.1002/adfm.201900495
6. [6]
  L. Houjing, S. Mingxia, S. Yingying et al., Chem. Commun. 54 (2018) 7987-7990 doi: 10.1039/C8CC04513E
7. [7]
  R.L. Kumawat, B. Pathak, Appl. Surf. Sci. 529 (2020) 147094 doi: 10.1016/j.apsusc.2020.147094
8. [8]
  H. Ren, Y. Zhou, Y. Wang et al., Sens. Actuators B: Chem. 321 (2020) 128520 doi: 10.1016/j.snb.2020.128520
9. [9]
  K. Rathi, K. Pal, ACS Appl. Mater. Interfaces. 12 (2020) 38365-38375 doi: 10.1021/acsami.0c10285
10. [10]
  Q. Yue, Y. Hu, L. Tao et al., Mikrochim. Acta 186 (2019) 640. doi: 10.1007/s00604-019-3768-z
11. [11]
  P. Guo, W.H. Song, S. Yan, Opt. Commun. 406 (2018) 91-94 doi: 10.1016/j.optcom.2017.05.081
12. [12]
  L. Ren, H. Li, J. Du, Microchim. Acta 187 (2020) 229-236 doi: 10.1007/s00604-020-4222-y
13. [13]
  I.E.V. Rosales, L. Rovigatti, E. Bianchi, C.N. Likos, E. Locatelli, Nanoscale 12 (2020) 21188-21197 doi: 10.1039/D0NR05058J
14. [14]
  Y.T. Yew, Z. Sofer, C.C. Mayorga-Martineza, M. Pumera, Mater. Chem. Front. 1 (2017) 1130-1136 doi: 10.1039/C6QM00341A
15. [15]
  J. Zhou, Z. Li, M. Ying, et al., Nanoscale 10 (2018) 5060-5064 doi: 10.1039/C7NR08900G
16. [16]
  Z. Hua, Y. Lia, E. Hussaina, et al., Talanta 197 (2019) 270-276 doi: 10.1016/j.talanta.2019.01.023
17. [17]
  J. Peng, Y. Lai, Y. Chen et al., Small 13 (2017) 1603589 doi: 10.1002/smll.201603589
18. [18]
  W. Gu, Y.H. Yan, X.Y. Pei et al., Sen. Actuators B: Chem. 250 (2017) 601-607 doi: 10.1016/j.snb.2017.05.017
19. [19]
  W. Gu, X. Pei, Y. Cheng et al., ACS Sens. 2 (2017) 576-582 doi: 10.1021/acssensors.7b00102
20. [20]
  Z.Y. Xu, L. Hu, J. Yuan et al., Adv. Mater. Interfaces. 7 (2020) 1902075 doi: 10.1002/admi.201902075
21. [21]
  J. Kang, J.D. Wood, S.A. Wells et al., ACS Nano 9 (2015) 3596-3604 doi: 10.1021/acsnano.5b01143
22. [22]
  Z.N. Guo, H. Zhang, S.B. Lu et al., Adv. Funct. Mater. 25 (2015) 6996-7002 doi: 10.1002/adfm.201502902
23. [23]
  J.H. Brannon, D. Magde, J. Phys. Chem. 82 (1978) 706-709
24. [24]
  Z. Shen, S. Sun, W. Wang et al., J. Mater. Chem. A 3 (2015) 3285-3288 doi: 10.1039/C4TA06871H
25. [25]
  A.G. Kannan, N.R. Choudhury, N.K. Dutta, Org. Lett. 48 (2007) 7078-7086
26. [26]
  J. Wang, R. Sheng, H. Li et al., Biosens. Bioelectron. 97 (2017) 157-163 doi: 10.3847/1538-4357/aa937f
27. [27]
  P. Wang, Y. Xia, P.P. Wu, et al., J. Phys. Chem. C 118 (2014) 8891-8898 doi: 10.1021/jp410413s
