Citation: Bin Guan, Xun Sun, Yu Zhang, Xian Wu, Yue Qiu, Maoxu Wang, Lishuang Fan, Naiqing Zhang. The discovery of interfacial electronic interaction within cobalt boride@MXene for high performance lithium-sulfur batteries[J]. Chinese Chemical Letters, ;2021, 32(7): 2249-2253. doi: 10.1016/j.cclet.2020.12.051 shu

The discovery of interfacial electronic interaction within cobalt boride@MXene for high performance lithium-sulfur batteries

Bin Guan ^a ,
Xun Sun ^a ,
Yu Zhang ^a ,
Xian Wu ^a ,
Yue Qiu ^a ,
Maoxu Wang ^a ,
Lishuang Fan ^{a, b, *,} ,
Naiqing Zhang ^{a, b, *,}

a.
State Key Laboratory of Urban Water Resource and Environment, School of Chemistry and Chemical Engineering, Harbin Institute of Technology, Harbin 150001, China
b.
Academy of Fundamental and Interdisciplinary Sciences, Harbin Institute of Technology, Harbin 150001, China

fanlsh@hit.edu.cn

znqmww@163.com

Received Date: 13 November 2020
Revised Date: 7 December 2020
Accepted Date: 22 December 2020
Available Online: 31 December 2020

Figures(5)

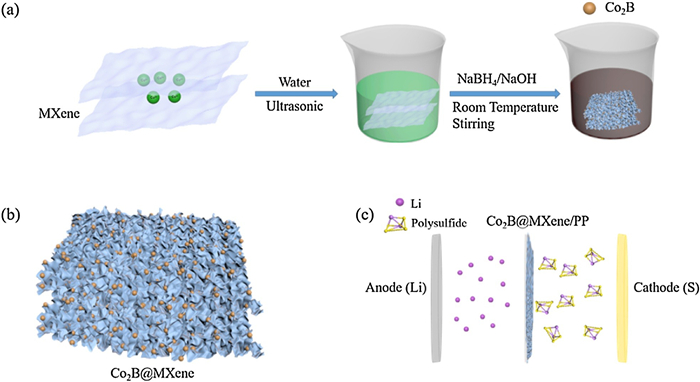

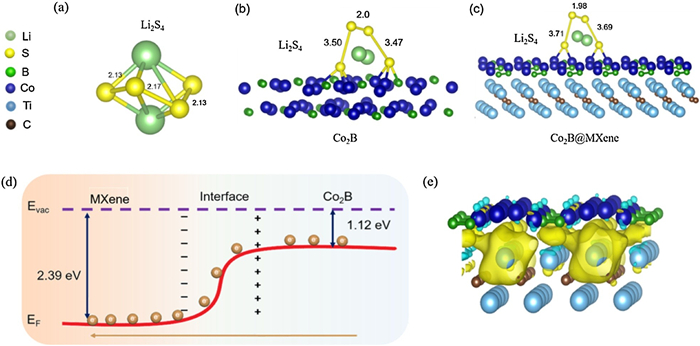

Lithium-sulfur battery is strongly considered as the most promising next-generation energy storage system because of the high theoretical specific capacity. The serious "shuttle effect" and sluggish reaction kinetic limited the commercial application of lithium-sulfur battery. Many heterostructures were applied to accelerate polysulfides conversion and suppress their migration in lithium-sulfur batteries. Nevertheless, the effect of the interface in heterostructure was not clear. Here, the Co₂B@MXene heterostructure is synthesized through chemical reactions at room temperature and employed as the interlayer material for Li-S batteries. The theoretical calculations and experimental results indicate that the interfacial electronic interaction of Co₂B@MXene induce the transfer of electrons from Co₂B to MXene, enhancing the catalytic ability and favoring fast redox kinetics of the polysulfides, and the theoretical calculations also reveal the underlying mechanisms for the electron transfer is that the two materials have different Fermi energy levels. The cell with Co₂B@MXene exhibits a high initial capacity of 1577 mAh/g at 0.1 C and an ultralow capacity decay of 0.0088% per cycle over 2000 cycles at 2 C. Even at 5.1 mg/cm² of sulfur loading, the cell with Co₂B@MXene delivers 5.2 mAh/cm² at 0.2 C.
- Co₂B@MXene,
- Separator,
- Interfacial electronic interaction,
- Catalytic activity,
- Lithium-sulfur batteries
1. [1]
  Y. Zhong, L. Yin, P. He, et al., J. Am. Chem. Soc. 140 (2018) 1455-1459. doi: 10.1021/jacs.7b11434
2. [2]
  L Fan, H Wu, X Wu, et al., Electrochim. Acta. 295 (2019) 444-451. doi: 10.1016/j.electacta.2018.08.107
3. [3]
  S. Jiang, S. Huang, M. Yao, et al., Chin Chem Lett. 31 (2020) 2347-2352. doi: 10.1016/j.cclet.2020.04.014
4. [4]
  S. Wang, Y. Yang, Y. Dong, et al., J. Adv. Ceram. 8 (2019) 1-18. doi: 10.1007/s40145-018-0292-2
5. [5]
  G. Chen, L. Yan, H. Luo, S. Guo, Adv. Mater. 28 (2016) 7580-7602. doi: 10.1002/adma.201600164
6. [6]
  C. Ye, Y. Jiao, H. Jin, et al., Angew. Chem. Int. Ed. 57 (2018) 16703-16707. doi: 10.1002/anie.201810579
7. [7]
  X. Ji, S. Evers, K.T. Lee, L. Nazar, Chem. Commun. 46 (2010) 1658-1660. doi: 10.1039/b918442b
8. [8]
  G. Zhou, L. Li, C. Ma, et al., Nano Energy 11 (2015) 356-365. doi: 10.1016/j.nanoen.2014.11.025
9. [9]
  B. Ding, L. Shen, G. Xu, P. Nie, X. Zhang, Electrochim. Acta 107 (2013) 78-84. doi: 10.1016/j.electacta.2013.06.009
10. [10]
  D. Cai, L. Wang, L. Li, et al., J. Mater. Chem. A 7 (2019) 806-815. doi: 10.1039/c8ta09906e
11. [11]
  B. Cao, Y. Chen, D. Li, L. Yin, Y. Mo, ChemSusChem 9 (2016) 3338-3344. doi: 10.1002/cssc.201601145
12. [12]
  Z. Xing, G. Li, S. Sy, Z. Chen, Nano Energy 54 (2018) 1-9. doi: 10.1016/j.nanoen.2018.09.034
13. [13]
  T. Zhou, W. Lv, J. Li, et al., Energy Environ. Sci. 10 (2017) 1694-1703. doi: 10.1039/C7EE01430A
14. [14]
  Y. Song, W. Zhao, L. Kong, et al., Energy Environ. Sci. 11 (2018) 2620-2630. doi: 10.1039/c8ee01402g
15. [15]
  H. Wang, K. Xie, Y. You, et al., Adv. Energy Mater. 9 (2019) 1901806. doi: 10.1002/aenm.201901806
16. [16]
  H. Liu, Z. Chen, L. Zhou, et al., Adv. Energy Mater. 9 (2019) 1901667. doi: 10.1002/aenm.201901667
17. [17]
  J. Song, X. Guo, J. Zhang, et al., J. Mater. Chem. A 7 (2019) 6507-6513. doi: 10.1039/c9ta00212j
18. [18]
  J. Nan, X. Guo, J. Xiao, et al., Small (2019) e1902085.
19. [19]
  X. Guo, W. Zhang, J. Zhang, et al., ACS Nano 14 (2020) 3651-3659. doi: 10.1021/acsnano.0c00177
20. [20]
  J. Liu, T. Chen, P. Juan, et al., ChemSusChem 11 (2018) 3758-3765. doi: 10.1002/cssc.201802098
21. [21]
  B. Guan, Y. Zhang, L. Fan, et al., ACS Nano 13 (2019) 6742-6750. doi: 10.1021/acsnano.9b01329
22. [22]
  Y. Zhang, Z. Mu, C. Yang, et al., Adv. Funct. Mater. 28 (2018) 1707578. doi: 10.1002/adfm.201707578
23. [23]
  J.Y. Zhang, G. Yang, S.G. Wang, et al., J. Appl. Phys. 116 (2014) 163905. doi: 10.1063/1.4900193
24. [24]
  Z. Shen, M. Cao, Z. Zhang, et al., Adv. Funct. Mater. 30 (2019) 1906661. doi: 10.1002/adfm.201906661
25. [25]
  Z.A. Ghazi, X. He, A.M. Khattak, et al., Adv. Mater. 29 (2017) 1606817. doi: 10.1002/adma.201606817
26. [26]
  L. Jiao, C. Zhang, C. Geng, et al., Adv. Energy Mater. 9 (2019) 1900219. doi: 10.1002/aenm.201900219
