Citation: Lilin Zhang, Yinbing Tian, Yuanyuan Wang, Liyi Dai. Enhanced conversion of α-cellulose to 5-HMF in aqueous biphasic system catalyzed by FeCl₃-CuCl₂[J]. Chinese Chemical Letters, ;2021, 32(7): 2233-2238. doi: 10.1016/j.cclet.2020.12.030 shu

Enhanced conversion of α-cellulose to 5-HMF in aqueous biphasic system catalyzed by FeCl₃-CuCl₂

Shanghai Key Laboratory of Green Chemistry and Green Process, College of Chemistry and Molecular Engineering, East China Normal University, Shanghai 200241, China

yywang@chem.ecnu.edu.cn

ydai@chem.ecnu.edu.cn

Received Date: 6 November 2020
Revised Date: 14 December 2020
Accepted Date: 18 December 2020
Available Online: 5 January 2021

Figures(7)

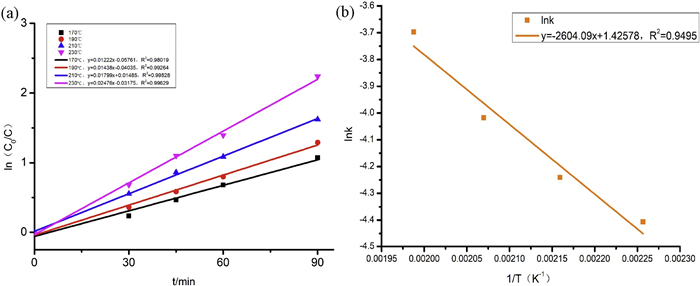

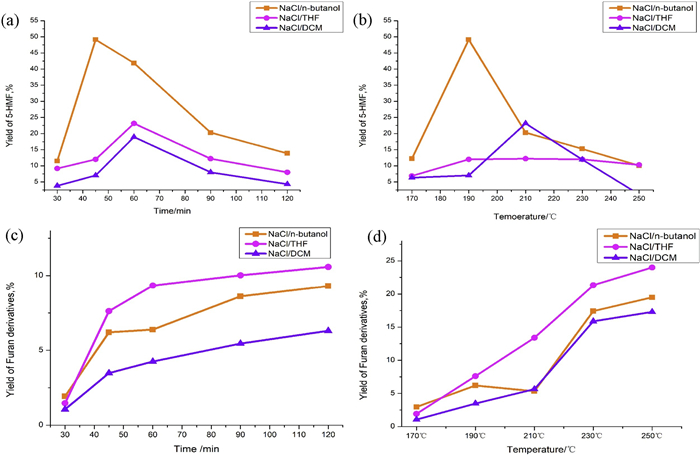

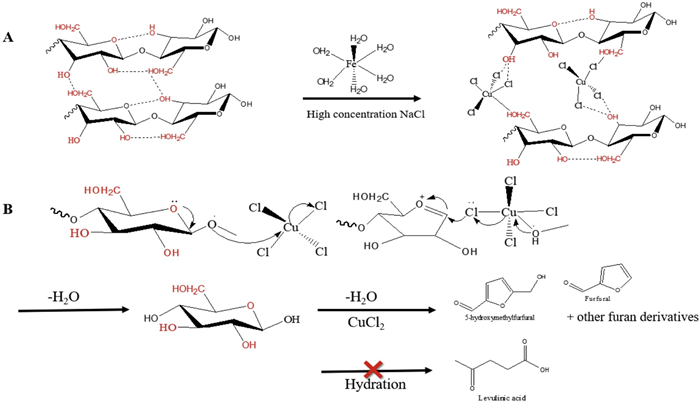

This study was to investigate the optimal additions of the cellulose decomposition reaction to obtain the most yield of 5-HMF and other furan derivatives in various biphasic systems with FeCl₃-CuCl₂ mixed catalysts, and explore its depolymerization kinetics. A series of controllable reactions have been performed under mild environmentally friendly atmosphere. The experiment results showed that 49.13 wt% of 5-HMF was the maximum production along with 2.98 wt% other furan derivatives catalyzed by mixed Lewis acid FeCl₃-CuCl₂ under the two phases which included high concentration NaCl aqueous phase and n-butanol organic phase at 190 ℃ for 45 min. The conclusion suggested that two-phase systems benefited the yield of 5-HMF, furan derivatives via extracting the target products from reaction phase to organic phase to avoid rehydration of 5-HMF. The kinetic calculation revealed the conversion with mixed catalysts had lower reaction apparent activation energy (21.65 kJ/mol, 190-230 ℃) and the reaction rate was faster than that with acid-based catalysts. Based on experiment exploration, the probable mechanism of cellulose decomposition with FeCl₃-CuCl₂ was proposed.
- Cellulose,
- Two phase,
- Mixed catalysts,
- Depolymerization,
- 5-HMF
1. [1]
  R. van Putten, J.C. van der Waal, E. de Jong, et al., Chem. Rev. 113(2013)1499-1597. doi: 10.1021/cr300182k
2. [2]
  A.S. Amarasekara, Chem. Rev. 116(2016) 6133-6183. doi: 10.1021/acs.chemrev.5b00763
3. [3]
  Y. Chen, G. Li, F. Yang, S. Zhang, Polym. Degrad. Stabil. 96(2011) 863-869. doi: 10.1016/j.polymdegradstab.2011.02.007
4. [4]
  Y. Zhang, W. Guan, H. Song, et al., Microporous Mesoporous Mater. 305(2020) 110328. doi: 10.1016/j.micromeso.2020.110328
5. [5]
  F. Lai, F. Yan, P. Wang, et al., Chem. Eng. J. 396(2020) 125282. doi: 10.1016/j.cej.2020.125282
6. [6]
  M. Wada, M. Ike, K. Tokuyasu, Polym. Degrad. Stabil. 95(2010) 543-548. doi: 10.1016/j.polymdegradstab.2009.12.014
7. [7]
  N. Sweygers, J. Harrer, R. Dewil, L. Appels, J. Clean. Prod. 187(2018) 1014-1024. doi: 10.1016/j.jclepro.2018.03.204
8. [8]
  S. Xu, D. Pan, Y. Wu, et al., Fuel Process. Technol. 175(2018) 90-96. doi: 10.1016/j.fuproc.2018.04.005
9. [9]
  T. Deng, X. Cui, Y. Qi, et al., Chem. Commun. (Camb. ) 48(2012) 5494. doi: 10.1039/c2cc00122e
10. [10]
  L. Yan, R. Ma, H. Wei, et al., Bioresour. Technol. Rep. 279(2019) 84-91. doi: 10.1016/j.biortech.2019.01.120
11. [11]
  S. Dutta, S. De, M.I. Alam, M.M. Abu-Omar, B. Saha, J. Catal. 288 (2012) 8-15.
12. [12]
  Y. Shen, J. Sun, Y. Yi, et al., Bioresour. Technol. Rep. 172(2014) 457-460. doi: 10.1016/j.biortech.2014.09.077
13. [13]
  Y. Li, X. Cao, S. Sun, et al., Ind. Crop. Prod. 147(2020) 112173. doi: 10.1016/j.indcrop.2020.112173
14. [14]
  Z. Chen, S. Liao, L. Ge, et al., Chem. Eng. J. 379(2020) 122284. doi: 10.1016/j.cej.2019.122284
15. [15]
  B. Xue, Y. Yang, M. Zhu, Y. Sun, X. Li, Bioresour. Technol. Rep. 270(2018) 55-61. doi: 10.1016/j.biortech.2018.09.028
16. [16]
  Q. Zhang, Y. Deng, X. Tan, et al., Ind. Crop. Prod. 145(2020) 112091. doi: 10.1016/j.indcrop.2020.112091
17. [17]
  H. Zhao, J.E. Holladay, H. Brown, et al., Science 316(2007) 1597-1600. doi: 10.1126/science.1141199
18. [18]
  N. Zhang, D. Zeng, G. Hefter, Q. Chen, J. Mol. Liq. 198(2014) 200-203. doi: 10.1016/j.molliq.2014.06.025
19. [19]
  Y. Chen, Y. Zhou, R. Zhang, C. Hu, Mol. Catal. 484(2020) 110729.
20. [20]
  I.B.H. Sadok, F. Hajlaoui, K. Karoui, et al., J. Mol. Struct. 1186(2019) 118-126. doi: 10.1016/j.molstruc.2019.03.025
21. [21]
  V. Flores-Velázquez, G.E. Córdova-Pérez, A.A. Silahua-Pavón, et al., Fuel 265(2020) 116857.
22. [22]
  A. Kaiba, M.H. Geesi, P. Guionneau, et al., J. Mol. Struct. 1204(2020) 127380.
23. [23]
  V.V. Bravo, M.P. Paez, M. Aoulad, A. Reyes, Enzyme Microb. Technol. 26(2000) 614-620. doi: 10.1016/S0141-0229(00)00136-8
