Citation: Tianyu Liang, Peiwei Yang, Tianhong Wu, Menghan Shi, Xiayu Xu, Taotao Qiang, Xiaolong Sun. A general strategy to quantify analytes through fluorescence chromaticity and luminosity[J]. Chinese Chemical Letters, ;2020, 31(11): 2975-2979. doi: 10.1016/j.cclet.2020.07.012 shu

A general strategy to quantify analytes through fluorescence chromaticity and luminosity

Tianyu Liang ^{a, b} ,
Peiwei Yang ^{a, c} ,
Tianhong Wu ^a ,
Menghan Shi ^a ,
Xiayu Xu ^{a, c} ,
Taotao Qiang ^{b, *,} ,
Xiaolong Sun ^{a, *,}

a.
The Key Laboratory of Biomedical Information Engineering of Ministry of Education, School of Life Science and Technology, Xi'an Jiaotong University, Xi'an 710049, China
b.
College of Bioresources and Materials Engineering, Shaanxi University of Science & Technology, Xi'an 710021, China
c.
Bioinspired Engineering and Biomechanics Center (BEBC), Xi'an Jiaotong University, Xi'an 710049, China

qiangtt515@163.com

x.l.sun86@xjtu.edu.cn

Received Date: 28 April 2020
Revised Date: 4 July 2020
Accepted Date: 4 July 2020
Available Online: 15 November 2020

Figures(4)

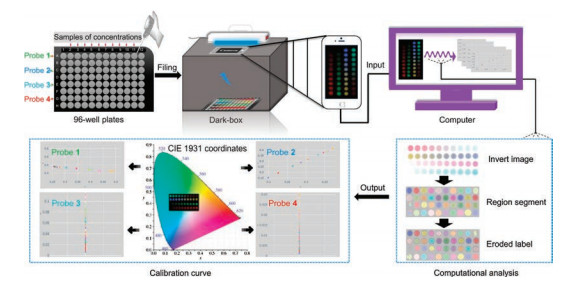

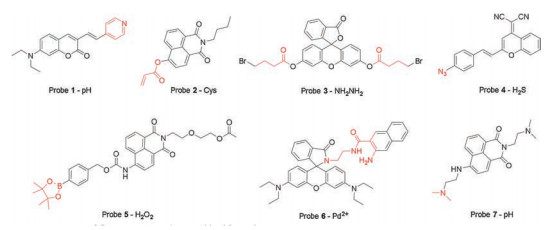

To realize a fast, easy-operation and precise way using fluorescence probes to quantify analytes is a goal to facilitate detection, especially in situ. Herein, we are reporting an approach which can be generally employed for the differentiation and quantitation of analytes through fluorescence chromaticity and luminosity. Seven representative fluorescent probes, targeting pH, cysteine, hydrogen sulfide, hydrogen peroxide, palladium and hydrazine, were synthesized and tested. Without utilizing costly instrumentations, portable devices were employed to collect data of photographs from the fluorescence samples in responses to different analytes. Subsequently, the photographic images were digitally processed to generate calibration curves between chromaticity/luminosity verse concentrations after mapping to the CIE 1931 xyY standard color space. Good linear calibration curves and quantitative analysis of unknown samples with low errors through the spectral technology demonstrated the reliability of this method. Thus, we showed the analytical method with a simple and on-site constructible/portable device which is promising for applications in more fluorescence probes
- Fluorescence probes,
- Portable device,
- Calibration curve,
- Photography,
- Chromaticity and luminosity
