Citation: Anman Zhang, Luo Hai, Tianzheng Wang, Hong Cheng, Man Li, Xiaoxiao He, Kemin Wang. NIR-triggered drug delivery system based on phospholipid coated ordered mesoporous carbon for synergistic chemo-photothermal therapy of cancer cells[J]. Chinese Chemical Letters, ;2020, 31(12): 3158-3162. doi: 10.1016/j.cclet.2020.04.035 shu

NIR-triggered drug delivery system based on phospholipid coated ordered mesoporous carbon for synergistic chemo-photothermal therapy of cancer cells

State Key Laboratory of Chemo/Biosensing and Chemometrics, College of Biology, College of Chemistry and Chemical Engineering, Hunan University, State Key Laboratory for Bio-Nanotechnology and Molecular Engineering of Hunan Province, Changsha 410082, China

xiaoxiaohe@hnu.edu.cn

kmwang@hnu.edu.cn

Received Date: 4 March 2020
Revised Date: 20 April 2020
Accepted Date: 20 April 2020
Available Online: 15 December 2020

Figures(4)

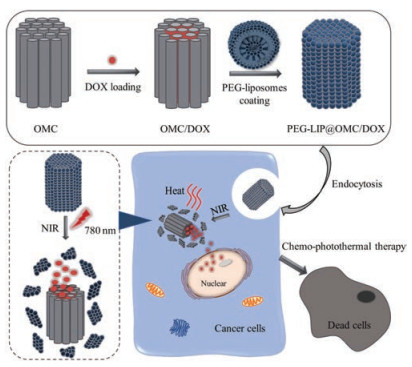

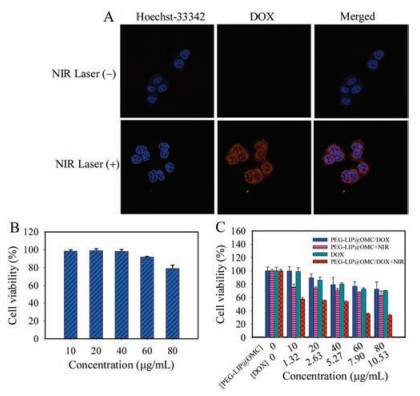

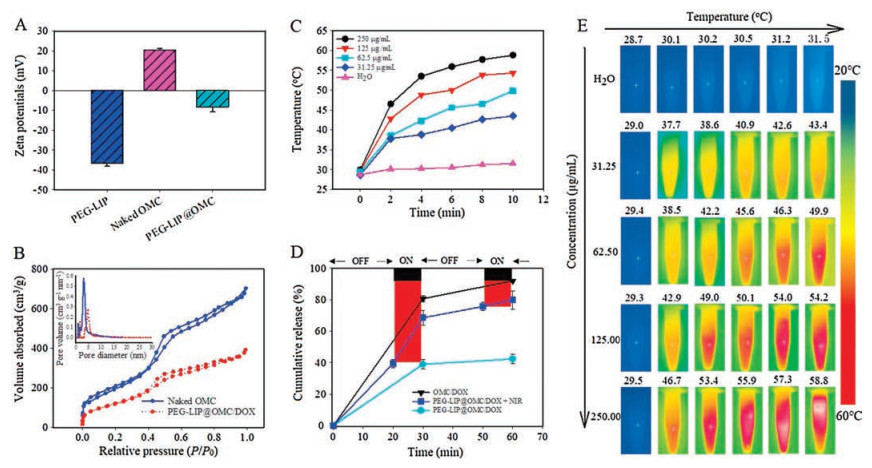

Chemo-photothermal treatment is one of the most efficient strategies for cancer therapy. However, traditional drug carriers without near-infrared absorption capacity need to be loaded with materials behaving photothermal properties, as it results in complicated synthesis process, inefficient photothermal effects and hindered NIR-mediated drug release. Herein we report a facile synthesis of a polyethylene glycol (PEG) linked liposome (PEG-liposomes) coated doxorubicin (DOX)-loaded ordered mesoporous carbon (OMC) nanocomponents (PEG-LIP@OMC/DOX) by simply sonicating DOX and OMC in PEG-liposomes suspensions. The as-obtained PEG-LIP@OMC/DOX exhibits a nanoscale size (600±15 nm), a negative surface potential (-36.70 mV), high drug loading (131.590 mg/g OMC), and excellent photothermal properties. The PEG-LIP@OMC/DOX can deliver loaded DOX to human MCF-7 breast cancer cells (MCF-7) and the cell toxicity viability shows that DOX unloaded PEG-LIP@OMC has no cytotoxicity, confirming the PEG-LIP@OMC itself has excellent biocompatibility. The NIR-triggered release studies demonstrate that this NIR-responsive drug delivery system enables on-demand drug release. Furthermore, cell viability results using human MCF-7 cells demonstrated that the combination of NIR-based hyperthermal therapy and triggered chemotherapy can provide higher therapeutic efficacy than respective monotherapies. With these excellent features, we believe that this phospholipid coating based multifunctional delivery system strategy should promote the application of OMC in nanomedical applications.
1. [1]
  A. Vinu, T. Mori, K. Ariga, Sci. Technol. Adv. Mat. 7(2006) 753-771. doi: 10.1016/j.stam.2006.10.007
2. [2]
  N.D. Petkovich, A. Stein, Chem. Soc. Rev. 42(2013) 3721-3739. doi: 10.1039/C2CS35308C
3. [3]
  C.Y. Hong, X. Li, C.Y. Pan, J. Mater. Chem. 19(2009) 5155-5160. doi: 10.1039/b820534e
4. [4]
  Q. Gao, Y. Xu, D. Wu, et al., J. Phys. Chem. C 113(2009) 12753-12758. doi: 10.1021/jp9043978
5. [5]
  N.K. Mal, M. Fujiwara, Y. Tanaka, Nature 421(2003) 350-353. doi: 10.1038/nature01362
6. [6]
  N.K. Mal, M. Fujiwara, Y. Tanaka, et al., Chem. Mater. 15(2003) 3385-3394. doi: 10.1021/cm0343296
7. [7]
  Y.Z. You, K.K. Kalebaila, S.L. Brock, et al., Chem. Mater. 20(2008) 3354-3359. doi: 10.1021/cm703363w
8. [8]
  A. Schlossbauer, S. Warncke, P.M.E. Gramlich, et al., Angew. Chem. Int. Ed. 49(2010) 4734-4737. doi: 10.1002/anie.201000827
9. [9]
  H. Kim, S. Kim, C. Park, et al., Adv. Mater. 22(2010) 4280-4283. doi: 10.1002/adma.201001417
10. [10]
  Z. Luo, K. Cai, Y. Hu, et al., Angew. Chem. Int. Ed. 50(2011) 640-643. doi: 10.1002/anie.201005061
11. [11]
  C.L. Zhu, C.H. Lu, X.Y. Song, et al., Angew. Chem. Int. Ed. 130(2008) 2382-2383.
12. [12]
  K. Patel, S. Angelos, W.R. Dichtel, et al., J. Am. Chem. Soc. 130(2008) 2382-2383. doi: 10.1021/ja0772086
13. [13]
  F. Lu, J.F. Wang, L. Yang, et al., Chem. Commun. 51(2015) 9447-9450. doi: 10.1039/C5CC01725D
14. [14]
  G.X. Yang, R.C. Lv, F. He, et al., Nanoscale 7(2015) 13747-13758. doi: 10.1039/C5NR03085D
15. [15]
  X.J. Liu, F.F. Fu, K.B. Xu, et al., J. Mater. Chem. B 2(2014) 5358-5367. doi: 10.1039/c4tb00919c
16. [16]
  K.Y. Wang, H. Yao, Y. Meng, et al., Acta Biomater. 16(2015) 196-205. doi: 10.1016/j.actbio.2015.01.002
17. [17]
  Q.J. He, Y. Gao, L.X. Zhang, et al., Biomaterials 32(2011) 7711-7720. doi: 10.1016/j.biomaterials.2011.06.066
18. [18]
  Q.J. He, Z.W. Zhang, Y. Gao, et al., Small 5(2009) 2722-2729. doi: 10.1002/smll.200900923
19. [19]
  Y. Wang, K.Y. Wang, X.Y. Yan, et al., Adv. Healthc. Mater. 3(2014) 485-489. doi: 10.1002/adhm.201300324
20. [20]
  L. Chen, H. Zhang, J. Zheng, et al., Mater. Sci. Eng. C 84(2018) 21-31.
21. [21]
  S. Wang, C.Y. Li, Y. Meng, et al., ACS Biomater. Sci. Eng. 3(2017) 1702-1709. doi: 10.1021/acsbiomaterials.7b00326
22. [22]
  H.L. Li, J.M. Li, X.Y. He, et al., Chin. Chem. Lett. 30(2019) 1083-1088. doi: 10.1016/j.cclet.2019.01.003
23. [23]
  Y. Song, D. Li, J.L. He, et al., Chin. Chem. Lett. 30(2019) 2027-2031. doi: 10.1016/j.cclet.2019.04.052
24. [24]
  X. Duan, X. Yang, C.L. Dai, et al., Mater. Express 9(2019) 757-763. doi: 10.1166/mex.2019.1552
25. [25]
  J.K. Kundu, Y.J. Surh, Cancer Lett. 269(2008) 243-261. doi: 10.1016/j.canlet.2008.03.057
26. [26]
  M. Chen, S.N. Yang, X.X. He, et al., J. Mater. Chem. B 2(2014) 6064-6071.
27. [27]
  Q.Y. Li, C.G. Zhou, Z. Ji, et al., J. Mater. Chem. A 3(2015) 7241-7247. doi: 10.1039/C4TA06083K
28. [28]
  P. Selvam, B. Kuppan, Catal. Today 198(2012) 85-91. doi: 10.1016/j.cattod.2012.06.033
29. [29]
  S. Jun, S.H. Joo, R. Ryoo, et al., J. Am. Chem. Soc. 122(2000) 10712-10713.
30. [30]
  S.C. Qi, Y. Liu, A.Z. Peng, et al., Chem. Eng. J. 361(2019) 945-952.
31. [31]
  B. He, F.J. Liu, S.K. Yan, et al., J. Mater. Chem. A 5(2017) 18064-18070.
32. [32]
  J.J. Ma, P.J. Li, W.W. Wang, et al., ACS Nano 12(2018) 9022-9032.
