Citation: Wang Baolei, Wang Hongxue, Liu Hang, Xiong Lixia, Yang Na, Zhang Yan, Li Zhengming. Synthesis and structure-insecticidal activity relationship of novel phenylpyrazole carboxylic acid derivatives containing fluorine moiety[J]. Chinese Chemical Letters, ;2020, 31(3): 739-745. doi: 10.1016/j.cclet.2019.07.064 shu

Synthesis and structure-insecticidal activity relationship of novel phenylpyrazole carboxylic acid derivatives containing fluorine moiety

State Key Laboratory of Elemento-Organic Chemistry, College of Chemistry, Nankai University, Tianjin 300071, China

nkwbl@nankai.edu.cn

nkzml@vip.163.com

Received Date: 28 June 2019
Revised Date: 29 July 2019
Accepted Date: 31 July 2019
Available Online: 1 August 2019

Figures(6)

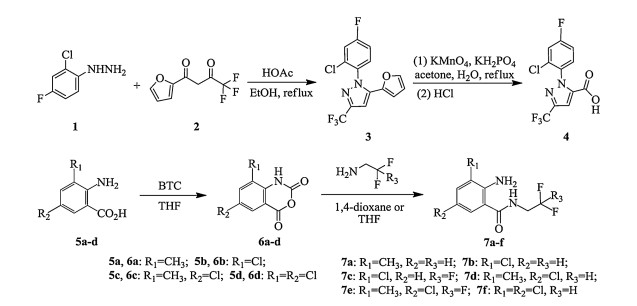

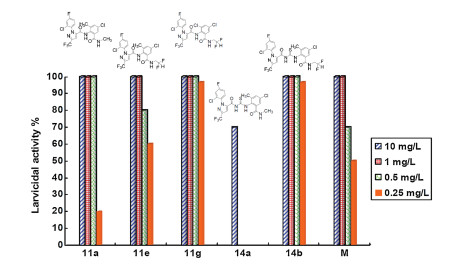

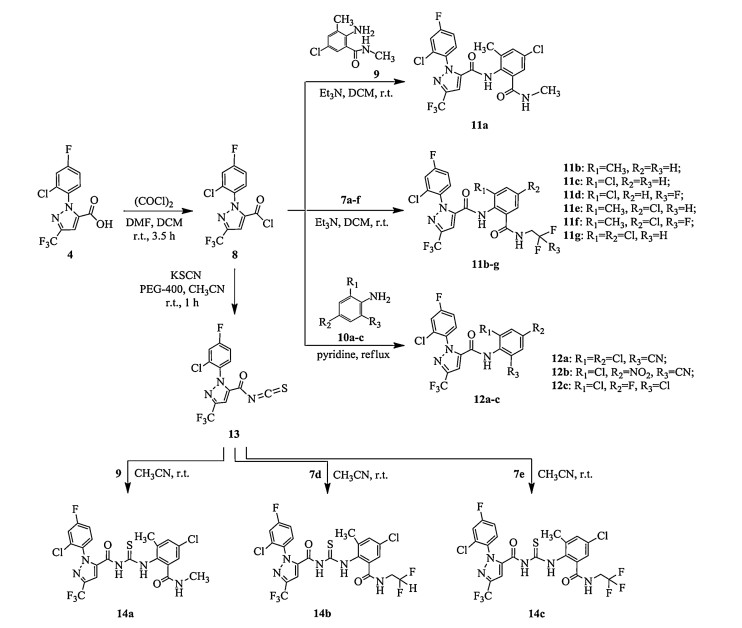

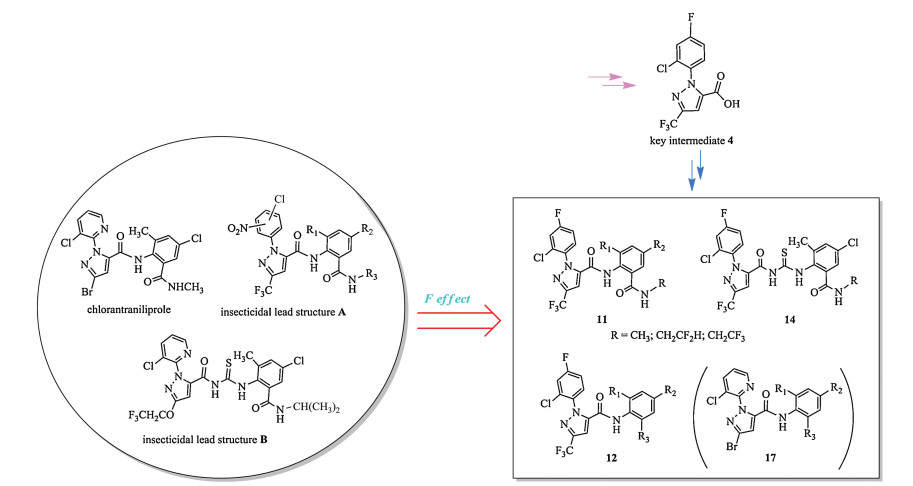

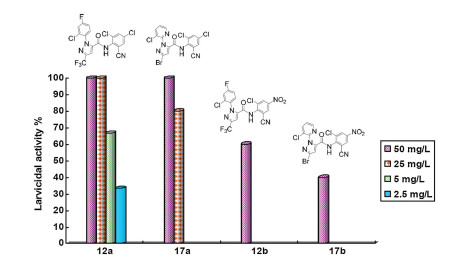

A series of novel phenylpyrazole carboxylic acid derivatives containing fluorine moiety, i.e., diamides 11, simple aryl-bearing amides 12 and acylthioureas 14 were successfully synthesized based on the key fluoro-containing phenylpyrazole acid intermediate. The new compounds were identified and confirmed by melting point, ¹H NMR, ¹³C NMR and elemental analysis or HRMS. The bioassay results indicated that some of the compounds possessed excellent insecticidal activities towards oriental armyworm, diamondback moth and corn borer at low concentrations. For examples, compounds 11a, 11e-g and 14b exhibited remarkable larvicidal activities with LC₅₀ values of 0.13-0.39 mg/L and 0.0002-0.0014 mg/L against oriental armyworm and diamondback moth, respectively, were comparable with those of the control chlorantraniliprole. Particularly, 11e were found superior to chlorantraniliprole in oriental armyworm tests (LC₅₀:0.23 mg/L vs. 0.26 mg/L); 11a, 11e, 11f and 14c in diamondback moth tests with LC₅₀ values of 0.0002 mg/L, 0.0002 mg/L, 0.0008 mg/L and 0.0005 mg/L, respectively, were more effective than that of chlorantraniliprole. In addition, 12a also showed a promising insecticidal potential and development/optimization advantage. Compounds 11a, 11e-g, 12a, 14b and 14c could be considered as possible new leading structures for further study. The SAR investigation indicated that the compounds with fluorine motif (e.g., -F, -CF₂H, -CF₃) held apparently favorable insecticidal potentials, which provided useful guidance for further design/development of new phenylpyrazole-containing agrochemicals.
- Phenylpyrazole carboxylic acid derivatives,
- Fluorochemicals,
- Synthesis,
- Insecticidal activity,
- Structure-activity relationship
1. [1]
  P. Jeschke, Pest Manag. Sci. 72 (2016) 433-455. doi: 10.1002/ps.4190
2. [2]
  T.C. Sparks, B.A. Lorsbach, Pest Manag. Sci. 73 (2017) 672-677. doi: 10.1002/ps.4457
3. [3]
  K.A. Hughes, G.P. Lahm, T.P. Selby, et al., Patent, WO 2004067528, 2004.
4. [4]
  G.P. Lahm, T.M. Stevenson, T.P. Selby, et al., Bioorg. Med. Chem. Lett. 17 (2007) 6274-6279. doi: 10.1016/j.bmcl.2007.09.012
5. [5]
  T.P. Selby, G.P. Lahm, T.M. Stevenson, Pest Manag. Sci. 73 (2017) 658-665. doi: 10.1002/ps.4308
6. [6]
  T. Koyanagi, M. Morita, K. Nakamoto, et al., Patent, WO 2005077934, 2005.
7. [7]
  T. Koyanagi, K. Nakamoto, Patent, WO 2008155990, 2008.
8. [8]
  J. Wu, B.A. Song, D.Y. Hu, et al., Pest Manag. Sci. 68 (2012) 801-810. doi: 10.1002/ps.2329
9. [9]
  J. Ou, X. Zhu, L. Wang, et al., J. Agric. Food Chem. 60 (2012) 10942-10951. doi: 10.1021/jf303376t
10. [10]
  S. Kang, B. Song, J. Wu, et al., Eur. J. Med. Chem. 67 (2013) 14-18. doi: 10.1016/j.ejmech.2013.06.023
11. [11]
  A.Y. Guan, C.L. Liu, X.F. Sun, et al., Bioorg. Med. Chem. 24 (2016) 342-353. doi: 10.1016/j.bmc.2015.09.031
12. [12]
  A. Jeanguenat, P. Durieux, A.J.F. Edmunds, et al., Bioorg. Med. Chem. 24 (2016) 403-427. doi: 10.1016/j.bmc.2015.11.035
13. [13]
  J.J. Shi, G.H. Ren, N.J. Wu, et al., Chin. Chem. Lett. 28 (2017) 1727-1730. doi: 10.1016/j.cclet.2017.05.015
14. [14]
  B.L. Wang, H.W. Zhu, Z.M. Li, et al., Pest Manag. Sci. 74 (2018) 726-736. doi: 10.1002/ps.4770
15. [15]
  S. Zhou, S. Zhou, Y. Xie, et al., Chin. Chem. Lett. 29 (2018) 1254-1256. doi: 10.1016/j.cclet.2017.10.022
16. [16]
  B.L. Wang, H.W. Zhu, Z.M. Li, et al., Pest Manag. Sci. 75 (2019) 3273-3281. doi: 10.1002/ps.5449
17. [17]
  X. Zhang, Y. Li, J. Ma, et al., Bioorg. Med. Chem. 22 (2014) 186-193. doi: 10.1016/j.bmc.2013.11.038
18. [18]
  B.L. Wang, H.W. Zhu, Y. Ma, et al., J. Agric. Food Chem. 61 (2013) 5483-5493. doi: 10.1021/jf4012467
19. [19]
  G.P. Lahm, B.J. Myers, T.P. Selby, et al., Patent, WO 200170671, 2001.
20. [20]
  G.P. Lahm, S.F. Mccann, K.M. Patel, et al., Patent, WO 2003015518, 2003.
21. [21]
  R.A. Berger, J.L. Flexner, R. Berger, et al., Patent, WO 2003024222, 2003.
22. [22]
  J.B. Liu, F.Y. Li, J.Y. Dong, et al., Bioorg. Med. Chem. 26 (2018) 3541-3550. doi: 10.1016/j.bmc.2018.05.028
23. [23]
  J. Hanusek, P. Rosa, P. Drabina, et al., J. Heterocycl. Chem. 43 (2006) 1281-1285. doi: 10.1002/jhet.5570430521
24. [24]
  G.P. Lahm, T.P. Selby, T.M. Stevenson, et al., Patent, WO 2003015519, 2003.
25. [25]
  W.S. Abbott, J. Econ. Entomol. 18 (1925) 265-267.
26. [26]
  M. Raymond, Cah. ORSTOM Ser. Ent. Med. Parasitol. 23 (1985) 117-121.
27. [27]
  Q. Feng, Z.L. Liu, L.X. Xiong, et al., J. Agric. Food Chem. 58 (2010) 12327-12336. doi: 10.1021/jf102842r
28. [28]
  W.K. Hagmann, J. Med. Chem. 51 (2008) 4359-4369. doi: 10.1021/jm800219f
