Citation: Li Xiancai, Lu Tianren, Wang Ying, Yang Yifeng. Study on the controllable synthesis of SH-MCM-41 mesoporous materials and their adsorption properties of the La³⁺, Gd³⁺ and Yb³⁺[J]. Chinese Chemical Letters, ;2019, 30(12): 2318-2322. doi: 10.1016/j.cclet.2019.05.056 shu

Study on the controllable synthesis of SH-MCM-41 mesoporous materials and their adsorption properties of the La³⁺, Gd³⁺ and Yb³⁺

College of Chemistry, Nanchang University, Nanchang 330031, China

xcli@ncu.edu.cn 2019

Received Date: 22 April 2019
Revised Date: 20 May 2019
Accepted Date: 28 May 2019
Available Online: 29 December 2019

Figures(8)

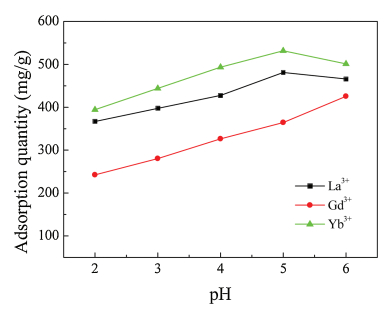

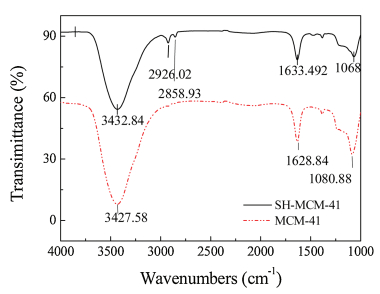

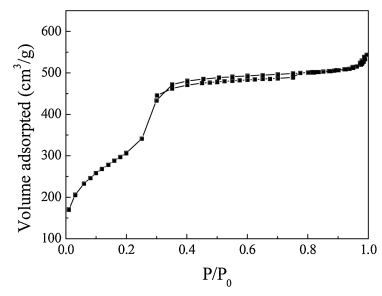

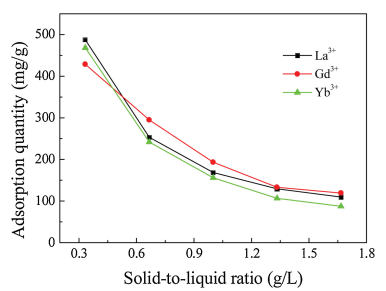

Sulfhydryl MCM-41 (SH-MCM-41) mesoporous materials were prepared via a hydrothermal method, and -SH was successfully imported by a post-grafting method. The structure and surface properties of the materials were characterized using Fourier Transform infrared spectroscopy, X-ray diffraction and Transmission Electron Microscopy analysis. The low concentrations of La³⁺, Gd³⁺ and Yb³⁺ adsorption on the material were investigated. This paper discusses the effects of system factors, such as pH and the solid-liquid ratio, on the performance of the adsorption process. The adsorption thermodynamics and kinetics were also explored. Experimental results indicated that the materials were in good order and had high specific surface area (956 m²/g) with an average pore diameter of 2.1 nm; the mercapto groups were successfully grafted onto a molecular sieve, and the best grafted amount was 1.46 ×10^-3 mol/g. The materials showed preferable adsorption of La³⁺, Gd³⁺ and Yb³⁺ with maximum adsorption capacities of 560.56 mg/g, 467.60 mg/g and 540.68 mg/g, respectively. The adsorption process can be described by the Freundlich isotherm model, and the adsorption data fits pseudo-second-order kinetics. After repeating the elution-regeneration cycle four times, the adsorption capacity of rare earth ions was mostly maintained, indicating that the adsorbent can be regenerated well and recycled to save costs. It has potential in practical application.
- SH-MCM-41,
- Mesoporous materials,
- Adsorption,

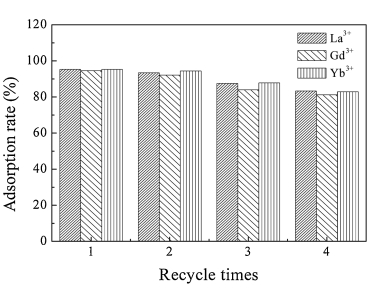

- Regeneration,
- Practical application
1. [1]
  Y.W. Huang, B. Xiao, J. Conserv. Util. Mineral Resour. 6 (2018) 51-54.
2. [2]
  Y. Xu, Y.Q. Zhang, X.W. Huang, J. Chin. Soc. Rare Earths 30 (2012) 538-544.
3. [3]
  S. Gasser, M.I. Aly, Int. J. Mineral Process. 121 (2013) 31-38. doi: 10.1016/j.minpro.2013.02.012
4. [4]
  H. Yang, J. Chin. Rare Earths 31 (2012) 87-92.
5. [5]
  H. Zhou, P. Zhang, J. Resour. Ind. 13 (2011) 95-100.
6. [6]
  Y.X. Li, L. Zhang, X.M. Zhou, J. Chinese Rare Earths 31 (2010) 61-69.
7. [7]
  W.M. Huang, X.W. Huang, RE Separation and Attainment of High Purity Products in China, The Second Rare Earths Conference in Rio De Janeiro (1998).
8. [8]
  C.G. Luo, X.P. Luo, J. Su, et al., J. Metal Mine. 6 (2014) 91-97.
9. [9]
  J. Sun, J.W. Li, H.X. Xu, J. Environ. Impact Assess. 38 (2016) 20-23.
10. [10]
  Y. Cao, X. Guan, J. China Mining Mag. 25 (2016) 60-63.
11. [11]
  J.S. Beck, J.C. Vartuli, W.J. Roth, et al., J. Am. Chem. Soc.114 (1992) 10834-10843. doi: 10.1021/ja00053a020
12. [12]
  C.T. Kresge, M.E. Leonowica, W.J. Roth, Nature 359 (1992) 710-712. doi: 10.1038/359710a0
13. [13]
  D.P. Quintanilla, I. Hierro, M. Fajardo, Mater. Res. Bull. 42 (2007) 1518-1530. doi: 10.1016/j.materresbull.2006.10.029
14. [14]
  F. Embert, A. Mehdi, C. Reyé, J. Chem. Mater. 13 (2001) 4542-4549. doi: 10.1021/cm0101982
15. [15]
  Y. Cao, C.J. Li, Q.Y. Huang, Chin. J. Environ. Eng. 6 (2011) 1315-1320.
16. [16]
  D.Y. Zhao, Q.S. Huo, J.L. Feng, J. Am. Chem. Soc. 120 (1998) 6024-6036. doi: 10.1021/ja974025i
17. [17]
  J. Ponou, L.P. Wang, G. Dodbiba, Chem. Eng. J. 2 (2014) 1070-1081.
18. [18]
  P. Smirnov, T. Yamaguchi, S. Kittaka, J. Phys. Chem. B 104 (2000) 5498-5504. doi: 10.1021/jp994326+
19. [19]
  A. Benhamou, M. Baudu, Z. Derriche, J. Hazard. Mater. 171 (2009) 1001-1008. doi: 10.1016/j.jhazmat.2009.06.106
20. [20]
  J.J. Chen, K.M. Fang, Y.Q. Miao, J. Nanosci. Nanotechnol. 11 (2011) 1-8. doi: 10.1166/jnn.2011.3839
21. [21]
  S. Brunauer, L.S. Deming, W.E. Deming, J. Am. Chem. Soc. 62 (1940) 1723-1732. doi: 10.1021/ja01864a025
22. [22]
  H. Yang, Synthesis and Adsorption Performance of Functionalized Mesoporous Silicates PhD thesis, Tongji University, Shanghai, 2008.
23. [23]
  Q.L. Liao, L.M. Zeng, F. Guo, Technol. Water Treat. 9 (2013) 49-52.
24. [24]
  M. Amara, H. Kerdjoudj, Talanta 60 (2003) 991-1001. doi: 10.1016/S0039-9140(03)00155-3
25. [25]
  A. Walcarius, C. Delacote, Chem. Mater. 15 (2003) 4181-4192. doi: 10.1021/cm031089l
26. [26]
  K.H. Nam, L.L. Tavlarides, Chem. Mater. 17 (2005) 1597-1604. doi: 10.1021/cm048269v
27. [27]
  M. Mazzotti, J. Chromatogr. A 1126 (2006) 311-322. doi: 10.1016/j.chroma.2006.06.022
28. [28]
  S.J. Allen, G. Mckay, J.F. Porter, J. Colloid Interface Sci. 280 (2004) 322-333. doi: 10.1016/j.jcis.2004.08.078
29. [29]
  F. Huang, F. Zhang, B. Wang, Chin. J. Appl. Chem. 31 (2014) 1458-1463.
30. [30]
  M. Hartmann, A. Vinu, G. Chandrasekar, Chem. Mater. 17 (2005) 829-833. doi: 10.1021/cm048564f
31. [31]
  B. OepenVon, W. Kordel, Chemosphere 22 (1991) 285-304. doi: 10.1016/0045-6535(91)90318-8
