Citation: Liu Nan, Chen Peng-Zhong, Wang Jian-Xin, Niu Li-Ya, Yang Qing-Zheng. Difluoroboron β-diketonate dye with intense red/near-infrared fluorescence in solutions and solid states[J]. Chinese Chemical Letters, ;2019, 30(11): 1939-1941. doi: 10.1016/j.cclet.2019.04.058 shu

Difluoroboron β-diketonate dye with intense red/near-infrared fluorescence in solutions and solid states

Key Laboratory of Radiopharmaceuticals, Ministry of Education, College of Chemistry, Beijing Normal University, Beijing 100875, China

niuly@bnu.edu.cn

Received Date: 26 March 2019
Revised Date: 9 April 2019
Accepted Date: 22 April 2019
Available Online: 23 November 2019

Figures(6)

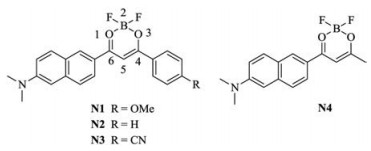

Difluoroboron β-diketonate (BF₂bdk) complexes have attracted much attention due to their outstanding photophysical properties. However, BF₂bdk with near-infrared fluorescence usually suffer from emission quenching in solid state due to the π-π stacking in aggregation. Herein, we report a BF₂bdk dye exhibiting donor-acceptor (D-A) structure with the difluoroboron moiety acting as the electron acceptor and the aminonaphthalene as the electron donor. It processes intense molar extinction coefficient, large Stokes shift and strong fluorescence in red/NIR region in both solution and aggregations. It was used for NIR imaging in living cells.
- Difluoroboron β-diketonate,
- Near-infrared,
- Solid state emission,
- Bioimaging
1. [1]
  P.Z. Chen, L.Y. Niu, Y.Z. Chen, Q.Z. Yang, Coord. Chem. Rev. 350(2017) 196-216. doi: 10.1016/j.ccr.2017.06.026
2. [2]
  D.H. Kim, A. D'Aléo, X.K. Chen, et al., Nat. Photonics 12(2018) 98-104. doi: 10.1038/s41566-017-0087-y
3. [3]
  X.F. Wang, H. Xiao, P.Z. Chen, et al., J. Am. Chem. Soc. 141(2019) 5045-5050. doi: 10.1021/jacs.9b00859
4. [4]
  G. Zhang, G.M. Palmer, M.W. Dewhirst, C.L. Fraser, Nat. Mater. 8(2009) 747. doi: 10.1038/nmat2509
5. [5]
  W. Huang, X. Zhang, B. Chen, et al., Chem. Commun. (Camb.) 55(2019) 67-70. doi: 10.1039/C8CC08346K
6. [6]
  Q. Jiang, M. Zhang, Z. Wang, et al., RSC Adv. 8(2018) 30055-30060. doi: 10.1039/C8RA05031G
7. [7]
  L. Wilbraham, M. Louis, D. Alberga, et al., Adv. Mater. 30(2018) 1800817. doi: 10.1002/adma.201800817
8. [8]
  P.Z. Chen, H. Zhang, L.Y. Niu, et al., Adv. Funct. Mater. 27(2017) 1700332. doi: 10.1002/adfm.201700332
9. [9]
  T. Liu, G. Zhang, R.E. Evans, et al., Chem.-Eur. J. 24(2018) 1859-1869. doi: 10.1002/chem.201703513
10. [10]
  P.Z. Chen, L.Y. Niu, H. Zhang, Y.Z. Chen, Q.Z. Yang, Mater. Chem. Front. 2(2018) 1323-1327. doi: 10.1039/C8QM00118A
11. [11]
  P.Z. Chen, Y.X. Weng, L.Y. Niu, et al., Angew. Chem. Int. Ed. 55(2016) 2759-2763. doi: 10.1002/anie.201510503
12. [12]
  P.Z. Chen, J.X. Wang, L.Y. Niu, Y.Z. Chen, Q.Z. Yang, J. Mater. Chem. C 5(2017) 12538-12546. doi: 10.1039/C7TC04751G
13. [13]
  K. Kamada, T. Namikawa, S. Senatore, et al., Chem.-Eur. J. 22(2016) 5219-5232. doi: 10.1002/chem.201504903
14. [14]
  M. Louis, R. Sethy, J. Kumar, et al., Chem. Sci. 10(2019) 843-847. doi: 10.1039/C8SC04026E
15. [15]
  T. Butler, M. Zhuang, C.L. Fraser, J. Phys.Chem. C 122(2018) 19090-19099. doi: 10.1021/acs.jpcc.8b04762
16. [16]
  G.R. Krishna, M.S.R.N. Kiran, C.L. Fraser, U. Ramamurty, C.M. Reddy, Adv. Funct. Mater. 23(2013) 1422-1430. doi: 10.1002/adfm.201201896
17. [17]
  G. Zhang, J. Chen, S.J. Payne, et al., J. Am. Chem. Soc. 129(2007) 8942-8943. doi: 10.1021/ja0720255
18. [18]
  P. Zhang, Z.Q. Guo, C.X. Yan, W.H. Zhu, Chin. Chem. Lett. 28(2017) 1952-1956. doi: 10.1016/j.cclet.2017.08.038
19. [19]
  R.F. Wang, H.Q. Peng, P.Z. Chen, et al., Adv. Funct. Mater. 26(2016) 5419-5425. doi: 10.1002/adfm.201601831
20. [20]
  Q. Liao, X.G. Wang, S. Lv, et al., ACS Nano 12(2018) 5359-5367. doi: 10.1021/acsnano.8b00150
21. [21]
  C.T. Poon, D. Wu, V.W.W. Yam, Angew. Chem. Int. Ed. 55(2016) 3647-3651. doi: 10.1002/anie.201510946
22. [22]
  H.W. Mo, Y. Tsuchiya, Y. Geng, et al., Adv. Funct. Mater. 26(2016) 6703-6710. doi: 10.1002/adfm.201601257
23. [23]
  B. Bai, C. Yan, Y. Zhang, Z. Guo, W.H. Zhu, Chem. Commun. (Camb.) 54(2018) 12393-12396. doi: 10.1039/C8CC07376G
24. [24]
  K.S. Park, M.K. Kim, Y. Seo, et al., ACS Chem. Neurosci. 8(2017) 2124-2131. doi: 10.1021/acschemneuro.7b00224
25. [25]
  W. Chen, Y. Pan, J. Chen, et al., Chin. Chem. Lett. 29(2018) 1429-1435. doi: 10.1016/j.cclet.2018.08.011
26. [26]
  P.Z. Chen, H.R. Zheng, L.Y. Niu, et al., Chin. Chem. Lett. 26(2015) 631-635. doi: 10.1016/j.cclet.2015.04.018
27. [27]
  Z. Guo, S. Park, J. Yoon, I. Shin, Chem. Soc. Rev. 43(2014) 16-29. doi: 10.1039/C3CS60271K
28. [28]
  P.H. Lanoë, B. Mettra, Y.Y. Liao, et al., ChemPhysChem 17(2016) 2128-2136. doi: 10.1002/cphc.201600178
29. [29]
  A. Felouat, A. D'Aléo, F. Fages, J. Org. Chem 78(2013) 4446-4455. doi: 10.1021/jo400389h
30. [30]
  T.B. Ren, W. Xu, W. Zhang, et al., J. Am. Chem. Soc. 140(2018) 7716-7722. doi: 10.1021/jacs.8b04404
