Citation: Wu Yile, Zhang Jie, Xie Zuowei. How long a C–C bond can be? An example of extraordinary long C-C single bond in 1, 2-diarylamino-o-carboranes[J]. Chinese Chemical Letters, ;2019, 30(8): 1530-1532. doi: 10.1016/j.cclet.2019.04.034 shu

How long a C–C bond can be? An example of extraordinary long C-C single bond in 1, 2-diarylamino-o-carboranes

Department of Chemistry and State Key Laboratory of Synthetic Chemistry, The Chinese University of Hong Kong, Hong Kong, China

zxie@cuhk.edu.hk

Received Date: 15 February 2019
Revised Date: 1 April 2019
Accepted Date: 9 April 2019
Available Online: 17 August 2019

Figures(5)

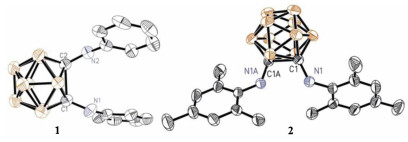

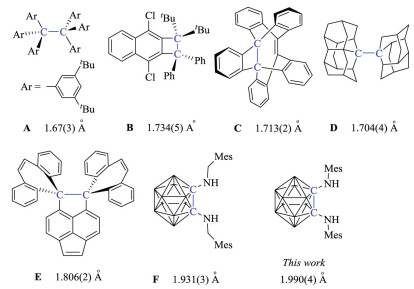

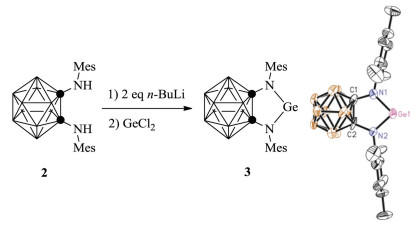

How long a C-C bond can be? A question has long fascinated chemists. This work reports an example of extraordinary long C-C bond distance of 1.990(4) Å observed in single-crystal X-ray structure of 1, 2-(NHMes)₂-o-carborane (2; Mes=2, 4, 6-trimethylphenyl). DFT calculations show that hyperconjugation of lone pairs of the nitrogen atoms into the empty σ^* orbital of the cage C-C bond is the origin of the bond elongation. Such hyperconjugation can be suppressed if the two nitrogen atoms in 2 are linked to a Lewis acidic germanium (Ⅱ) center.
- o-Carborane,
- C–C single bond,
- Hyperconjugation,
- Amine,
- X-ray structure
1. [1]
  F.H. Allen, O. Kennard, D.G. Watson, et al., J. Chem. Soc. Perkin Trans. I 2(1987) S1-S19.
2. [2]
  S. Vázquez, P. Camps, Tetrahedron 61(2005) 5147-5208. doi: 10.1016/j.tet.2005.03.055
3. [3]
  J.M. McBride, Tetrahedron 30(1974) 2009-2022. doi: 10.1016/S0040-4020(01)97332-6
4. [4]
  M. Tanaka, A. Sekiguchi, Angew. Chem. Int. Ed. 44(2005) 5821-5823. doi: 10.1002/anie.200501605
5. [5]
  A.A. Zavitsas, J. Phys. Chem. A 107(2003) 897-898. doi: 10.1021/jp0269367
6. [6]
  B. Kahr, D. Van Engen, K. Mislow, J. Am. Chem. Soc. 108(1986) 8305-8307. doi: 10.1021/ja00286a053
7. [7]
  K. Tanaka, N. Takamoto, Y. Tezuka, M. Kato, F. Toda, Tetrahedron 57(2001) 3761-3767. doi: 10.1016/S0040-4020(01)00249-6
8. [8]
  F. Toda, K. Tanaka, M. Watanabe, et al., J. Org. Chem. 64(1999) 3102-3105. doi: 10.1021/jo982010c
9. [9]
  S. Kammermeier, R. Herges, P.G. Jones, Angew. Chem. Int. Ed. 36(1997) 1757-1760. doi: 10.1002/anie.199717571
10. [10]
  P.R. Schreiner, L.V. Chernish, P.A. Gunchenko, et al., Nature 477(2011) 308. doi: 10.1038/nature10367
11. [11]
  Y.Ishigaki, T.Shimajiri, T.Takeda, R.Katoono, T.Suzuki, Chemistry4(2018)795-806. doi: 10.1016/j.chempr.2018.01.011
12. [12]
  R.N. Grimes, Icosahedral carboranes: 1, 2-C₂B₁₀H₁₂, in: R.N. Grimes (Ed.), Carboranes, third edition, Academic Press, Boston, 2016, pp. 283-502.
13. [13]
  J. Llop, C. Viñas, J.M. Oliva, et al., J. Organomet. Chem. 657(2002) 232-238. doi: 10.1016/S0022-328X(02)01637-6
14. [14]
  R.A.Harder, J.A.Hugh MacBride, G.P. Rivers, et al., Tetrahedron 70(2014)5182-5189. doi: 10.1016/j.tet.2014.05.102
15. [15]
  L.A. Boyd, W. Clegg, R.C.B. Copley, et al., Dalton Trans. (2004) 2786-2799.
16. [16]
  M.A. Fox, R.J. Peace, W. Clegg, Polyhedron 28(2009) 2359-2370. doi: 10.1016/j.poly.2009.04.041
17. [17]
  J.M. Oliva, N.L. Allan, Pv.R. Schleyer, C. Viñas, F. Teixidor, J. Am. Chem. Soc. 127(2005) 13538-13547. doi: 10.1021/ja052091b
18. [18]
  J. Li, R. Pang, Z. Li, et al., Angew. Chem. Int. Ed. 58(2019) 1397-1401. doi: 10.1002/anie.201812555
19. [19]
  R.Cheng, J.Zhang, J.Zhang, Z.Qiu, Z.Xie, Angew.Chem.Int.Ed.55(2016)1751-1754. doi: 10.1002/anie.201507952
20. [20]
  Z. Qiu, S. Ren, Z. Xie, Acc. Chem. Res. 44(2011) 299-309. doi: 10.1021/ar100156f
21. [21]
  J. Zhang, Z. Xie, Acc. Chem. Res. 47(2014) 1623-1633. doi: 10.1021/ar500091h
22. [22]
  Y. Quan, Z. Qiu, Z. Xie, Chem. -Eur. J. 24(2018) 2795-2805. doi: 10.1002/chem.201704937
23. [23]
  I. Sapountzis, P. Knochel, J. Am. Chem. Soc. 124(2002) 9390-9391. doi: 10.1021/ja026718r
24. [24]
  C. Tang, Z. Xie, Angew. Chem. Int. Ed. 54(2015) 7662-7665. doi: 10.1002/anie.201502502
25. [25]
  M.J. Hardie, C.L. Raston, Crystengcomm 3(2001) 162-164. doi: 10.1039/b107198j
26. [26]
  Y. Mizuhata, T. Sasamori, N. Tokitoh, Chem. Rev. 109(2009) 3479-3511. doi: 10.1021/cr900093s
