• Marine-derived organisms have been recognized as a great reservoir for biologically active and structurally unusual secondary metabolites that have greatly impacted the quality of human life [1-6]. For example, bacteria derived from marine environment have yielded several promising drug candidates such as lipopeptide antibiotic taromycin [7], anticancer agentssalinosporamide A [8-10] and bryostatins [11, 12]. Recently, we have reported the characterization of a rare macrodilactone named streptoseomycin with potent anti-Helicobacter pyroli activity from Streptomyces seoulensis A01 [13], which was originally isolated from a marine prawn, and an antitumor agent chartreusin [14], as well as antibacterial alkaloids, strepchazolins and streptazolin from a marine sediment-derived S. chartreusis NA02069 [15]. Our continued chemical investigation of S. chartreusis NA02069 strain has led to the discovery of a novel alkaloid, chartrenoline (1), featuring a unique 6/6/5/5 ring system (Fig. 1). Herein, we report the isolation, structure elucidation and putative biosynthetic pathway for 1.

  Figure 1



  Figure 1.  Structure of chartrenoline (1).

  DownLoad: Full-Size Img PowerPoint

  Compound 1 was obtained as pale yellow crystals. The molecular formula of 1was determined to be C₁₈H₁₈N₂O₆ based on its HR-ESI-MS data (m/z 359.1237 [M + H]⁺, calcd. for C₁₈H₁₉N₂O₆: 359.1238), indicating 11 degrees of unsaturation. Analysis of the ¹³C NMR spectrum, together with the DEPT135 and HSQC spectra, indicated ten sp²-hydribridzed carbon resonances ascribe to two carbonyl carbons, four olefinic methines and four olefinic carbonyl carbons; eight sp³-hydribridzed carbon signals including one methyl group, two methylenes, and five methine carbons. The ¹H NMR spectrum data (Table 1) exhibited signals for a pair of 1, 4-disubstituted phenyl ring at δ_H 7.85 (d, 2H, J = 8.9 Hz, H-14, H-16) and 7.11 (d, 2H, J = 8.9 Hz, H-13, H-17). In addition, the ¹H-¹H COSY spectral data revealed a partial structure of -CH₂-CH₂-CH-, -CH-CH-CH-OH-, and CH₃-CH-, respectively; indicating the connection of C-2/C-3/C-4, C-6/C-7/C-8/8-OH, and C-11/C-10, respectively.

  Table 1



  Table 1.  ¹H and ¹³C NMR spectral data for 1

  DownLoad: CSV

  The gross structure of 1 was established by extensive analyses of 2D NMRspectral data, in particular with HMBC spectrum. The HMBC correlations of H-2 (δ_H 3.66) with C-4 (δ_C 73.6) and C-6 (δ_C 61.5), of H-3 (δ_H 2.21) with C-5 (δ_C 138.5), of H-7 (δ_H 4.72) with C-5 (δ_C 138.5) and C-9 (δ_C 138.9), of H-8 (δ_H 4.56) with C-6 (δ_C 61.5), together with the chemical shifts of δ_C 40.4, δ_C 61.5 and δ_C 82.4 for C-2, C-6 and C-7, respectively, suggested the presence of a 6/5 bicyclic ring system as shown in Fig. 2. The presence of a hydroxyl group substituted at C-8 was reinforced by HMBC correlations of 8-OH (δ_H 5.77) with C-7 (δ_C 82.4), C-8 (δ_C 78.7) and C-9 (δ_C 138.9). In addition, in the HMBC spectrum, H-2 (δ_H 3.66), H-6 (δ_H 4.70) and H-7 (δ_H 4.72) showed correlations to a downfield carbon C-1 (δ_C 157.4) indicated the existence of an oxazolidin-2-one ring.

  Figure 2

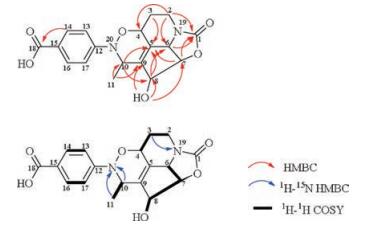

  Figure 2.  Key 2D NMR correlations of 1.

  DownLoad: Full-Size Img PowerPoint

  The HMBC correlations of H-11 (δ_H 1.09) with C-9 (δ_C 138.9), and of H-10 (δ_H 4.66) with C-5 (δ_C 138.5) and C-8 (δ_C 78.7) revealed that C-10 (δ_C 53.1) was connected to C-9 (δ_C 138.9). Moreover, a benzoic acid partial structure was elucidated by the HMBC correlation of H-14/16 (δ_H 7.85) with C-18 (δ_C 167.5). The HMBC correlation between H-10 (δ_H 4.66) and C-12 (δ_C 151.6), together with the chemical shift for C-10 (δ_C 53.1), revealed the benzoic acid group and C-10 was connected through a nitrogen atom. The only remaining oxygen atom was substituted at C-4 as revealed by chemical shifts of H-4 (δ_H 5.00) and C-4 (δ_C 73.6). Finally, owing to the shortage of any more double bonds, the last unsaturation degree could be ascribe to an oxazine ring through generating an O-N bond. The proposed structure was further supported by the ¹H-¹⁵N HMBC correlations of H-10 and H-11 with N-20, and of H-3 with N-19.

  Compound 1 contained five chiral centers, which were difficult to be fully solved by analysis of its NMR data. Fortunately, a high quality crystal suitable for X-ray diffraction was obtained from CH₂Cl₂-methanol (1/1, v/v) solvent mixture. The subsequent X-ray crystallographic data collected in Cu Kα radiation at low temperature with a flack parameter of -0.07 (14) confirmed the above proposed planar structure (Fig. 3), and further established the absolute configuration of 1 as shown in Fig. 1. Compound 1 was therefore determined as an unusual 6/6/5/5-tetracyclic alkaloid with a novel skeleton.

  Figure 3



  Figure 3.  X-ray crystallographic analysis of compound 1.

  DownLoad: Full-Size Img PowerPoint

  Structurally, compound 1 is actually related to streptazolin [16], which has been isolated from the same strain when fermented using different medium [15]. Therefore, a plausible biosynthetic pathway for 1 is proposed as shown in Scheme 1. Streptazolin is proposed to be biosynthesized through bacterial type Ⅰ polyketide synthases (PKSs) [17]. The C-terminal thioester reductase domain in PKS is responsible for release of the assembled polyketide chain as an aldehyde, and its subsequent reductive amination and cyclization gives streptazolin [17, 18]. Streptazolin can then undergo an intermolecular Diels-Alder reaction with 4-nitrosobenzoic acid to give 1 [19].

  Scheme 1

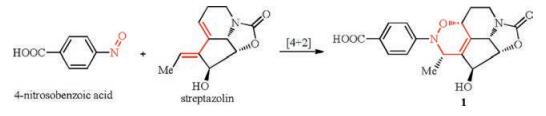

  Scheme 1.  Proposed biosynthetic pathway for chartrenoline (1)

  DownLoad: Full-Size Img PowerPoint

  Compound 1 was evaluated for its antibacterial activities against four pathogenic bacteria including Staphylococcus aureus CMCC 26003, Bacillus subtilis CICC 10283, Escherichia coli ATCC 25922, and Pseudomonas aeruginosa CICC 10351. However, compound 1 is almost inactive to them at the concentration of 128 μmol/L.

  In conclusion, a novel alkaloid, chartrenoline (1), was isolated from a marine actinobacterium S. chartreusis NA02069. The structure of 1 possessing a novel skeleton with a fused 6/6/5/5 ring system was unambiguously established by extensive analysis of its spectroscopic data including HR-ESI-MS, NMR, as well as single crystal X-ray diffraction data. Furthermore, the proposed biosynthetic pathway starting from a known alkaloid streptazolin was proposed. Our work presented here sets the stage for future biosynthetic study.
