Citation: Li Xiaoqiang, Wang Jidong, Li Mengjuan, Jin Yang, Gu Zhijie, Liu Changchun, Ogino Kenji. Fe-doped TiO₂/SiO₂ nanofibrous membranes with surface molecular imprinted modification for selective photodegradation of 4-nitrophenol[J]. Chinese Chemical Letters, ;2018, 29(3): 527-530. doi: 10.1016/j.cclet.2017.09.007 shu

Fe-doped TiO₂/SiO₂ nanofibrous membranes with surface molecular imprinted modification for selective photodegradation of 4-nitrophenol

Li Xiaoqiang ^a,b,*,, ,
Wang Jidong ^b ,
Li Mengjuan ^b ,
Jin Yang ^b ,
Gu Zhijie ^a ,
Liu Changchun ^a ,
Ogino Kenji ^a,*,,

a.
Department of Organic and Polymer Materials Chemistry, Tokyo University of Agriculture & Technology, Koganei-city, Tokyo 184-8588, Japan
b.
College of Textile & Clothing, Jiangnan University, Wuxi 214122, China

Corresponding author: Li Xiaoqiang, Ogino Kenji,

Received Date: 28 May 2017
Revised Date: 20 August 2017
Accepted Date: 4 September 2017
Available Online: 6 March 2017

Figures(4)

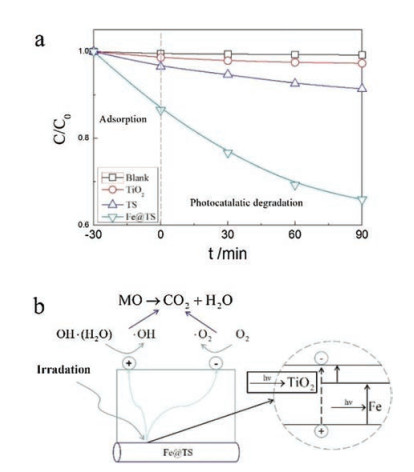

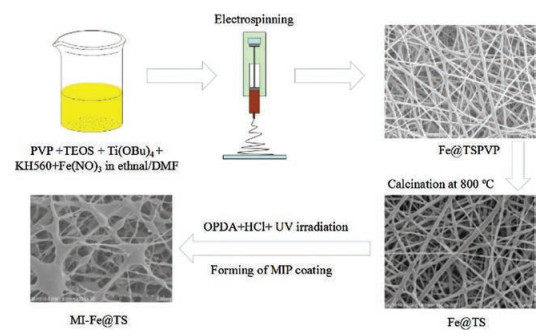

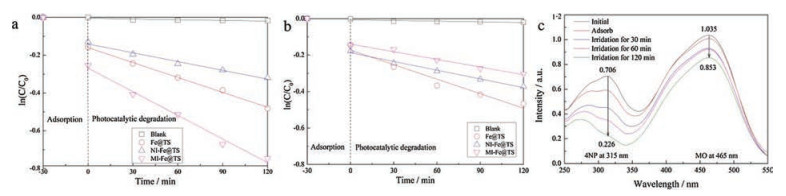

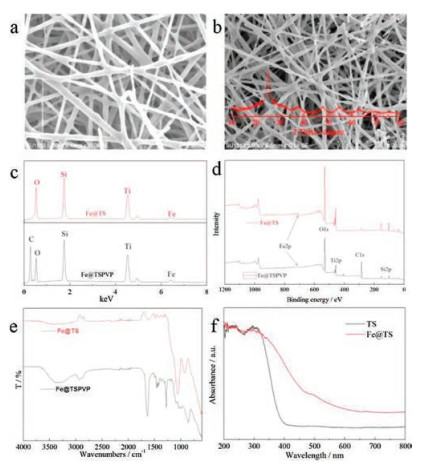

In this study, Fe-doped TiO₂/SiO₂ (Fe@TS) nanofibrous membranes with molecular imprinted modification, were fabricated by a combination of sol-gel process, electrospinning, calcination and liquid phase deposition techniques. The precursor sol was prepared from one-pot condensation of poly (vinylpyrrolidone), ferric chloride hexahydrate, tetraethyl orthosilicate and titanium n-butoxide in the mixture solvents of N, N-dimethylformamide and ethyl alcohol. Fibrous membrane wasthen fabricated by electrospinning, followed by calcination to form the Fe@TS composite. The physicochemical properties of Fe@TS were characterized. Thereafter, 4-nitrophenol (4NP) was used as the template to deposit onto nanofibrous Fe@TS membranes, with a thin layer of molecular imprinted polymer in liquid phase. The photodegradation capabilities of 4NP and methyl orange wereexamined in both single and binary systems. The results demonstrated that molecular imprinted Fe@TS membranes exhibited excellent selectivity for photodegradation of 4NP.
- Titanium dioxide,
- Silicon dioxide,
- Molecular imprinted polymer,
- Liquid phase deposition,
- Electrospinning,
- Photocatalysis
