Citation: Zhang Xian-Sheng, Xia Yan-Zhi, Shi Mei-Wu, Yan Xiong. The flame retardancy of alginate/flame retardant viscose fibers investigated by vertical burning test and cone calorimeter[J]. Chinese Chemical Letters, ;2018, 29(3): 489-492. doi: 10.1016/j.cclet.2017.07.023 shu

The flame retardancy of alginate/flame retardant viscose fibers investigated by vertical burning test and cone calorimeter

a.
Key Laboratory of Textile Science & Technology, Ministry of Education, College of Textiles, Donghua University, Shanghai 201620, China
b.
Laboratory of Fiber Materials and Modern Textile, The Growing Base for State Key Laboratory, Qingdao University, Qingdao 266071, China
c.
The Quartermaster Equipment Research Institute of Logistical Support Department, Beijing 100082, China

Corresponding author: Shi Mei-Wu, dhushi@126.com

Received Date: 3 April 2017
Revised Date: 8 May 2017
Accepted Date: 21 July 2017
Available Online: 25 March 2017

Figures(3)

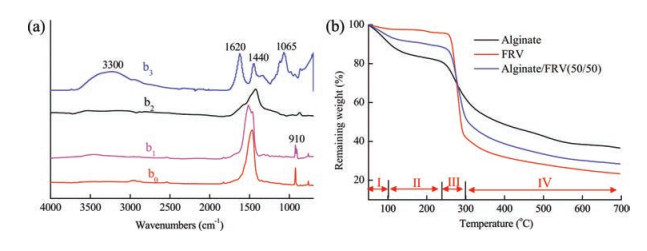

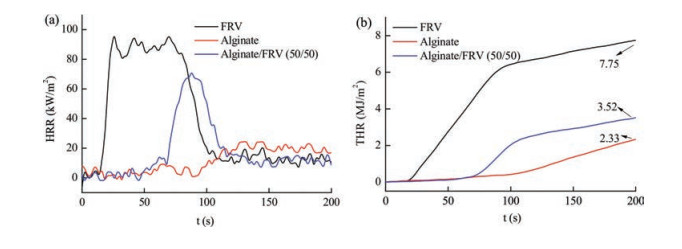

In this research, the flame retardancy of neat alginate fiber, flame retardant viscose fiber (FRV) and alginate/FRV (50/50) blending fibers were investigated by vertical burning and cone calorimeter tests. The vertical burning test showed that the afterflame time of alginate fiber was 0 s, but alginate presented serious smoldering behavior with the afterglow time of 605 s and damaged length of 85 mm, while the afterglow time of FRV was 0 s. When the FRV was incorporated into alginate with the weight ratio of 50/50, the afterglow time and damaged length were significantly reduced to 85 s and 35 mm, indicating the smoldering of alginate can be effectively decreased. The morphology and chemical structure of the alginate residual demonstrated that it was seriously destroyed during smoldering process, which was ascribed to its relative low initial thermal degradation temperature. Based on the thermal properties analysis, alginate and FRV fibers shared the concurrence of rapid degradation in the same temperature region of 250-300℃, through which, the compact and stable char formed by FRV can prevent the heat transmission and suppress the smoldering of alginate. Further, the cone calorimeter results demonstrated that the time to ignition (TTI) significantly increased and peak heat release rate (PHRR) decreased for alginate/FRV (50/50) compared with FRV. With this research, a new method to overcome the smoldering of alginate was proposed by blending with FRV
- Alginate fibers,
- Flame retardant viscose fibers,
- Blending,
- Flame retardancy,
- Vertical burning test,
- Cone calorimeter
1. [1]
  S.J. Garvey, S.C. Anand, T. Rowe, A.R. Horrocks, D.G. Walker, Polym. Degrad. Stab. 54(1996) 413-416. doi: 10.1016/S0141-3910(96)00072-9
2. [2]
  S. Bourbigot, X. Flambard, M. Ferreira, F. Poutch, J. Fire Sci. 20(2002) 3-22. doi: 10.1177/0734904102020001436
3. [3]
  H. Gu, Mater. Des. 30(2009) 4324-4327. doi: 10.1016/j.matdes.2009.04.012
4. [4]
  K.Y. Lee, D.J. Mooney, Prog. Polym. Sci. 37(2012) 106-126. doi: 10.1016/j.progpolymsci.2011.06.003
5. [5]
  Y.X. Luo, G.L. Luo, M. Gelinsky, P. Huang, C.S. Ruan, Mater. Lett. 189(2017) 295-298. doi: 10.1016/j.matlet.2016.12.009
6. [6]
  X.L. Hu, X.S. Zhang, M.W. Tian, et al., J. Compos. Mater. 50(2015) 2365-2374.
7. [7]
  Y. Liu, C.J. Zhang, J.C. Zhao, et al., Carbohyd. Polym. 139(2016) 106-114. doi: 10.1016/j.carbpol.2015.12.044
8. [8]
  Y. Liu, Z.F. Li, J.S. Wang, et al., Polym. Degrad. Stab. 118(2015) 59-68. doi: 10.1016/j.polymdegradstab.2015.04.010
9. [9]
  J.J. Zhang, Q. Ji, X.H. Shen, et al., Polym Degrad Stab. 96(2011) 936-942. doi: 10.1016/j.polymdegradstab.2011.01.029
10. [10]
  M. Zammarano, S. Matko, W.M. Pitts, D.M. Fox, R.D. Davis, Polym. Degrad. Stab. 106(2014) 97-107. doi: 10.1016/j.polymdegradstab.2013.12.010
11. [11]
  B. Li, Polym. Degrad. Stab. 74(2001) 195-199. doi: 10.1016/S0141-3910(01)00152-5
12. [12]
  E.D. Weil, S.V. Levchik, J. Fire Sci. 26(2008) 243-281. doi: 10.1177/0734904108089485
13. [13]
  A.R. Horrocks, Polym. Degrad. Stab. 54(1996) 143-154. doi: 10.1016/S0141-3910(96)00038-9
14. [14]
  L.J. Qu, M.W. Tian, X.L. Hu, et al., Carbon 80(2014) 565-574. doi: 10.1016/j.carbon.2014.08.097
15. [15]
  Q. Shen, Y.J. Fan, W.M. Zhang, et al., Chin. Chem. Lett. 26(2015) 193-196. doi: 10.1016/j.cclet.2014.07.003
16. [16]
  H.A. Al-Hosney, V.H. Grassian, Phys. Chem. Chem. Phys. 7(2005) 1266-1276. doi: 10.1039/b417872f
17. [17]
  L.L. Wang, X. Dong, Y.Y. Gao, et al., Polymer 59(2015) 16-25. doi: 10.1016/j.polymer.2014.12.058
18. [18]
  L.L. Wang, X. Dong, M.M. Huang, D.J. Wang, Polymer 97(2016) 217-225. doi: 10.1016/j.polymer.2016.05.038
19. [19]
  M.W. Tian, L.J. Qu, X.S. Zhang, et al., Carbohyd. Polym. 111(2014) 456-462. doi: 10.1016/j.carbpol.2014.05.016
20. [20]
  V. Babrauskas, J Fire Sci. 1(1983) 9-32. doi: 10.1177/073490418300100103
21. [21]
  X.S. Zhang, R. Wang, R. Wang, X. Yan, M.W. Shi, Text Res. J. (2017), doi:http://dx.doi.org/10.1177/0040517517690629. doi: 10.1177/0040517517690629
22. [22]
  R. Shi, L.W. Tan, L. Zong, et al., Carbohyd. Polym. 157(2017) 1594-1603. doi: 10.1016/j.carbpol.2016.11.034
