Citation: . Magnetic and electro-catalytic properties of a copper complex with 2-(pyridylmethyl)amino-N, N-bis(2-methylene-4, 6-difluorophenol)[J]. Chinese Chemical Letters, ;2017, 28(7): 1424-1428. doi: 10.1016/j.cclet.2017.03.027 shu

Magnetic and electro-catalytic properties of a copper complex with 2-(pyridylmethyl)amino-N, N-bis(2-methylene-4, 6-difluorophenol)

Received Date: 8 December 2016
Revised Date: 15 February 2017
Accepted Date: 19 March 2017
Available Online: 21 July 2017

Figures(6)

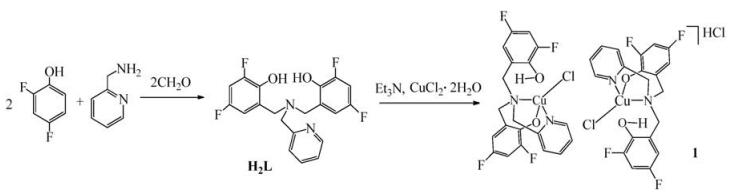

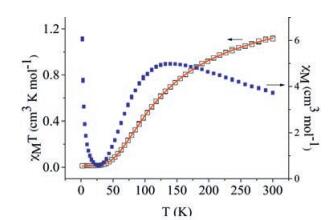

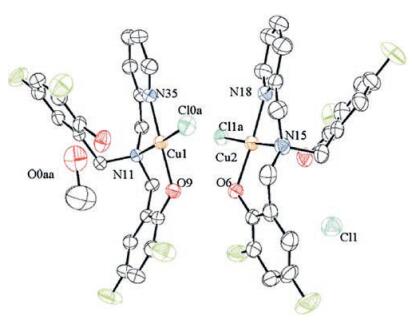

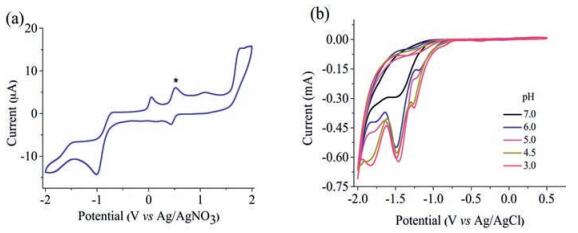

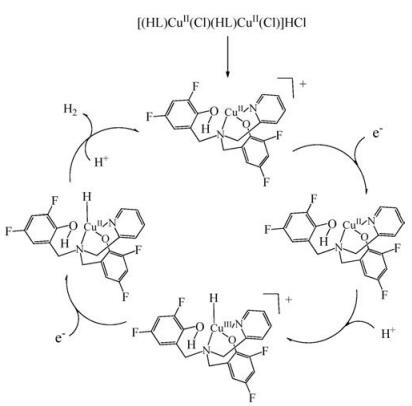

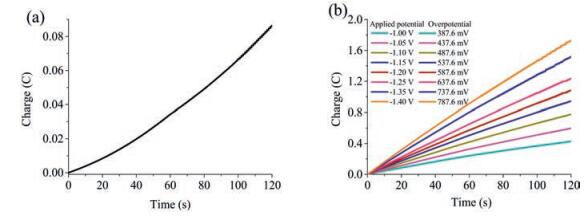

A new material for both magnetic coupling and electrocatalytic hydrogen generation based on a copper complex, [(HL)CuCl-CuCl(HL)]HCl 1 is prepared by the reaction of 2-(pyridylmethyl)amino-N, N-bis(2-methylene-4, 6-difluorophenol) (H₂L) and CuCl₂·2H₂O. In solid, complex 1 is built from two copper units ([(HL)CuCl]), and exhibits an antiferromagnetic exchange interaction between copper (Ⅱ) ions (J=-160 cm^-1). In liquid, 1 can electrocatalyze hydrogen generation both from acetic acid with a turnover frequency (TOF) of 16.3 moles of hydrogen per mole of catalyst per hour at an overpotential (OP) of 941.6 mV (in DMF), and a neutral buffer with a TOF of 1415.6 moles of hydrogen per mole of catalyst per hour at an OP of 787.6 mV.
