Citation: . Switch-on fluorescence sensor for ascorbic acid detection based on MoS₂ quantum dots-MnO₂ nanosheets system and its application in fruit samples[J]. Chinese Chemical Letters, ;2017, 28(2): 338-344. doi: 10.1016/j.cclet.2016.10.003 shu

Switch-on fluorescence sensor for ascorbic acid detection based on MoS₂ quantum dots-MnO₂ nanosheets system and its application in fruit samples

Received Date: 25 July 2016
Revised Date: 6 September 2016
Accepted Date: 12 September 2016
Available Online: 8 February 2016

Figures(10)

In this work, molybdenum disulfide quantum dots (MoS₂ QDs) were firstly prepared by hydrothermal method using sodium molybdate and glutathione as precursors, and applied in ascorbic acid detection. When joining MnO₂ nanosheets into MoS₂ QDs solution, they produced an obvious fluorescence quenching, which should be due to inner filter effect (IFE). Meanwhile, the fluorescent probe was formed. Interestingly, we found that this quenching phenomenon disappeared with the addition of ascorbic acid. In other words, the fluorescence gradually restored. This recovery phenomenon is mainly due to the reduction effect of ascorbic acid for MnO₂ nanosheets. Under the optimum conditions, the limit of detection (LOD) of 39 nmol/L for ascorbic acid was achieved with a linear range of 0.33-5.00 μmol/L. The repeatability was better than 5.0% for ascorbic acid in both standard and fruit samples (n=3). Moreover, the as-fabricated fluorescent sensing system was successfully employed to detect the ascorbic acid levels in hawthorn and jujube with satisfactory results.
1. [1]
  Pingping HAO , Fangfang LI , Yawen WANG , Houfen LI , Xiao ZHANG , Rui LI , Lei WANG , Jianxin LIU . Hydrogen production performance of the non-platinum-based MoS₂/CuS cathode in microbial electrolytic cells. Chinese Journal of Inorganic Chemistry, 2024, 40(9): 1811-1824. doi: 10.11862/CJIC.20240054
2. [2]
  Jie ZHANG , Xin LIU , Zhixin LI , Yuting PEI , Yuqi YANG , Huimin LI , Zhiqiang LIU . Assembling a luminescence silencing system based on post-synthetic modification strategy: A highly sensitive and selective turn-on metal-organic framework probe for ascorbic acid detection. Chinese Journal of Inorganic Chemistry, 2024, 40(4): 823-833. doi: 10.11862/CJIC.20230310
3. [3]
  Zheng Zhang , Lei Shi , Bin Wang , Jingyuan Qu , Xiaoling Wang , Tao Wang , Qitao Jiang , Wuhong Xue , Xiaohong Xu . Epitaxial growth of full-vdW α-In₂Se₃/MoS₂ heterostructures for all-in-one sensing and memory-computing artificial visual system. Chinese Chemical Letters, 2025, 36(3): 109687-. doi: 10.1016/j.cclet.2024.109687
4. [4]
  Hao Deng , Yuxin Hui , Chao Zhang , Qi Zhou , Qiang Li , Hao Du , Derek Hao , Guoxiang Yang , Qi Wang . MXene−derived quantum dots based photocatalysts: Synthesis, application, prospects, and challenges. Chinese Chemical Letters, 2024, 35(6): 109078-. doi: 10.1016/j.cclet.2023.109078
5. [5]
  Jia Chen , Yun Liu , Zerong Long , Yan Li , Hongdeng Qiu . Colorimetric detection of α-glucosidase activity using Ni-CeO₂ nanorods and its application to potential natural inhibitor screening. Chinese Chemical Letters, 2024, 35(9): 109463-. doi: 10.1016/j.cclet.2023.109463
6. [6]
  Meijuan Chen , Liyun Zhao , Xianjin Shi , Wei Wang , Yu Huang , Lijuan Fu , Lijun Ma . Synthesis of carbon quantum dots decorating Bi₂MoO₆ microspherical heterostructure and its efficient photocatalytic degradation of antibiotic norfloxacin. Chinese Chemical Letters, 2024, 35(8): 109336-. doi: 10.1016/j.cclet.2023.109336
7. [7]
  Xuehua SUN , Min MA , Jianting LIU , Rui TIAN , Hongmei CHAI , Huali CUI , Loujun GAO . Pr/N co-doped biomass carbon dots with enhanced fluorescence for efficient detection of 2,4-dinitrophenylhydrazine. Chinese Journal of Inorganic Chemistry, 2025, 41(3): 561-573. doi: 10.11862/CJIC.20240294
8. [8]
  Manman Ou , Yunjian Zhu , Jiahao Liu , Zhaoxuan Liu , Jianjun Wang , Jun Sun , Chuanxiang Qin , Lixing Dai . Polyvinyl alcohol fiber with enhanced strength and modulus and intense cyan fluorescence based on covalently functionalized graphene quantum dots. Chinese Chemical Letters, 2025, 36(2): 110510-. doi: 10.1016/j.cclet.2024.110510
9. [9]
  Shuqi Yu , Yu Yang , Keisuke Kuroda , Jian Pu , Rui Guo , Li-An Hou . Selective removal of Cr(Ⅵ) using polyvinylpyrrolidone and polyacrylamide co-modified MoS₂ composites by adsorption combined with reduction. Chinese Chemical Letters, 2024, 35(6): 109130-. doi: 10.1016/j.cclet.2023.109130
10. [10]
  Junan Pan , Xinyi Liu , Huachao Ji , Yanwei Zhu , Yanling Zhuang , Kang Chen , Ning Sun , Yongqi Liu , Yunchao Lei , Kun Wang , Bao Zang , Longlu Wang . The strategies to improve TMDs represented by MoS₂ electrocatalytic oxygen evolution reaction. Chinese Chemical Letters, 2024, 35(11): 109515-. doi: 10.1016/j.cclet.2024.109515
11. [11]
  Xian-Rui Meng , Qian Chen , Mei-Feng Wu , Qiang Wu , Su-Qin Wang , Li-Ping Jin , Fan Zhou , Ren-Li Ma , Jian-Ping Zou . Nano-flowers FeS/MoS2 composites as a peroxymonosulfate activator for efficient p-chlorophenol degradation. Chinese Journal of Structural Chemistry, 2025, 44(3): 100543-100543. doi: 10.1016/j.cjsc.2025.100543
12. [12]
  Meirong HAN , Xiaoyang WEI , Sisi FENG , Yuting BAI . A zinc-based metal-organic framework for fluorescence detection of trace Cu²⁺. Chinese Journal of Inorganic Chemistry, 2024, 40(8): 1603-1614. doi: 10.11862/CJIC.20240150
13. [13]
  Xilin Bai , Wei Deng , Jingjuan Wang , Ming Zhou . Enrichment-enhanced detection strategy in the optimized monitoring system of dopamine with carbon dots-based probe. Chinese Chemical Letters, 2025, 36(2): 109959-. doi: 10.1016/j.cclet.2024.109959
14. [14]
  Xinyu Guo , Chang Li , Wenjun Deng , Yi Zhou , Yan Chen , Yushuang Xu , Rui Li . Phase engineering and heteroatom incorporation enable defect-rich MoS₂ for long life aqueous iron-ion batteries. Chinese Chemical Letters, 2025, 36(3): 109715-. doi: 10.1016/j.cclet.2024.109715
15. [15]
  Qingwang LIU . MoS₂/Ag/g-C₃N₄ Z-scheme heterojunction: Preparation and photocatalytic performance. Chinese Journal of Inorganic Chemistry, 2025, 41(4): 821-832. doi: 10.11862/CJIC.20240148
16. [16]
  Shu-Ran Xu , Fang-Xing Xiao . Metal halide perovskites quantum dots: Synthesis, and modification strategies for solar CO2 conversion. Chinese Journal of Structural Chemistry, 2023, 42(12): 100173-100173. doi: 10.1016/j.cjsc.2023.100173
17. [17]
  Kun Rong , Cuilian Wen , Jiansen Wen , Xiong Li , Qiugang Liao , Siqing Yan , Chao Xu , Xiaoliang Zhang , Baisheng Sa , Zhimei Sun . 层状MoS₂/Ti₃C₂T_x异质结光热转换材料用于太阳能驱动水蒸发. Acta Physico-Chimica Sinica, 2025, 41(6): 100053-. doi: 10.1016/j.actphy.2025.100053
18. [18]
  Ying Wang , Hong Yang , Caixia Zhu , Qing Hong , Xuwen Cao , Kaiyuan Wang , Yuan Xu , Yanfei Shen , Songqin Liu , Yuanjian Zhang . Cascading oxidoreductases-like nanozymes for high selective and sensitive fluorescent detection of ascorbic acid. Chinese Chemical Letters, 2025, 36(4): 110153-. doi: 10.1016/j.cclet.2024.110153
19. [19]
  Qin Hu , Liuyun Chen , Xinling Xie , Zuzeng Qin , Hongbing Ji , Tongming Su . Ni掺杂构建电子桥及激活MoS₂惰性基面增强光催化分解水产氢. Acta Physico-Chimica Sinica, 2024, 40(11): 2406024-. doi: 10.3866/PKU.WHXB202406024
20. [20]
  Min LI , Xianfeng MENG . Preparation and microwave absorption properties of ZIF-67 derived Co@C/MoS₂ nanocomposites. Chinese Journal of Inorganic Chemistry, 2024, 40(10): 1932-1942. doi: 10.11862/CJIC.20240065

Get Citation

PDF

XML

Metrics

PDF Downloads(6)
Abstract views(650)
HTML views(18)

通讯作者: 陈斌, bchen63@163.com

1.
沈阳化工大学材料科学与工程学院沈阳 110142

Address：Zhongguancun North First Street 2,100190 Beijing, PR China Tel: +86-010-82449177-888

DownLoad: Full-Size Img PowerPoint

Return

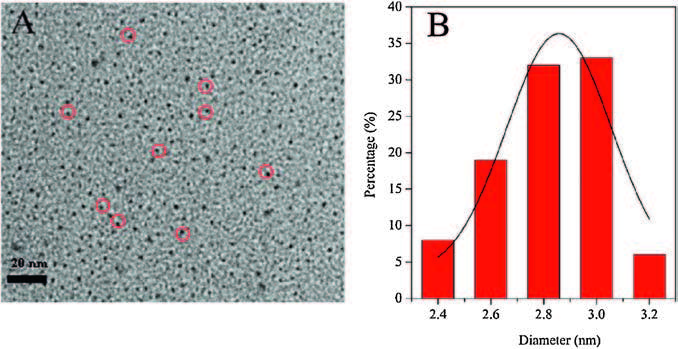

Figure 1. The TEM images (A) and the size distribution (B) of MoS₂ QDs.

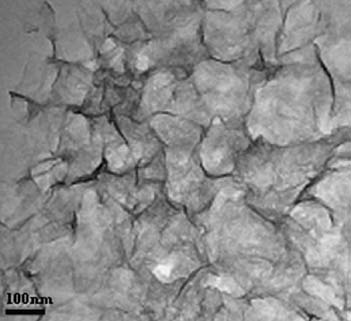

Figure 2. The TEM image of the MnO₂ nanosheets.

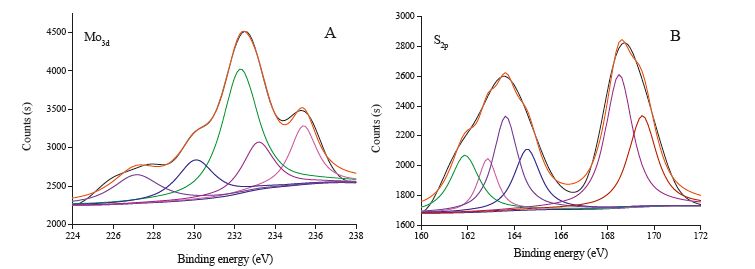

Figure 3. High-resolution peak-fitting XPS spectra of the Mo3d (A) and S_2p (B) regions for MoS₂ QDs.

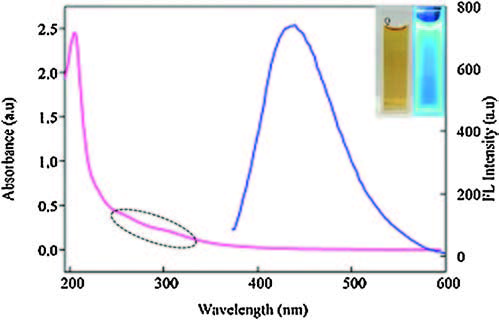

Figure 4. UV-vis absorption (red line) and fluorescence emission (blue line) spectra of the MoS₂QDs.Insetisthe photographofMoS₂QDs dispersionsolutionunder visible light and UV light (365nm).

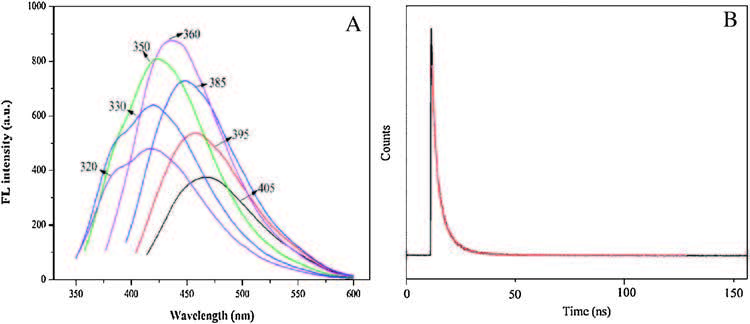

Figure 5. (A) Fluorescence emission (FL) spectra of the MoS₂ QDs under different excitation wavelength. (B) The time-resolved luminescence spectra of MoS₂ QDs.

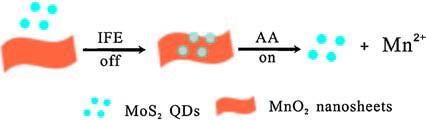

Scheme1. Schematic illustration of the principle of MoS₂ QDs-MnO₂ nanosheets system based chemosensor for ascorbic acid (AA).

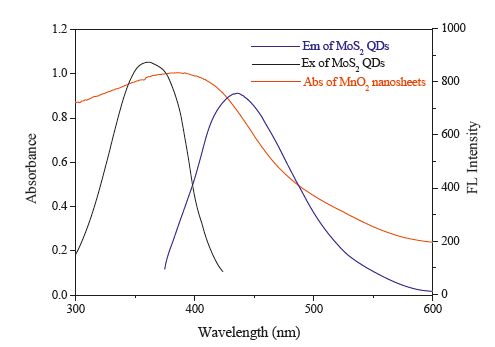

Figure 6. The UV-vis absorption of MnO₂ nanosheets (red line) and the fluorescence spectra of MoS₂ QDs (black line for excitation and blue line for emission).

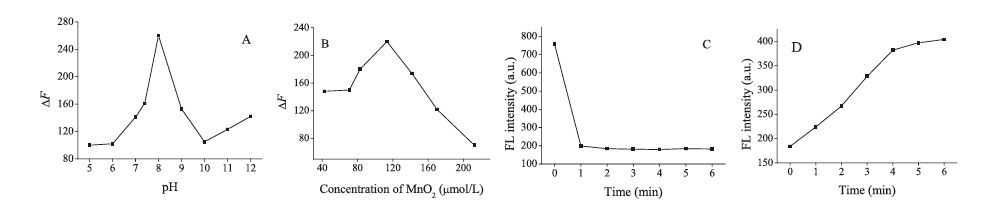

Figure 7. Effects of (A) pH of buffer solution and (B) concentration of MnO₂ nanosheets on fluorescence restoration. ΔF = F-F₀, where F and F0 are the fluorescence intensities of MoS₂ QDs-MnO₂ nanosheets system in the presence and absence of ascorbic acid. (C, D) Relationship between fluorescence intensity and incubation time of quenching and restoration, respectively. Experimental conditions: 0.2 mol/L PBS buffer, 5.0 μmol/L ascorbic acid.

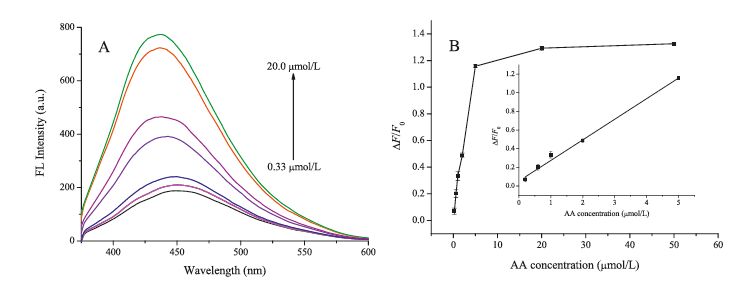

Figure 8. (A) Fluorescence emission spectra of MoS₂ QDs with increasing concentration of ascorbic acid (0.33, 0.66, 1.00, 2.00, 5.00, 20.00 μmol/L). (B) Relationship between ΔF/F₀ and the concentration of ascorbic acid. The fluorescence emission intensity at 430 nm was measured with an excitation of 360 nm. The error bar represents the average value ± the relative standard deviation (n= 3).

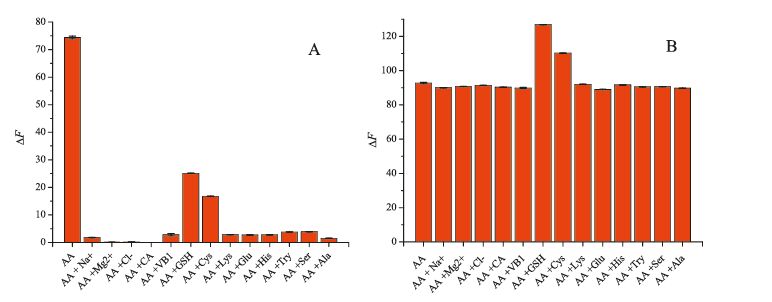

Figure 9. (A) Fluorescence emission intensity of MoS₂ QDs-MnO₂ nanosheets system to 0.5 mmol/L ascorbic acid (AA) and 13 other analytes (10-fold concentration of AA). (B) Fluorescence emission intensity of MoS₂ QDs-MnO₂ nanosheets system to AA and 13 other analytes (0.5 mmol/L) in the presence of AA (0.5 mmol/L). The 13 potential interferences are: Na⁺, Mg²⁺, Cl^-, citric acid (CA), vitamin B1 (VB1), glutathione (GSH), cysteine (Cys), lysine (Lys), glutamic acid (Glu), histidine (His), tryptophan (Try), serine (Ser), alanine (Ala), respectively. The error bar represents the average value ± the relative standard deviation (n= 3).
