Ni(OH)2/Ni/g-C3N4 composite: An efficient electrocatalyst for hydrogen evolution

Jie ZHANG Yu ZHAO Ai-lian WU Jia LI Yu-xue WANG

Citation:  Jie ZHANG, Yu ZHAO, Ai-lian WU, Jia LI, Yu-xue WANG. Ni(OH)2/Ni/g-C3N4 composite: An efficient electrocatalyst for hydrogen evolution[J]. Journal of Fuel Chemistry and Technology, 2021, 49(2): 198-204. doi: 10.1016/S1872-5813(21)60010-5 shu

Ni(OH)2/Ni/g-C3N4复合材料:一种高效的析氢电催化剂

    通讯作者: 赵煜, Zhouyu@tyut.edu.cn
摘要: 高效析氢催化剂的制备仍是目前亟待解决的重要课题。本研究采用液相浸渍原位还原法制备了Ni(OH)2/Ni/g-C3N4复合催化剂,并与碳纸(CP)组合作为微生物电解电池(MEC)的阴极。采用SEM、TEM、XRD、XPS和电化学分析等技术对所制备的催化剂样品的结构性质和析氢电催化性能进行了分析研究。结果表明,Ni(OH)2/Ni/g-C3N4催化剂在100 A/cm2的电流密度驱动下具有优秀的析氢过电位(1881 mV)、较低的电荷转移电阻(10.86 Ω)和较低的塔费尔斜率(44.3 mV/dec),其电化学活性优于纯g-C3N4催化剂和CP,甚至可与Pt催化剂媲美。

English

  • Up to date, almost four fifths of current energy supply comes from fossil fuel[1], which may be completely exhausted in hundred years[2]. Hydrogen is a pollution-free and renewable energy source, which can be stored and transported easily[3,4]. Nevertheless, most of the current hydrogen energy is produced from non-renewable fossil fuels. Electrolysis system for water splitting is receiving high priority due to its low energy consumption, low cost and pollution-free hydrogen production[5]. Microbial electrolytic cell (MEC) is a new electrolysis system to generate hydrogen from organic matter[6,7]. It is generally believed that precious metals (such as platinum[8] and palladium[9]) present prominent properties for the hydrogen evolution reaction (HER); however, the expensiveness and scarceness of the precious metals limit their industrial application to a large extent. Consequently, it is extremely urgent to exploit highly efficient non-noble metal catalysts for HER.

    Nickel-based materials (Ni-based alloys and Ni-based composites) are one of the most promising non-noble metal catalysts for HER. Nickel atom possesses an unfilled 3d orbit, which are paired with single electrons in 1S orbital of hydrogen atoms, and hydrogen adsorption bonds are easily formed between Ni atoms and hydrogen atoms[10]. Nevertheless, the overall catalytic performance of nickel-based materials still needs to be improved due to the high hydrogen evolution overpotential of Ni.

    Increasing specific surface area is an effective means to reduce hydrogen evolution overpotential. The graphitic carbon nitride (g-C3N4) possesses a two-dimensional nano-sheet structure and a large specific surface area. In addition, g-C3N4 has abundant N and a unique tri-s-triazine ring structure, which may enhance the electrocatalytic activity toward special electrochemical reactions[11]. Bi et al[12] prepared a Ni@g-C3N4 composite and its H2-production rate reached 8.41 μmol/h, indicating that the Ni@g-C3N4 composite could enhance the H2 production activity on the surface of g-C3N4. Wu et al[13] reported a facile co-electrophoretic/electrodeposition method to prepare the O@g-C3N4/Ni(OH)2/NF electrode; the electrochemical impedance measurement (EIS) data revealed that the O@g-C3N4/Ni(OH)2/NF hybrid electrode had low internal resistance and small charge transfer resistance. Cao et al[14] synthesized 2D/3D Ni(OH)2/g-C3N4 (Ni/DOMCN) via the electrostatic method; the EIS Nyquist plots displayed the smallest semicircle of 25-Ni/DOMCN, indicating its small charge-migrating resistance. The 3D g-C3N4 photocatalyst supported on the Ni(OH)2 promoter (30%) exhibited the highest H2 evolution rate (ca. 87.2 μmol/h), about 76 times higher than that of pure 3D g-C3N4.

    In this work, the Ni(OH)2/Ni/g-C3N4 composite catalyst was prepared through liquid phase impregnation with in-situ reduction[15] and used to compose the cathode of microbial electrolysis cell (MEC) with the carbon paper (CP). With the help of SEM, TEM, XRD, XPS and electrochemical analysis techniques, the structure, properties and electrocatalytic performance in the hydrogen evolution reaction (HER) of the Ni(OH)2/Ni/g-C3N4 composite were then investigated.

    The bulk g-C3N4 was prepared based on previous report[11]. Briefly, 15 g urea was added into an alumina crucible with a cover and heated at 520 °C in a muffle furnace for 2.5 h with a heating rate of 10 °C/min. The solid product was ground into yellow powder and dispersed into deionized water with vigorous ultrasound for 3.0 h, followed by drying at 60 °C for 12 h, to get the g-C3N4 nanosheets.

    Ni(OH)2/Ni/g-C3N4 composite was prepared by using the similar liquid phase impregnation combined with in-situ reduction, as reported in the literature[15]. Briefly, 49.53 mg of Ni(NO3)2·6H2O was dissolved in 20 mL of deionized water and 22.58 mg of polyvinyl alcohol (PVA) was then added; the mixture was stirred at room temperature for 1 h. After that, 200 mg of g-C3N4 was added to the above solution and stirred for 2 h. In an ice water bath, 4.8 mL of NaBH4 (30 mg) was added dropwise and stirred vigorously for 5 h. The precipitate was centrifuged and washed for 3 times with 20 mL of deionized water, followed by drying at 60 °C for 12 h.

    The same single-chamber MECs were used as reported in the reference[16]. Plexiglas with a total volume of 80 mL was used in the single-chamber MECs, in which 20 mL of activated sludge from a local coking wastewater treatment plant (Yangjia Fortress, Taiyuan, China) and 60 mL of nutrient solution were injected at the same time. The anode was made of carbon felt (2 × 4 × 1 cm3) that had been running for 3 months in a dual chamber MFCs. In this work, three cathodes were compared, including the bare carbon paper electrode, the Pt electrode and the prepared Ni(OH)2/Ni/g-C3N4 composite coating on CP. The distance between the anode and the cathode was 1.5 cm. The anode, cathode, and external power source (HB 17301 SL; HOSSONI, Inc., China) are connected in a loop by using a sheathed copper wire.

    The reactor was operated in batch mode with a voltage of 0.7 V and placed in a constant temperature incubator at 35 °C. When the hydrogen production current of MEC was lower than 0.5 mA, 60 mL fresh nutrient solution was replaced and N2 was injected for 15 min, while the electrode was exposed to air to prevent the growth of methanogens[17]. After one cycle, all the catholyte were replaced, leaving the microorganisms at the bottom of the chamber.

    The crystalline phase of all samples was determined by X-ray diffraction (XRD) on a diffractometer (XRD-6000). The morphology, particle size and particle agglomeration were characterized by scanning electron microscopy (SEM) (JSM-7001F) and transmission electron microscopy (TEM) (JEM 2010). The chemical valence of various ions was analyzed by X-ray photoelectron spectroscopy (XPS) (ESCALAB 250Xi).

    An electrochemical workstation (CHI660D, Chenhua, China) was used to perform all electrochemical tests. A single electrode was electrochemically measured in a three-electrode system with 100 mmol/L phosphate buffer solution (PBS) (pH = 7) as electrolyte, in which the as-prepared cathode electrodes were used as the working electrode. The Ag/AgCl electrode and Pt electrode were used as reference electrodes and counting electrodes, respectively. Linear sweep voltammetry (LSV) tests were conducted by sweeping the potential from −2.0 to 1.0 V with a scan rate of 10 mV/s. The potential sweep of the Tafel curve is −1.0–0.4 V with a scan rate of 10 mV/s. The amplitude of electrochemical impedance measurement (EIS) was 10 mV, and the frequency was 100 kHz to 10 MHz. The current was recorded with a multimeter (UNI-T 803, Uni-Trend Electronics Co., Ltd., Shanghai, China) every half an hour. The gas composition was analyzed by a gas chromatograph (Thermo Fisher Scientific, Wal tham, MA, USA), with argon as the carrier gas and packed TDX-01 column; TCD was used to detect H2 and N2, whereas FID was used to measure CH4 and CO2.

    The catalytic performance in MEC was evaluated based on hydrogen recovery rate ( $ {R_{\rm{H}}}_{_2} $ , %), cathode hydrogen recovery rate (Rcat, %), H2 production rate ( ${Q_{{{\rm{H}}_{\rm{2}}}}}{\rm{, }} {{\rm{m}}^{\rm{3}}}{\rm{ - }}{{\rm{H}}_{\rm{2}}}{\rm{/(}}{{\rm{m}}^{\rm{3}}} \cdot {\rm{d)}}$ ), energy recovery rate (ηw) and overall energy recovery rate (ηw+s), as reported in the reference[18].

    The SEM images shown in Figure 1 indicate that pure g-C3N4 presents a flaky shape (Figure 1(a)) and the Ni(OH)2 and Ni particles are embedded into the g-C3N4 flakes (Figure 1(b)). The Ni(OH)2/Ni/g-C3N4 electrode shows the shape of flower-like nanoclusters, with a rougher surface than pure g-C3N4. It is well known that the g-C3N4 plane possesses many desirable coordination sites, including nitrogen lone-pair of electrons within its framework and a large number of oxygen-containing groups at the edges[19]. Current results suggest that through mixing with g-C3N4 nanosheets, the majority of metal ions are bonded to the inner surface of g-C3N4 via strong chemical bonds, whereas fewer metal-ions are bound to the edge of g-C3N4 by weak electrostatic force[20].

    Figure 1

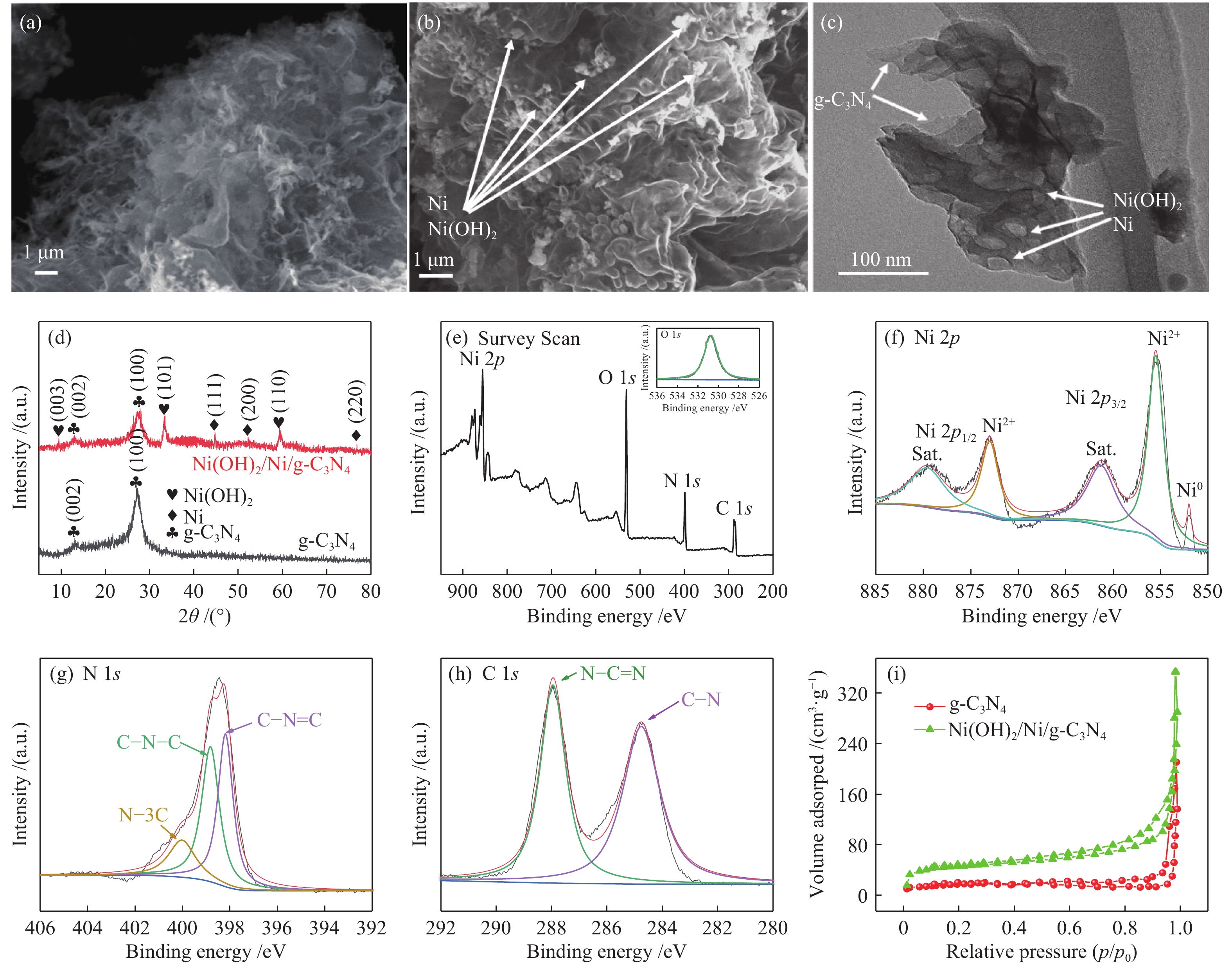

    Figure 1.  SEM images of g-C3N4 (a) and Ni(OH)2/Ni/g-C3N4 catalysts (b); TEM image of Ni(OH)2/Ni/g-C3N4 catalyst (c); XRD patterns of g-C3N4 and Ni(OH)2/Ni/g-C3N4 catalysts (d); survey spectrum and XPS spectrum (inset) of O 1s for the Ni(OH)2/Ni/g-C3N4 catalyst (e); XPS spectra of Ni 2p (f), N 1s (g), and C 1s (h) for the Ni(OH)2/Ni/g-C3N4 catalyst; N2 sorption isotherms of g-C3N4 (a) and Ni(OH)2/Ni/g-C3N4 catalysts (i)

    The TEM image of Ni(OH)2/Ni/g-C3N4 (Figure 1(c)) shows that Ni(OH)2 and Ni particles grow uniformly and are staggeredly distributed in the interior of g-C3N4 with two-dimensional lamellar structure; this feature can be reserved for subsequent hydrogen evolution reaction, to improve the efficiency of electrochemical reaction of electron transfer and promote the diffusion of hydrogen.

    The XRD pattern of g-C3N4 displays two diffractionpeaks at 27.4° and 13.1° (Figure 1(d)), which are indexed as (002) and (100) crystal planes of g-C3N4, respectively. The (002) peak represents the characteristic interlayer stacking of conjugated aromatic system, whereas the (100) peak represents the in-plane structural packing motif of tri-s-triazine units[11]. The (002) and (100) diffraction peaks can also be clearly observed on Ni(OH)2/Ni/g-C3N4. Besides, Ni(OH)2/Ni/g-C3N4 shows three new peaks at 9.5°, 33.4° and 59.3°, which can be assigned to the (003), (101) and (110) crystalline facets of hexagonal α-Ni(OH)2, respectively (JCPDS 22-0444)[21]. In contrast, the diffraction peaks at 44.76°, 52.24° and 76.83° are attributed to the (111), (200) and (220) lattice planes of standard Ni (JCPDS 03-1051), respectively[10].

    The surface chemical state and electron transfer of Ni(OH)2/Ni/g-C3N4 material were further characterized by XPS, as shown in Figure 1(e)(h). The survey spectrum (Figure 1(e)) verifies the coexistence of Ni, N, C and O on the electrode surface. The XPS spectrum in Ni region of Ni(OH)2/Ni/g-C3N4 shows signals at 855.5 and 861.2 eV, corresponding to the level of Ni 2p3/2, and peaks at 873.0 and 879.6 eV, belonging to the level of Ni 2p1/2. The peak intensity of Ni2+ is higher than that of Ni0 (ca. 852.0 eV); in fact, the calculated ratio of Ni2+ to Ni0 is 48.5, suggesting that Ni2+ probably plays the main catalytic role in hydrogen evolution. The N element exists in three forms of bonds (Figure 1(g)), including C–N=C of 398.4 eV, N–3C of 400.4 eV, and C–N–C of 399.3 eV, similar to those in g-C3N4. The C 1s spectrum (Figure 1(h)) can be deconvolved into two combined species; the peak at 284.8 eV comes from the C–N coordination in g-C3N4, whereas another peak at 287.9 eV belongs to the N–C=N bond. The peak in the O 1s XPS spectrum (Figure 1(e)) at 530.8 eV corresponds to the Ni-oxygen bond of Ni(OH)2/Ni/g-C3N4 catalyst[10]. All these results strongly suggest that Ni(OH)2 and Ni particles have been embedded in g-C3N4.

    The N2 adsorption-desorption isotherms (Figure 1(i)) were employed to determine the textural properties. Ni(OH)2/Ni/g-C3N4 has a surface area of 72.38 m2/g, much higher than g-C3N4 (39.53 m2/g), implying that Ni(OH)2/Ni/g-C3N4 could have a better catalytic and adsorption activity than g-C3N4.

    The LSV curves of the CP, g-C3N4, Ni(OH)2/Ni/g-C3N4 (with a loading ratio of 1/5, 2/5 and 3/5) and Pt catalysts are compared in Figure 2(a). Obviously, both g-C3N4 and CP electrodes present lower electrocatalytic activity in HER, with high overpotentials. In contrast, Ni(OH)2/Ni/g-C3N4-1/5, Ni(OH)2/Ni/g-C3N4-2/5 and Ni(OH)2/Ni/g-C3N4-3/5 catalysts demand the overpotentials of 1950, 1881 and 1901 mV, respectively, to obtain the current densities of 100 A/cm2, whereas the Pt cathode needs an overpotential of 1498 mV. In particular, the Ni(OH)2/Ni/g-C3N4-2/5 catalyst exhibits higher electrocatalytic activity than other two Ni(OH)2/Ni/g-C3N4 catalysts. g-C3N4 presents a flake-like morphology with plenty of irregular interstitial pores[22], in which nickel particles are embedded. With an over high nickel loading, the pores within g-C3N4 layers may be blocked, leading to the decline of hydrogen evolution performance.

    Figure 2

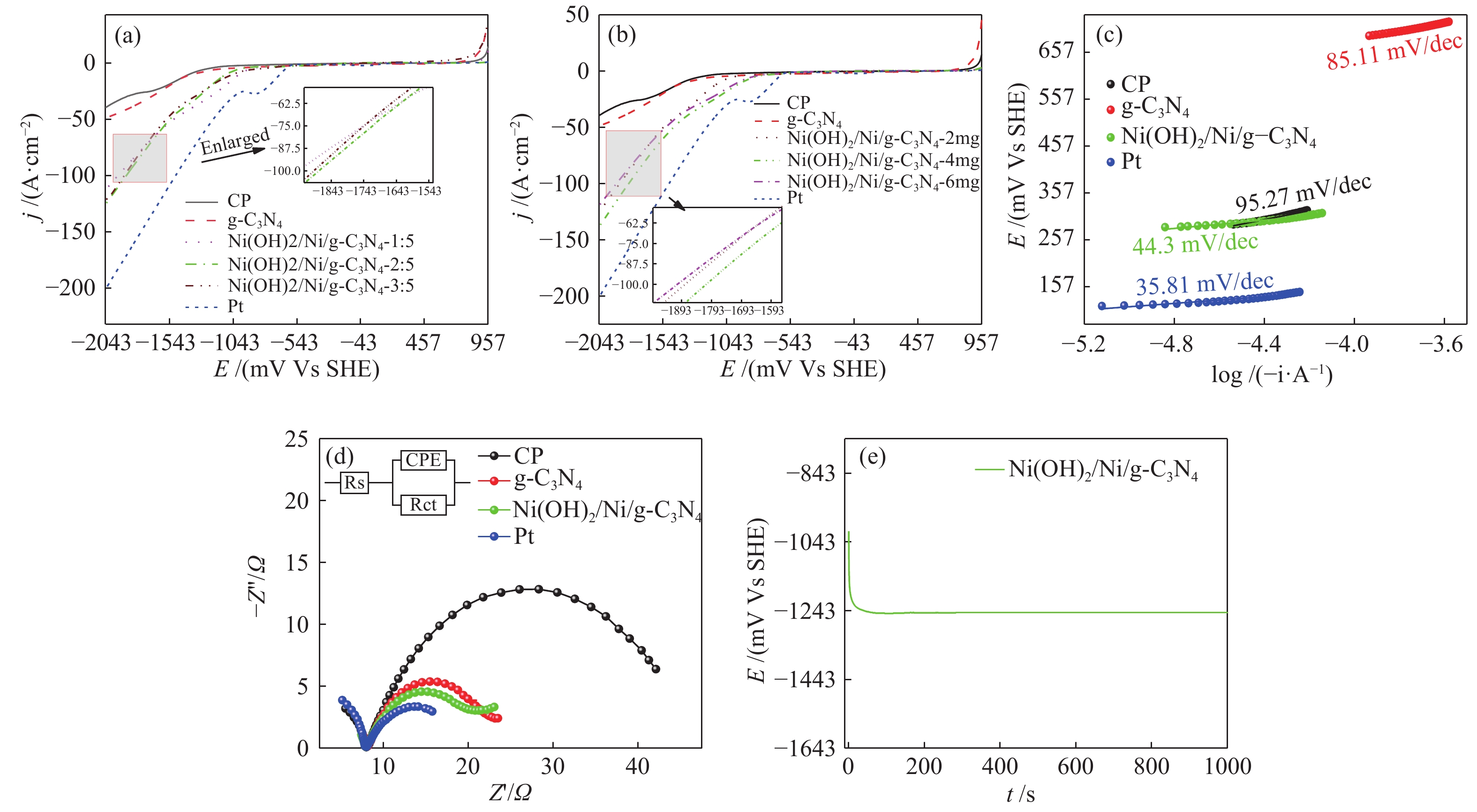

    Figure 2.  LSV curves of Ni(OH)2/Ni/g-C3N4 composite catalysts with different Ni loading ratios (a) and coating amounts (b); Tafel plot (points represent raw data, lines represent fitted data) (c); EIS spectra of bare CP, Ni(OH)2/Ni/g-C3N4 and Pt catalysts (d) (the illustration in Graph (d) is the equivalent circuit used to simulate the HER kinetics process); CP curves (e)

    For the Ni(OH)2/Ni/g-C3N4-2/5 catalyst with the optimum Ni loading, the effect of coating amount on the carbon paper on the electrochemical activity was then investigated (Figure 2(b)). For a coating amount of 2, 4 and 6 mg, the overpotentials demanded are 1913, 1814 and 1881 mV, respectively, to obtain a current density of 100 A/cm2. In contrast, the Pt cathode demands an overpotential of 1498 mV. To sum up, the Ni(OH)2/Ni/g-C3N4-2/5 catalyst with a Ni loading ratio of 2/5 and coating amount of 4 mg on CP demonstrates the excellent electrocatalytic activity, comparable to that of the Pt electrode.

    The Tafel slope can be used to explore the kinetics of hydrogen evolution through the electrode process[23]; low Tafel slopes are indicative of high hydrogen generation rate. As shown in Figure 2(c), the Tafel slopes of CP, g-C3N4, Ni(OH)2/Ni/g-C3N4, and Pt catalysts are 95.27, 85.11, 44.3 and 35.81 mV/dec, respectively. It is widely believed that the mechanism of HER consists of three primary reactions named the Volmer, Heyrovsky and Tafel reactions[24]. Volmer reaction is an electrochemical reaction that generates hydrogen atoms adsorbed to the surface of the electrode, Heyrovsky reaction is electrochemical desorption, whereas Tafel reaction undergoes another recombination step.

    $ {{\rm{H}}_{\rm{3}}}{{\rm{O}}^ + } + {{\rm{e}}^ - } + {\rm{ M }} \to {\rm{ M}}{{\rm{H}}_{{\rm{ads}}}} + {{\rm{H}}_{\rm{2}}}{\rm{O}}({\rm{Volmer}}\;{\rm{reaction}}) $

    (1)

    $ \begin{aligned} &{\rm{M}}{{\rm{H}}_{{\rm{ads}}}} + {{\rm{H}}_{\rm{2}}}{{\rm{O}}^ + } + {{\rm{e}}^ - } \to {{\rm{H}}_2} \uparrow + {{\rm{H}}_{\rm{2}}}{\rm{O}}\\ &({\rm{Heyrovsky}}\;{\rm{reaction}}) \end{aligned} $

    (2)

    $ 2{\rm{M}}{{\rm{H}}_{{\rm{ads}}}} \to 2{\rm{M }} + {{\rm{H}}_2} \uparrow \left( {{\rm{Tafel}}\;{\rm{reaction}}} \right) $

    (3)

    Above three electrodes (CP, Ni(OH)2/Ni/g-C3N4, and Pt) should abide by the Volmer-Heyrovsky reaction path, with Volmer reaction as the rate determining step[25].

    To investigate the electrode kinetics, EIS measurements were performed with a cathode overpotential of 1500 mV. The Armstrong’s equivalent circuit on account of the slow discharge mechanism (Figure 2(d)) was obtained by fitting via Zsimpwin software. Charge transfer resistance (Rct) was obtained from the semi-circular diameter of the EIS Nyquist diagram, to evaluate the charge transfer process; small charge transfer resistances are indicative of excellent charge transfer property[26]. Obviously, the charge transfer resistance of Ni(OH)2/Ni/g-C3N4 (10.86 Ω) is far less than that of CP (30.2 Ω) and g-C3N4 (12.25 Ω), and a little more than that of Pt (7.473 Ω), indicating the greatly promoted electron transfer ability and enhanced activity of the Ni(OH)2/Ni/g-C3N4 catalyst, in accordance with the LSV and Tafel test results; that is, the Ni(OH)2/Ni/g-C3N4 catalyst exhibits high electrocatalytic activity owing to its large surface area and excellent electron transfer ability.

    In addition, the electrochemical stability the Ni(OH)2/Ni/g-C3N4 catalyst was also investigated via chronoamperometry (CP) at constant current density of 2 mA/cm2 for 1000 s. As shown in Figure 2(e), after experiencing a short voltage decrease, the potential keeps stable within 1000 s, demonstrating the excellent stability of the Ni(OH)2/Ni/g-C3N4 catalyst.

    Bare CP, Ni(OH)2/Ni/g-C3N4 and Pt electrode were applied to MEC which had been running steadily for two months, to record the change of the current, collect the effluent gas, and measure the amount and composition of the effluent gas. As shown in Figure 3(a), for each cycle of the reaction, the current density of all electrodes first increases rapidly, then tends to be stable and finally decreases as nutrients have been depleted. High current densities indicate that additional electrons can be transferred to the cathode to generate hydrogen gas. During the five cycles of operation, the average current density of Ni(OH)2/Ni/g-C3N4 catalyst is 16.75 A/m2, 184.4% larger than that of CP (5.89 A/m2) and 40.8% larger than that of Pt (11.89 A/m2), suggesting that the Ni(OH)2/Ni/g-C3N4 catalyst possesses high and steady electrocatalytic activity and can be used for practical operation.

    Figure 3

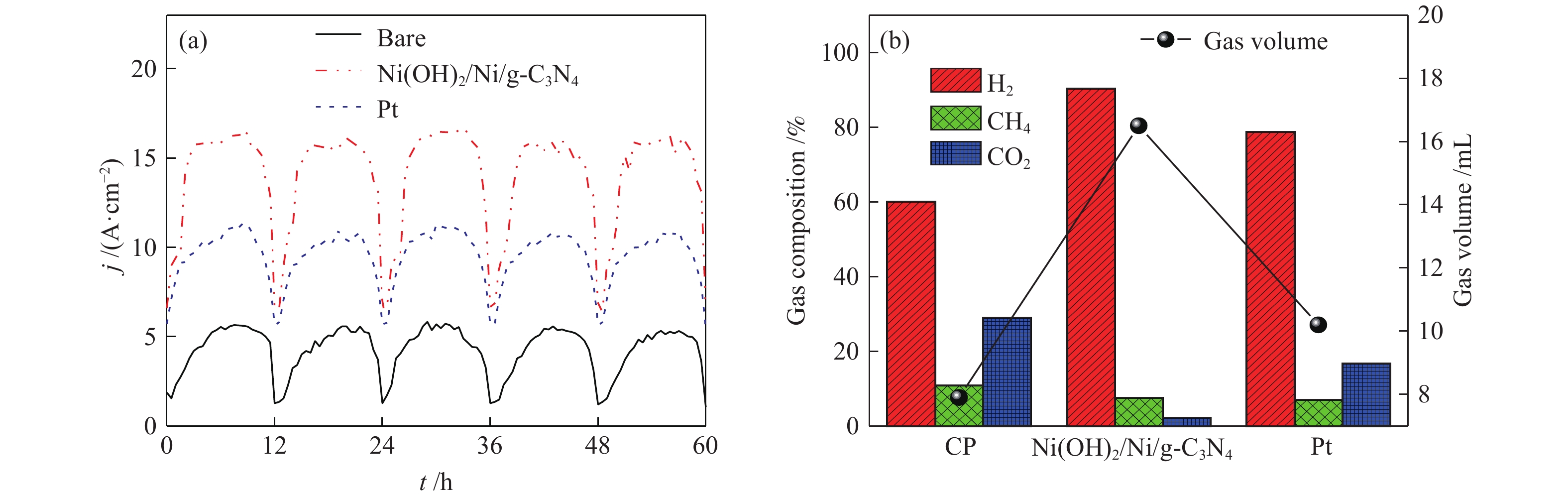

    Figure 3.  Current generation for the cathode electrodes in the MEC (a) and the composition of MEC effluent gas per cycle (b)

    The gas produced via the cathode in each cycle of MEC operation was collected through the drainage method and its composition was determined by gas chromatography. As shown in Figure 3(b), the Ni(OH)2/Ni/g-C3N4 catalyst exhibits the highest gas production (16.5 mL) and the highest hydrogen production rate; the gas consists of H2 (90.32%), CH4 (7.5%) and CO2 (2.18%). In contrast, the gas production by the bare CP is the lowest (only 7.9 mL; 60.13% H2, 10.82% CH4 and 29.05% CO2), whereas the Pt cathode produces 10.2 mL of gas (78.80% H2, 7.01% CH4 and 16.78% CO2). Consistent with the LSV and Tafel test results, the Ni(OH)2/Ni/g-C3N4 catalyst in MEC has a higher hydrogen production rate than CP and Pt, demonstrating the excellent electrocatalytic activity of the Ni(OH)2/Ni/g-C3N4 catalyst. Nevertheless, the Ni(OH)2/Ni/g-C3N4 catalyst cathode produces 7.5% methane, slightly higher than the Pt cathode (7.01%), which might be ascribed to the enrichment of methanogens resulted from long time oxygen-free operation, leading to a decrease of the hydrogen purity.

    Table 1 gives the hydrogen recovery rate ( $ {R_{\rm{H}}}_{_2} $ , %), cathode hydrogen recovery rate (Rcat, %), H2 production rate $ {Q_{\rm{H}}}_{_2} $ , m3-H2/(m3·d)), energy recovery rate (ηw) and overall energy recovery rate (ηw+s) of different cathodes in MEC. Obviously, the Ni(OH)2/Ni/g-C3N4 catalyst exhibits prominent hydrogen evolution activity and can even be used as an alternative of Pt as a highly efficient hydrogen evolution catalyst.

    Table 1

    Table 1.  Energy efficiencies and hydrogen production in the MEC with different cathodes
    下载: 导出CSV
    Cathode Rcat/% $ {R_{\rm{H}}}_{_2} $ /% $ {Q_{\rm{H}}}_{_2} $ /
    (m3-H2·m−3·d−1)
    ηw/% ηw+s/%
    CP 24.77 79.51 0.119 52.41 25.22
    Ni(OH)2/Ni/g-C3N4 49.62 249.34 0.3725 104.98 62.18
    Pt 37.47 134.47 0.2009 79.27 40.37

    The Ni(OH)2/Ni/g-C3N4 composite catalyst was prepared through liquid phase impregnation with in-situ reduction, which was used to compose the cathode with carbon paper (CP) for the microbial electrolysis cell (MEC). With the help of SEM, TEM, XRD, XPS and electrochemical analysis techniques, the structure, properties and electrocatalytic performance in hydrogen evolution of the Ni(OH)2/Ni/g-C3N4 composite were investigated.

    The results indicate that the Ni(OH)2/Ni/g-C3N4 catalyst exhibits excellent electrochemical activity for hydrogen evolution in the MEC, owning to the synergy between flake-like C3N4 and Ni. In particular, with the optimal Ni/g-C3N4 mass ratio of 2/5 and carbon coating amount of 4 mg/cm2, the Ni(OH)2/Ni/g-C3N4-2/5 catalyst displays lower resistance and high H2 production rate, even comparable to the Pt catalyst, suggesting that the Ni(OH)2/Ni/g-C3N4 catalyst with excellent stability and electrocatalytic activity could be a potential candidate of HER catalyst in MEC.


    1. [1]

      BROCKWAY P E, OWEN A, BRAND-CORREA L I, HARDT L. Estimation of global final-stage energy-return-on-investment for fossil fuels with comparison to renewable energy sources[J]. Nat Energy,2019,4(7):612−621. doi: 10.1038/s41560-019-0425-z

    2. [2]

      SHINDELL D, SMITH C J. Climate and air-quality benefits of a realistic phase-out of fossil fuels[J]. Nature,2019,573(7774):408−411. doi: 10.1038/s41586-019-1554-z

    3. [3]

      MOMIRLAN M, VEZIROGLU T N. Current status of hydrogen energy[J]. Renewable Sustqinable Energy Rev,2002,6(1-2):141−179. doi: 10.1016/S1364-0321(02)00004-7

    4. [4]

      WANG L L, MOHAMMAD A M, LIU P, ZHONG Y L, WANG Y, YANG H G, ZHAO H J. Enhanced Thermochemical H2 Production on Ca-doped lanthanum manganite perovskites through optimizing the dopant level and re-oxidation temperature[J]. Acta Metall Sin(Engllett),2018,31(4):431−439. doi: 10.1007/s40195-018-0715-7

    5. [5]

      KADIER A, SIMAYI Y, KALIL M S, ABDESHAHIAN P, HAMID A A. A review of the substrates used in microbial electrolysis cells (MECs) for producing sustainable and clean hydrogen gas[J]. Renewable Energy,2014,71:466−472. doi: 10.1016/j.renene.2014.05.052

    6. [6]

      LOGAN B E, CALL D, CHENG S, HAMELERS H V M, SLEUTELS T H J A, JEREMIASSE A W, ROZENDAL R A. Microbial electrolysis cells for high yield hydrogen gas production from organic matter[J]. Environ Sci Technol,2008,42(23):8630−8640. doi: 10.1021/es801553z

    7. [7]

      DAI H Y, YANG H M, JIAN X, LIU X, LIANG Z H. Performance of Ag2O/Ag electrode as cathodic electron acceptor in microbial fuel cell[J]. Acta Metall Sin-Engl,2017,30(12):1243−1248. doi: 10.1007/s40195-017-0616-1

    8. [8]

      CHEN X T, MCCRUM I T, SCHWARZ K A, JANIK M J, KOPER M T M. Co-adsorption of cations as the cause of the apparent ph dependence of hydrogen adsorption on a stepped platinum single-crystal electrode[J]. Angew Chem Int Ed,2017,129(47):15025−15029.

    9. [9]

      PYUN S I, YANG T H, KIM C S. Investigation of the hydrogen evolution reaction at a 10 wt% palladium-dispersed carbon electrode using electrochemical impedance spectroscopy[J]. J Appl Electrochem,1996,26(9):953−958.

    10. [10]

      WANG L X, LI Y, YIN X C, WANG Y Z, SONG A L, MA Z P, QIN X J, SHAO G J. Coral-like structured Ni/C3N4 composite coating: an original catalyst for hydrogen evolution reaction in alkaline solution[J]. ACS Sust Chem Eng,2017,5(9):7993−8003. doi: 10.1021/acssuschemeng.7b01576

    11. [11]

      LIU X, LIANG J T, SONG X L, YANG H M, LI X J, DAI H Y, SONG Y L, LIU Y, HUA J, PAN X R, OUYANG X, LIANG Z H. Enhanced water dissociation performance of graphitic-C3N4 assembled with ZnCr-layered double hydroxide[J]. Chem Eng J,2018,337:560−566. doi: 10.1016/j.cej.2017.12.138

    12. [12]

      BI L L, XU D D, ZHANG L J, LIN Y H, WANG D J, XIE T F. Metal Ni-loaded g-C3N4 for enhanced photocatalytic H2 evolution activity: the change in surface band bending[J]. Phys Chem Chem Phys,2015,17(44):29899−29905. doi: 10.1039/C5CP05158D

    13. [13]

      WU S C, XU B J, LONG Y F, LUO X, ZHANG L. Oxygen-functionalized g-C3N4 layers anchored with Ni(OH)2 nanoparticles assembled onto Ni foam as binder-free outstanding electrode for supercapacitors[J]. Synth Met,2020,270:116607.

    14. [14]

      CAO R Y, YANG H C, ZHANG S W, XU X J. Engineering of Z-scheme 2D/3D architectures with Ni(OH)2 on 3D porous g-C3N4 for efficiently photocatalytic H2 evolution[J]. Appl Catal B: Environ,2019,258:117997.

    15. [15]

      ZHOU H, ZHANG J, ZHANG J, YAN X F, SHEN X P, YUAN A H. High-capacity room-temperature hydrogen storage of zeolitic imidazolate framework/graphene oxide promoted by platinum metal catalyst[J]. Int J Hydrogen Energ,2015,40(36):12275−12285. doi: 10.1016/j.ijhydene.2015.05.199

    16. [16]

      DAI H Y, YANG H M, LIU X, JIAN X, LIANG Z H. Electricity production in microbial fuel cell subjected to different operational modes[J]. Acta Metall Sin(Engllett),2016,29(5):483−490. doi: 10.1007/s40195-016-0412-3

    17. [17]

      CALL D, LOGAN B E. Hydrogen production in a single chamber microbial electrolysis cell lacking a membrane[J]. Environ Sci Technol,2008,42(9):3401−3406. doi: 10.1021/es8001822

    18. [18]

      LI F J, LIU W F, SUN Y, DING W J, CHENG S A. Enhancing hydrogen production with Ni–P coated nickel foam as cathode catalyst in single chamber microbial electrolysis cells[J]. Int J Hydrogen Energy,2016,42(6):3641−646.

    19. [19]

      QIU Y, XIN L, JIA F, XIE J, LI W Z. Three-dimensional phosphorus-doped graphitic-C3N4 self-assembly with NH2-functionalized carbon composite materials for enhanced oxygen reduction reaction[J]. Langmuir,2016,32(48):12569−12578. doi: 10.1021/acs.langmuir.6b02498

    20. [20]

      FUA Y J, LIU C A, ZHU C, WANG H B, DOU Y J, SHI W L, SHAO M W, HUANG H, LIU Y, KANG Z H. High-performance NiO/g-C3N4 composites for visible-light-driven photocatalytic overall water splitting[J]. Inorg Chem Front,2018,5(7):1646−1652. doi: 10.1039/C8QI00292D

    21. [21]

      TZVETKOV G, TSVETKOV M, SPASSOV T. Ammonia-evaporation-induced construction of three-dimensional NiO/g-C3N4 composite with enhanced adsorption and visible light-driven photocatalytic performance[J]. Superlattice Microst,2018,119:122−133. doi: 10.1016/j.spmi.2018.04.048

    22. [22]

      LI Z W, JIANG G D, ZHANG Z H, WU Y, HAN Y H. Phosphorus-doped g-C3N4 nanosheets coated with square flake-like TiO2: Synthesis, characterization and photocatalytic performance in visible light[J]. J Mol Catal A: Chem,2016,425:340−348. doi: 10.1016/j.molcata.2016.10.020

    23. [23]

      MA T J, ZHANG M M, LIU H, WANG Y, PAN D H. Synthesis of novel three-dimensional mesoporous nitrogen doped graphene supported Pt nanoparticles as superior catalyst for hydrogen generation[J]. Int J Hydrogen Energy,2018,43(42):19327−19335. doi: 10.1016/j.ijhydene.2018.09.021

    24. [24]

      LASIA A. Mechanism and kinetics of the hydrogen evolution reaction[J]. Int J Hydrogen Energy,2019,44(36):19484−19518. doi: 10.1016/j.ijhydene.2019.05.183

    25. [25]

      LEDENDECKER M, KRICK CALDERÓN S, PAPP C, STEINRÜCK H P, ANTONIETTI M, SHALOM M. The synthesis of nanostructured Ni5P4 films and their use as a non-noble bifunctional electrocatalyst for full water splitting[J]. Angew Chem Int Ed,2015,54(42):12361−12365. doi: 10.1002/anie.201502438

    26. [26]

      SHIBLI S M A, AMEEN SHA M, ANISHA B L, PONNAMMA D, SADASIVUNI K K. Effect of phosphorus on controlling and enhancing electrocatalytic performance of Ni-P-TiO2-MnO2 coatings[J]. J Electroanal Chem,2018,826:104−116. doi: 10.1016/j.jelechem.2018.08.021
