Novel Alkaline Sodium-Ion Battery Capacitor Based on Active Carbon||Na_0.44MnO₂ towards Low Cost, High-Rate Capability and Long-Term Lifespan

• Qing Xue ^1, ,
• Shengyi Li ^1, ,
• Yanan Zhao ^2, ,
• Peng Sheng ^1, ,
• Li Xu ^1, ,
• Zhengxi Li ^3, ,
• Bo Zhang ^4, ,
• Hui Li ^1, ,
• Bo Wang ^1, ,
• Libin Yang ^3, ,
• Yuliang Cao ^{2, ,} ,
• Zhongxue Chen ^{5, ,}

• 1.

  Beijing Institute of Smart Energy, Beijing 102200, China

• 2.

  Hubei Key Laboratory of Chemical Power Source Materials and Technology, College of Chemistry and Molecular Sciences, Wuhan University, Wuhan 430072, China

• 3.

  Economic and Technological Research Institute, State Grid Qinghai Electric Power Company, Xining 810008, China

• 4.

  State Grid Jinhua Power Supply Company, Jinhua 321017, Zhejiang Province, China

• 5.

  Key Laboratory of Hydraulic Machinery Transients, Ministry of Education, School of Power and Mechanical Engineering, Wuhan University, Wuhan 430072, China

Corresponding author: Email: ylcao@whu.edu.cn (Y.C.); Email: zxchen_pmc@whu.edu.cn (Z.C.)

• Received Date: 20 March 2023
  Accepted Date: 17 April 2023
  Revised Date: 14 April 2023
  Available Online: 15 February 2024
• Fund Project:

  the Science and Technology Project of State Grid Corporation of China

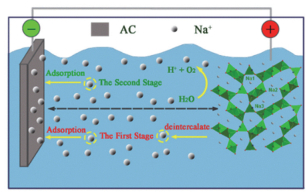

Abstract: As the most advanced battery technology to date, lithium-ion battery has occupied the main battery markets for electric vehicles and grid scale energy storage systems. However, the limited lithium reserves as well as the high price raise concerns about the sustainability of lithium-ion battery. Although sodium-ion battery is proposed as a good supplement to lithium-ion battery, expensive and flammable electrolyte components, harsh assembly environments and potential safety hazards have limited the rapid development to a certain extent. The organic electrolyte was replaced with an aqueous solution to construct a new type of aqueous sodium ion battery capacitor (ASIBC). It is of great significance for next-generation energy storage system owing to its low cost, high power, and inherent safety. However, applicable ASIBC system is rarely reported so far. Here, a rechargeable alkaline sodium ion battery capacitors constructed by using Na_0.44MnO₂ cathode, activated carbon (AC) anode, 6 mol∙L⁻¹ NaOH electrolyte, and cheap stainless-steel current collector. Because of high overcharge tolerance of Na_0.44MnO₂ cathode in alkaline electrolyte, the shortcomings of the half-sodium Na_0.44MnO₂ cathode and low initial Coulombic efficiency of AC anode can be resolved by in situ overcharging pre-activation process during first charging. The available capacity of Na_0.44MnO₂ in half cell largely increased from ~40 mAh∙g⁻¹ (neutral electrolyte) to 77.3 mAh∙g⁻¹ (alkaline electrolyte) due to broadened Na⁺ intercalation potential region. Thus, the AC||Na_0.44MnO₂ ASIBC delivers outstanding electrochemical properties with a high energy density of 26.6 Wh∙kg⁻¹ at a power density of 85 W∙kg⁻¹ and long cycling stability with a capacity retention of 89% after 10, 000 cycles. The advantages of the alkaline electrolyte for the AC||Na_0.44MnO₂ ASIBC can be concluded as follows: (1) through the in situ electrochemical pre-activation process, the overcharging oxygen evolution reaction during first charging process can balance the adverse effects of the half-sodium Na_0.44MnO₂ cathode and low initial Coulombic efficiency of AC anode on the energy density of full cell; (2) the overcharging self-protection function can promote the generated oxygen to be eliminated at anode during overcharging, which improves the system safety; (3) the low-cost materials in alkaline environment can be scaled up to construct AC||Na_0.44MnO₂ ASIBC. In addition, the AC||Na_0.44MnO₂ ASIBC also possesses wide operating temperature range, achieving satisfied electrochemical performance at a high temperature of 50 ℃ and a low temperature of −20 ℃. Considering the merits of low-cost, high safety, no toxicity and environment-friendly, we believe the AC||Na_0.44MnO₂ rechargeable alkaline sodium-ion battery capacitors have the potential to be applied to large-scale energy storage.

Key words:
• Sodium-ion battery capacitor
•  /  Alkaline electrolyte
•  /  Overcharging self-protection
•  /  Low cost
•  /  Wide operating temperature range

• 1. [1]

     Cao, Y.; Li, M.; Lu, J.; Liu, J.; Amine, K. Nat. Nanotechnol. 2019, 14, 200. doi: 10.1038/s41565-019-0371-8

  2. [2]

     Cao, W.; Zhang, J.; Li, H. Energy Stor. Mater. 2020, 26, 46. doi: 10.1016/j.ensm.2019.12.024

  3. [3]

     Niu, Y.; Zhao, Y.; Xu, M. Carbon Neutralization 2023, 2, 15. doi: 10.1002/cnl2.4

  4. [4]

     Li, J.; Hu, H.; Wang, J.; Xiao, X. Carbon Neutralization 2022, 1, 96. doi: 10.1002/cnl2.19

  5. [5]

     Simon, P.; Gogotsi, Y. Nat. Mater. 2020, 19, 1151. doi: 10.1038/s41563-020-0747-z

  6. [6]

     Pu, X.; Zhao, D.; Fu, C.; Chen, Z.; Cao, S.; Wang, C.; Cao, Y. Angew. Chem. Int. Ed. 2021, 60, 21310. doi: 10.1002/anie.202104167

  7. [7]

     Rajalekshmi, A.; Divya, M.; Lee, Y.; Aravindan, V. Battery Energy 2022, 1, 2021000. doi: 10.1002/BTE2.202100

  8. [8]

     Ding, J.; Hu, W.; Paek, E.; Mitlin, D. Chem. Rev. 2018, 118, 6457. doi: 10.1021/acs.chemrev.8b00116

  9. [9]

     Gu, C.; Liu, Z.; Gao, X.; Zhang, Q.; Zhang, Z.; Liu, Z.; Wang, C. Battery Energy 2022, 1, 20220031. doi: 10.1002/bte2.20220031

  10. [10]

      郭楠楠, 张苏, 王鲁香, 贾殿赠. 物理化学学报, 2020, 36, 1903055. doi: 10.3866/PKU.WHXB201903055Guo, N.; Zhang, S.; Wang, L.; Jia, D. Acta Phys. -Chim. Sin. 2020, 36, 1903055. doi: 10.3866/PKU.WHXB201903055

  11. [11]

      Yang, Q.; Cui, S.; Ge, Y.; Tang, Z.; Liu, Z.; Li, H.; Li, N.; Zhang, H.; Liang, J.; Zhi, C. Nano Energy 2018, 50, 623. doi: 10.1016/j.nanoen.2018.06.017

  12. [12]

      Wu, Y.; Sun, Y.; Tong, Y.; Liu, X.; Zheng, J.; Han, D.; Li, H.; Niu, L. Energy Stor. Mater. 2021, 41, 108. doi: 10.1016/j.ensm.2021.05.045

  13. [13]

      Cao, Y.; Xiao, L.; Wang, W.; Choi, D.; Nie, Z.; Yu, J.; Saraf, L. V.; Yang, Z.; Liu, J. Adv. Mater. 2011, 23, 3155. doi: 10.1002/adma.201100904

  14. [14]

      Chen, Z.; Yuan, T.; Pu, X.; Yang, H.; Ai, X.; Xia, Y.; Cao, Y. ACS Appl. Mater. Interfaces 2018, 10, 11689. doi: 10.1021/acsami.8b00478

  15. [15]

      Pu, X.; Wang, H.; Zhao, D.; Yang, H.; Ai, X.; Cao, S.; Chen, Z.; Cao, Y. Small 2019, 15, 1805427. doi: 10.1002/smll.201805427

  16. [16]

      Whitacre, J.; Tevar, A.; Sharma, S. Electrochem. Commun. 2010, 12, 463. doi: 10.1016/j.elecom.2010.01.020

  17. [17]

      Wang, Y.; Liu, J.; Lee, B.; Qiao, R.; Yang, Z.; Xu, S.; Yu, X.; Gu, L.; Hu, Y.-S.; Yang, W. Nat. Commun. 2015, 6, 6401. doi: 10.1038/ncomms7401

  18. [18]

      李慧, 刘双宇, 袁天赐, 王博, 盛鹏, 徐丽, 赵广耀, 白会涛, 陈新, 陈重学, 等. 物理化学学报, 2020, 36, 1905027. doi: 10.3866/PKU.WHXB201905027Li, H.; Liu, S.; Yuan, T.; Wang, B.; Sheng, P.; Xu, L.; Zhao, G.; Bai, H.; Chen, X.; Chen, Z.; et al. Acta Phys. -Chim. Sin. 2020, 36, 1905027. doi: 10.3866/PKU.WHXB201905027

  19. [19]

      李慧, 刘双宇, 袁天赐, 王博, 盛鹏, 徐丽, 赵广耀, 白会涛, 陈新, 陈重学, 等. 物理化学学报, 2021, 37, 1907049. doi: 10.3866/PKU.WHXB201907049Li, H.; Liu, S.; Yuan, T.; Wang, B.; Sheng, P.; Xu, L.; Zhao, G.; Bai, H.; Chen, X.; Chen, Z.; et al. Acta Phys. -Chim. Sin. 2021, 37, 1907049. doi: 10.3866/PKU.WHXB201907049

  20. [20]

      Huang, J.; Guo, Z.; Ma, Y.; Bin, D.; Wang, Y.; Xia, Y. Small Methods 2019, 3, 1800272. doi: 10.1002/smtd.201800272

  21. [21]

      Bin, D.; Wang, F.; Tamirat, A. G.; Suo, L.; Wang, Y.; Wang, C.; Xia, Y. Adv. Energy Mater. 2018, 8, 1703008. doi: 10.1002/aenm.201703008

  22. [22]

      Yuan, T.; Zhang, J.; Pu, X.; Chen, Z.; Tang, C.; Zhang, X.; Ai, X.; Huang, Y.; Yang, H.; Cao, Y. ACS Appl. Mater. Interfaces 2018, 10, 34108. doi: 10.1021/acsami.8b08297

  23. [23]

      李慧, 刘双宇, 汪慧明, 王博, 盛鹏, 徐丽, 赵广耀, 白会涛, 陈新, 曹余良, 陈重学. 物理化学学报, 2019, 35, 1357. doi: 10.3866/PKU.WHXB201902021Li, H.; Liu, S.; Wang, H.; Wang, B.; Sheng, P.; Xu, L.; Zhao, G.; Bai, H.; Chen, X.; Cao, Y.; Chen, Z. Acta Phys. -Chim. Sin. 2019, 35, 1357. doi: 10.3866/PKU.WHXB201902021

  24. [24]

      Li, Z.; Young, D.; Xiang, K.; Carter, W. C.; Chiang, Y. M. Adv. Energy Mater. 2013, 3, 290. doi: 10.1002/aenm.201200598

  25. [25]

      He, X.; Wang, J.; Qiu, B.; Paillard, E.; Ma, C.; Cao, X.; Liu, H.; Stan, M. C.; Liu, H.; Gallash, T. Nano Energy 2016, 27, 602. doi: 10.1016/j.nanoen.2016.07.021

  26. [26]

      Sauvage, F.; Laffont, L.; Tarascon, J.-M.; Baudrin, E. Inorg. Chem. 2007, 46, 3289. doi: 10.1021/ic0700250

  27. [27]

      Fu, B.; Zhou, X.; Wang, Y. J. Power Sources 2016, 310, 102. doi: 10.1016/j.jpowsour.2016.01.101

  28. [28]

      Boujibar, O.; Ghamouss, F.; Ghosh, A.; Achak, O.; Chafik, T. J. Power Sources 2019, 436, 226882. doi: 10.1016/j.jpowsour.2019.226882

  29. [29]

      Zhao, X.; Cai, W.; Yang, Y.; Song, X.; Neale, Z.; Wang, H.-E.; Sui, J.; Cao, G. Nano Energy 2018, 47, 224. doi: 10.1016/j.nanoen.2018.03.002

  30. [30]

      Cha, C.; Yu, J.; Zhang, J. J. Power Sources 2004, 129, 347. doi: 10.1016/j.jpowsour.2003.11.043

  31. [31]

      Martinet, S.; Durand, R.; Ozil, P.; Leblanc, P.; Blanchard, P. J. Power Sources 1999, 83, 93. doi: 10.1016/S0378-7753(99)00272-4

  32. [32]

      Qu, Q.; Shi, Y.; Tian, S.; Chen, Y.; Wu, Y.; Holze, R. J. Power Sources 2009, 194, 1222. doi: 10.1016/j.jpowsour.2009.06.068

  33. [33]

      Zhang, B.; Liu, Y.; Chang, Z.; Yang, Y.; Wen, Z.; Wu, Y.; Holze, R. J. Power Sources 2014, 253, 98. doi: 10.1016/j.jpowsour.2013.12.011

  34. [34]

      Lim, H.; Jung, J. H.; Park, Y. M.; Lee, H.-N.; Kim, H.-J. Appl. Surf. Sci. 2018, 446, 131. doi: 10.1016/j.apsusc.2018.02.021

  35. [35]

      Wu, W.; Shabhag, S.; Chang, J.; Rutt, A.; Whitacre, J. F. J. Electrochem. Soc. 2015, 162, A803. doi: 10.1149/2.0121506jes

•
