The synthesis of polymers with accurately prepared architectures (controlled molecular weights) and promising properties has been a constant challenge for polymer scientists. Organic polymer chemists commonly adapt known organic reactions to control the way compounds of low molecular weights are converted into polymers of high molecular weights. However, living polymerization offers similar or better control and was first discovered by Szwarc [1] and thereafter, Matyjaszewski et al. [2] developed the controlled cationic and radical vinyl polymerizations. Similarly, a number of coordination and metathesis polymerizations, as well as ring-opening polymerizations (ROPs) were found to operate in a living polymerization manner [3]. A wide variety of cyclic organic compounds have been investigated via ROP to give the polymers with novel architectures. The ROP of lactide has received renewed attention in recent years as it allows for control of the copolymer microstructures in ways that would be difficult to achieve by conventional polymerization methods. Many polymer chemists have polymerized lactide using different metal complexes (transition and lanthanide) as catalysts/initiators, incorporating bi-dentate, tri-dentate and tetra-dentate ligands. Of the various methods that have been employed, metal containing initiators have achieved increasing industrial importance [4, 5]. The limiting use in biomedical applications is the extent to which the metal residues can be removed upon quenching the polymerization. As the removal of metal can never be complete, it is preferred that a feasible industrial process should employ metals that are not cytotoxic. When the process uses environmentally benign metals that are part of the mammalian anatomy, there should be no harm from the metal [6].
Most recently, metal alkoxides (e.g., Al [7, 8, 9], Li [10, 11, 12], Mg [13, 14, 15, 16, 17, 18], Fe [19], Sn [20, 21], Ti [22, 23] or Zn [24, 25, 26, 27]) have proved to be efficient catalysts for the ROP of lactide, because they initiate the living ring-opening polymerization and produce polymers with both well-controlled molecular weights and narrow molecular weight distributions. Copper complexes have high electron transfer ability, moderate Lewis acidity and are stable with respect to the reactive intermediates of ROP, and are a prime target for ROP investigations. Cu is also a biocompatible metal and is required for life. To the best of our knowledge there have been few reports on copper initiators involving N-containing polydentate ligands in ROP of lactide. This group of ligand is one of the most versatile ligand classes in both main group and transition metal coordination chemistry and allows for the facile modulation of steric and electronic factors [28]. The copper complexes that have been reported include those derived from pyrazole [29], phenoxy-ketimine [30], salicylaldimine [31, 32], salen ligands [33] and diketiminate [34], which are active in the polymerization of lactides and produced polymers with a moderate number average molecular weights and narrow molecular weight distribution. Appavoo et al. [29] reported the polymerization of D,L-lactide in toluene at a 100:1 ratio using copper pyrazole at 110 °C, giving Mw = 1780 Da and PDI = 1.84 and this shows the typical formation of low molecular weight polymers. Similarly, ROP of L-lactide at a 200:1 ratio at 160 °C produced low molecular weight polymers [30]. The literature has many examples of Schiff base complexes that have multiple applications in different organic transformation reactions [35, 36], but there have been no systematic studies of nitrogen-containing polydentate ligand complexes like the copper complex of N,N’-bis(2- hydroxy- 3-methoxybenzaldehyde)benzene-1,2-diamine (HMBBD).
Although the lactide polymerization by transition metal complexes with N-containing polydentate ligands has been reported [28], the copper complex of HMBBD has not been reported; hence, we report the synthesis, structural characterization and catalysis studies of the Cu complex of HMBBD for the ROP of lactide.
Syntheses were performed under a dry N2 atmosphere using a combination of a glove box and standard Schlenk techniques. All solvents were of analytical grade and were dried and distilled prior to use. Toluene and CH2Cl2 were dried and distilled from sodium benzophenone and P2O5, respectively. Anhydrous copper chloride and 1,2-diaminobenzene were purchased from HiMedia Laboratories Pvt. Ltd., Mumbai, India. 2-Hydroxy-3-methoxybenzaldehyde and benzyl alcohol were procured from E. Merck, India. L-lactide was obtained from Sigma-Aldrich and used as received. Other chemicals were of analytical grade (>99.0 wt%) and used as received.
Fourier transform infrared (FT-IR) spectra were recorded as a KBr pellet using a Perkin-Elmer 1600 FTIR Spectrophotometer. Electronic spectra were recorded on a Shimadzu 1601 PC UV-Vis Spectrophotometer as a sample mull in a cuvette. Thermo gravimetric analysis (TGA) was carried out using a Perkin-Elmer Pyris, Diamond Thermal Analyzer under a N2 atmosphere at a heating rate of 10 °C/min. The loading of metal ions in the Schiff base was determined by analyzing the loading solution with a Perkin-Elmer 3100 Atomic Absorption Spectrometer at λmax of copper ions. The composition of the HMBBD Schiff base and its copper complex was estimated using a Haraeus Carlo Ebra 1108 Elemental Analyzer. The 1H-NMR spectra were recorded on an FT-NMR Brucker 300 MHz Spectrometer using DMSO-d6 as the solvent and tetramethylsilane (TMS) as an internal reference. The magnetic moment (µ) of metal complexes was measured using a Vibrating Sample Magnetometer-155. The molecular weight of the HMBBD Schiff base and its copper complex was determined using a Vapor Pressure Osmometer (Merck VAPRO 5600, Germany). Suitable crystals of the ligand were analyzed on a Bruker Kappa Apex-II diffractometer.
The HMBBD Schiff base was synthesized by a modification of a procedure reported in the literature [37, 38]. A mixture of 2-hydroxy-3-methoxybenzaldehyde (20.00 mmol, 3.04 g) and 1,2-diaminobenzene (10.00 mmol, 1.08 g) in methanol was refluxed at 60 °C for about 2 h. The reaction mixture was cooled to low temperature, producing orange crystals, which were filtered and recrystallized from chloroform. Yield = 94.4%. Elem. Anal.: Found (%): C = 70.35, N = 7.02 and H = 5.70; Calcd C22H20N2O4 (%): C = 70.20, N = 7.44 and H = 5.36. The copper complex of the HMBBD Schiff base was prepared by taking 100 mL of a methanolic solution of the Schiff base (20.00 mmol, 7.53 g) and 20.00 mmol (2.69 g) of the copper salt in a round bottom flask and refluxing at 60 °C for 5 h. All reactions were performed under a nitrogen atmosphere. The copper complex was recrystallized from methanol and dried in a vacuum desiccator. Elem. Anal.: Found (%): C = 61.75, N = 6.24 and H = 4.21; Calcd C22H18CuN2O4 (%): C = 60.34, N = 6.40 and H = 4.14. The loading of copper ions in HMBBD was calculated as the complexation of metal ion using the following equation: Complexation of copper ion = amount of copper loaded/amount of Schiff base used for loading x 100%.
The synthesis of polylactic acid (PLA-150) at room temperature shows a typical polymerization procedure. L-lactide (0.72 g, 20 mmol) and a requisite amount of benzyl alcohol were added to a rapidly stirred solution of Cu-HMBBD (0.058 g, 0.133 mmol) in toluene (20 mL). A rise in the viscosity was observed, and the stirring was ceased after 24 h. Volatile materials were removed under vacuum, and the residue was extracted with THF (30 mL). The extraction was dried and the white precipitate washed with n-hexane three times before being dried under vacuum overnight, giving a crystalline white solid (0.58 g, yield: 81%).

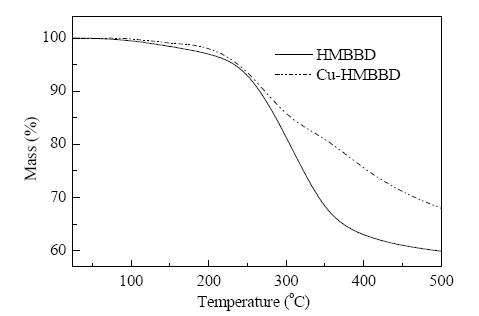

he thermal stability of the Cu-HMBBD catalysts was analyzed for their applications in high-temperature reactions, and to provide proof for the complexation of copper ion to the HMBBD Schiff base. The TGA of the HMBBD Schiff base showed a 40.1% weight loss at 500 °C, but its copper complex showed a 32.0% weight loss at the same temperature (Fig. 1). The copper complex started to decompose at 150 °C whereas the ligand was only stable until 100 °C. This shows that the copper complex is more stable [39]. In addition to the thermal analysis, HMBBD and its copper complex were also characterized by IR and UV spectroscopies to provide proof metal ions had complexed to the ligand. These would also help to determine the structure and geometry of the copper complex based primarily on the elemental analysis and magnetic properties of metal complex.

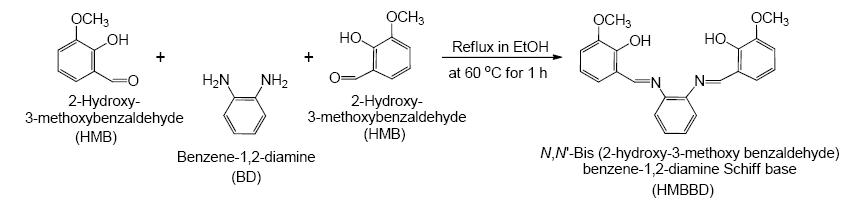

The HMBBD Schiff base was obtained in excellent yield from the simple reaction of the two starting materials (94.4%) (Scheme 1). The elemental analysis of HMBBD corresponds to the empirical formula (C22H20N2O4) of HMBBD [37, 38]. The molecular weight of the Schiff base was 377.68 g/mol (Calcd.: 376.41 g/mol). The copper ions were coordinated to the HMBBD Schiff base by refluxing a mixture of the two at 60 °C for 7 h (Scheme 2). The copper complex after separation and purification was analyzed for the metal ions loading by atomic absorption spectroscopy and was found to be 86.27 wt%. The elemental analysis of Cu-HMBBD complex corresponded to the empirical formula of the Cu-HMBBD complex (C22H18CuN2O4).

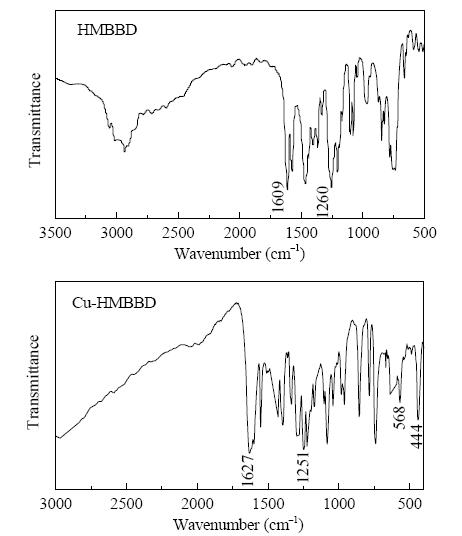

The IR spectrum (Fig. 2) of HMBBD has absorption bands at 1609 cm-1 (>C=N), 1260 cm-1 (>C-O) phenolic and a broad band between 3050 and 2850 cm-1, which was assigned to the phenolic OH. Complexation of the copper ion to HMBBD resulted in significant shifts in the >C=N and >C-O absorptions (18 and 9 cm-1, respectively) and new absorption bands due to the formation of Cu-O (568 cm-1) and Cu-N bonds (444 cm-1). The disappearance of the phenolic absorption band on complexation was additional evidence for the inclusion of metal ions in the complex (Table 1) [37, 38].

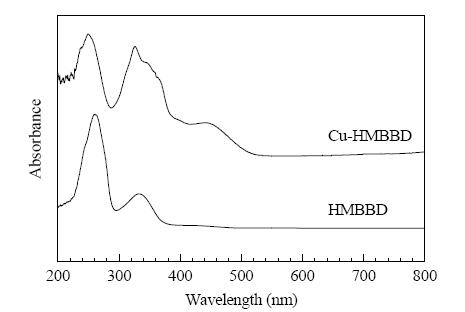

The complexation of metal ions to the Schiff base was further confirmed by comparing the electronic spectra of metal complexes and pure HMBBD. The electronic spectra of HMBBD (Fig. 3) show absorption bands at 260 and 330 nm, which were assigned to π → π and n → π transitions. The Cu-HMBBD complex exhibits a hypsochromic shift in the π → π transition from 260 to 250 nm, and in the n→ π transition from 330 to 326 nm (Table 1, Fig. 3). Two additional bands, a C®T transition and a d®d transition, appeared at 347 and 443 nm, respectively. These electronic transitions correspond to the t2g6 and eg3 configurations for the copper(II) ion in this complex. The magnetic moment (µ) of the Cu-HMBBD complex was found to be 1.89 BM, which indicated that it was paramagnetic and most likely in a square planar structure with dsp2 hybridization.

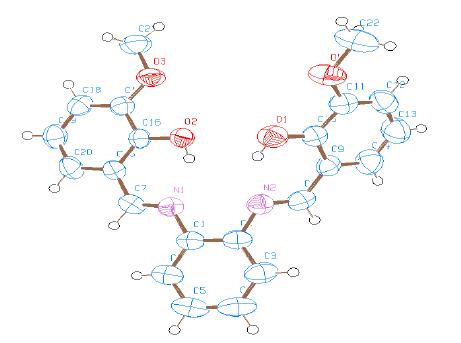

Single crystals of HMBBD suitable for XRD measurement crystallized in the monoclinic space group P21/c. Crystallographic data and the results of structure refinements are summarized in Table 2, and the crystal structure is shown in Scheme 3. This shows that each 2-hydroxy-3- methoxybenzaldehyde binds to one of the two diaminobenzene nitrogens. Selected bond lengths (Å) and bond angles (deg): O(2)-C(16) 1.348(2); O(1)-C(10) 1.354(3); N(2)-C(8) 1.274(3); N(2)-C(2) 1.425(3); O(3)-C(17) 1.364(3); O(3)-C(21) 1.417(3); N(1)-C(7) 1.279(3); N(1)-C(1) 1.410(3); O(4)-C(11) 1.365(3); O(4)-C(22) 1.423(3); C(15)-C(7) 1.436(3); C(9)-C(8) 1.457(3); O(2)-C(16)-C(15) 122.5(2); O(2)-C(16)-C(17) 117.6(2); C(8)-N(2)-C(2) 118.4(2); C(17)-O(3)-C(21) 117.8(2); C(7)-N(1)-C(1) 123.5(2); C(2)-C(1)-N(1) 116.5(2); C(6)-C(1)-N(1) 124.7(2); N(1)-C(7)-C(15) 121.3(2); O(3)-C(17)-C(18) 125.7(2); O(3)-C(17)-C(16) 114.6(2); C(3)-C(2)-N(2) 121.4(2); C(1)-C(2)-N(2) 118.5(2); O(1)-C(10)-C(9) 122.3(2); O(1)-C(10)-C(11) 117.7(2); O(4)-C(11)-C(12) 125.3(2); O(4)-C(11)-C(10) 15.1(2); N(2)-C(8)-C(9) 122.2(2).
On the basis of the “immortal” property of lactide polymerization, demonstrated by several copper complexes [29, 30, 31, 32, 33, 34], and evidence of in situ formation of a metal alkoxide in the presence of an alcohol [7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27], the complex Cu-HMBBD was expected to behave as a catalyst in the ROP of lactide in the presence of benzyl alcohol. Cu-HMBBD does initiate the ROP of L-lactide (LA) in the presence of benzyl alcohol in dichloromethane at 30 °C (Scheme 4). The polymerization results are listed in Tables 3 and 4. All runs displayed high activities for the polymerization of L-lactide and great control of the molecular weight. The presence of benzyl alcohol has a significant influence on the polymerization behavior of the Cu-HMBBD.
This ROP of L-lactide using Cu-HMBBD with a monomer to benzyl alcohol ratio of 150/1 has been systematically studied at 30 °C (Table 3). It is worth noting that Cu-HMBBD is more active in CH2Cl2 than in toluene or in THF. The slowest polymerization rate was found in THF, probably because of coordination of the THF to the copper metal, thus slowing the reaction rate. Toluene is a non-polar solvent and CH2Cl2 is a polar aprotic solvent. Based on the mechanism (Scheme 5), the polar solvent should give a higher polymerization rate.

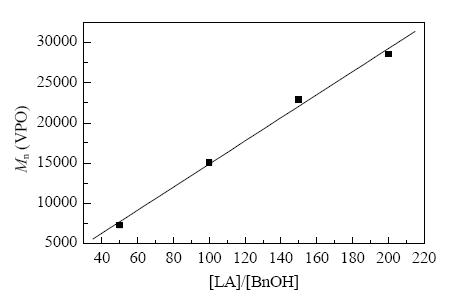

From the polymerization results listed in Table 4, several structure-activity trends may be drawn. These results indicate that Cu-HMBBD is an efficient catalyst for ROP of L-lactide in the presence of BnOH, when the [LA]/[BnOH] ratio is 50-200. The polymerization is well controlled and the “living” character is demonstrated by the linear relationship between Mn and the [LA]/[BnOH] ratio (Fig. 4). The “immortal” character of this reaction was examined by using two or four equivalents of benzyl alcohol as a chain transfer agent (Table 4, entries 6 and 7). It was found that for the polymerization without BnOH, there is almost negligible conversion (<5%), but the use of BnOH drastically changes the activity of the catalyst. The use of more BnOH (entries 6 and 7) decreases the reaction time from 24 to 11 h. This may be because the initiator is actively participating in the polymerization reaction. The molecular weight of the polymers was also affected by the ratio of BnOH used. By adding two or four equivalents of benzyl alcohol to the polymerization reactions, the molecular weights were halved or quartered, respectively.

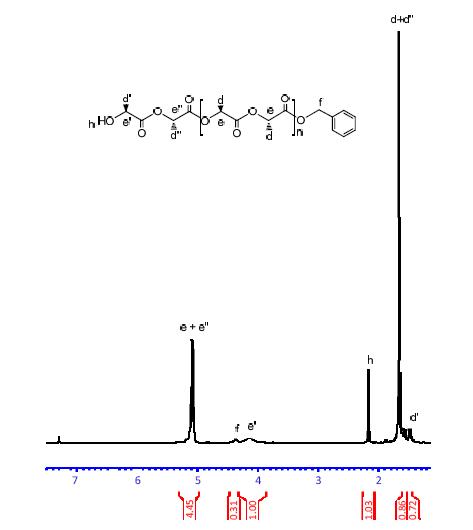

To understand the initiation process, 1H NMR studies on the poly-L-lactide (PLLA) as formed by Cu-HMBBD with BnOH as an initiator have been performed. The 1H NMR spectrum of PLLA-150 (Fig. 5), prepared from a [LA]0/[BnOH] ratio of 150, indicates that the polymer chain is capped with a benzyl ester group on one end and a hydroxyl group on the other. This suggests that the initiation occurred through the insertion of the benzyl alkoxy group into L-lactide, giving a copper alkoxide intermediate, which further reacts with an excess of L-lactide to yield the product polyesters. This agrees with processes found for other metal alkoxides [15, 16, 17, 18]. Our polymerization results are superior to those reported for copper complexes with more elaborate ligands [30, 31, 32, 33]. Literature reports for the polymerization of L-lactide using three different copper phenoxy- ketimine complexes at 160 °C have produced PLLA of Mn = 2200, 4500 and 6500 g/mol [30], which suggests that our results are superior in terms of Mn (Table 4). Also, the molecular weights of these polymers are much lower than PLLA from common initiators such as [Al(OiPr)3] (Mn = 90000 g/mol) [9]. This may be due to the higher electrophilicity of the metal center when compared with Cu-HMBBD and more favorable coordination and insertion into the L-lactic acid monomers. Therefore, for the production of higher molecular weight PLLA, more electropositive metal centers and electron withdrawing groups attached to the Schiff base are required.

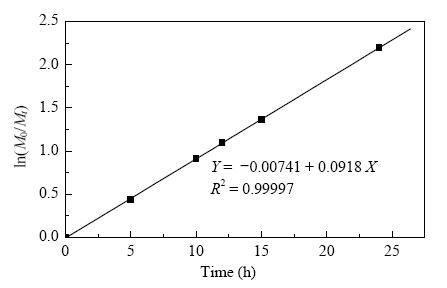

We have performed kinetic studies for the polymerization of L-lactide using Cu-HMBBD as the catalyst in the presence of BnOH as initiator in the ratio [LA]/[Cu]/[BnOH] = 100/1/1. The results are depicted in Fig. 6.
This plot implies that the polymerization reaction obeys first order kinetics as the ln(M0/Mt) vs time plot is linear. The apparent rate constant (kapp) may be calculated from the slope of this plot. The kapp for the L-lactide polymerization was found to be 0.0918 h−1.

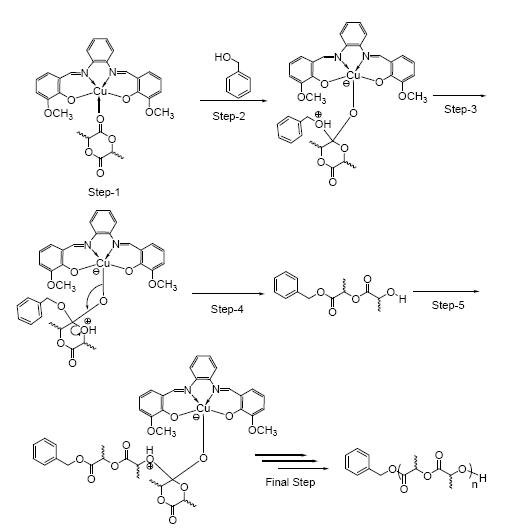

Considering the experimental findings for the ROP of L-lactide under the conditions mentioned, the polymerization may proceed by the mechanism outlined in Scheme 5. The copper complex (Cu-HMBBD) produces active species in step 2 through fast interactions with lactide and benzyl alcohol. The active species subsequently forms an intermediate through a rearrangement in step 3, and then in step 4, ring opening of lactide occurs to give a benzyl ester at one end. Ring opening of another molecule of lactide occurs in step 5 as in step 2. Subsequent additions of lactide produce PLLA.
The copper complex Cu-HMBBD was synthesized and characterized and is a good catalyst for the ring-opening polymerization of L-lactide in the presence of benzyl alcohol. The copper complex Cu-HMBBD is inactive in the absence of benzyl alcohol and, in the presence of two or four equivalent benzyl alcohol in the polymerization reaction, the molecular weights reduce to one half and one quarter, respectively. All the PLLA produced by the ROP of L-lactide has a high molecular weight and greater than 80% conversion rate.
The authors are grateful to Ravenshaw University and National Institute of Technology, Raipur for providing research facilities.
