Recently, considerable attention has been given to the synthesis of diverse zinc oxide nanostructures because of their broad range of applications in science and technology such as in rubbers [1], antibacterial nanomaterials [2, 3], LEDs [4], transparent transistors [5], solar cells [6], photocatalytic reductants [7], memory devices [8], graphene semiconductors [9], organic reactions catalysts [10, 11] and photocatalysts [12, 13, 14]. ZnO is a wide band gap (ca. 3.37 eV) n-type semiconductor with a hexagonal wurtzite structure. The production of porous ZnO with a high specific surface area will add to its many advantages. In the mesoporous structure of a semiconductor, the channels can act as a light-transfer path for the introduction of incident photons onto the inner surface of the photocatalyst and this enhances its activity [15]. Additionally, the degradation efficiency of a porous photocatalyst might be enhanced by its adsorption ability because of an increase in the probability of a surface reaction with pollutant molecules [16]. Additionally, the morphology of nanomaterials also has a great impact on their properties and hence their applications [17]. Contrary to expectations, a large shrinkage of the porous materials obtained from the template-directed method occurs during heat treatment. This phenomenon causes the collapse of mesoporous structures [18]. Therefore, new methods are required for the preservation of the mesoporous framework of materials and for a repeatable route to fabricate mesoporous structures.
A suitable method for the fabrication of metal oxide nanostructures is the thermal decomposition of metal complexes. To date, different architectures of 2-aminonicotinic acid (Hanic) coordination compounds have been synthesized as a consequence of its specific topology. [Tb(anic)3]·0.5Hanic·7H2O with photoluminescence properties [19], [Ag2-µ-O,O′(anic)2(NO3)2]n with high antibacterial activity [20] and [TlMe2(anic)]n [21] are examples of coordination compounds that contain 2-aminonicotinic acid. To the best of our knowledge, coordination compounds between zinc and 2-aminonicotinic acid have not been reported.
It has been reported that ZnO nanoparticles could be generated from solvothermally prepared zinc (II) coordination polymers containing aromatic dicarboxylic acids [22]. A zinc terephthalate metal-organic framework has been reported to give porous cubic-shaped ZnO particles via pyrolytic conversion [23]. The mechanochemical process, as a green solid state synthetic method, was used to prepare Zn(C2O4)·2H2O, which was then calcined to give ZnO porous nanostructures [24]. Zinc hydroxide carbonate was obtained with the assistance of glycine and polyvinyl pyrrolidone to produce a nest-like 3D ZnO nanoporous material using post heat treatment [25]. Furthermore, ZnO nanostructures were synthesized by pulsed laser deposition [26] and radio frequency magnetron sputtering [27].
Congo red (CR) is one of the most popular secondary diazo dyes and it may cause cancer in humans because of its toxic metabolite benzidine. Its highly colored effluents have low biological oxygen demand and high chemical oxygen demand and they also contain high quantities of dissolved solids [28]. In this research, [Zn(anic)2] was synthesized by chemical precipitation and used as a precursor to prepare ZnO nanoparticles after heat treatment. We investigated its photocatalytic activity toward the photodegradation of CR.

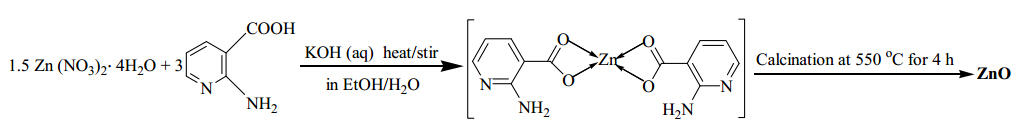

All the reagents were purchased from the Merck Company in Germany and used without further purification. Congo red (sodium 3,3'-([1,1'-biphenyl]-4,4'-diyl)bis(4- aminonaphthalene-1-sulfonate) was used as a model azo dye. Deionized water was used to prepare all the solutions. For the synthesis, a 3 mmol ethanolic solution of 2-aminonicotinic acid (30 mL) and 3 mmol KOH aqueous solution were mixed until the pH of the solution was 7, as measured by a Metrohm pH meter. 1.5 mmol Zn(NO3)2·4H2O aqueous solution (20 mL) was then added dropwise to this mixture while stirring for 20 min. The resultant white precipitate of the zinc coordination compound (with a decomposition temperature > 350 °C) was filtered, washed and dried at room temperature overnight. Ultimately, it was calcined at 550 °C for 4 h to give the ZnO nanostructures. A schematic representation of the reaction is shown in Scheme 1. Commercially available particulate ZnO (particle size: 200 nm) and TiO2 powder (anatase, particle size: 30 nm) were also investigated to compare their photocatalytic activity with that of the synthesized ZnO nanoparticles.
To characterize the samples the X-ray diffraction (XRD) pattern of the ZnO product was obtained using a JEOL diffractometer with monochromatic Cu Kα radiation (λ = 0.15418 nm). Diffuse-reflectance spectra (DRS) were obtained using a Shimadzu (MPC-2200) spectrophotometer. Fourier transform infrared spectra (FTIR) were obtained using a Shimadzu-8400S spectrometer in the range of 400-4000 cm−1 using KBr pellets. Scanning electron microscopy (SEM) was performed with a VEGA/TESCAN microscope at an accelerating voltage of 30.00 kV. Field emission scanning electron microscopy (FESEM) was performed using a ΣIGMA series microscope at an accelerating voltage of 15 kV, and this was purchased from the Zeiss Company, Germany. Transmission electron microscopy (TEM) was carried out using an EM10C-100 kV series microscope that was purchased from the Zeiss Company, Germany. The surface area of the product was obtained using the Brunauer-Emmett-Teller (BET) technique with Micromeritics (Gemini) in the range of relative pressures from 0.0-1.0. Before the measurement, the sample was degassed at 200 °C for 2 h. Additionally, the pore size distribution was determined from the desorption branch of the isotherm curve using the Barrett-Joyner-Halenda (BJH) model. Elemental analysis was performed with a CHN Rapid Heraeus elemental analyzer. The UV-Vis absorption studies were performed at room temperature in the wavelength range of 190-800 nm on a UV-Vis spectrophotometer (Shimadzu UV-1700). The pH was measured using a Metrohm pH meter type 1.712.0010 that was purchased from Metrohm Herisau, Switzerland.
The azo dye CR was used as the model pollutant to evaluate the photocatalytic activity of the prepared ZnO. The photodegradation experiments were carried out under the following conditions: 0.02 g of the ZnO nanostructure as the photocatalyst was introduced to a 50 mL dye aqueous solution with an initial concentration of 50 mg/L at room temperature and at neutral pH. The resultant suspension was stirred using a magnetic stirrer for 1 h in the dark to establish an adsorption-desorption equilibrium. The concentration of the residual dye was measured using a UV-Vis spectrophotometer at the appropriate wavelength that corresponds to the maximum absorption of CR (498 nm). The reaction vessel was then subjected to light irradiation in the photo-reactor to carry out the photodegradation process. Light irradiation was supplied by a 500 W high-pressure mercury-vapor lamp (λ = 546.8 nm) that was mounted 10 cm from the reaction solution. The mercury lamp (HWL 500 W 225 V E40) was purchased from the OSRAM Company in China and the short wavelength components of the supplied light (λ ˂ 350 nm) were cut off using a filter. At given irradiation time intervals portions of the suspension were taken from the reaction vessel, centrifuged at 2000 rpm for 5 min and analyzed by UV-Vis spectrophotometer.
Elemental analysis calculations verified that a zinc coordination compound with the empirical formula ZnC12H10N4O4 was synthesized. The carbon, hydrogen and nitrogen mass percentages were: C 42.43%, H 2.86% and N 16.39%, and these are similar to the calculated values (C 42.43%, H 2.95% and N 16.86%).

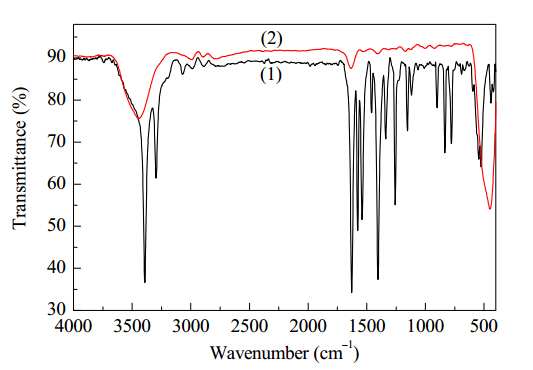

Fourier transform infrared (FTIR) spectroscopy was used to characterize the products. The FTIR spectra of the zinc complex and the zinc oxide are shown in Fig. 1. All the peaks related to the 2-aminonicotinic acid functional groups were present in the spectrum of the zinc complex (Fig. 1(1). Aromatic C-H bending vibrations were observed at 750-835 cm−1 and the bands from the C-N and C-O vibrations were clearly present at ~1257 cm−1. The peaks at 1404 and 1541 cm−1 are assigned to the C=C stretching and N-H bending vibrations, respectively. In the zinc complex, the asymmetric vibrational mode of the carboxylate group shifted to lower wavenumber (at 1627 cm−1) and the symmetric vibrational mode of the carboxylate group shifted to higher wavenumber (at 1562 cm−1) compared to the free ligand at 1704 and 1548 cm−1, respectively. This reveals coordination through the carboxylate group. The peaks at 3296 and 3392 cm−1 are representative of hydrogens in the amine group. No shift to lower wavenumbers was observed for these peaks after coordination and this implies that 2-aminonicotinic acid was not coordinated to the metal through the nitrogen of the amine group. Because of the distance of the pyridyl nitrogen, it was less likely to be coordinated to the metal [19, 29]. Based on the obtained results, the ligand acts as a chelate and coordinates to zinc via two oxygen atoms of the carboxylate groups, which might in turn participate in hydrogen bonding. After calcination, all the characteristic peaks of the ligand disappeared and only a peak at 428 cm−1, which is attributed to the Zn-O bond remained (see Fig. 1(2)).

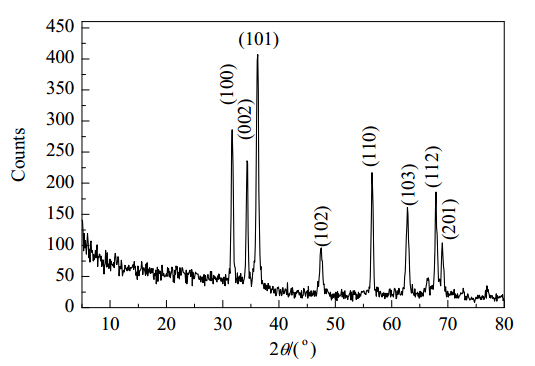

The XRD technique was used to prove the formation of the ZnO phase after the calcination process. As shown in Fig. 2, all the reflections were well indexed to a hexagonal wurtzite phase of a ZnO pattern with a space group of P63mc and lattice parameters of a = 0.325 nm, b = 0.325 nm and c = 0.521 nm, α = 90°, β = 90° and γ = 120° (JCPDS card no. 00-036-1451). The diffraction peaks at 2θ values of 31.77°, 34.42°, 36.25°, 47.53°, 56.60°, 62.86°, 67.96° and 69.10° match the respective (100), (002), (101), (102), (110), (103), (112) and (201) planes of hexagonal ZnO well. The exact number of peaks indicates that the final product is of high purity and that it is a single phase.

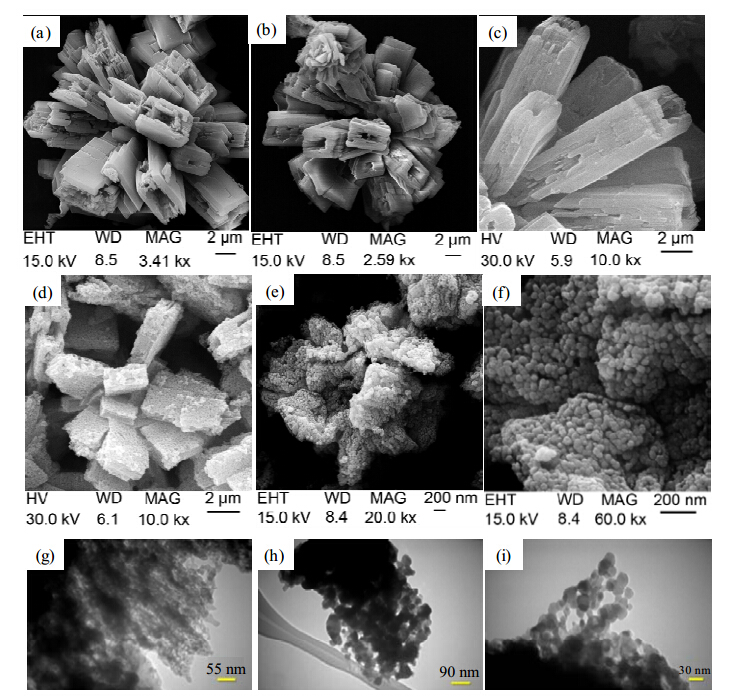

The morphology of the products was studied by SEM and TEM, as shown in Fig. 3. The structure of the zinc complex consisted of hollow microblocks (Fig. 3(a) and (c)). The calcination process resulted in porous microbricks that comprise ZnO nanoparticles (Fig. 3(d) and (f)). ZnO nanoparticles formed the body of the porous ZnO structure. It can be concluded that the pores were formed as a consequence of the liberation of volatile gases such as CO2, H2O and NOx during the thermal decomposition of the complex. Gas release gave rise to the formation of ZnO nanoparticles in the walls of the microbricks, which finally provided a peculiar mesoporous structure. The TEM images in Fig. 3(g) and (i) revealed that the mesoporous structure of ZnO consisted of nanoparticles, which is in agreement with the SEM images. It is clear that the porosity mainly comes from the interparticle porosity. The transparent regions of the TEM images are indicative of pores in which dye molecules are easily trapped. From Fig. 3(i), ZnO nanoparticles with a size of ~30 nm are clearly observed. The production-calcination experiments were repeated and the same morphology was obtained. Therefore, this is a suitable and repeatable method for the preparation of mesoporous microbricks of ZnO nanoparticles.

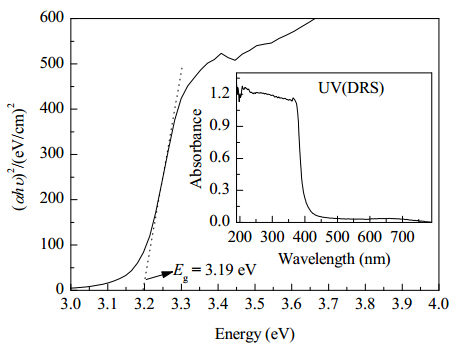

Optical absorption data near the band edge were used to calculate the band gap of the product using the following equation:
where α, ν, A, and Eg are the absorption coefficient, light frequency, proportionality constant, and band gap energy, respectively. Here, n identifies whether the transition in a semiconductor is direct (n = 1) or indirect (n = 4). The values of n and Eg can be estimated as follows: (1) assume an approximate Eg value, ln(αhν) versus ln(hνEg) should be plotted and the value of n can be obtained from the slope of the straightest line near the band edge, (2) (ahν)2/n versus hν should be plotted, and the band gap Eg can be calculated by extrapolating the straightest line to the hν axis intercept [30]. The value of n for ZnO was estimated to be 1 and, therefore, it was a direct gap semiconductor. The band gap energy of the ZnO nanoparticles was calculated to be about 3.19 eV (Fig. 4) as obtained from the UV-Vis diffuse reflectance spectrum (see inset of Fig. 4).

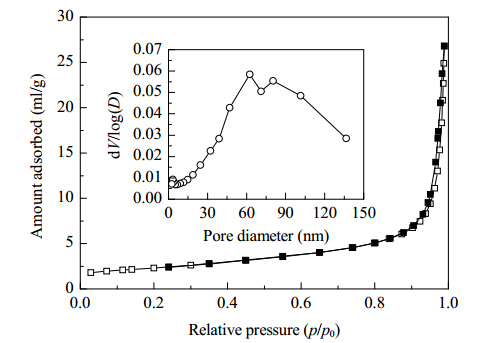

Information about the specific surface area and the pore size distribution of the ZnO nanostructure was obtained by N2 adsorption-desorption analysis (BET). The adsorption and desorption isotherm curves are shown in Fig. 5. The BJH model obtained using the desorption branch of the nitrogen isotherm was also used to evaluate the pore size distribution (inset of Fig. 5). Studies have revealed a distinct hysteresis loop in the range of 0<p/p0<1 corresponding to diagram V with a H3 type loop suggesting the presence of mesopores in the microbricks of the ZnO nanoparticles. The BET surface area was calculated to be 8.13 m2/g. The calculated pore size distribution shows that the size of the mesopores are not uniform but are centered at 22.6 nm.

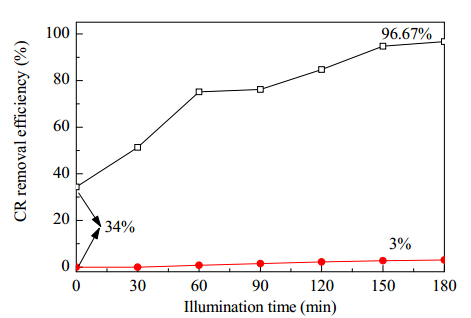

The photocatalytic performance of the ZnO nanoparticles was investigated by the degradation of the toxic azo dye CR from aqueous solution. The removal efficiency was calculated using the following equation:

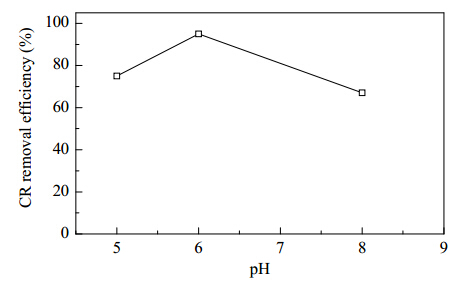

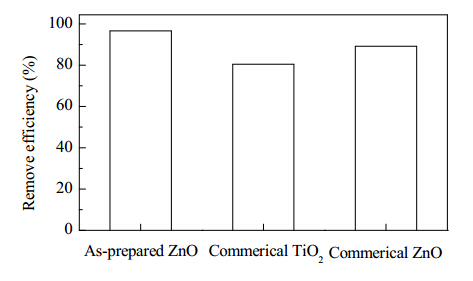

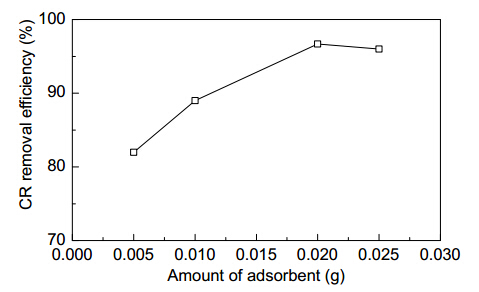

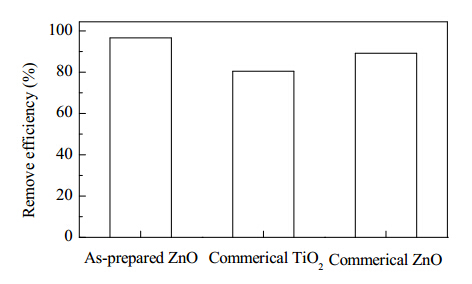

The photocatalytic activity of the as-prepared ZnO nanostructure was compared with commercial TiO2 and ZnO photocatalyst powders and their removal efficiencies were 96.67%, 80.51% and 89.15%, respectively. As shown in Fig. 9, the as-prepared ZnO nanostructure had the highest activity under the same conditions.

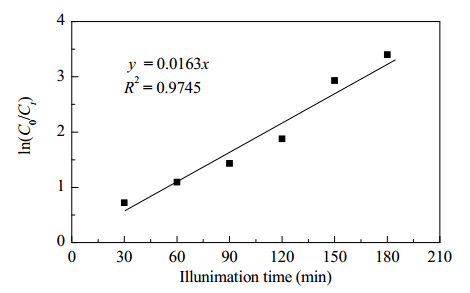

To evaluate the catalytic kinetics, the decolorization rate of the CR dye was recorded at different time. The results indicate a linear relationship between Ln(C0/Ct) and the reaction time t (Fig. 10), which can be described by a first-order kinetic model (Eq. 3).
where C0 is the initial concentration (mmol/L), Ct is the instantaneous concentration of the dye at different intervals of illumination and the slope, k, is the apparent rate constant. From the graph, the rate constant of the photodegradation reactions for the CR dye is 0.0163 min−1.
The photocatalytic activity of semiconductors is driven by hydroxyl (•OH) and superoxide (O2•−) radicals because of the formation of electron/hole pairs as a result of light irradiation. As the catalyst surface is photoexcited, electrons (e−) and holes (h+) are produced in the conduction and valance bands of the photocatalyst, respectively. The mesoporous channels produced from the interparticle connection of ZnO nanoparticles improve adsorption ability and provide efficient transport pathways for reactant molecules and products [31, 32]. The CR molecules can thus be directly oxidized by holes and radicals inside these pores [33]. However, with its mesoporous structure, the pure crystalline phase of ZnO may have a great impact on its photocatalytic performance [34].
On the other hand, surface hydroxyl groups or chemisorbed water molecules on ZnO nanostructures remarkably influence the activity by two distinct routes: scavenging the holes and as adsorption sites for reactants and intermediates [35]. According to the literature [36], the oxygen molecules dissolved in the solution capture electrons in the conduction band and the holes in the valence band are captured by surface hydroxyl groups on the catalysts to generate hydroxyl radicals. These subsequently oxidize the adsorbed dye molecules. Additionally, as the formation rate of the •OH radicals increase a higher separation efficiency is achieved for the electron-hole pairs. Furthermore, it has been shown that surface hydroxyl groups significantly affect photocatalytic activity because these groups can be trapped by the holes generated by UV light irradiation to produce hydroxyl radicals [37]. As a result of the special morphology of the semiconductor numerous available contact sites are available. These adsorbed dye molecules on the active sites of the semiconductor surface harvest electrons in the conduction band of the photocatalyst leading to the formation of radical anions from the dye molecules and the further oxidation and degradation of CR molecules.

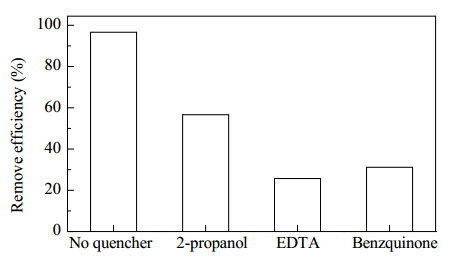

To detect active species during the photocatalytic reaction, hydroxyl radicals (•OH), superoxide radicals (O2•−) and holes (h+) were analyzed by adding isopropanol (IPA; 1 mmol/L) (a quencher of ˙OH), p-benzoquinone (BQ) (a quencher of O2•−) and disodium ethylenediaminetetraacetate (EDTA) (a quencher of h+). This method is identical to the reported photocatalytic activity test [38]. Fig. 11 shows the results of the active species trapping experiment during the photocatalytic reaction. The photocatalytic degradation of CR decreased with the addition of all the quenching agents. Therefore, it can be concluded that h+, O2•− and •OH contribute as active species of ZnO in aqueous solution under light irradiation. Nevertheless, the CR decomposition rate decreased significantly upon the addition of EDTA (1 mmol/L), indicating that holes play a critical role in the CR photodegradation process.
To evaluate the photostability of the catalyst, recycling experiments for the photodegradation of CR were performed and the results are shown in Fig. 12. We observed that 96.67 % of the CR was degraded upon first ZnO use. However, after three recycles its photocatalytic activity decreased slightly and in the third run 91.14 % of the CR degraded. Because of the facile dissolution of ZnO under extreme pH conditions as well as its photocorrosion, the photocatalytic tests were run under neutral pH conditions [39]. We also suggest that the smaller particle size of ZnO could have an important role in the inhibition of ZnO photocorrsion [40].

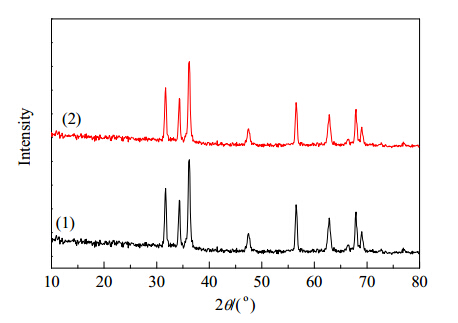

Furthermore, the XRD patterns of the ZnO nanostructures before and after 3 photoreaction cycles were also evaluated to confirm its stability. As shown in Fig. 13, the crystal structure of the produced ZnO did not change, which is indicative of its suitable stability.
The novel coordination compound ZnC12H10N4O4 with a morphology that consists of hollow microblocks was synthesized by a simple chemical precipitation reaction. Calcination at 550 °C for 4 h provided a pure ZnO composition. Heat treatment of the precursor complex triggered the decomposition of the ligand, which in turn released volatile gases to produce nanoparticles in the walls of the ZnO hollow microbricks. The mesoporous structure of the ZnO nanomaterials with a surface area of 8.13 m²/g and a pore size of 22.6 nm was determined by N2 adsorption-desorption analysis. The high photocatalytic activity of the produced ZnO nanostructure with special mesoporous morphology indicated that the product could efficiently catalyze the degradation of azo dyes.
