A 60 wt% Ni/MgAlO catalyst (MgO/Al₂O₃ = 3, w/w) was prepared using the coprecipitation method described in the literature ^[27]. An aqueous solution (100 mL) containing Ni, Mg, and Al nitrates and an aqueous solution (100 mL) of Na₂CO₃ were simultaneously added to a beaker containing distilled water (200 mL) at 353 K under vigorous stirring. The formed precipitate was removed by filtration and washed thoroughly with deionized water. The filter cake was dispersed in n-butanol (200 mL), heated to 353 K, and held at that temperature for 12 h, during which the water and n-butanol evaporated. The obtained powder was dried in an oven at 393 K overnight. The catalyst was reduced in a reactor in flowing H₂ at 723 K for 2 h before the reaction. The catalyst was denoted by Ni/MgAlO. The MgAlO support (MgO/Al₂O₃ = 3, w/w) was prepared using the same method.

The chemical composition of the catalyst was determined using inductively coupled plasma atomic emission spectr­oscopy (J-A1100, Jarrell-Ash Co., USA). The mass percentages of Ni, MgO, and Al₂O₃ in the reduced Ni/MgAlO catalyst were 64%, 26.5%, and 9.5%, respectively.

N₂ adsorption-desorption isotherms were measured at 77 K using a Micromeritics Gemini V 2380 autosorption analyzer. The samples were degassed at 573 K in a N₂ flow for 2 h before the measurements. The specific surface areas were calculated using the BET method, and the pore size distributions were obtained by the BJH method, using the desorption branch data.

X-ray diffraction (XRD) patterns were obtained in an ambi­ent atmosphere, using an X-ray diffractometer (Shimadzu XRD-6000) with Cu K_α radiation (l = 1.5408 Å) generated at 40 kV and 30 mA. Diffraction intensities were recorded from 10° to 80° at a rate of 7°/min.

Adsorptions of H₂ and O₂ were performed using a labor­atory-made volumetric adsorption system at room temp­erature and 673 K, respectively. The detailed experime­ntal information was given in our previous work ^{[27, 28, 29]}. The reduction degree, dispersion, active surface area, and particle size of metallic Ni in the Ni/MgAlO catalyst used in this work were estimated to be 76.9%, 27.6%, 75.6 m²/g_cat, and 3.6 nm, respectively.

Microcalorimetric adsorptions of H₂, acetone, and IPA were performed using a Tian-Calvet heat-flux apparatus. A C-80 calorimeter (Setaram, France) was connected to a volumetric system equipped with a Baratron capacitance manometer (USA) for precision pressure measurements (±0.5 x 10⁻⁴ Torr) and gas handling. Prior to the microcalorimetric adsorption, the catalyst was typically reduced in H₂ at 723 K for 2 h, followed by evacuation at the same temperature for 1 h. In the case of the microcalorimetric adsorptions of acetone, H₂, and IPA on the Ni/MgAlO catalyst with pre-adsorbed water, doses of water vapor were first injected sequentially into the adsorption cell until the desired pre-adsorption coverage was achieved, calculated according to the saturation coverage of water on the catalyst.

The FT-IR spectra of adsorbed acetone and IPA were recor­ded using a EUNIOX55 FTIR spectrometer (mercury cadmium telluride detector) in the range 4000-1000 cm⁻¹, with a resolution of 2 cm^-1. A self-supporting wafer (15-20 mg) was reduced in situ in the IR cell at 723 K in H₂ for 2 h and the cell was evacuated at the same temperature for 1 h. The IR cell was cooled, and then acetone or IPA was introduced into the cell at a given temperature. After evacuation, the FT-IR spectra were recorded at room temperature.

The hydrogenation reactions were performed in a vertical stainless-steel trickle-bed reactor with an inner diameter of 10 mm. The hydrogenation of acetone is strongly exothermic, therefore the Ni/MgAlO catalyst was diluted with the MgAlO support at a mass ratio of Ni/MgAlO:MgAlO = 1:10 to form a composite catalyst (Ni/MgAlO-MgAlO). This composite catalyst was pelletized, crushed, and sieved to 40-60 mesh. The composite catalyst (about 0.1 g) was loaded in the middle of the reactor, and the remaining reactor volumes at the both ends of catalyst bed were filled with silica particles of the same mesh. The catalyst was reduced in flowing H₂ at 723 K for 2 h and cooled to the reaction temperature. A feed of pure or water-containing acetone was then delivered to the reactor using a 2ZB-1L10 dual-plunger infinitesimal quality metering pump, and flowed downward with H₂ (H₂/acetone = 4, mol/mol) through the packed catalyst. Acetone hydrogenation was performed at 333 K and 4 MPa with an acetone weight hourly space velocity (WHSV) of 96 h⁻¹. The products were collected and analyzed using a gas chromatograph (Agilent 7820A) equipped with an HP-5 capillary column (353 K) and a flame-ionization detector (523 K). The activity and selectivity of the reaction were calculated based on the gas chromato­graphy results.

Figure 1 shows the results for the hydrogenation of pure and water-containing acetone at 333 K, 4 MPa, and an acetone WHSV of 96 h⁻¹ on the composite catalyst (Ni/MgAlO-MgAlO). The reaction was performed at a relatively high pressure and WHSV to minimize the limitations of gas-liquid and liquid-liquid mass transfers ^{[30, 31]}. IPA was the only product analyzed. The acetone conversion was about 83% for the hydrogenation of pure acetone under the reaction conditions. The addition of 1% and 2% water to the acetone increased the conversions of acetone to 92% and 93%, respectively, but addition of more water decreased the acetone conversion; for example, only 37% acetone was converted when the feed contained 40% water. These results are in good agreement with those reported in the literature, i.e., that the addition of a small amount of water (1%-2%) accelerated acetone hydrogenation ^{[11, 12, 13, 14]}. However, the addition of more water had the opposite effect.

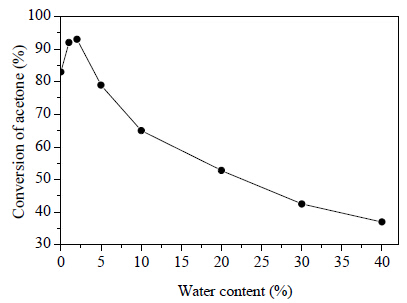

Fig. 1.Conversion of acetone in hydrogenation of acetone containing different amounts of water on composite Ni catalyst (Ni/MgAlO and MgAlO at weight ratio of 1:10). Reaction conditions: T = 333 K, P = 4 MPa, WHSVacetone = 96 h−1, H2/acetone molar ratio = 4.

To determine whether the effects of water on acetone hydrogenation were reversible, pure acetone and an aqueous solution of acetone (60%) were fed alternately into the reactor. The results are shown in Fig. 2. Pure acetone was first fed for 6 h; the acetone conversion was 83% after 6 h. The feed was then switched to an aqueous solution of acetone, and the acetone conversion decreased greatly. After 12 h, the acetone conversion had decreased to only 37% when the solution contained 40% water. The feed was then switched back to pure acetone, and the acetone conversion increased significantly to 94% at 18 h. These results clearly show that the presence of water affected the hydrogenation of acetone on the catalyst surface (water could participate in the surface reactions in some way), and affected the textural and structural properties of the catalyst.

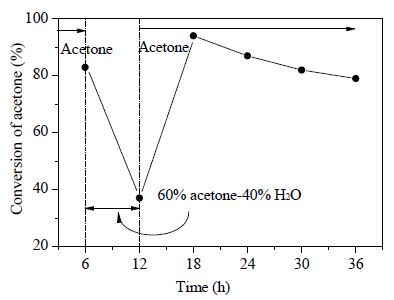

Fig. 2.Plot of acetone conversion versus reaction time for hydrogen­ation of acetone with alternating feeds of pure acetone and 60% acetone-40% water on composite Ni catalyst (Ni/MgAlO and MgAlO at a weight ratio of 1:10). Reaction conditions: T = 333 K, P = 4 MPa, WHSVacetone = 96 h−1, H2/acetone molar ratio = 4.

Table 1 summarizes the BET surface areas and pore param­eters of the composite catalyst after hydrogenation of acetone in the presence of different amounts of water. The surface area, pore volume, and average pore size were 214 m²/g, 0.81 mL/g, and 15.1 nm, respectively, for the composite catalyst after hydrogenation of pure acetone. All three parameters decreased slightly for the composite catalyst after hydrogenation of acetone containing 1% or 2% water. However, the surface area and pore volume decreased significantly, and the pore size increased significantly, for the composite catalyst after hydrogenation of acetone containing more than 5% water. Water therefore clearly affected the textural properties of the composite catalyst, especially when the water content was more than 5%.

Table 1Textural properties of composite catalyst (Ni/MgAlO-MgAlO) after hydrogenation of acetone containing different amounts of water. H2O content (wt%) ABET (m2/g) Vp (mL/g) Pore size (nm) 0 214 0.81 15.1 1 210 0.71 13.4 2 203 0.71 13.9 5 104 0.38 14.4 10 97 0.43 17.8 20 99 0.41 16.8 30 97 0.41 17.6 40 108 0.45 16.8 Note: The composite catalyst was composed of Ni/MgAlO and its support MgAlO at the weight ratio of 1:10. Reaction conditions: T = 333 K, P = 4 MPa, WHSVacetone = 96 h−1, H2/acetone molar ratio = 4.

Table 1Textural properties of composite catalyst (Ni/MgAlO-MgAlO) after hydrogenation of acetone containing different amounts of water.

Figure 3(a) shows the XRD patterns of the composite catalyst after hydrogenation of acetone containing different amounts of water. The amount of Ni in the composite catalyst was low (about 6%); therefore, no metallic Ni peaks were observed in the XRD patterns. Two distinct diffraction peaks characteristic of MgO ^[27] were detected at 2θ = 43.3° and 63.1° (JCPDS 45-0946) for the composite catalyst after the hydrogenation of acetone containing no more than 2% water. These MgO peaks disappeared for the composite catalyst after hydrogenation of acetone containing more than 5% water. New peaks appeared at 2θ = 11.5°, 23.0°, 34.7°, 39.2°, 46.6°, 60.4°, and 62°, assigned to Mg₆Al₂(OH)₁₈·4.5H₂O (JCPDS 35-0965), indicating a phase change of the composite catalyst during the hydrogenation of acetone containing significant amounts of water (>5%).

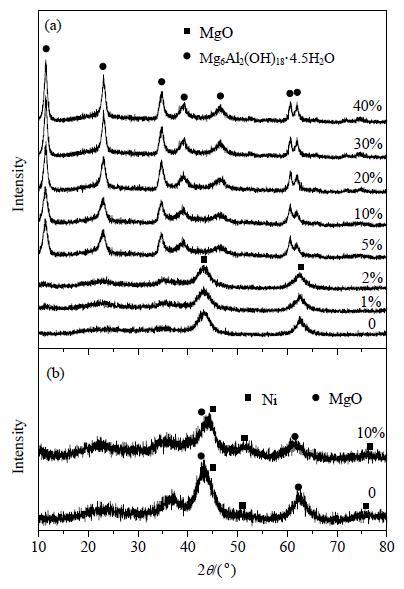

Fig. 3.XRD patterns of composite catalyst (a) composed of Ni/MgAlO and MgAlO at a weight ratio of 1:10, and Ni/MgAlO (b) after hydrogenation of acetone containing different amounts of water.

An unsupported Ni/MgAlO catalyst was also studied for comparison. The XRD patterns of Ni/MgAlO after the hydrogenation of pure acetone and acetone containing 10% water are shown in Fig. 3(b). Two phases, metallic Ni and MgO, were clearly seen in the two XRD patterns, and no Mg₆Al₂(OH)₁₈·4.5H₂O phase was observed for the Ni/MgAlO catalyst after hydrogenation of acetone containing 10% water. This indicated that the phase change for the composite catalyst during hydrogenation of acetone in the presence of significant amounts of water was probably a phase change of the MgAlO support. The effects of water on the hydrogenation of acetone could therefore mainly arise from the effects of water on surface reactions.

The interactions of molecularly adsorbed water with metal and metal oxide surfaces have been extensively studied and comprehensively summarized in several reviews ^{[32, 33]}. Water molecules are commonly thought to adsorb on the metal surface via the oxygen atom, and then aggregate via hydrogen bonding to form water multilayers or clusters. On metal oxide surfaces, the water molecules are typically adsorbed at Lewis acid sites via the lone pair of electrons on the oxygen in water ^[34]. In addition, the adsorbed water molecules can be partially or completely dissociated to H, OH, and/or O surface species on the metal and metal oxide surfaces at high temperatures ^{[32, 34, 35, 36]}.

Figure 4 shows the microcalorimetric adsorption results for H₂ at 308 K over the Ni/MgAlO catalyst with different cover­ages of pre-adsorbed water. The initial heat was 85 kJ/mol for the adsorption of H₂ on the clean Ni/MgAlO catalyst. The initial heat and coverage decreased continuously for the adsorption of H₂ on the Ni/MgAlO catalyst with increasing coverage of pre-adsorbed water. It should be noted that at low coverages of pre-adsorbed water (<10%), the decreases in the initial heats and coverages of H₂ were not significant, indicating that small amounts of water might be preferentially adsorbed on the support, rather than on the Ni surface. With increasing amount of pre-adsorbed water, more water molecules were adsorbed on the Ni surface, leading to significant decreases in the heats and coverages for the adsorption of H₂ on Ni. Water is an electron donor, therefore the pre-adsorbed water might increase the electron density of the surface Ni and thus weaken the Ni-H bonds ^[37].

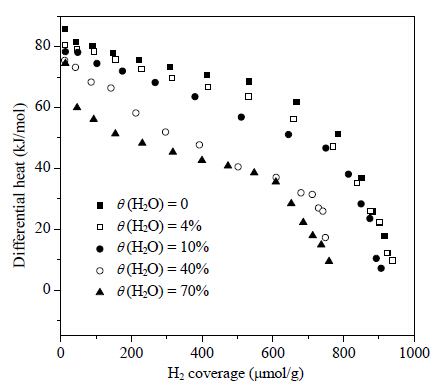

Fig. 4.Plots of differential heat versus coverage for adsorption of H2 at 308 K over Ni/MgAlO with different coverages (θ) of pre-adsorbed water. The Ni/MgAlO was reduced at 723 K in H2 for 2 h and then evacuated for 1 h at 723 K prior to pre-adsorption of water. The coverage of pre-adsorbed water was achieved by controlling the dosages of water injected, based on the saturation coverage of water.

Figure 5 shows the microcalorimetric results for adsorption of acetone at 308 K over the Ni/MgAlO catalyst with different coverages by pre-adsorbed water. The initial heats were 68 and 131 kJ/mol for the adsorptions of acetone on MgAlO and clean Ni/MgAlO, respectively, indicating that acetone was adsorbed much more strongly on metallic Ni than on the MgAlO support. The initial heat was slightly higher (139 kJ/mol) for the adsorption of acetone on the Ni/MgAlO catalyst with 4% pre-adsorbed water than that (131 kJ/mol) for the adsorption of acetone on clean Ni/MgAlO. The initial heats and coverages decreased for the Ni/MgAlO catalyst with more pre-adsorbed water (>10%). The initial heats and coverages decreased significantly for acetone adsorption on the Ni/MgAlO catalyst with pre-adsorbed water coverages higher than 40%. In this case, the presence of large numbers of pre-adsorbed water molecules could hinder access of acetone molecules to the Ni surface.

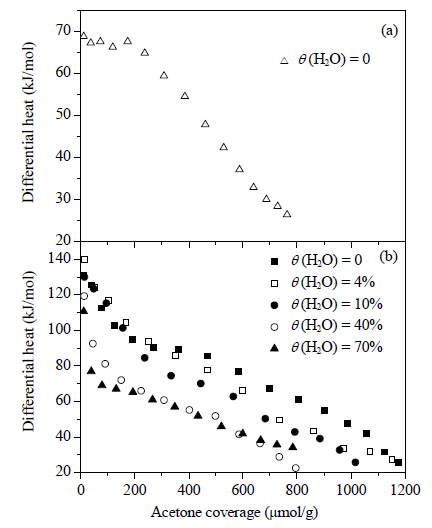

Fig. 5.Plots of differential heat versus coverage for adsorption of acetone at 308 K over MgAlO (a) and Ni/MgAlO (b) with different coverages (θ) of pre-adsorbed water. The other details are the same as in Fig. 4.

Figure 6 shows the microcalorimetric adsorption results for IPA at 308 K over the Ni/MgAlO catalyst with different coverages of pre-adsorbed water. The initial heats were 91 and 152 kJ/mol for the adsorption of IPA on MgAlO and Ni/MgAlO, respectively, indicating that IPA was adsorbed much more strongly on metallic Ni than on the MgAlO support. In addition, these initial heats were significantly higher than those for acetone adsorption on the corresponding samples, indicating that IPA interacted more strongly than acetone with both the MgAlO support and the Ni/MgAlO catalyst. The desorption of IPA from the catalyst surface might therefore play an important role in the hydrogenation of acetone. The initial heats and coverages for the adsorption of IPA on the Ni/MgAlO catalyst decreased with increasing pre-adsorbed water coverage, especially for 40% and 70% coverages of pre-adsorbed water. Specifically, the initial heat was only 103 kJ/mol for the adsorption of IPA on the Ni/MgAlO catalyst with 70% coverage of pre-adsorbed water. The presence of water might therefore facilitate the desorption of IPA from the surface of the Ni/MgAlO catalyst.

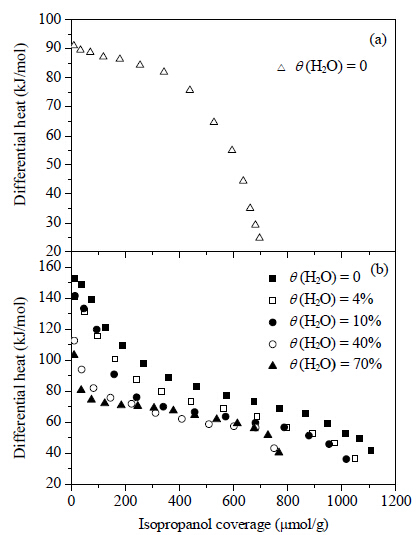

Fig. 6.Plots of differential heat versus coverage for adsorption of IPA at 308 K over MgAlO (a) and Ni/MgAlO (b) with different coverages (θ) of pre-adsorbed water. Refer to Fig. 4 for other details.

IR is a useful tool for understanding the surface structures of adsorbed acetone and IPA and the effects of water on surface structures. The adsorption states of acetone and IPA on metals and supports are complicated. Based on literature reports ^{[15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26]}, some proposed surface species in the adsorption of acetone and IPA on the surfaces of Ni/MgAlO and the MgAlO support are shown in Schemes 1 and 2, respectively.

Figure 7(1) shows the FT-IR spectrum of acetone adsorbed on MgAlO at room temperature. The main surface species formed are shown in Scheme 2(a). The band at 1701 cm⁻¹ corresponds to the stretching vibrations of C=O in acetone molecules adsorbed at Lewis acid sites. The bands at 1465 and 1367 cm⁻¹ can be attributed to the symmetric and asymmetric bending vibrations of methyl groups (-CH₃). The band at 1234 cm⁻¹ arises from the C-C-C stretching vibrations of acetone. These results are in agreement with previously reported data ^{[20, 21, 22]}. Two other bands were observed at 1643 and 1612 cm⁻¹. Sanz et al. ^[22] proposed that the adsorption of acetone on MgO could lead to the formation of surface enolate species, shown by a band at 1640 cm⁻¹ from the asymmetric stretching vibrations of C-C-O groups. Zaki et al. ^[21] reported that the aldol condensation of adsorbed surface acetone could be facilitated by surface acid-base sites on alumina or silica-alumina, leading to the formation of surface mesityl oxide species, with an absorption band at 1607 cm⁻¹ from the C=C stretching vibrations of mesityl oxide species coordinated to the surface Lewis acid sites. The FT-IR spectrum in Fig. 7(1) therefore indicates that both acetone enolate (Scheme 2(c)) and mesityl oxide (Scheme 2(d)) species were formed on the MgAlO surface.

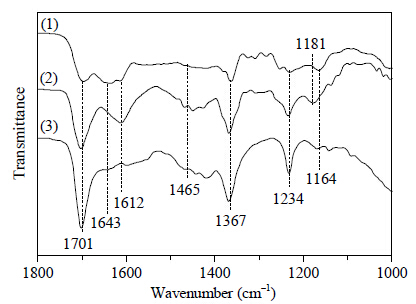

Fig. 7.FT-IR spectra of acetone adsorbed at 300 K on MgAlO (1), clean Ni/MgAlO (2), and Ni/MgAlO with pre-adsorbed water (3). Ni/MgAlO was reduced in H2 at 723 K for 2 h and evacuated at 723 K for 1 h. The catalyst was then exposed to water vapor at 300 K for 15 min and evacuated at 300 K for 30 min. The catalyst was then exposed to acetone vapor for 15 min and evacuated at 300 K for 30 min before the FTIR measurements.

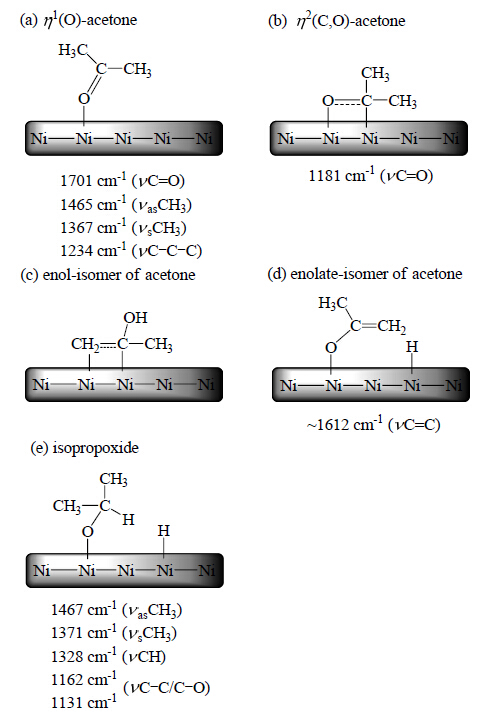

Scheme 1.Schematic diagrams of proposed surface structures of adsorbed acetone and IPA on Ni surface, and their assigned IR frequencies.

For the FT-IR spectrum of acetone adsorbed on the Ni/ MgAlO catalyst at room temperature (Fig. 7(2)), there are two configurations for the adsorption of acetone on metal surfaces ^{[15, 16, 17]}. One is η¹(O), which has an end-on adsorption geometry with bonding to the metal surface through the lone-pair electrons of the oxygen atom (Scheme 1(a)), and the other is η²(C,O), which has a side-on adsorption geometry bonded via the di-σ mode involving both the oxygen and carbon atoms of the carbonyl group (Scheme 1(b)). In these configurations, the carbonyl group is almost perpendicular to the metal surface for the η¹(O) mode and parallel to the surface for the η²(C,O) mode. Because of the steric hindrance of methyl groups, the end-on η¹(O) structure is generally considered to be more favorable than the parallel η²(C,O) geometry ^[18]. The spectrum of acetone adsorbed on Ni/MgAlO differs from that of acetone adsorbed on MgAlO. First, the intensity of the band at 1701 cm⁻¹ is higher, indicating the presence of acetone with the η¹(O) structure on Ni, with a similar C=O vibration frequency to that of acetone adsorbed on the MgAlO support. Secondly, the two bands at 1643 and 1612 cm⁻¹ for acetone adsorbed on MgAlO merge into a broad and more intense band at 1612 cm⁻¹ for acetone adsorbed on Ni/MgAlO, suggesting that more acetone enolate (Scheme 1(d)) or mesityl oxide species (Scheme 2(d)) were formed on Ni/MgAlO. The formation of enolate acetone species (Scheme 1(d)) on the surface of Ni(111) has been reported ^[19], with characteristic absorption bands at 1260, 1353, and 1545 cm⁻¹. Jeffery et al. ^[18] also observed acetone enolate species on Pt(111) surfaces and proposed that they were μ₂(C₁,O) enolate species, based on calculations and vibrational spectroscopic studies. Thirdly, a new band appears at 1181 cm⁻¹ for acetone adsorbed on Ni/MgAlO, which is close to the predicted frequency (1191 cm⁻¹) for the stretching vibration of C=O in the η²(C,O) acetone structure ^[19]. Acetone could therefore also be adsorbed on Ni via the η²(C,O) mode (Scheme 1(b)). However, the band at 1701 cm⁻¹ is much more intense than the one at 1181 cm⁻¹, therefore the η¹(O) structure was the main surface species for acetone adsorbed on Ni.

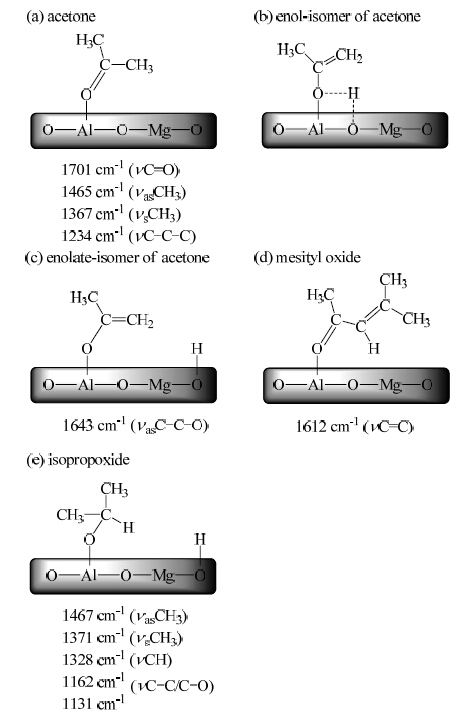

Scheme 2.Schematic diagrams of proposed surface structures of adsorbed acetone and IPA on surface of MgAlO support, and their assigned IR frequencies.

For the IR spectrum of the adsorption of acetone on the Ni/MgAlO catalyst with pre-adsorbed water (Fig. 7(3)), the most noticeable change was the disappearance of the band at 1612 cm⁻¹, indicating that the presence of water inhibited the surface reactions of acetone adsorbed on the surfaces of Ni and the support. It was reported that the aldol condensation of acetone adsorbed at Lewis acid-base sites led to the formation of diacetone alcohol, followed by dehydration to mesityl oxide ^[21]. These acid-base sites on the support might be covered by the pre-adsorbed water, and this would inhibit the isomeri­zation and condensation reactions of adsorbed acetone. In addition, the presence of pre-adsorbed water would inhibit the formation of mesityl oxide because water is produced from the condensation reaction for the formation of mesityl oxide ^[38]. Moreover, the presence of pre-adsorbed water weakened the Ni-H bonds, according to the microcalorimetric results for the adsorption of H₂ reported above. The presence of pre-adsorbed water could therefore inhibit the dissociative adsorption of acetone for the formation of enol and enolate species (Scheme 1(c)-(d) and Scheme 2(b)-(c)).

Figure 8 shows the FT-IR spectra of IPA adsorbed on the MgAlO support and the Ni/MgAlO catalyst at room temperature. On the MgAlO support, the bands appeared at 1467 and 1371 cm^-1 are attributed to the asymmetric and symmetric bending vibrations of methyl groups, respectively. The band at 1328 cm^-1 is caused by the bending vibrations of α-C-H bonds. The bands at 1162 and 1131 cm^-1 are assigned to the coupled stretching vibrations of C-O/C-C bonds. These bands are the characteristic absorption vibrations of surface isopropoxide species (Scheme 2(e)) ^{[26, 39, 40]}. No band was observed at 1280 cm^-1 for the O-H deformation vibration of IPA, indicating the absence of molecularly adsorbed IPA on MgAlO ^{[39, 40]}.

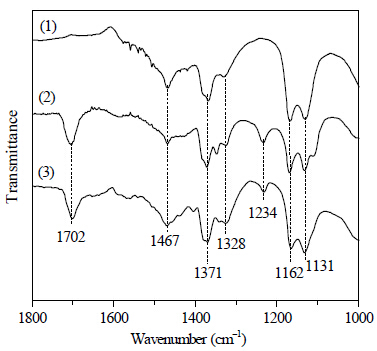

Fig. 8.FT-IR spectra of IPA adsorbed at 300 K on MgAlO (1), clean Ni/MgAlO (2), and Ni/MgAlO with pre-adsorbed water (3). See Fig. 7 for other details.

For the IR spectrum of IPA adsorbed on the clean Ni/MgAlO catalyst, two new bands appear, at 1702 and 1234 cm^-1, compared with that on the support. These are assigned to the stretching vibrations of C=O and C-C-C bonds, respectively, in adsorbed acetone (Scheme 1(a)), and indicate the dehydrog­enation of adsorbed IPA to acetone on the Ni surface, in agreement with the reported results ^[23].

The IR spectrum of IPA adsorbed on Ni/MgAlO with pre-adsorbed water is similar to that on clean Ni/MgAlO, except that the intensities of the bands at 1702 and 1234 cm^-1 are lower, indicating that the presence of pre-adsorbed water inhibited IPA dehydrogenation to acetone. This might be another reason why the presence of a small amount of water accelerated the conversion of acetone to IPA. In contrast, the presence of large amounts of water significantly inhibited the adsorption of acetone and H₂, leading to decreased activity for the hydrogenation of acetone to IPA.
