The epoxidation of alkenes is one of the most widely studied reactions in organic chemistry. The resultant epoxides are important intermediates in organic synthesis and essential precursors in the synthesis of various important substances, such as plasticizers, perfumes, and epoxy resins. Catalyzing these epoxidation reactions by transition metal complexes has attracted much attention [1, 2, 3, 4, 5]. A number of soluble Mo complexes with different ligands have been synthesized and used as homogeneous catalysts for the epoxidation of various alkenes [6, 7]. However, homogeneous catalysts have some industrial problems, such as deposition on the reactor wall and difficulty in separation and recovery of the catalysts from the reaction products. One way to overcome these problems is to immobilize homogeneous catalysts on solid supports.
In recent years, various types of supported catalysts have been reported in organic transformations. Many approaches have been used to load Mo complexes on different supports, such as silica [8, 9, 10, 11, 12], modified MCM-41 [13, 14, 15, 16], zeolites [17, 18], and multi-wall carbon nanotubes (MWNTs) [19, 20], to obtain heterogeneous catalysts. However, much cheaper clay minerals have not been reported as supports for Mo complexes. Clay minerals are attractive inorganic hosts for functional inorganic-organic hybrids because of their swelling properties and charged surfaces, which can be easily modified. Clays have been successfully used in different fields, even as vectors for delivery of DNA to cells [21, 22, 23]. As a naturally abundant clay, halloysite nanotubes (HNTs, Al2Si2O5(OH)4·2H2O) have a tubular structure similar to that of MWNTs, and they are cheap, non-toxic, and biocompatible. The tubular structure of HNTs is composed of one silica sheet with one alumina sheet on each silicate layer, and they have a diameter of 50 nm and a lumen of 15 nm [23]. HNTs have been used in various fields, such as nanocontainers for active anticorrosion coatings [28, 29, 30, 31] and supports for catalysts in different types of reactions [32, 33, 34, 35, 36], and have useful structural properties [24, 25, 26, 27].
Herein, we report the synthesis of Mo catalysts on modified HNT supports. To the best of our knowledge, the synthesis of Mo salen (Mo-SL) supported on surface-modified HNTs has not been previously reported. We investigated the stability and catalytic activity for epoxidation reactions of a variety of alkenes with the tert-butyl hydroperoxide oxidant. In addition, we investigated the coordination between Mo and salen ligands and the possible mechanism of alkene epoxidation using this catalyst.
Halloysite was obtained from Hebei, China. 3- Aminopropyl- trimethoxysilane (APTMS) and [3-(2-aminoethyl) aminopropyl]trimethoxysilane (AAPTMS) were purchased from Alfa Aesar and used without further purification. Molybdenum trioxide, N,N-dimethylformamide (DMF), tert-butyl hydroperoxide (TBHP), and solvents were all analytical grade reagents purchased from Shanghai Chemical Reagent Co. Ltd. (Shanghai, China) and used without further purification. Deionized water was used for all of the experiments.
The HNTs-SL-Mo catalysts were prepared by a facile chemical surface modification and self-assembly method. APTMS (0.5 mL) and HNTs (1 g) were dispersed in toluene (25 mL). The system was vacuumized in the process of ultrasonic dispersion for 1 h. Then, refluxing was performed at 110 °C for 24 h in a nitrogen environment. We obtained HNTs-APTMS after the solid was filtered out and dried under vacuum after washing with toluene several times. HNTs-APTMS (0.5 g) was dissolved in tepid ethanol (40 mL). Then, while stirring at 40 °C, ethanol (70 mL) containing salicylaldehyde (0.55 mL) was added in 2 h. This system was refluxed at 80 °C for 10 h. After filtering, washing, and drying, we obtained a yellow solid, which was HNTs supporting salen ligands (HNTs-APTMS-SL). A mixture of HNTs-APTMS-SL (300 mg) and MoO(O2)2(DMF)2 (30 mg) synthesized according to a procedure described in the literature [37, 38] was stirred in acetonitrile (15 mL) at room temperature for 48 h. Afterwards, the solid was filtered out and dried under vacuum after washing with acetonitrile. This gave the HNTs-APTMS-Mo-SL catalyst.

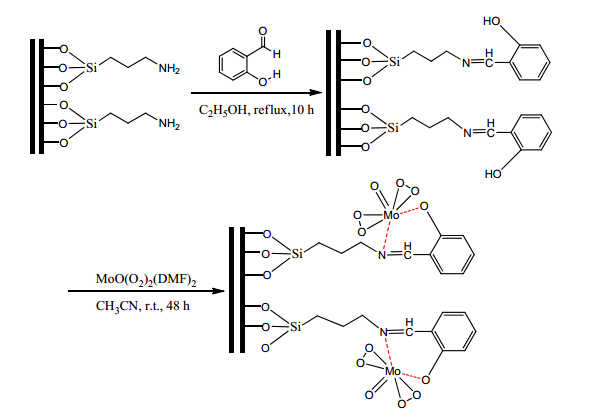

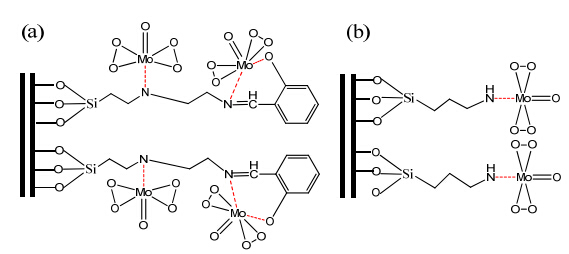

The complete synthesis process of the catalyst is shown in Fig. 1. We used AAPTMS instead of APTMS using the same method to obtain another catalyst, HNTs-AAPTMS-Mo-SL (Fig. 2(a)). The catalyst without the salen structure (HNTs-APTMS- Mo, Fig. 2(b)) was also prepared.
The size and morphology of the HNTs was observed by a Tecnai G2 F30 transmission electron microscope (TEM). The samples were obtained by placing a drop of a colloidal solution onto a copper grid and evaporating the solvent in air at room temperature. X-ray powder diffraction (XRD) patterns were obtained with a Shimadzu XRD-6000 diffractometer using Cu Kα radiation at 40 kV. Elemental analysis (EA) was carried out to analyze the elemental composition of the catalysts using an elemental analyzer (Vario EL, Elementar Analysensysteme GmbH, Hanau, Germany). Fourier-transform infrared (FT-IR) spectra were recorded on an Impact 400 FT-IR spectrometer (Nicolet, Waltham, MA, USA), and the samples were measured with KBr pellets. X-ray photoelectron spectra (XPS) were recorded on a PHI-5702 photoelectron spectrometer, and the C 1s line at 284.8 eV was used as the binding energy reference. The Mo content was measured with an inductively coupled plasma-atomic emission spectrometer (ICP-AES).
The epoxidation of alkenes was carried out using TBHP as an oxidizing agent. In a 25-mL round bottom flask equipped with a magnetic stirrer bar, a mixture of alkene (2.5 mmol), TBHP (5 mmol), catalyst (1 mol% Mo), and solvent (8 mL) was prepared and refluxed under stirring at different temperatures. After filtering off the catalyst, the filtrate was dehydrated and analyzed by a gas chromatograph-mass spectrometer (GC-MS, Agilent 7820A/5977E).
The structure and morphologies of the HNTs, HNTs-APTMS- Mo-SL, HNTs-AAPTMS-Mo-SL, and HNTs- APTMS-Mo were observed by TEM. Fig. 3(a) shows the TEM image of naturally occurring HNTs. The predominant form was a hollow tubular structure in the submicrometer range. The sizes of the inner and outer diameters of the halloysite tubules were about 15-20 and 40-50 nm, respectively, depending on the deposit conditions. Characterization of HNTs-APTMS-Mo- SL by TEM is shown in Fig. 3(b). It shows that the Mo complex was completely attached to the modified HNTs, and there was no isolated Mo complex in the TEM image. Therefore, without any monodispersed Mo complex, it can be concluded that the Mo complex was distributed on the surface of the surface-modified HNTs. For comparison, the TEM images of HNTs-AAPTMS- Mo- SL and HNTs-APTMS-Mo are shown in Figs. 3(c) and 3(d). HNTs-AAPTMS-Mo-SL showed slight aggregation because of a mass of Mo complex and HNTs-APTMS-Mo showed less aggregation because of weak coordination between Mo and single N atoms.
The crystal structure and phase purity of the HNTs, HNTs- APTMS-SL, HNTs-APTMS-Mo-SL, and HNTs-APTMS-Mo were determined by XRD, as shown in Fig. 4. The positions and relative intensities of all the diffraction peaks of HNTs matched well with JCPDS 29-1487 [36, 37]. The typical diffraction peaks of HNTs-APTMS-SL and HNTs-APTMS-Mo-SL were similar to those of the unfunctionalized HNTs. However, the intensities of the main peaks slightly decreased, which revealed that the crystal structure of the HNTs was well maintained after the introduction of organic functional groups. Some of the characteristic peaks decreased after immobilization of MoO(O2)2(DMF)2. Furthermore, another five peaks over HNTs- APTMS-SL and HNTs-APTMS-Mo-SL (marked with asterisks) that can be attributed to the Mo(VI) species rather than MoO(O2)2(DMF)2. This is evidence of the successful synthesis of the Mo salen structure. From the above results, HNTs-APTMS- Mo-SL was successfully synthesized. In addition, the peaks attributed to the Mo(VI) species of HNTs-APTMS-Mo were clearly smaller than those of HNTs-APTMS-Mo-SL, which might be because of the smaller amount of Mo (Table 2).

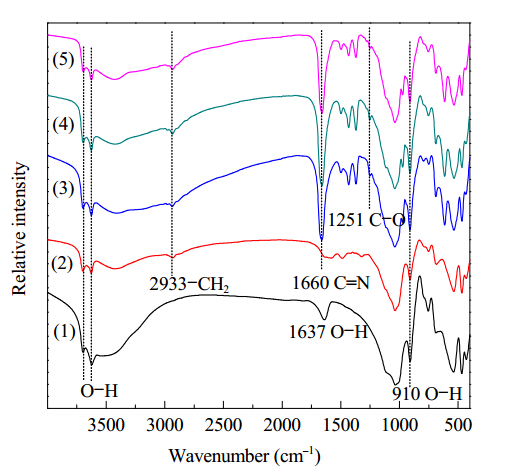

The FT-IR spectra of the samples are shown in Fig. 5. Two characteristic bands of HNTs at 3696 and 3621 cm-1 were present, which are due to the stretching vibration of O-H in the inner-surface hydroxyl groups of Al-O-H. The absorption peak at 910 cm-1 was ascribed to the deformation vibration of the above hydroxyl groups. Interlayer or adsorbed water is indicated by the stretching vibration at 3450 cm-1 and the corresponding deformation vibration at 1637 cm-1 [36, 37]. Most of the absorption peaks of the catalysts did not change after modification, except for a decrease in the intensity of the OH stretching band. It was found that the basic structures of the HNTs and the functionalized HNTs were the same after modification and grafting between these groups and APTMS (or AAPTMS). The relatively high intensity of the band at 2933 cm-1 is characteristic of -CH2 stretching vibrations, which also indicated that APTMS (or AAPTMS) successfully bonded to the HNTs. Over HNTs-APTMS- SL, the bands at 1660 and 1251 cm-1 were induced by C=N and C-O stretching vibrations, which verified the successful synthesis of the salen ligand. It is worth noting that the C=N and C-O stretching vibrations in the spectra of HNTs-APTMS-Mo-SL and HNTs-AAPTMS-Mo-SL were similar to those of HNTs-APTMS- SL, indicating a strong interaction between Mo and the ON bidentate salen ligand. Therefore, FT-IR reasults confirmed the existence of the Mo salen structure by the post-treatment process.

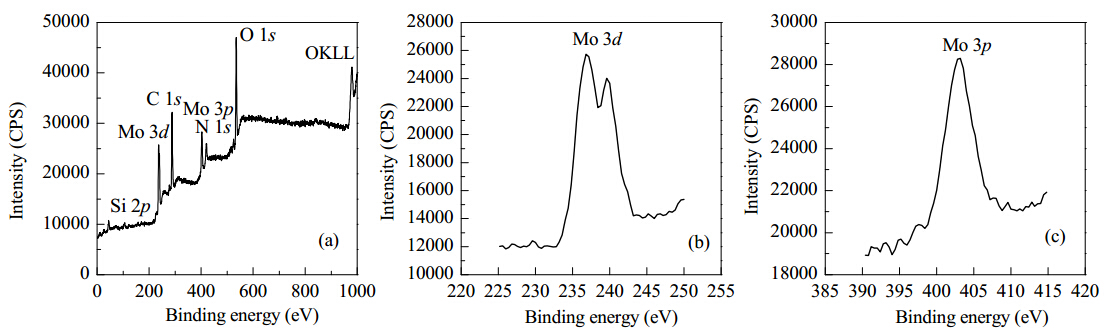

In addition to XRD and FT-IR analysis, the XPS technique proved to be extremely useful to confirm the presence of APTMS and Mo, because they are sensitive to the surface and provide information not only about the electronic state of Mo, but also about the other atoms. As shown in Fig. 6, the peaks of Si 2p, C 1s, N 1s, and O 1s appeared at standard positions. Moreover, the XPS analysis of Mo(VI) is shown in Fig. 6(a) and (b). As expected, the peaks at 237 and 403 eV can be attributed to Mo 3d and Mo 3p, which confirmed the existence of Mo(VI) with the same valence state as Mo in MoO(O2)2(DMF)2 [38]. The XPS reasults provided evidence of the successful synthesis of the HNT-supported Mo catalyst.
In addition, EA was used to verify the presence of C, N, and H. As shown in Table 1, after the first step, APTMS and APPTMS were successfully attached to the HNTs because of the presence of the corresponding percentages of C, N, and H. Salicylaldehyde then reacted with the terminal amino group of HNTs- APTMS or HNTs-APPTMS to form the salen structure. The corresponding percentages of C, N, and H were detected in accordance with HNTs-APTMS-SL or HNTs-APPTMS-SL.
The catalytic activities of the three HNT-supported Mo catalysts and homogeneous Mo catalyst were initially investigated in the epoxidation of cyclohexene in the presence of TBHP. The catalytic activities of these four catalysts as well as PANI microsphere-Mo [38] and MoOx/HAP-γ-Fe2O3 [11] are shown in Table 2. The same amount of Mo was used in the contrast tests. The turnover frequency (TOF) of HNTs-APTMS-Mo-SL was quite good (23.75 h-1), and twice that of MoOx/HAP-γ-Fe2O3 (10.94 h-1). However, it was slightly less than that of PANI microsphere-Mo (27.67 h-1), which can be attributed to the higher reaction temperature (60 °C). Nevertheless, the conversion of cyclohexene catalyzed by the HNTs-APTMS-Mo-SL afforded 95%, which is much higher than that obtained using the PANI microsphere-Mo (83%) and MoOx/HAP-γ-Fe2O3 (90.8%) catalysts despite their higher reaction temperatures. PANI microsphere-Mo does not have the Mo salen structure and only uses a N atom as a single ligand coordinated to MoO(O2)(DMF)2. The active site of MoOx/HAP-γ-Fe2O3 is the Mo oxide. Therefore, it can be assumed that the Mo salen structure is conducive to improving the conversion and efficiency of alkene epoxidation. On the other hand, by comparing the conversion of the epoxidation reaction catalyzed by HNTs-APTMS-Mo-SL (95%), HNTs-APTMS-Mo (87%) without the salen structure, and HNTs-APPTMS-Mo-SL (90%), which has both Mo salen and Mo coordinated to one N atom, it is suggested that the Mo salen structure of the catalysts played an important role in this reaction. MoO(O2) connected to the salen structure probably had a unique mechanism that was the most efficient catalytic mechanism for epoxidation of alkenes with the TBHP oxidant. According to the reported mechanism [39], the possible epoxidation process catalyzed by the Mo salen catalyst is illustrated in Scheme 1. Heterogeneous MoO(O2)(DMF)2 had a lower catalytic activity (73%) than supported Mo. When the reaction time was extended to 12 h, conversion slightly increased to 76%. The reaction catalyzed by HNTs-APTMS-Mo had higher conversion with lower temperature and shorter reaction time than that reported for the PANI microsphere-Mo catalyst. Hence, supported MoO(O2)(DMF)2 is an excellent catalyst for alkene epoxidation reaction. Among the catalysts investigated, the HNT-supported Mo catalysts coordinated with ligands showed the best catalytic activity, and HNT-supported Mo salen was the best catalyst.
Table 3 shows the catalytic activity of HNTs-APTMS-Mo-SL used for the epoxidation of a wide range of alkenes. It was found that this catalyst efficiently converted cyclic, linear, and aromatic alkenes to their corresponding epoxides. It showed that carbocyclic alkenes were efficiently converted to the corresponding epoxides with high conversion and TOF (Table 3, entries 1 and 2). However, oxidation of aromatic and linear alkenes required longer reaction times and higher reaction temperature than carbocyclic alkenes (entries 3-7).

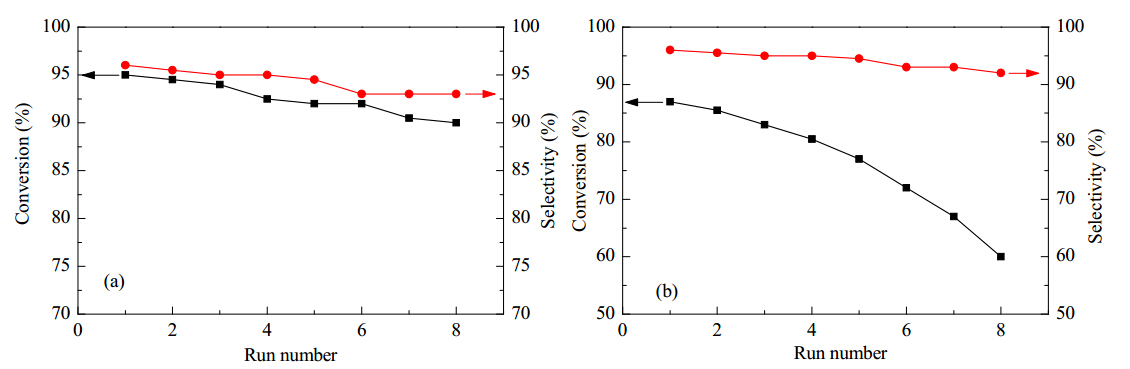

Experiments were conducted to test the cycle performance and the stability of the catalyst. As shown in Fig. 7, the HNTs-APTMS-Mo-SL catalyst could be filtered and reused at least eight times without significant loss of activity (Fig. 7(a)). To investigate the stability of the Mo salen structure, the catalytic performance of the separated liquids was tested by adding fresh cyclohexene and TBHP into the filtrates after each run. Epoxidation reactions under the same reaction conditions gave the same results as the blank experiment. The performance of the HNTs-APTMS-Mo catalysts decreased during the reuse experiments (Fig. 7(b)). A total of 0.67 mg Mo (27% of the original Mo amount) was detected by ICP in the separated liquid after the eighth cycle, which explained the sharp decrease in catalytic activity. However, the separated liquid after the eighth cycle catalyzed by HNTs-APTMS-Mo-SL contained 0.09 mg Mo (3.6% of the original Mo amount). The experiments demonstrated the excellent stability of the Mo salen structure.

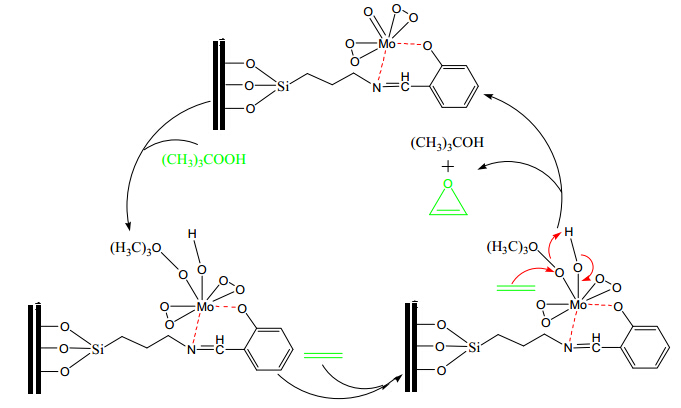

A robust, highly effective, and reusable HNTs-Mo-SL catalyst was successfully synthesized, characterized, and used for the epoxidation of cyclooctene using the TBHP oxidant. This supported heterogeneous catalyst was found to be highly effective for the epoxidation of a wide range of alkenes, including linear, cyclic, and aromatic alkenes. The HNTs-Mo-SL catalyst exhibited a higher activity than homogeneous Mo and supported Mo without the salen structure (HNTs-APTMS-Mo). It was found that the salen structure played an important role in immobilizing MoO(O2)2(DMF)2 and improving the conversion and efficiency of alkene epoxidation, which cannot be obtained using other ligands, such as the N atom as a single ligand. Furthermore, the coordination between Mo and the salen ligand and the possible mechanism of alkene epoxidation catalyzed by this catalyst were investigated. Moreover, the catalyst had excellent stability and could be easily recycled in the reaction system. Given that halloysite nanotubes are cheap and easy to obtain, this catalyst offers a novel alternative for the rational design of catalysts with desired features.
The authors are grateful to the Key Laboratory of Nonferrous Metals Chemistry and Resources Utilization, Gansu Province for financial support.
