Energy is the basis of human social and economic development, and all countries actively develop renewable energy sources to solve the issue of the increasingly tenseshortage of energy supply. As an alternative, non-toxic, and biodegradable renewable fuel, biodiesel is receiving increasing attention. A large amount of glycerol is produced as a by-product in the large scale production of biodiesel [1, 2]. The surplus glycerol accumulating as a waste has motivated industrial and academic research towards the identification of new opportunities for converting it into high value-added chemicals based on its structure, renewability, and bioavailability [3].
One important glycerol derivative is glycerol carbonate (GC), which has gained much interest over the last 20 years. Glycerol carbonate shows a wide range of reactivity due to the presence of a hydroxyl group and a 2-oxo-1,3-dioxolane group, which has both electrophilic and nucleophilic sites. Glycerol carbonate can be used as a bio-based building block for the synthesis of more complex chemicals, such as surfactants, polymers and other chemical intermediates [4]. On the other hand, glycerol carbonate shows low toxicity, low evaporation rate, moisturizing ability, and good biodegradability, making it a very attractive chemical for a variety of applications, e.g., as a wetting agent for cosmetics, a carrier in medical preparations, a component in membranes for gas separation, and as the electrolyte for lithium and lithium-ion batteries [4].
Glycerol carbonate has been synthesized by a number of methods, which were reviewed by Sonnati et al. [4]. Among these methods, the direct synthesis of glycerol carbonate by the carbonation of glycerol with CO or CO2 has been studied in the last few years [5, 6]. The carbonation of glycerol with CO gave excellent conversion (92%) and selectivity (>99%) [5], and the yield of glycerol carbonate was 86% for the reaction of glycerol with CO2 [6]. But these routes are limited because CO is toxic and difficult to handle safely in the laboratory and industry, and the direct carbonation of glycerol with CO2 requires high pressure and the use of an organic solvent, which have negative ecological impacts. The commonly used routes to synthesize glycerol carbonate are the reactions of glycerol with phosgene [7] and its transesterification with other carbonates [8, 9, 10]. The best results (GC yield 99%) were obtained by the transcarbonation glycerol with dimethyl carbonate or diethyl carbonate, but it was difficult to separate the product from the reaction. One alternative route is the reaction of glycerol with urea, which has been recently described in the scientific [10, 11, 12, 13, 14, 15, 16] and patent literature [17, 18]. From an ecological point of view, the advantage of this method is that glycerol and urea are both bio-based reactants. Also, this method provides the chemical fixation of CO2. Several catalysts have been used in the carbonylation of glycerol with urea, which were mainly based on Zn-based catalysts and other metal catalysts [11, 12, 13, 14, 15, 16]. For example, a high yield of glycerol carbonate (91%) was obtained using La2O3 as catalyst and the conversion of glycerol reached 98% using metal monoglycerolates as catalyst [11]. However, these methods suffer from the serious environmental problems of the use of heavy metals and the non-renewability and exhaustion of mineral resources. Therefore, an eco-friendly catalyst is needed.
As opposed to conventional organic and inorganic solvents, ionic liquids (ILs) have attracted much interest as an environmentally benign medium for catalytic processes or chemical extraction due to their negligible vapour pressure, excellent thermal stability, and high conductivity [19, 20, 21, 22, 23]. ILs have been used to support reagents and catalysts. Zwitterionic imidazolium compounds have been shown to act as effective solvent- catalyst for Fischer esterification [24], esterification of aliphatic acids with alkenes [25], and oligomerisation of alkenes [26]. Carboxylic acids have been tethered to ILs by Nockemann et al. [27] for the solubilization of hydroxides and metal oxides. Basic groups have also been attached to ILs by Bates et al. [28] for gas separation. In addition, an amine-attached IL was designed to capture CO2 by ammonium carbonate formation [28]. Recently, the “non-solvent” application of ILs is gaining momentum. For instance, Sarkar et al. [29] reported that 1-alkyl-3- methylimidazolium (bmim) cation based ILs can effectively catalyze N-tert- butyloxycarbonylation of amines with excellent chemoselectivity. They also described hydrogen bond induced reactivity and selectivity control in the reaction of thiols with α,β-unsaturated carbonyl compounds using bmim-based ILs as solvent and catalyst [30].
The synthesis of cyclic carbonates from epoxides and CO2 catalyzed by ILs has been reported by Park and co-workers [31, 32, 33, 34, 35, 36], and the ILs showed good catalytic performance. However, ILs as catalysts in the carbonylation of glycerol with urea has not been reported. In this work, we investigated a series of acidic, basic and neutral ILs (Fig. 1) as catalyst in the carbonylation of glycerol with urea. The reaction was carried out in an environment without solvent. The influence of various reaction parameters such as reaction time, reaction temperature, and molar ratio of reactant to catalyst was studied. The reaction mechanism is discussed. This is the first report of a non-metal catalyst for the carbonylation of glycerol with urea.
The chemicals were obtained from commercial suppliers and used without further purification. All the ionic liquids were prepared according to the literature [37, 38, 39, 40, 41, 42, 43, 44, 45] and characterized by NMR spectroscopy. 1H and 13C NMR spectra were recorded on a Bruker Advance III 400 MHz NMR spectrometer with TMS as the internal standard at room temperature. A qualitative analysis of the product was conducted by 1H and 13C NMR and a quantitative analysis was conducted by 1H NMR.

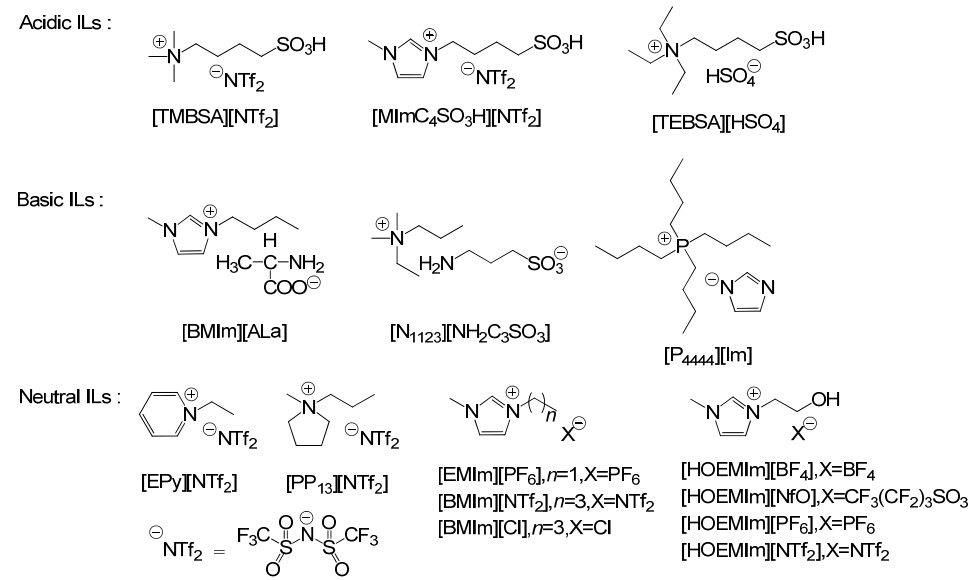

The structures of the ionic liquids used in this work are shown in Fig. 1. The spectroscopic data of all the ILs were in accord with the literature.
N,N,N-Trimethyl-N-butanesulfonic acid ammonium bis[(tri- fluoromethyl)sulfonyl] imide ([TMBSA][NTf2]) [37]. 1H NMR (400 MHz, D2O, δ ppm): 1.566-1.641 (m, 2H), 1.703-1.783 (m, 2H), 2.739-2.777 (t, 2H), 2.907 (s, 9H), 3.422-3.164 (t, 1H); 13C NMR (100 MHz, D2O, δ ppm): 20.993, 21.200, 50.003, 52.818, 65.899, 114.516, 117.692, 120.874, 124.050.
1-(4-Sulfonic acid) butyl-3-methylimidazolium bis[(tri fluoromethyl)sulfonyl] imide ([MImC4SO3H][NTf2]) [37]. 1H NMR (400 MHz, d6-DMSO, δ ppm): 1.545-1.621(m, 2H), 1.843-1.917 (m, 2H), 2.665-2.703 (t, 2H), 3.809 (s, 3H), 4.136-4.172 (t, 2H), 7.604 (s, 1H), 7.670 (s, 1H), 9.076 (s, 1H); 13C NMR (100 MHz, d6-DMSO, δ ppm): 21.761, 28.840, 36.151, 48.963, 50.885, 115.224, 118.420, 121.618, 122.742, 124.068, 124.815, 137.138.
N-(4-Sulfonic acid) butyl triethyl ammonium hydrogen sulfate ([TEBSA][HSO4]) [37]. 1H NMR (400 MHz, D2O, δ ppm): 1.050-1.085 (t, 9H), 1.581-1.647 (m, 4H), 2.746-2.781 (t, 2H), 2.977-3.016 (t, 2H), 3.054-3.108 (q, 6H); 13C NMR (100 MHz, D2O, δ ppm): 6.349, 6.403, 19.578, 20.887, 49.755, 52.289, 55.617.
1-Butyl-3-methylimidazolium alanine ([BMIm][ALa]) [38]. 1H NMR (400 MHz, d6-DMSO, δ ppm): 0.825-0.862 (t, 3H), 1.027-1.044 (d, 3H), 1.169-1.262 (m, 2H), 1.702-1.775 (m, 2H), 2.919-2.949 (q, 1H), 3.890 (s, 3H), 4.186-4.222 (t, 2H), 7.836 (s, 1H), 7.898 (s, 1H), 10.015 (s, 1H); 13C NMR (100 MHz, d6-DMSO, δ ppm): 13.187, 18.749, 31.487, 35.469, 48.300, 51.813, 122.257, 123.574, 137.763, 178.569.
Dimethylethylpropylamine aminopropanesulfonic salt ([N1123][NH2C3SO3]) [39]. 1H NMR (400 MHz, D2O, δ ppm): 1.070-1.107 (t, 3H), 1.433-1.467 (t, 3H), 1.830-1.933 (m, 4H), 2.800-2.835 (t, 2H), 2.978-3.017 (t, 2H), 3.135 (s, 6H), 3.313-3.355 (t, 2H), 3.450-3.505 (q, 2H); 13C NMR (100 MHz, D2O, δ ppm): 7.678, 10.171, 15.712, 27.536, 39.783, 49.102, 49.978, 50.019, 50.060, 59.732, 65.039.
Tetrabutylphosphonium imidazol ([P4444][Im]) [40]. 1H NMR (400 MHz, d6-DMSO, δ ppm): 0.902-0.937 (t, 12H), 1.358-1.490 (m, 16H), 2.143-2.217 (m, 8H), 6.675 (s, 2H), 7.104 (s, 1H); 13C NMR (100 MHz, d6-DMSO, δ ppm): 141.52, 124.38, 23.91, 23.75, 23.17, 23.15, 18.05, 17.58, 13.73.
1-Ethylpyridinium bis[(trifluoromethyl)sulfonyl]imide ([EPy][NTf2]) [41]. 1H NMR (400 MHz, d6-DMSO, δ ppm): 1.549-1.585 (t, 3H), 4.625-4.680 (q, 2H), 8.112-8.147 (t, 2H), 8.553-8.592 (t, 1H), 9.076-9.090 (d, 2H); 13C NMR (100 MHz, d6-DMSO, δ ppm): 16.024, 56.525, 114.729, 117.926, 121.124, 124.322, 128.052, 144.458, 145.301.
1-Methyl-1-Propylpiperidinium bis[(trifluoromethyl) sulfonyl] imide ([PP13][NTf2]) [41]. 1H NMR (400 MHz, d6-DMSO, δ ppm): 0.912-0.948 (t, 3H), 1.693-1.790 (m, 2H), 2.112 (s, 4H), 2.995 (s, 3H), 3.245-3.288 (m, 1H), 3.399-3.514 (m, 4H); 13C NMR (100 MHz, d6-DMSO, δ ppm): 10.250, 16.520, 21.041, 47.603, 63.529, 64.722, 114.756, 117.954, 121.151, 124.349.
1-Ethyl-3-methylimidazolium hexafluorophosphate ([EMIm][PF6]) [43]. 1H NMR (400 MHz, d6-DMSO, δ ppm): 1.395-1.430 (t, 3H), 3.838 (s, 3H), 4.154-4.206 (q, 2H), 7.639 (s, 1H), 7.721 (s, 1H), 9.077 (s, 1H); 13C NMR (100 MHz, d6- DMSO, δ ppm): 15.023, 35.692, 44.229, 121.967, 123.580, 136.329.
1-Butyl-3-methylimidazolium bis[(trifluoromethyl) sulfonyl] imide ([BMIm][NTf2]) [44]. 1H NMR (400 MHz, d6-DMSO, δ ppm): 0.891-0.928 (t, 3H), 1.253-1.346 (m, 2H), 1.765-1.839 (m, 2H), 3.867 (s, 3H), 4.152-4.188 (t, 2H), 7.609 (s, 1H), 7.672 (s, 1H), 9.046 (s,1H); 13C NMR (100 MHz, d6-DMSO, δ ppm): 12.822, 18.759, 31.397, 35.573, 48.778, 114.842, 118.038, 121.234, 122.211, 123.547, 124.430, 136.536.
1-Butyl-3-methylimidazolium chloride ([BMIm][Cl]) [45]. 1H NMR (400 MHz, d6-DMSO, δ ppm): 0.816-0.873 (t, 3H), 1.191-1.203 (m, 2H), 1.728-1.763 (m, 2H), 3.898 (s, 3H), 4.214-4.244 (t, 2H), 7.492 (s, 1H), 8.037 (s, 1H), 9.817 (s,1H); 13C NMR (100 MHz, d6-DMSO, δ ppm): 13.103, 18.606, 31.330, 35.585, 48.218, 122.203, 123.411, 136.726.
1-(2-Hydroxyethyl)-3-methylimidazolium tetrafluoroborate ([HOEMIm][BF4]) [42]. 1H NMR (400 MHz, d6-DMSO, δ ppm): 3.729-3.753 (t, 2H), 3.849 (s, 3H), 4.186-4.211 (t, 2H), 5.049 (s, 1H), 7.564 (s, 1H), 7.614 (s, 1H), 8.894 (s, 1H); 13C NMR (100 MHz, d6-DMSO, δ ppm): 35.821, 51.973, 59.662, 122.870, 123.556, 136.989.
1-(2-Hydroxyethyl)-3-methylimidazolium perfluorobutylsulfonate ([HOEMIm][NfO]) [42]. 1H NMR (400 MHz, d6-DMSO, δ ppm): 3.736-3.772 (t, 2H), 3.872 (s, 3H), 4.212-4.237 (t, 2H), 5.077 (s, 1H), 7.633 (s, 1H), 7.676 (s, 1H), 9.013 (s, 1H); 13C NMR (100 MHz, d6-DMSO, δ ppm): 35.737, 51.920, 59.628, 122.840, 123.511, 137.093; 19F NMR (376 MHz, d6-DMSO, δ ppm): (-126.512)-(-126.378) (m, 2F), (-121.911)-(-121.836) (m, 2F), (-115.263)-(-115.190) (t, 2F), (-81.689)-(-81.636) (t, 3F).
1-(2-Hydroxyethyl)-3-methylimidazolium hexafluorophosphate ([HOEMIm][PF6]) [42]. 1H NMR (400 MHz, d6-DMSO, δ ppm): 3.733-3.759 (t, 2H), 3.855 (s, 3H), 4.188-4.214 (t, 2H), 5.123 (s, 1H), 7.573 (s, 1H), 7.628 (s, 1H), 8.973 (s, 1H); 13C NMR (100 MHz, d6-DMSO, δ ppm): 35.720, 51.882, 59.501, 122.782, 123.422, 136.949.
1-(2-Hydroxyethyl)-3-methylimidazolium bis [(trifluoromethyl) sulfonyl]imide ([HOEMIm][NTf2]) [42]. 1H NMR (400 MHz, d6-DMSO, δ ppm): 3.725-3.750 (t, 2H), 3.858 (s, 3H), 4.191-4.216 (t, 2H), 5.136 (s, 1H), 7.604 (s, 1H), 7.652 (s, 1H), 9.032 (s, 1H); 13C NMR (100 MHz, d6-DMSO, δ ppm): 35.740, 51.889, 59.512, 114.947, 118.145, 121.342, 122.809, 123.436, 124.540, 137.031.

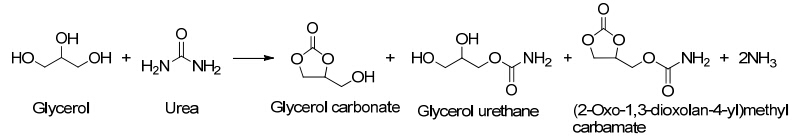

The carbonylation of glycerol with urea was conducted in a 50 mL round bottom flask (Scheme 1) equipped with a magnetic stirrer and condenser. In a typical reaction, glycerol (50 mmol) and urea (75 mmol) were added into the round bottom flask and treated at 150 °C under reduced pressure for 4 h. The desired amount of catalyst (3 mmol unless otherwise specified) was then added and the resulting mixture was heated to the desired temperature in an oil bath. The reactions were run under N2 flow in order to remove the NH3 byproduct. The reaction progress was followed by 1H NMR spectroscopy. The conversion, selectivity and yield were calculated by 1H NMR spectroscopy based on the glycerol.

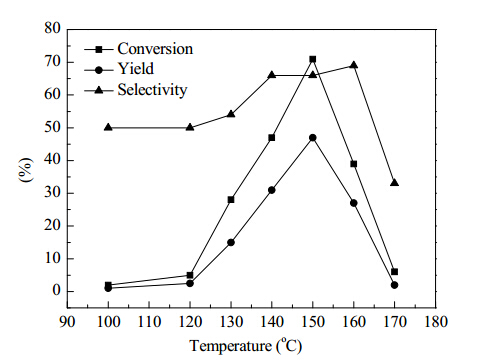

We describe here the carbonylation reactions of glycerol with urea by the ionic liquid catalysts described above. Since the utilization of an IL as catalyst for this reaction has not been studied, our first investigation focused on the model reaction of glycerol and urea to form glycerol carbonate with the IL [HOEMIm][PF6]. The effect of temperature on the reaction was first investigated. The reaction profiles over [HOEMIm][PF6] with temperature are depicted in Fig. 2. As the reaction temperature was increased from 100 to 170 °C, a remarkable increase in glycerol conversion and yield of desired glycerol carbonate was observed when the temperature was lower than 150 °C. However, both the conversion and yield of glycerol carbonate rapidly decreased on further increasing the temperature, which can be attributed to the decomposition of urea at this temperature [46]. The selectivity of glycerol carbonate varied with temperature. The highest selectivity of 66% was attained at 140 °C, which was probably because the intermediate giving the desired product was formed at temperatures lower than 140 °C and was consumed when the temperature was higher [12]. Based on this result, the optimal reaction temperature was controlled at 150 °C for further investigation.

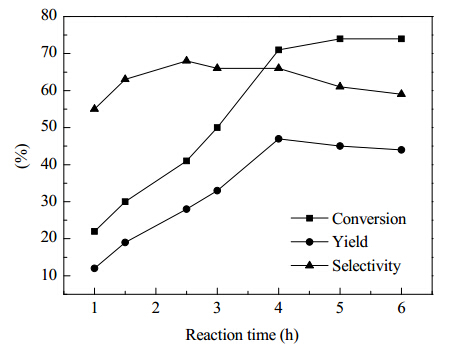

The influence of reaction time on the synthesis of glycerol carbonate was also investigated. The results are shown in Fig. 3. The conversion of glycerol increased from 9% to 74% with reaction time from 1 to 6 h, during which a turning point at 4 h was observed, after which the conversion of glycerol only slightly increased. However, the selectivity and yield of glycerol carbonate slightly decreased with time, possibly due to the further reaction of glycerol carbonate with urea to form (2-oxo- 1,3-dioxolan-4-yl)methyl carbamate [10]. For this reason, the reaction time was fixed at 4 h for the remaining runs.

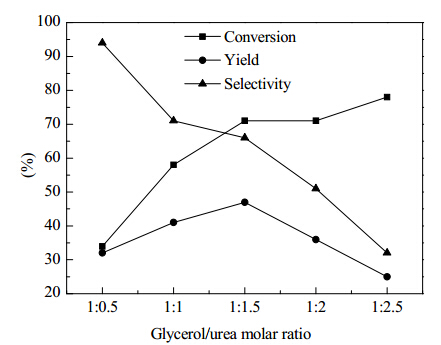

The molar ratio of the substrates is an important factor for chemical reactions. The effect of molar ratio of glycerol to urea on the conversion, selectivity and yield of the glycerol carbonylation was investigated. The molar ratio of glycerol to urea was varied from 1:0.5 to 1:2.5. The result is shown in Fig. 4. The conversion of glycerol increased from 34% to 78% with increasing the molar ratio of glycerol to urea from 1:0.5 to 1:2.5. However, the selectivity of glycerol carbonate decreased from 94% to 32%. As a result, the yield of glycerol carbonate increased initially from 33% to a maximum value of 47% when the molar ratio was 1:1.5. After that, the yield decreased gradually. Therefore, the molar ratio was fixed at 1:1.5 for further experiments.

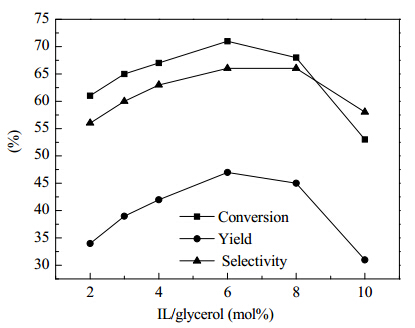

The effect of catalyst amount on the carbonylation of glycerol was investigated. The reaction condition was 150 °C, 4 h reaction time with nitrogen flow (Fig. 5). The conversion, selectivity and yield increased gradually with the loaded amount of catalyst [HOEMIm][PF6] and reached their optimal values when the amount of catalyst was 6 mol%, when the conversion was 71% and the selectivity was 66%, thus giving a best yield of 47%. On further increasing the amount of [HOEMIm][PF6], both conversion and selectivity decreased, with a concomitantly decreased yield. For this reason, 6 mol% catalyst was used throughout this work.
In addition, we used the various ILs to catalyze the carbonylation of glycerol with urea. The catalytic activity of the different ILs is summarized in Table 1. The nature of the ILs showed a significant effect on the catalytic performance. In the absence of a catalyst, the conversion of glycerol was 59% and the yield of glycerol carbonate was only 21% (entry 1). For basic [N1123][NH2C3SO3], [BMIm][ALa], and [P4444][Im] (entries 2-4), the conversions were 53%, 56%, and 52%, and the yields of glycerol carbonate were 35%, 36%, and 31%, respectively. It can be concluded that the basic ILs did not improve the reaction. For the acidic [TEBSA][HSO4], [MImC4SO3H][NTf2], and [TMBSA][NTf2] ILs (entries 5-7), the conversions of glycerol were 44%, 44%, and 51%, respectively, which were slightly lower than that of the blank experiment. This suggested that acidic ILs did not favor the glycerol conversion. The yields were 33%, 27%, and 27%, respectively, which were also lower than the blank system. From these results, we can see that both acidic ILs and basic ILs were not good catalysts for the carbonylation of glycerol with urea. Previous reports have suggested that the excellent performance of the catalyst can be attributed to the existence of a good balance of acid-base properties, and strong Lewis acid or basic sites promoted the formation of byproducts [10, 11].
In contrast, as compared to acidic and basic ILs, most neutral ILs exhibited good catalytic performance. For instance, the use of [PP13][NTf2] as catalyst gave the highest conversion of 76% (entry 8). Even the lowest conversion of 54% found in the [HOEMIm][BF4] system was close to the blank reaction. The other seven ILs gave conversions ranging from 58% to 71%, close to or higher than that of the blank system. A high yield was obtained for all these ILs expect [BMIm][Cl]. For example, [HOEMIm][NTf2] (entry 12) gave the highest yield of 52% and entries 8-11 and 13-15 gave yields close to or a bit higher than 40%, which were almost twice that of the blank experiment. The good catalytic performance of the neutral ILs may be attributed to their special structure and properties. It has been reported that a cooperative effect between weak Lewis acid sites and Lewis basic sites is responsible for good catalytic performance where the weak Lewis acid sites activate the carbonyl group of urea and the Lewis basic sites activate glycerol [10]. In our currently investigated system, the ILs consist of a positively charged cation, like 1-alkyl-3-methylimidazolium, tetrabutylphosphonium, and 1-ethylpyridinium, and a negatively charged anion, including bis[(trifluoromethyl)sulfonyl] imide (NTf2), hexafluorophosphate (PF6), and tetrafluoroborate (BF4). The positively charged cation attracts the electronegative oxygen of the carbonyl group of urea and the electrostatic attraction between the cation of the IL and the carbonyl group activates urea, that is, the cation of the ILs plays a similar role to that of the Lewis acid of the previously reported metal catalysts. This is an important feature of the catalyst for achieving high yields of the cyclic carbonate [47]. The basicity of ILs has been intensively studied by the Welton’s group [48]. We consider that the negatively charged anion of the ILs attracts the proton of glycerol, and moreover, the F atoms of BF4 or PF6 and O atoms of sulfonyl of NTf2 can form hydrogen bonds with the hydroxyl group of glycerol. All these interactions activate glycerol, which is also responsible for the high catalytic activity of these ILs [10].
It is known that the properties of an IL depend on both its cation and anion and are tunable by the combination of different cations and anions. Therefore, their catalytic performance is dependent on the counter ions of the ILs. In this section, the effect of the counter ion of the ILs was further investigated. As shown in Table 1, entries 6-10 and 12 have the same anion of [NTf2], and the acidic [MImC4SO3H][NTf2] (entry 6) and [TMBSA][NTf2] (entry 7) gave conversions of 44% and 51%, and a same yield of 27%, respectively. For the neutral [PP13][NTf2] (entry 8), [EPy][NTf2] (entry 9), [BMIm][NTf2] (entry 10), and [HOEMIm][NTf2] (entry 12), both conversion and yield were higher than those observed with the acidic IL systems. Although the latter four ILs have different cations, the cation had no obvious effect on the catalytic activity. The reason is possibly due to that the [PP13], [EPy], [BMIm], and [HOEMIm] cations of the ILs were all quaternary ammonium salts that have similar properties. Moreover, we can see that [EMIm][PF6] (entry 11) and [HOEMIm][PF6] (entry 13) have also the same anion, and the former gave a conversion of 62% and a yield of 47%, and the latter gave a conversion of 71% and a yield of 47%. Again, no obvious difference in catalytic performance was observed for these two ILs. We can also attribute this to the similar structure and properties of [EMIm] and [HOEMIm] of the ILs, which therefore confirms our assumption.
The organo-catalytic potential was highlighted as “dual activation through a cooperative effect of charge-charge interaction and hydrogen bond formation involving the cation and anion of the imidazolium-based ILs” by Chakraborti and co-workers [49, 50, 51] through the identification of the respective supramolecular assemblies. For example, in the Aza-Michael reaction of 1,3-diphenyl-2-propenone with aniline, the IL 1- butyl-3-methylimidazolium methylsulfate ([BMIM][MeSO4]) was found to be the most effective and afforded the desired Adz-Michael adduct in high yield [49]. The supramolecular assemblies of reactants formed by a relay of cooperative hydrogen bonds (formed by the C-2 hydrogen of 1-butyl-3- methylimidazolium cation and the carbonyl oxygen of 1,3- diphenyl-2-propenone; hydrogen of aniline and oxygen of methylsulfate anion) and charge-charge interaction (positively charged 1-butyl-3-methylimidazolium and negatively charged methylsulfate) promoted the Aza-Michael reaction. However, in our system, although the ILs [PP13][NTf2] (entry 8) and [EPy][NTf2] (entry 9) do not possess a C-2 hydrogen, they exhibited almost same catalytic performance as [bmim][NTf2], which has a C-2 hydrogen (entry 10). These results revealed that there was no so-called “dual activation” in the currently investigated reaction.
In addition, we also investigated the effect of the anion of the ILs on the reaction by keeping the cation the same (entries 12-15 that use [HOEMIm] as cation). The anions we chose were [NTf2], [PF6], [NfO], and [BF4]. The conversions of these catalytic systems were 64%, 71%, 65%, and 54% and the yields were 52%, 47%, 38%, and 39%, respectively. These differences in both conversion and yield were also not obvious, so we cannot extract any regularity between the anions of the ILs and their catalytic performance. The hydrogen bond basicity (β) of [BMIm][NTf2], [BMIm][PF6], and [BMIm][BF4] was reported to be 0.42, 0.44, and 0.55, respectively [52]. Since these three ILs have the same cation, it can be suggested that [HOEMIm][NTf2], [HOEMIm][PF6], and [HOEMIm][BF4] should have a similar hydrogen bond basicity. This may be the reason why the above three ILs exhibited similar catalytic performance. Although we did not find the hydrogen bond basicity for either [HOEMIm][NfO] or [BMIm][NfO], the IL 1-butyl-3- methylimidazolium trifluomethanesulfonate ([BMIm][CF3SO3]) was reported to have a hydrogen bond basicity of 0.57 (i.e. β = 0.57) [52], a value close to the 0.55 of [BMIm][BF4]. We need to notice that [BMIm][NfO] and [BMIm][CF3SO3] have a similar anionic structure, from which we can speculate that [BMIm][NfO] should have a similar β value to [BMIm][CF3SO3] and thus [BMIm][BF4]. In other words, the hydrogen bond basicity of [HOEMIm][NfO] should be close to those of [BMIm][NTf2], [BMIm][PF6], and [BMIm][BF4]. This result further supported our conclusion. Although [BMIm][Cl] is also a neutral IL, it gave a relatively low conversion and yield. The reason is not yet clear, but the hydrogen bond basicity of the IL is 0.95, which is much higher than that of the other ILs (in general, the ILs have a β value ranging from 0.4 to 0.8). This may be detrimental to the good balance of the acid-basic properties of the ILs that gave the ILs the optimal catalytic performance.

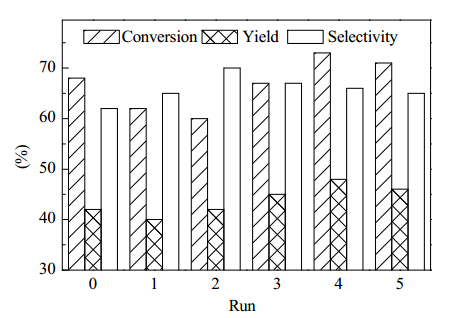

A series of recycle experiments were carried out to investigate the stability of the IL catalyst. In our experiments, some reaction systems were found to form two phases with the ILs at the bottom of the flask, as detected by NMR spectroscopy. This indicated that the ILs were immiscible with the reaction mixture when the reaction was completed. This is of importance for the homogeneous catalysis as this means that the catalysts can be recovered easily by simple decantation. Therefore, we chose [BMIm][NTf2] to investigate the recyclability of the catalyst in this reaction. [BMIm][NTf2] was not soluble in the reaction mixture at the end of the reaction when the mixture was cooled down to room temperature. In order to reduce the loss of the IL, 5 mL water was added to the mixture and the mixture was stirred at room temperature for 30 min. The [BMIm][NTf2] phase was at the bottom of the flask and was recovered by decantation of the liquid. The recovered IL was dried under vacuum to remove water and then reused for the next cycle. The same procedure was repeated 5 times. The catalytic results are shown in Fig. 6. It can be seen that there was no obvious change in the conversion of glycerol and selectivity of glycerol carbonate, suggesting that [BMIm][NTf2] as the catalyst for the carbonylation of glycerol with urea was stable enough to be recycled at least 5 times. A similar result was also obtained for [BMIm][NTf2], [PP13][NTf2], and [EMIm][PF6].
The carbonylation of glycerol with urea was carried with ionic liquids (ILs) as catalyst. The optimal reaction conditions were explored. Acidic and basic ILs were not good catalysts for this reaction. However, neutral ILs exhibited high catalytic activity. This was attributed to the good balance of the acid-base properties of the neutral ILs. The positively charged cations attract the electronegative oxygen of the carbonyl group of urea, thus activating urea. The cation of the ILs was considered to play a similar role to that of the Lewis acid of metal catalysts. The negatively charged anions of the ILs attract the proton of glycerol, and the fluorine atoms of BF4 or PF6 and oxygen atoms of sulfonyl of NTf2 can form hydrogen bonds with the hydroxyl group of glycerol. These interactions activate glycerol, which was responsible for the high catalytic activity of the ILs. The effect of both cation and anion on the reaction was further investigated. It appeared that the catalytic performance of the ILs was related to their hydrogen bond basicity, which follows the mechanism of metal catalysts where the existence of a good balance of acid-basic properties of the catalyst was proposed. The ILs can be recovered and reused at least five times without loss of activity.
