One-pot green synthesis of enamides and 1,3-diynes


扩展功能
	加入收藏夹

	复制引文信息

	加入引用管理器

	Email Alert

	RSS
本文作者相关文章
	梁浩

	任智卉

	王尧宇

	关正辉

Hao Liang, Zhihui Ren, Yaoyu Wang, Zhenghui Guan

Key Laboratory of Synthetic and Natural Functional Molecule Chemistry of Ministry of Education, Department of Chemistry & Materials Science, Northwest University, Xi'an 710127, Shaanxi, China

Received: 2014-07-19. Accepted: 2014-09-02. Published: 2015-01-20.

* Corresponding author. Tel:+86-15002932590;E-mail:guanzhh@nwu.edu.cn

Foundation Item:This work was supported by the National Natural Science Foundation of China (21272183) and the Fund of the Rising Stars of Shaanxi Province (2012KJXX-26).

Abstract: A green organic synthetic method combining reductive acylation of ketoximes and oxidative coupling of terminal alkynes was developed. This novel process enables enamides and 1,3-diynes to be synthesized simultaneously in high yields and under mild conditions without the use of terminal reductants/oxidants.

Key words: Green synthesis Ketoxime Terminal alkyne Enamide 1,3-Diyne

一锅法绿色合成烯酰胺和1,3-二炔

梁浩, 任智卉, 王尧宇, 关正辉

西北大学化学与材料科学学院, 合成与天然功能分子化学教育部重点实验室, 陕西西安710127

收稿日期: 2014-07-19. 接受日期: 2014-09-02. 出版日期: 2015-01-20.

基金来源：国家自然科学基金(21272183); 陕西省科技厅“陕西省青年科技新星”基金(2012KJXX-26).

*通讯联系人.关正辉

摘要：结合绿色化学概念, 将酮肟还原酰化和末端炔氧化偶联在一锅进行反应, 发展了一种Pd/Cu协同催化一锅绿色合成烯酰胺和1,3-二炔的新方法. 该方法无需外加任何氧化剂和还原剂, 可同时得到烯酰胺和1,3-二炔, 产率高, 反应条件温和.

关键词：绿色合成酮肟末端炔烯酰胺 1,3-二炔

1. Introduction

Oxidation and reduction are fundamental reactions; however, these reactions produce reduced or oxidized wastes because of their intrinsic properties. In green chemistry, O₂ or H₂O₂ is used in many oxidations ^{[1, 2, 3, 4, 5]}, and H₂ is used in many reductions ^{[6, 7, 8, 9]}. These reactions, which produce no byproducts or only water as a byproduct, are ideal transformations. However, there are many organic transformations that require stoichiometric or super-stoichiometric terminal oxidants such as Cr(VI), Cu(II), periodate, and m-CPBA, or terminal reductants such as nitrites, Zn powder, Fe powder, stannous chloride, and Hantzsch dihydropyridines ^{[10, 11, 12, 13]}. In accord with the principles of green chemistry ^{[10, 11, 12, 13, 14, 15, 16]}, we hypothesized that if an oxidation was combined with a reduction in one pot, the use of oxidants and reductants could be avoided. This would be an ideal method for minimizing waste generation.

Enamides are versatile building blocks in organic synthesis ^{[17, 18, 19, 20, 21, 22, 23, 24]}. However, the preparation of enamides involves reductive acylation of ketoximes in the presence of super-stoichiometric Fe powder, PEt₃, or NaHSO₃ ^{[25, 26, 27, 28, 29]}. 1,3-Diynes are useful structures in linearly π-conjugated acetylenic oligomers and nonlinear optical materials ^{[30, 31, 32]}. The conventional method for the synthesis of 1,3-diynes is oxidative homocoupling of terminal alkynes in the presence of Ag₂O, Me₃NO, Cu(II), or O₂ ^{[33, 34, 35, 36, 37, 38]}. In this paper, we describe a promising example of green organic synthesis, which combines the oxidative coupling of terminal alkynes for 1,3-diyne formation with reductive acylation of ketoximes for enamide preparation in one pot (Scheme 1).

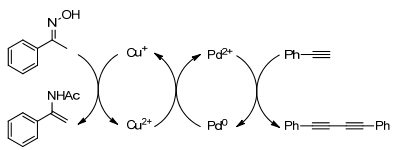

Scheme 1. [Pd/Cu]-catalyzed synthesis of enamides and 1,3-diynes.

2. Experimental

2.1. General remarks

Unless otherwise stated, all reagents and solvents were purchased from commercial suppliers and used without further purification. ¹H and ¹³C NMR spectra were recorded using Varian instruments at 400 and 100 MHz, respectively, with tetramethylsilane as an internal standard. All products were isolated using short chromatography on a silica-gel (200-300 mesh) column, with petroleum ether (60-90 °C) and EtOAc as the eluent, unless otherwise stated. Compounds that had previously been described in the literature were characterized by comparison of their ¹H NMR and ¹³C NMR spectra with the reported data template.

2.2. General procedure for synthesis of enamide 3a and 1,3-diyne 4a

A 25 mL round-bottomed flask charged with ketoxime 1a (67.5 mg, 0.5 mmol), phenylacetylene 2a (102.0 mg, 1.0 mmol), acetic anhydride (102.0 mg, 1.0 mmol), pyridine (47.4 mg, 0.6 mmol), CuI (9.5 mg, 10 mol%), and Pd(PPh₃)₂Cl₂ (0.7 mg, 0.2 mol%) in 1,2-dichloroethane (5.0 mL) was stirred at 120 °C for 5 h under Ar. After completion of the reaction (detected using thin-layer chromatography), the reaction mixture was cooled to room temperature, diluted with EtOAc (10 mL), and washed with H₂O (10 mL), brine (10 mL), and CuSO₄ (2 mol/L, 5 mL). The organic layers were dried over anhydrous Na₂SO₄ and evaporated in vacuo. The residue was purified by chromatography on silica gel to afford enamide 3a (77.3 mg, 96% yield) and 1,3-diyne 4a (82.8 mg, 82% yield).

2.3. Analytical data for enamides 3 and 1,3-diynes 4

N-(1-Phenylvinyl)acetamide (3a). ¹H NMR (400 MHz, CDCl₃) δ 7.39-7.34 (m, 6H), 5.78 (s, 1H), 5.07 (s, 1H), 2.04 (s, 3H). ¹³C NMR (100 MHz, CDCl₃) δ 169.4, 140.5, 138.2, 128.5, 126.0, 102.6, 24.3.

N-[1-(p-Tolyl)vinyl]acetamide (3b). ¹H NMR (400 MHz, CDCl₃) δ 7.30 (d, J = 7.2 Hz, 2H), 7.16 (d, J = 8.0 Hz, 2H), 7.10 (s, 1H), 5.77 (s, 1H), 5.04 (s, 1H), 2.35 (s, 3H), 2.07 (s, 3H). ¹³C NMR (100 MHz, CDCl₃) δ 169.2, 140.4, 138.5, 135.5, 129.3, 125.9, 101.9, 24.4, 21.1.

N-[1-(4-Methoxyphenyl)vinyl]acetamide (3c). ¹H NMR (400 MHz, CDCl₃) δ 7.33 (d, J = 8.0 Hz, 2H), 7.17 (s, 1H), 6.86 (d, J = 8.8 Hz, 2H), 5.69 (s, 1H), 4.99 (s, 1H), 3.79 (s, 3H), 2.06 (s, 3H). ¹³C NMR (100 MHz, CDCl₃) δ 169.3, 159.8, 140.1, 130.8, 127.3, 113.9, 101.5, 55.3, 24.4.

N-[1-(4-Nitrophenyl)vinyl]acetamide (3d). ¹H NMR (400 MHz, CDCl₃) δ 8.19 (d, J = 8.4 Hz, 2H), 7.57 (d, J = 8.0 Hz, 2H), 7.15 (s, 1H), 5.79 (s, 1H), 5.25 (s, 1H), 2.14 (s, 3H). ¹³C NMR (100 MHz, CDCl₃) δ 169.2, 147.6, 144.1, 139.2, 126.8, 123.8, 107.1, 24.1.

N-[1-(4-Fluorophenyl)vinyl]acetamide (3e). ¹H NMR (400 MHz, CDCl₃) δ 7.36-7.33 (t, J = 7.2 Hz, 2H), 7.28 (s, 1H), 7.02-6.98 (t, J = 8.4 Hz, 2H), 5.67 (s, 1H), 4.99 (s, 1H), 2.02 (s, 3H). ¹³C NMR (100 MHz, CDCl₃) δ 169.3, 162.8 (J_CF = 247.2 Hz), 139.7, 134.3, 127.9 (J_CF = 8.2 Hz), 115.4 (J_CF = 21.4 Hz), 103.1, 24.2.

N-[1-(4-Chlorophenyl)vinyl]acetamide (3f). ¹H NMR (400 MHz, CDCl₃) δ 7.31 (s, 5H), 5.70 (s, 1H), 5.06 (s, 1H), 2.06 (s, 3H). ¹³C NMR (100 MHz, CDCl₃) δ 169.4, 139.6, 136.5, 134.4, 128.7, 127.4, 103.7, 24.2.

N-[1-(4-Bromophenyl)vinyl]acetamide (3g). ¹H NMR (400 MHz, CDCl₃) δ 7.47 (d, J = 8.0 Hz, 2H), 7.27 (d, J = 8.0 Hz, 2H), 7.11 (s, 1H), 5.73 (s, 1H), 5.07 (s, 1H), 2.08 (s, 3H). ¹³C NMR (100 MHz, CDCl₃) δ 169.2, 139.6, 137.0, 131.7, 127.6, 122.6, 103.7, 24.3.

N-[1-(3,4-Dimethylphenyl)vinyl]acetamide (3h). ¹H NMR (400 MHz, CDCl₃) δ 7.18-7.10 (m, 4H), 5.77 (s, 1H), 5.04 (s, 1H), 2.27 (s, 3H), 2.26 (s, 3H), 2.08 (s, 3H). ¹³C NMR (100 MHz, CDCl₃) δ 169.2, 140.5, 137.2, 136.8, 135.9, 129.8, 127.2, 123.4, 101.6, 24.4, 19.8, 19.5. HRMS Calcd (ESI) m/z for C₁₂H₁₅NNaO: [M + Na]⁺ 212.1046, found: 212.1050.

N-[1-(5,6,7,8-Tetrahydronaphthalen-2-yl)vinyl]acetamide (3i). ¹H NMR (400 MHz, CDCl₃) δ 7.14-7.11 (m, 2H), 7.06 (d, J = 8.0 Hz, 1H), 6.87 (s, 1H), 5.82 (s, 1H), 5.03 (s, 1H), 2.77 (s, 4H), 2.12 (s, 3H), 1.80 (s, 4H). ¹³C NMR (100 MHz, CDCl₃) δ 169.0, 140.5, 137.9, 137.4, 135.6, 129.4, 126.5, 123.1, 101.4, 29.4, 29.1, 24.6, 23.0. HRMS Calcd (ESI) m/z for C₁₄H₁₇NNaO: [M + Na]⁺ 238.1202, found: 238.1207.

N-[1-(2,5-Dimethylphenyl)vinyl]acetamide (3j). ¹H NMR (400 MHz, CDCl₃) δ 7.16 (s, 1H), 7.09-7.06 (m, 3H), 5.97 (s, 1H), 4.65 (s, 1H), 2.32 (s, 3H), 2.29 (s, 3H), 1.93 (s, 3H).¹³C NMR (100 MHz, CDCl₃) δ 169.0, 140.7, 138.4, 135.3, 132.6, 130.3, 129.8, 129.1, 102.1, 24.2, 20.8, 19.1. HRMS Calcd (ESI) m/z for C₁₂H₁₆NO: [M + H]⁺ 190.1226, found: 190.1227.

N-[1-(3-Methoxyphenyl)vinyl]acetamide (3k). ¹H NMR (400 MHz, CDCl₃) δ 7.28-7.24 (m, 2H), 6.98 (d, J = 7.2 Hz, 1H), 6.93 (s, 1H), 6.86 (d, J = 8.0 Hz, 1H), 5.80 (s, 1H), 5.07 (s, 1H), 3.80 (s, 3H), 2.05 (s, 3H). ¹³C NMR (100 MHz, CDCl₃) δ 169.3, 159.6, 140.4, 139.8, 129.6, 118.4, 113.8, 112.0, 102.6, 55.3, 24.4.

N-[1-(Naphthalen-2-yl)vinyl]acetamide (3l). ¹H NMR (400 MHz, CDCl₃) δ 7.84-7.82 (m, 4H), 7.54-7.49 (m, 3H), 7.08 (s, 1H), 5.92 (s, 1H), 5.24 (s, 1H), 2.14 (s, 3H). ¹³C NMR (100 MHz, CDCl₃) δ 169.2, 140.4, 135.5, 133.2, 133.0, 128.4, 128.1, 127.6, 126.5, 126.4, 124.7, 124.0, 103.4, 24.4.

(E)-N-(1-Phenylprop-1-en-1-yl)acetamide (3m). ¹H NMR (400 MHz, DMSO-d₆) δ 9.11 (s, 1H), 7.36-7.22 (m, 5H), 5.89-5.87 (m, 1H), 1.99 (s, 3H), 1.64 (d, J = 6.4 Hz, 3H). ¹³C NMR (100 MHz, DMSO-d₆) δ 167.8, 138.4, 134.7, 128.2, 127.2, 125.1, 119.3, 22.7, 13.8.

N-(2-Methyl-1-phenylprop-1-en-1-yl)acetamide (3n). ¹H NMR (400 MHz, DMSO-d₆) δ 9.02 (s, 1H), 7.30-7.21 (m, 5H), 1.87 (s, 3H), 1.70 (s, 3H), 1.68 (s, 3H). ¹³C NMR (100 MHz, DMSO-d₆) δ 167.5, 139.1, 128.8, 127.7, 127.3, 126.7, 22.7, 20.7, 20.7.

N-(1-Phenylvinyl)propionamide (3o). ¹H NMR (400 MHz, CDCl₃) δ 7.42-7.32 (m, 5H), 6.96 (s, 1H), 5.87 (s, 1H), 5.07 (s, 1H), 2.36-2.31 (m, 2H), 1.22-1.19 (t, J = 6.8 Hz, 3H). ¹³C NMR (100 MHz, CDCl₃) δ 172.8, 140.4, 138.5, 128.6, 125.9, 102.2, 30.6, 9.5.

N-(3,4-Dihydronaphthalen-1-yl)acetamide (3p). ¹H NMR (400 MHz, CDCl₃) δ 7.53 (s, 1H), 7.18-7.12 (m, 4H), 6.26 (s, 1H), 2.72-2.68 (t, J = 8.0 Hz, 2H), 2.32-2.26 (m, 2H), 2.05 (s, 3H). ¹³C NMR (100 MHz, CDCl₃) δ 169.7, 136.5, 131.6, 131.4, 127.5, 127.2, 126.1, 121.0, 119.8, 27.4, 23.7, 22.0.

N-(6-Methoxy-3,4-dihydronaphthalen-1-yl)acetamide (3q). ¹H NMR (400 MHz, CDCl₃) δ 7.18 (s, 1H), 7.05 (d, J = 8.0 Hz, 1H), 6.73-6.66 (m, 2H), 6.22-6.19 (t, J = 4.4 Hz, 1H), 3.78 (s, 3H), 2.73-2.69 (t, J = 7.6 Hz, 2H), 2.34-2.29 (m, 2H), 2.11 (s, 3H). ¹³C NMR (100 MHz, CDCl₃) δ 169.4, 158.7, 138.5, 131.3, 124.5, 122.1, 117.2, 113.8, 110.8, 55.1, 28.0, 23.9, 22.1.

N-(1H-Inden-3-yl)acetamide (3r). ¹H NMR (400 MHz, CDCl₃) δ 7.73 (s, 1H), 7.47 (d, J = 6.8 Hz, 1H), 7.31-7.25 (m, 3H), 6.88 (s, 1H), 3.42 (s, 2H), 2.23 (s, 3H). ¹³C NMR (100 MHz, CDCl₃) δ 168.9, 142.8, 139.7, 135.4, 125.9, 125.4, 124.2, 116.2, 115.7, 36.5, 24.1.

N-(6-Chloro-1H-inden-3-yl)acetamide (3s). ¹H NMR (400 MHz, DMSO-d₆) δ 9.79 (s, 1H), 7.75 (d, J = 8.4 Hz, 1H), 7.48 (s, 1H), 7.37 (d, J = 8.4 Hz, 1H), 6.75 (s, 1H), 3.39 (s, 2H), 2.10 (s, 3H). ¹³C NMR (100 MHz, DMSO-d₆) δ 169.0, 144.6, 139.0, 136.1, 130.1, 125.9, 124.1, 119.6, 114.6, 35.9, 23.5.

N-(Cyclohex-1-en-1-yl)acetamide (3t). ¹H NMR (400 MHz, CDCl₃) δ 7.19 (s, 1H), 6.05 (s, 1H), 2.19-2.17 (m, 4H), 2.10 (s, 3H), 1.69-1.58 (m, 2H), 1.56-1.55 (m, 2H). ¹³C NMR (100 MHz, CDCl₃) δ 168.7, 132.8, 113.2, 27.8, 24.2, 23.9, 22.4, 21.9.

N-(Cyclopent-1-en-1-yl)acetamide (3u). ¹H NMR (400 MHz, DMSO-d₆) δ 9.38 (s, 1H), 5.72 (s, 1H), 2.35-2.31 (m, 2H), 2.27-2.23 (m, 2H), 1.90 (s, 3H), 1.71-1.68 (m, 2H). ¹³C NMR (100 MHz, DMSO-d₆) δ 173.0, 142.2, 113.3, 38.0, 35.7, 28.5, 25.8.

1,4-Diphenylbuta-1,3-diyne (4a). ¹H NMR (400 MHz, CDCl₃) δ 7.56 (d, J = 7.2 Hz, 4H), 7.39-7.36 (m, 6H). ¹³C NMR (100 MHz, CDCl₃) δ 132.5, 129.2, 128.4, 121.7, 81.5, 73.9.

1,4-Di-p-tolylbuta-1,3-diyne (4b). ¹H NMR (400 MHz, CDCl₃) δ 7.43 (d, J = 8.8 Hz, 4H), 7.15 (d, J = 8.0 Hz, 4H), 2.37 (s, 6H). ¹³C NMR (100 MHz, CDCl₃) δ 139.5, 132.3, 129.2, 118.7, 81.5, 73.4, 21.6.

1,4-Bis(4-methoxyphenyl)buta-1,3-diyne (4c). ¹H NMR (400 MHz, CDCl₃) δ 7.46 (d, J = 8.4 Hz, 4H), 6.86 (d, J = 8.8 Hz, 4H), 3.82 (s, 6H). ¹³C NMR (100 MHz, CDCl₃) δ 160.2, 134.0, 114.1, 113.8, 81.2, 72.9, 55.3.

1,4-Bis(4-fluorophenyl)buta-1,3-diyne (4d). ¹H NMR (400 MHz, CDCl₃) δ 7.56-7.52 (m, 4H), 7.09-7.04 (m, 4H). ¹³C NMR (100 MHz, CDCl₃) δ 163.0 (J_CF = 250.5 Hz), 134.5 (J_CF = 8.2 Hz), 117.7, 115.9 (J_CF = 22.3 Hz), 80.4, 73.5.

1,4-Bis(4-chlorophenyl)buta-1,3-diyne (4e). ¹H NMR (400 MHz, CDCl₃) δ 7.46 (d, J = 6.8 Hz, 4H), 7.33 (d, J = 6.4 Hz, 4H).

1,4-Bis(4-bromophenyl)buta-1,3-diyne (4f). ¹H NMR (400 MHz, CDCl₃) δ 7.49 (d, J = 8.0 Hz, 4H), 7.38 (d, J = 8.0 Hz, 4H).

Tetradeca-6,8-diyne (4g). ¹H NMR (400 MHz, CDCl₃) δ 2.25-2.22 (t, J = 7.2 Hz, 4H), 1.53-1.50 (m, 4H), 1.38-1.29 (m, 8H), 0.91-0.87 (t, J = 7.2 Hz, 6H). ¹³C NMR (100 MHz, CDCl₃) δ 77.4, 65.2, 30.9, 28.0, 22.1, 19.1, 13.9.

3. Results and discussion

3.1. Optimization of reaction conditions

For the green synthesis of enamides and 1,3-diynes, we tried to perform the reductive acylation of ketoximes and oxidative homocoupling of terminal alkynes in one pot to avoid using terminal reductants and oxidants. After several attempts, enamide 3a and 1,3-diyne 4a were obtained in 77% and 59% yields, respectively, in the presence of a [Pd(OAc)₂/CuI] catalytic system (Table 1, entry 1). The large difference between the polarities of the enamide and 1,3-diyne makes isolation very easy. This initial result prompted us to optimize the conditions. [Pd(PPh₃)₂Cl₂/CuI] was the most effective catalytic system (Table 1, entries 2-4). Furthermore, organic bases were screened to improve the efficiency (Table 1, entries 5-8). Pyridine was the most effective, and enamide 3a and 1,3-diyne 4a were obtained in 96% and 82% yields, respectively. It should be noted that no reaction occurred when Pd or Cu was used as the sole catalyst, indicating that Pd and Cu catalyzed the reaction synergistically (Table 1, entries 9 and 10).

Table 1
Optimization of combined reaction conditions.

Entry	[Pd]/[Cu]	Additive	Isolated yield (%)
Entry	[Pd]/[Cu]	Additive	3a	4a
1	Pd(OAc)₂/CuI	—	77	59
2	Pd(PPh₃)₄/CuI	—	72	50
3	Pd(PPh₃)₂Cl₂/CuBr	—	70	48
4	Pd(PPh₃)₂Cl₂/CuI	—	75	70
5	Pd(PPh₃)₂Cl₂/CuI	Et₃N	30	85
6	Pd(PPh₃)₂Cl₂/CuI	Et₂NH	<5	80
7	Pd(PPh₃)₂Cl₂/CuI	Piperidine	<5	62
8	Pd(PPh₃)₂Cl₂/CuI	Pyridine	96	82
9	Pd(PPh₃)₂Cl₂	Pyridine	0	0
10	CuI	Pyridine	0	0
Reaction conditions: [Pd] (0.2 mol%), [Cu] (10 mol%), ketoxime 1a (0.5 mmol), phenylacetylene 2a (1.0 mmol), Ac₂O (1.0 mmol), additive (0.6 mmol), DCE (5 mL), Ar, 120 °C.

Table 1
Optimization of combined reaction conditions.

3.2. Substrate scope

With the optimized conditions in hand, the scope of this protocol was investigated. This transformation displayed high functional group tolerance and proved to be a general protocol for the simultaneous synthesis of enamides 3 and 1,3-diynes 4. Ketoximes with methyl, methoxy, nitro, and fluoro groups on aryl rings all gave the corresponding enamides 3 and 1,3-diyne 4a in good to excellent yields (Table 2, entries 2-11). Chloro and bromo substituents on the arenes of ketoximes were tolerated well under the conditions used, and no Sonogashira cross- coupling byproducts were observed (Table 2, entries 6 and 7). The ortho-methyl-substituted enamide 3j was obtained in 97% yield, indicating that the transformation was insensitive to steric hindrance (Table 2, entry 10). 2-Naphthyl ketoxime 1l also

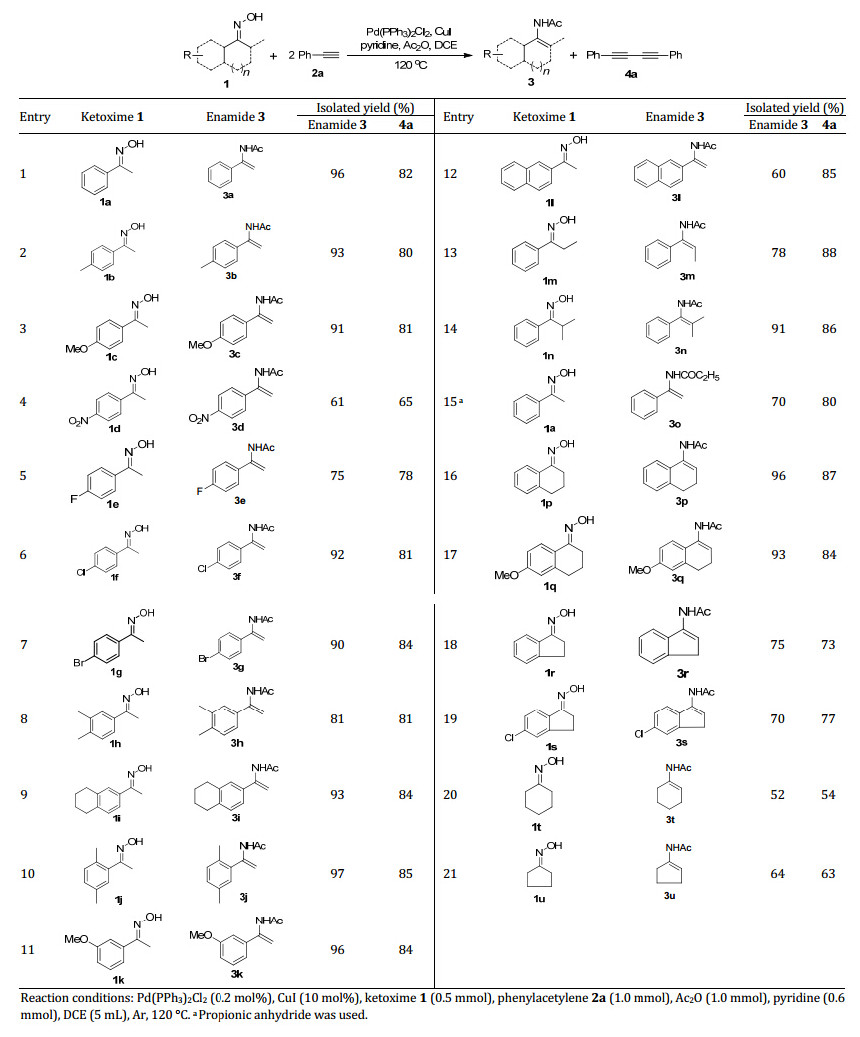

Table 2
Synthesis of various enamides 3 and 1,3-diyne 4a.

reacted smoothly to give the corresponding naphthyl enamide 3l in 60% yield (Table 2, entry 12). The tri- and tetra-substituted enamides 3m and 3n, and 3p-3s, and the N-propyl enamide 3o were also obtained in good yields (Table 2, entries 13-19). Aliphatic ketoximes were also tolerated, to give the corresponding enamides 3t and 3u in moderate yields (Table 2, entries 20 and 21).

Next, various terminal alkynes were examined to extend the substrate scope. A series of 1,3-diynes (4b-4f) with electron-withdrawing or electron-donating groups such as methyl, methoxy, fluoro, chloro, and bromo on aryl rings, and enamide 3a were synthesized in high yields (Table 3, entries 1-5). The aliphatic alkyne 2g also exhibited good reactivity to give 1,3-diyne 4g in 83% yield (Table 3, entry 6).

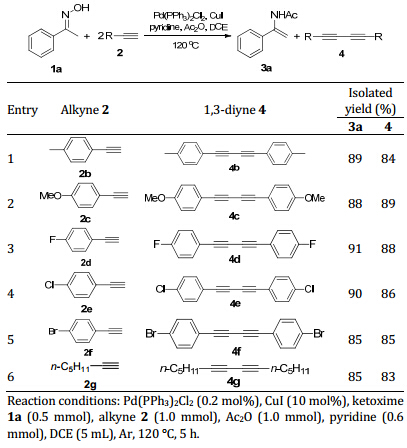

Table 3
Synthesis of various symmetrical 1,3-diynes 4 and enamide 3a.

3.3. Reaction mechanism

On the basis of the above experiments and previous studies, a tentative mechanism for the transformation is proposed in Scheme 2. In cycle I, the Cu-catalyzed single-electron reduction of ketoxime acetate A gives an imino radical intermediate B ^{[25, 26, 39, 40, 41, 42, 43, 44]}. Further reduction of B, followed by acylation and tautomerization, forms enamide 3 ^{[26, 45, 46]}. In cycle II, deprotonation of terminal alkyne 2 in the presence of CuI and pyridine generates a Cu-acetylide intermediate E ^{[33, 34, 35, 36, 37, 38]}. Double transmetalation of E with Pd(II) forms a dialkynylpalladium(II) species F. Reductive elimination of F affords the 1,3-diyne 4 and Pd(0) ^{[33, 34, 35, 36, 37, 38, 47, 48, 49, 50]}. Finally, Pd(0) was oxidized by Cu²⁺ to regenerate the active Pd(II) and Cu(I) catalyst, completing cycles I and II.

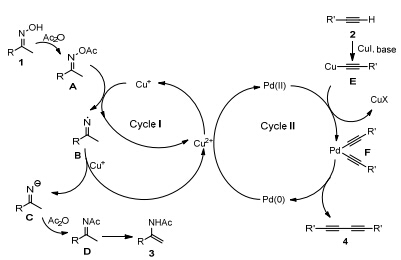

Scheme 2. Tentative mechanism for transformation.

4. Conclusions

We have developed a green synthetic protocol for the straightforward synthesis of enamides and 1,3-diynes in one pot in the absence of any terminal oxidants and reductants. The transformation tolerates a range of functional groups and is a novel procedure for the one-pot, high-yielding preparation of valuable enamides and 1,3-diynes. This protocol is a promising method for minimizing reduced or oxidized wastes from both oxidation and reduction reactions. Further study will focus on extending the scope of this green transformation.

References

[1]	Allen S E, Walvoord R R, Padilla-Salinas R, Kozlowski M C. Chem Rev, 2013, 113: 6234
[2]	Saisaha P, de Boer J W, Browne W R. Chem Soc Rev, 2013, 42: 2059
[3]	Wu W Q, Jiang H F. Acc Chem Res, 2012, 45: 1736
[4]	Campbell A N, Stahl S S. Acc Chem Res, 2012, 45: 851
[5]	Punniyamurthy T, Velusamy S, Iqbal J. Chem Rev, 2005, 105: 2329
[6]	Verendel J J, Pàmies O, Diéguez M, Andersson P G. Chem Rev, 2014, 114: 2130
[7]	Etayo P, Vidal-Ferran A. Chem Soc Rev, 2013, 42: 728
[8]	Wang D S, Chen Q A, Lu S M, Zhou Y G. Chem Rev, 2012, 122: 2557
[9]	Xie J H, Zhu S F, Zhou Q L. Chem Rev, 2011, 111: 1713
[10]	Sheldon R A, Arends I W C E, Hanefeld U. Green Chemistry and Catalysis. Weinheim: Wiley-VCH, 2007. 1
[11]	Caron S, Dugger R W, Ruggeri S G, Ragan J A, Ripin D H B. Chem Rev, 2006, 106: 2943
[12]	Burkhardt E R, Matos K. Chem Rev, 2006, 106: 2617
[13]	Muzart J. Chem Rev, 1992, 92: 113
[14]	Sheldon R A. Chem Soc Rev, 2012, 41: 1437
[15]	Anastas P, Eghbali N. Chem Soc Rev, 2010, 39: 301
[16]	Horvath I T, Anastas P T. Chem Rev, 2007, 107: 2169
[17]	Chen M, Ren Z H, Wang Y Y, Guan Z H. Angew Chem Int Ed, 2013, 52: 14196
[18]	Zhao M N, Ren Z H, Wang Y Y, Guan Z H. Chem Eur J, 2014, 20: 1839
[19]	Zhao M N, Ren Z H, Wang Y Y, Guan Z H. Org Lett, 2014, 16: 608
[20]	Zhao M N, Du W, Ren Z H, Wang Y Y, Guan Z H. Eur J Org Chem, 2013, 2013: 7989
[21]	Zhao M N, Ren Z H, Wang Y Y, Guan Z H. Chem Commun, 2012, 48: 8105
[22]	Lei C H, Wang D X, Zhao L, Zhu J P, Wang M X. J Am Chem Soc, 2013, 135: 4708
[23]	Pankajakshan S, Xu Y H, Cheng J K, Low M T, Loh T P. Angew Chem Int Ed, 2012, 51: 5701
[24]	Matsubara R, Kobayashi S. Acc Chem Res, 2008, 41: 292
[25]	Liang H, Ren Z H, Wang Y Y, Guan Z H, Chem Eur J, 2013, 19: 9789
[26]	Guan Z H, Zhang Z Y, Ren Z H, Wang Y Y, Zhang X M. J Org Chem, 2011, 76: 339
[27]	Tang W J, Capacci A, Sarvestani M, Wei X D, Yee N K, Senanayake C H. J Org Chem, 2009, 74: 9528
[28]	Zhao H, Vandenbossche C P, Koenig S G, Singh S P, Bakale R P. Org Lett, 2008, 10: 505
[29]	Hughes R A, Thompson S P, Alcaraz L, Moody C J. J Am Chem Soc, 2005, 127: 15644
[30]	Haley M M, Tykwinski R R. Carbon-Rich Compounds: From Molecules to Materials. Weinheim: Wiley-VCH, 2006. 295
[31]	Shun A L K S, Tykwinski R R. Angew Chem Int Ed, 2006, 45: 1034
[32]	Diederich F, Stang P J, Tykwinski R R. Acetylene Chemistry: Chemistry, Biology and Material Science. Weinheim: Wiley-VCH, 2005. 233
[33]	Shi W, Lei A W. Tetrahedron Lett, 2014, 55: 2763
[34]	Feng X J, Zhao Z R, Yang F, Jin T N, Ma Y J, Bao M. J Organomet Chem, 2011, 696: 1479
[35]	Li J H, Liang Y, Zhang X D. Tetrahedron, 2005, 61: 1903
[36]	Doi T, Orita A, Matsuo D, Saijo R, Otera J. Synlett, 2008: 55
[37]	Lei A W, Srivastava M, Zhang X M. J Org Chem, 2002, 67: 1969
[38]	Rossi R, Carpita A, Bigelli C. Tetrahedron Lett, 1985, 26: 523
[39]	Zhao M N, Liang H, Ren Z H, Guan Z H. Synthesis, 2012, 44: 1501
[40]	Ren Z H, Zhang Z Y, Yang B Q, Wang Y Y, Guan Z H. Org Lett, 2011, 13: 5394
[41]	Ran L F, Ren Z H, Wang Y Y, Guan Z H. Green Chem, 2014, 16: 112
[42]	Zhang C, Tang C H, Jiao N. Chem Soc Rev, 2012, 41: 3464
[43]	Ran L F, Liang H, Guan Z H. Chin J Org Chem (冉陇飞, 梁浩, 关正辉. 有机化学), 2013, 33: 66
[44]	Narasaka K, Kitamura M. Eur J Org Chem, 2005: 4505
[45]	Reeves J T, Tan Z L, Han Z S, Li G S, Zhang Y D, Xu Y B, Reeves D C, Gonnella N C, Ma S L, Lee H, Lu B Z, Senanayake C H. Angew Chem Int Ed, 2012, 51: 1400
[46]	Quiclet-Sire B, Tölle N, Zafar S N, Zard S Z. Org Lett, 2011, 13:3266
[47]	Shi W, Luo Y D, Luo X C, Chao L, Zhang H, Wang J, Lei A W. J Am Chem Soc, 2008, 130: 14713
[48]	Liu Q B, Burton D J. Tetrahedron Lett, 1997, 38: 4371
[49]	Cai C Z, Vasella A. Helv Chim Acta, 1995, 78: 2053
[50]	Alper H, Saldana-Maldonado M. Organometallics, 1989, 8: 1124
