Citation: Zhang Jingjing, Li Li, Zhang Xinyue, Zhou Qianlong, Hao Yuting. Multimode Photocatalysis of Hollow Sphere In₂O₃/ZrO₂-TiO₂ Nanocomposite[J]. Chemistry, ;2017, 80(10): 935-941, 975. shu

Multimode Photocatalysis of Hollow Sphere In₂O₃/ZrO₂-TiO₂ Nanocomposite

Zhang Jingjing ^1,2 ,
Li Li ^1,2,, ,
Zhang Xinyue ² ,
Zhou Qianlong ² ,
Hao Yuting ²

1.
College of Materials Science and Engineering
2.
College of Chemistry and Chemical Engineering, Qiqihar University, Qiqihar 161006

Corresponding author: Li Li, qqhrll@163.com
Received Date: 24 February 2017
Accepted Date: 23 May 2017

Figures(7)

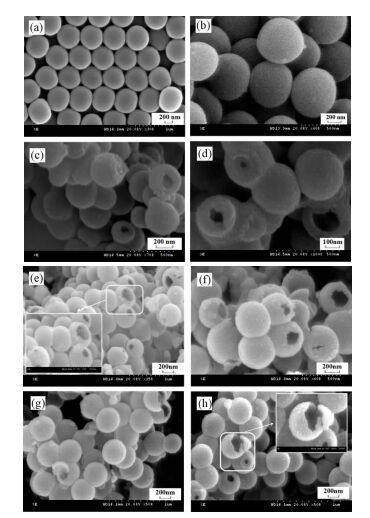

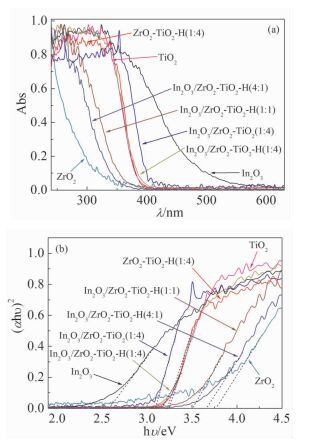

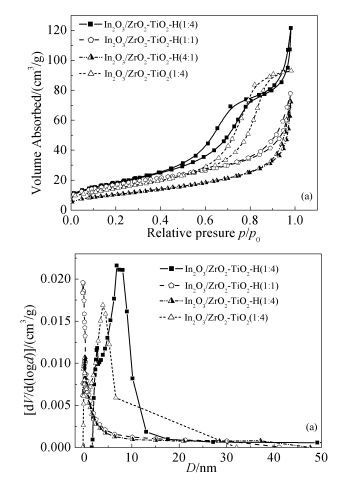

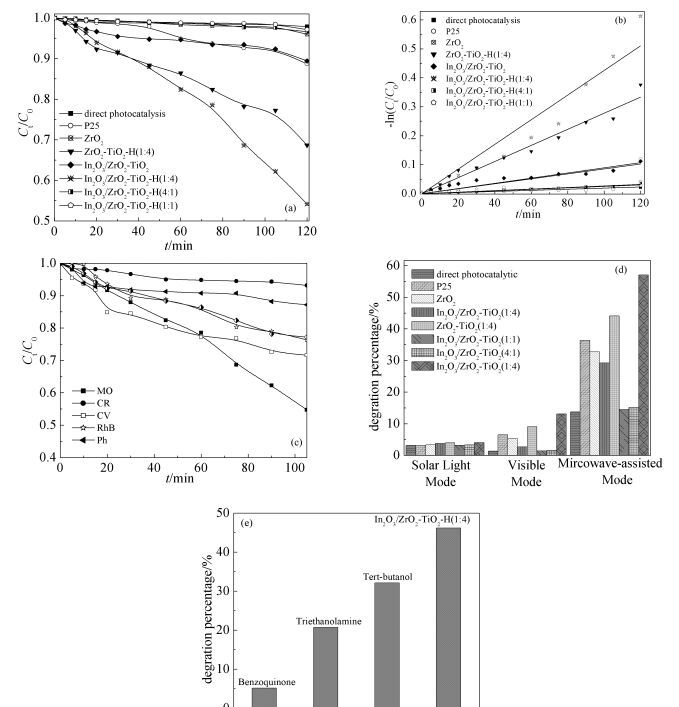

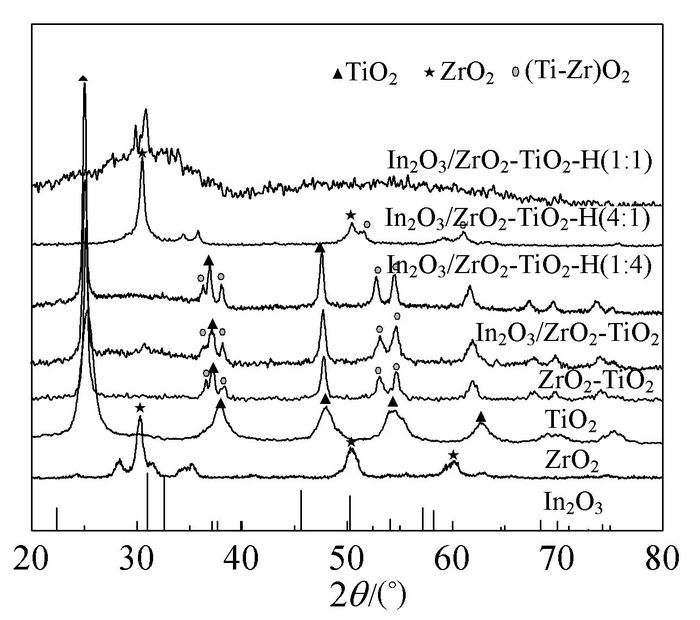

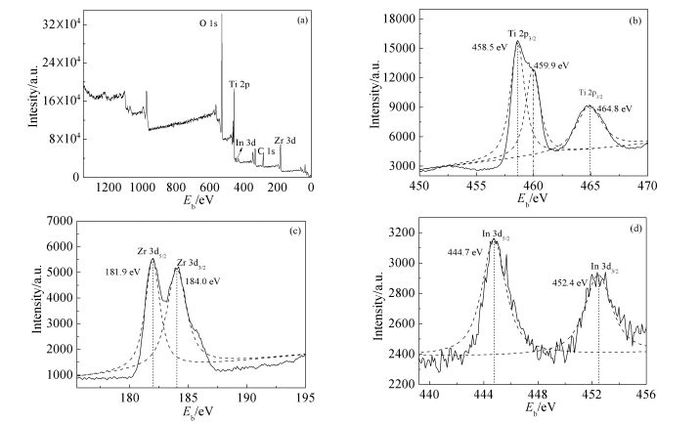

In this paper, using polystyrene (PS) spheres as the template, In₂O₃/ZrO₂-TiO₂ hollow spheres (In₂O₃/ZrO₂-TiO₂-H) with different proportions were prepared by one-step method combined with calcination treatment.The structures, compositions and morphologies of as-prepared composites were characterized by XRD, XPS, UV-Vis/DRS, SEM and N₂ absorption-desorption measurements.The results showed that In₂O₃/ZrO₂-TiO₂ composites had a hollow spherical structure after being treated by PS template, and the spherical wall was formed by the nanoparticles.After compounding In₂O₃ with ZrO₂-TiO₂, its optical absorption had red-shifted slightly, moreover, the specific surface area of In₂O₃/ZrO₂-TiO₂-H (1:4) hollow sphere was larger (66.92 m²·g^-1).In₂O₃/ZrO₂-TiO₂-H (1:4) showed higher photocatalytic activity in the degradation of methyl orange (MO) under multimodes photocatalysis, compared with P25, ZrO₂, In₂O₃/ZrO₂-TiO₂, and other ratio In₂O₃/ZrO₂-TiO₂-H.
- Polystyrene,
- One-step method,
- Hollow spheres,
- In₂O₃/ZrO₂-TiO₂,
- Multimodes photocatalysis
1. [1]
  X F Li, X Z Zhen, S G Meng. Environ. Sci. Technol., 2013, 47:9911~9917.
2. [2]
  A Fujishima, T N Rao, D A Tryk. J. Photochem. Photobio. C, 2000, 1:1~21.
3. [3]
  D Zhang, R Qiu, L Song. J. Hazard. Mater., 2009, 163:843~847.
4. [4]
  M A Ahmed, M F Abdel-Messiah. J. Alloy Compd., 2011, 509:2154~2158.
5. [5]
  H Djojoputro, X F Zhou, S Z Qiao et al. J. Am. Chem. Soc., 2006, 128(19):6320~6321.
6. [6]
  Y Mao, M Kanungo, T Hemraj-Benny et al. J. Phys. Chem. B, 2006, 110(2):702~710.
7. [7]
  X M Li, L F Jiang, C Zhou et al. NPG Asia Mater., 2015, 7:e165.
8. [8]
  J G Yu, X X Yu. Environ. Sci. Technol., 2008, 42(13):4902~4907.
9. [9]
  J B Joo, Q Zhang, I Lee et al. Adv. Funct. Mater., 2012, 22:166~174.
10. [10]
  Y Wang, L J Zhu, N N Ba ta al. Mater. Res. Bull., 2017, 86:268~276.
11. [11]
  S F Chen, H Q Wang, L J Zhu et al. Appl. Surf. Sci., 2014, 321:86~93.
12. [12]
  M R Gholipour, C T Dinh, F Beland et al. Nanoscale, 2015, 7:187~8208.
13. [13]
  H Wang, L Zhang, Z Chen et al. Chem. Soc. Rev., 2014, 43:5234~5244.
14. [14]
  J H Kim, S B Kang, J H Lee et al. Org. Electron., 2013, 14(5):1305~1312.
15. [15]
  Z Galazka, R Uecker, K Irmscher et al. J. Cryst. Growth., 2013, 362:349~352.
16. [16]
  D Shao, L Qin, S Sawyer. Opt. Mater., 2013, 35(3):563~566.
17. [17]
18. [18]
  C Wang, A Geng, Y Guo. J. Colloid Interf. Sci., 2006, 301(1):236~247.
19. [19]
20. [20]
  P Zhang, Y Yu, E Wang. ACS Appl. Mater. Interf., 2014, 6(7):4622~4629.
21. [21]
  J Wang, Y Yu, S Li. J. Phys. Chem. C, 2013, 117(51):27120~27126.
22. [22]
23. [23]
  W A Abdallah, S D Taylor. J. Phys. Chem. C, 2008, 112(48):18963~18972.
24. [24]
  L Li, X L Zhang, W Z Zhang et al. Colloid Surf. A, 2014, 457:134~141.
25. [25]
  J J Zhang, L Li, S Wang et al. RSC Adv., 2016, 6:13991~14001.
26. [26]
  B Chavillon, A Renaud, F Tessier. J. Am. Chem. Soc., 2012, 134:464~470.
27. [27]
  I N W Geoffrey, B M James, I Hicham et al. Chem. Mater., 2008, 20:1183~1190.
28. [28]
  S Zou, G C Schatz. J. Chem. Phys., 2004, 121(24):12606~12612.
29. [29]
  L Li, X D Huang, T Y Hu et al. New J. Chem., 2014, 38(11):5293~5302.
30. [30]
  K S W Sing, D H Everett, R A W Haul et al. Pure Appl. Chem., 1985, 57(4):603~619.
31. [31]
  L Li, X D Huang, J Q Zhang et al. J. Colloid Interf. Sci., 2015, 443:13~22.
32. [32]
33. [33]
  Y Xu, Schoonen, A A Martin. Am. Mineral., 2000, 85:543~556.
