Citation: Hu Yangyang, Zeng Xianghua, Gong Chunhua, Xin Li, Zhang Jiaqi, Zhang Junyong, Xie Jingli. Synthesis, Structure and Photocatalytic Property of [Mo₆O₁₉]^2- Polyoxometalate with Phosphonium Cation[J]. Chemistry, ;2017, 80(7): 651-655. shu

Synthesis, Structure and Photocatalytic Property of [Mo₆O₁₉]^2- Polyoxometalate with Phosphonium Cation

College of Biological, Chemical Sciences and Engineering, Jiaxing University, Jiaxing 314001

Corresponding author: Zeng Xianghua, xianghuazeng@mail.zjxu.edu.cn Xie Jingli, jlxie@mail.zjxu.edu.cn
Received Date: 2 November 2016
Accepted Date: 4 February 2017

Figures(9)

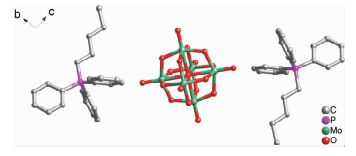

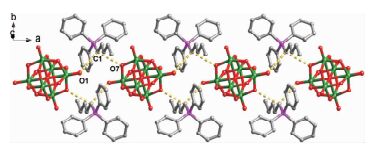

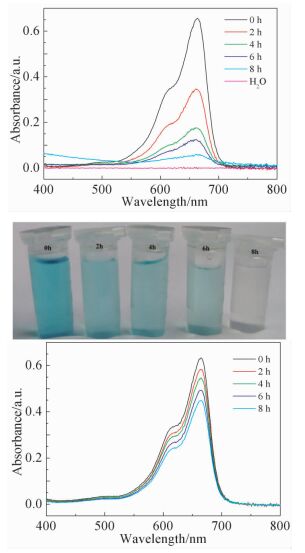

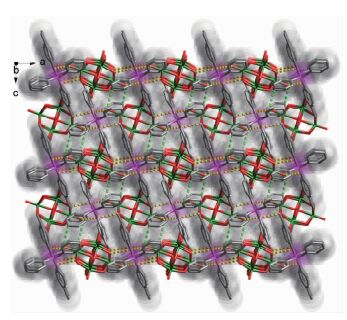

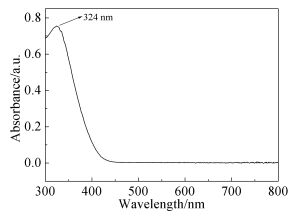

A polyoxometalate compound [n-C₅H₁₀Ph₃P]₂[Mo₆O₁₉] was synthesized by the reaction of n-C₅H₁₀Ph₃PI and (NH₄)₆Mo₇O₂₄·7H₂O at ambient condition. This compound was characterized by single crystal X-ray diffraction, UV-Vis spectrum, IR spectrum, TGA and electrochemistry analysis. The polyoxometalate compound contains two n-C₅H₁₀Ph₃P⁺ cations. There were hydrogen bonding interactions between terminal oxygen atoms of [Mo₆O₁₉]^2- anions and phosphonium cations, and consequently one dimensional chain was formed. Three dimensional structures were constructed by the π-π stacking between the phenyl rings of the cationic phosphonium. Additionally, its photocatalytic property for the degradation of methylene blue (MB) was also investigated.
- Polyoxometalate,
- Phosphonium cation,
- Crystal structure,
- Photocatalytic,
- Methylene blue
1. [1]
  I Lindqvist. Arkiv Kemi, 1952, 5:247~250.
2. [2]
  I Lindqvist, B Aronsson. Arkiv Kerai, 1954, 7:49~52.
3. [3]
  A Goiffon, E Philippot, M Maurin. Rev. Chim. Miner., 1980, 17:466~476.
4. [4]
  O Dmitrenko, W L Huang, T W Polenova et al. J. Phy. Chem. B, 2003, 107(31):7747~7752.
5. [5]
  E Derat, D Kumar, R Neumann et al. Inorg. Chem., 2006, 45(21):8655~8663.
6. [6]
  J Li. J. Clust. Sci., 2002, 13(2):137~163.
7. [7]
  X Yang, T Waters, X B Wang et al. J. Phys. Chem. A, 2004, 108(46):10089~10093.
8. [8]
  Y Xia, P Wu, Y Wei et al. Cryst. Growth Des., 2006, 6(2):253~257.
9. [9]
  H Xu, Z Li, B Liu et al. Cryst. Growth Des., 2010, 10(3):1096~1103.
10. [10]
  P L Veya, J K Kochi. J. Organomet. Chem., 1995, 488(1/2):C4~C8.
11. [11]
  M Han, J Hey, W Kawamura et al. Inorg. Chem., 2012, 51(18):9574~9576.
12. [12]
  G H Clever, W Kawamura, S Tashira et al. Angew. Chem. Int. Ed., 2012, 51(11):2606~2609.
13. [13]
  A Moore, H Kwen, A M Beatty et al. Chem. Commun., 2000, (18):1793~1794.
14. [14]
  Q Li, P F Wu, Y G Wei et al. Inorg. Chem. Commun., 2004, 7(4):524~527.
15. [15]
  S X Guo, J Xie, R Gilbert-Wilson et al. Dalton Transac., 2011, 40(2):356~366.
16. [16]
  E C Alyea, D Craig, I Dance et al. CrystEngCom, 2005, 7(81):491~503.
17. [17]
18. [18]
  O V Dolomanov, L J Bourhis, R J Gildea et al. J. Appl. Crystallogr., 2009, 42(2):339~341.
19. [19]
  L Palatinus, G Chapuis. J. Appl. Crystallogr., 2007, 40(4):786~790.
20. [20]
  L Palatinus, A van der Lee. J. Appl. Crystallogr., 2008, 41(6):975~984.
21. [21]
  L Palatinus, S J Prathapa, S van Smaalen. J. Appl. Crystallogr., 2012, 45(3):575~580.
