Citation: DAI Cai-sheng, LIU Xue-peng, DAI Jin-ze, MA Song-jiang. Preparation and rheological property of the char-water slurry based on co-pyrolysis of sawdust and lignite[J]. Journal of Fuel Chemistry and Technology, ;2016, 44(7): 784-791. shu

Preparation and rheological property of the char-water slurry based on co-pyrolysis of sawdust and lignite

1.
School of Chemistry and Chemical Engineering, Hunan University of Science and Technology, Xiangtan 411201, China
2.
School of Chemical and Environmental Engineering, China University of Mining and Technology (Beijing), Beijing 100083, China

Corresponding author: LIU Xue-peng, 502006383@qq.com
Received Date: 20 January 2016
Revised Date: 18 April 2016

Fund Project: Scientific Innovation Program of Graduates in Hunan Province CX2014B419The project was supported by the National Natural Science Foundation of China 51478182International S & T Cooperation Program of China 2013DFG60060

Figures(10)

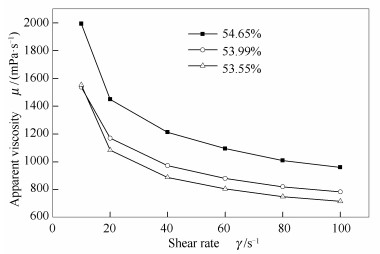

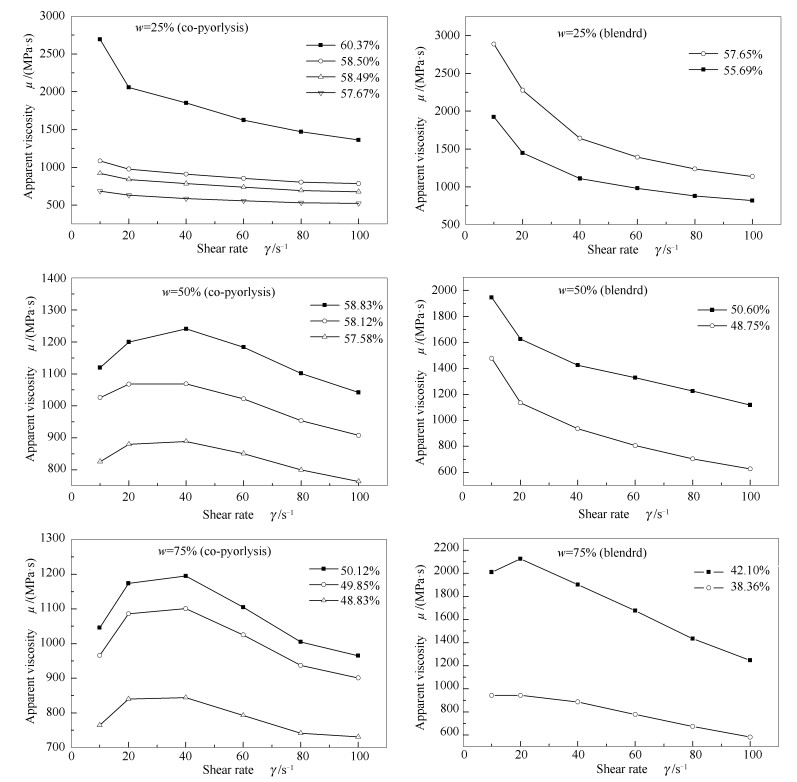

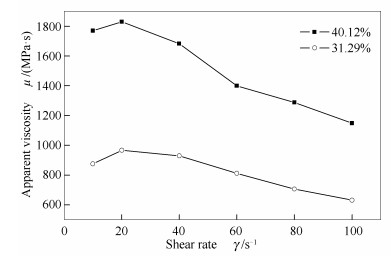

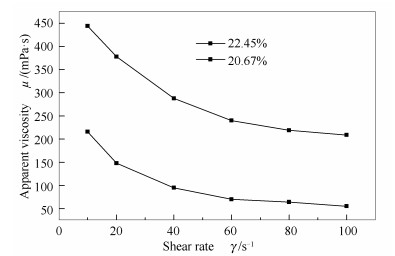

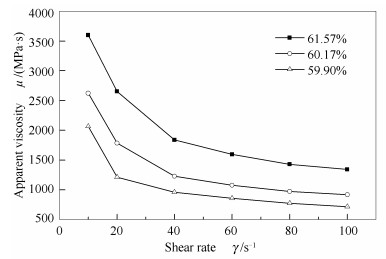

An integrated experimental apparatus for pyrolysis/co-pyrolysis was employed to carry out the upgrading process of sawdust, Yunnan lignite, and their blends. The slurry-ability of the upgraded char was investigated. The results show that the slurry-ability of sawdust and Yunnan lignite is significantly improved via pyrolysis process. Bio-char and semi-coke were prepared at 500 ℃ holding 1.5 h. The solid loadings of the resulting slurry fuels derived from sawdust and lignite were enhanced from 29.21% and 54.63% to 38.57% and 60.19%, respectively. Under the same pyrolysis conditions, the slurry-ability of the char prepared from co-pyrolysis of sawdust and Yunnan lignite is apparently superior to that of the corresponding bio-char/coal char mixture with the same original mass ratio of feedstock. The prepared char-water slurries generally display pseudo-plastic behavior, i.e., the shear press decreases with increasing shear rate. When the mass ratio of sawdust exceeds 50%, the rheological property of char-water slurry tend to be shear thickening, exhibiting strong dilatant behavior at low shear rate, which is similar to the rheological property of biochar-water slurry. The desirable slurry-ability of the char produced from co-pyrolysis could be attributed to the synergistic effect of biomass and coal, which is likely to improve aromaticity of the resulting hybrid char.
- sawdust,
- lignite,
- co-prolysis,
- bio-char water slurry,
- rheological property
1. [1]
  WANG Jian-he. Review on research and utilization of sawdust[J]. Guangdong Forestry Sci Technol, 1991(3):23-27.
2. [2]
  LÜ You-jun, GUO Lie-jin, HAO Xiao-hong, JI Cheng-meng. Influence of main paramters on wood sawdust gasification in supercritical water[J]. J Chem Ind Eng (China), 2004,55(12):2060-2066.
3. [3]
  HUBEr G W, SARA I, AVELINO C. Synthesis of transportation fuels from biomass: Chemistry, catalysts, and engineering[J]. Chem Rev, 2006,106(9):4044-98. doi: 10.1021/cr068360d
4. [4]
  WU Guo-qing. The method to raise pigs with sawdust[J]. New Rural Tech, 2014(6):25-26.
5. [5]
  HE Chen-qing, WU Yun-he. Study of production of high efficiency protein feed by using biotic matters[J]. Biotechnol, 1993,3(3):33-36.
6. [6]
  QIAN Yong, WU Lei, WANG Jian-jun, ZHUANG Jun-tao. Performance of NaOH-modified larch sawdust adsorbing reactive dyes[J]. J Ecol Rural Environ, 2012,28(4):445-450.
7. [7]
  ZHOU Zhi-jun, LI Xiang, ZHOU Jun-hu, LIU Jian-zhong, CEN Ke-fa. Evaluation of surfactants used in biomass coal-water slurries[J]. J Chin Coal Soc, 2012,37(1):147-153.
8. [8]
  DENG Hui. The study of biomass coal water slurry[D]. Fuzhou: Fuzhou University, 2010.
9. [9]
  PENG Qian. Preparation, combustion and gasification of biomass coal water slurry[D]. Hangzhou: Zhejiang University, 2011.
10. [10]
  LIU M, DUAN Y, MA X. Effect on surface chemistry and structure of sludge particles on their co-slurrying ability with petroleum coke[J]. Int J Chem React Eng, 2014,12(1):429-439.
11. [11]
  CHEN R, WILSON M, LEONG Y K, BRYANT P, YANG H, ZHANG D K. Preparation and rheology of biochar, lignite char and coal slurry fuels[J]. Fuel, 2011,90(4):1689-1695. doi: 10.1016/j.fuel.2010.10.041
12. [12]
  WEI H, CHAN S P, NORBECK J M. Rheological study of comingled biomass and coal slurries with hydrothermal pretreatment[J]. Energy Fuels, 2009,23(1):4763-4767.
13. [13]
  YANG Bo-li, GONG Kai-feng, ZHOU Jian-hui, LIU Hai-feng, WANG Fu-chen, YU Zun-hong. Slurryability of lignite and petroleum coke mixture[J]. J Fuel Chem Technol, 2008,23(4):391-396.
14. [14]
  FARR R S, MELROSE J R, BALL R C. Kinetic theory of jamming in hard-sphere startup flows[J]. Phys Rev E: Stat Phys, Plasmas Fluids, Relat Interdiscip Top, 1997,55(6):7203-7211.
15. [15]
  YANG Xiao-qin, LIU Xue-jing, LIU Hai-xiong, YUE Xiao-ming, CAO Jing-pei, ZHOU Min. Synergy effect in co-gasification of lignite and char of pine sawdust[J]. Acta Phys Chim Sin, 2014,30(10):1794-1800.
