Citation: LU Hao, DU Jiao-jiao, XIAO Jian, WEI Hao, ZHAO Yun-peng, WEI Xian-yong. Thermal dissolution of Huozhou and Xinghe lignites and the occurrence forms of organic oxygen in them[J]. Journal of Fuel Chemistry and Technology, ;2018, 46(8): 897-904. shu

Thermal dissolution of Huozhou and Xinghe lignites and the occurrence forms of organic oxygen in them

LU Hao ¹ ,
DU Jiao-jiao ¹ ,
XIAO Jian ¹ ,
WEI Hao ¹ ,
ZHAO Yun-peng ^1,2,, ,
WEI Xian-yong ¹

1.
Key Laboratory of Coal Processing and Efficient Utilization, Ministry of Education, China University of Mining & Technology, Xuzhou 221116, China
2.
State Key Laboratory Breeding Base of Coal Science and Technology Co-founded by Shanxi Province and Ministry Education, Taiyuan University of Technology, Taiyuan 030024, China

Corresponding author: ZHAO Yun-peng, yunpengzhao2009@163.com
Received Date: 25 January 2018
Revised Date: 7 June 2018

Fund Project: the National Natural Science Foundation of China 21206188National Undergraduate Training Programs for Innovation of China University of Mining and Technology 201610290036Open Foundation from State Key Laboratory Breeding Base of Coal Science and Technology Co-founded by Shanxi Province and Ministry Education MKX201502The project was supported by the National Natural Science Foundation of China (21206188), Open Foundation from State Key Laboratory Breeding Base of Coal Science and Technology Co-founded by Shanxi Province and Ministry Education (MKX201502) and National Undergraduate Training Programs for Innovation of China University of Mining and Technology (201610290036)

Figures(10)

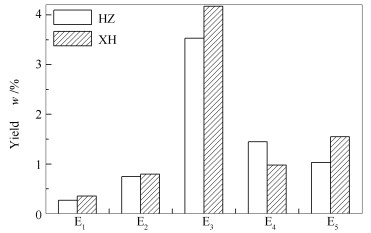

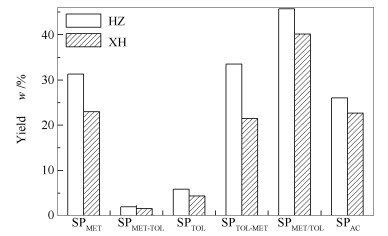

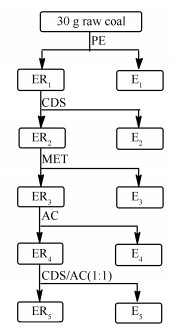

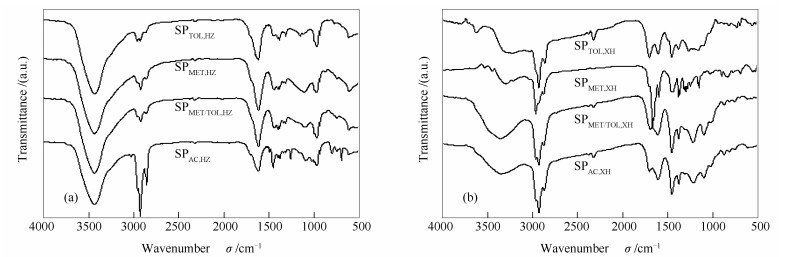

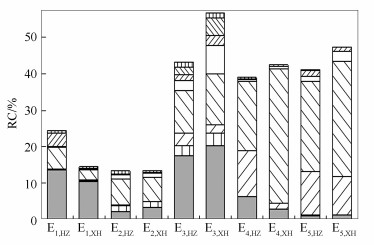

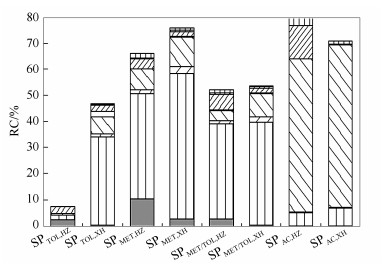

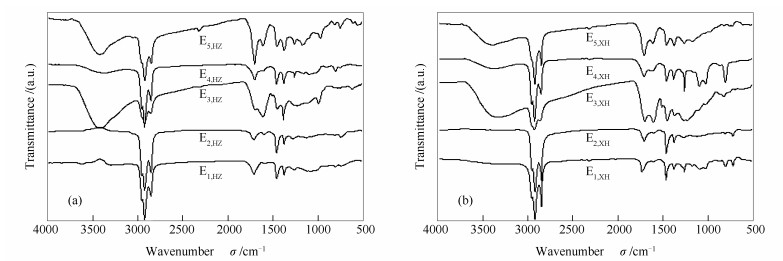

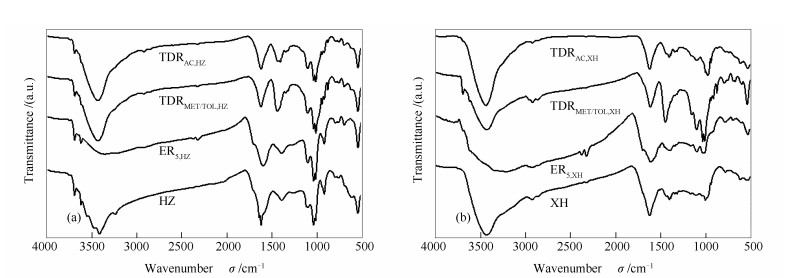

Huozhou (HZ)and Xinghe (XH) lignites were extracted in turn with petroleum ether, carbon disulfide, methanol, acetone and isometric acetone/carbon disulfide mixed solvent to obtain the extracts (E₁-E₅) and the extraction residues (ER₁-ER₅), then ER₅ was thermally dissolved at 320℃ using methanol, toluene, isometric methanol/toluene mixed solvent and acetone to gain the soluble portions (SPs). The total yields of extraction for HZ and XH are 7.03% and 7.86%, respectively, in which the yield of E₃ is the highest. The SPs yield of extraction residue with isometric methanol/toluene mixed solvent is the highest, and the SPs of ER_{5, HZ} and ER_{5, XH} with isometric methanol/toluene mixed solvent reaches 45.76% and 40.14%, respectively. There exist strong adsorption peaks ascribed to aliphatic C-H in the Fourier transform infrared (FT-IR) spectra of E₁-E₅, while the intensity of adsorption peaks ascribed to C=C, C=O and O-H in the FT-IR spectra of SPs is obviously higher than that of extracts. The gas chromatography/mass spectrometer (GC/MS) analyses show that the oxygen containing organic compounds (OCOCs) in E₁-E₅ are dominated with alcohols, ethers and ketones, while it is mainly composed of alcohols, phenols and ketones in the SPs, and the strong polar solvents contribute to dissolving the OCOCs in lignites. The adsorption peaks ascribed to associated O-H, C=O and C-O-C in the FT-IR spectra of extraction residues and thermal dissolution residues are weaker than those of raw coals. The X-ray photoelectron spectroscopy (XPS) analyses indicate that the relative content of oxygen forms in XH and HZ is C-O > C=O > COO-, and the relative content of C-O and COO-in HZ is higher than that in XH.
- lignite,
- thermal dissolution,
- organic oxygen,
- GC/MS
1. [1]
  XIE Ke-chang. Structure and Reactivity of Coal[M]. Beijing:Science Press, 2002, 243-268.
2. [2]
  WANG J, LI C, SAKANISHI K, NAKAZATO T, TAO H, TAKANOHASHI T, TAKARADA T, SAITO I. Investigation of the remaining major and trace elements in clean coal generated by organic solvent extraction[J]. Fuel, 2005,84(12/13):1487-1493.
3. [3]
  RAHMAN M, SAMANTA A, GUPTA R. Production and characterization of ash-free coal from low-rank Canadian coal by solvent extraction[J]. Fuel Process Technol, 2013,115(11):88-98.
4. [4]
  SIMSEK E H, KARADUMAM A, CALⅡSKAN S, TOGRUL T. The effect of preswelling and/or pretreatment of some Turkish coals on the supercritical fluid extract yield[J]. Fuel, 2002,81(4):503-506. doi: 10.1016/S0016-2361(01)00191-0
5. [5]
  BRAND S, SUSANTI R F, KIM S K, LEE H S, KIM J, SANG B I. Supercritical ethanol as an enhanced medium for lignocellulosic biomass liquefaction:Influence of physical process parameters[J]. Energy, 2013,59(9):173-182.
6. [6]
  DU Jiao-jiao, ZHAO Yun-peng, TIAN You-jia, ZHANG Di. Composition and structural characteristics of soluble organic species in Baiyinhua lignite[J]. J Fuel Chem Technol, 2017,45(1):9-14.
7. [7]
  OKUYAMA N, KOMATSU N, SHIGEHISA T, KANEKO T, TSURUYA S. Hyper-coal process to produce the ash-free coal[J]. Fuel Process Technol, 2004,85(8/10):947-967.
8. [8]
  MATHEWS J P, BURGESS-CLIFFORD C, PAINTER P. Interactions of Illinois No. 6 bituminous coal with solvents:A review of solvent swelling and extraction literature[J]. Energy Fuels, 2015,29(3):1279-1294. doi: 10.1021/ef502548x
9. [9]
  NIEKERK D V, HALLECK P M, MATHEWS J P. Solvent swelling behavior of permian-aged south african vitrinite-rich and inertinite-rich coals[J]. Fuel, 2010,89(1):19-25. doi: 10.1016/j.fuel.2009.06.028
10. [10]
  LIU F J, WEI X Y, LI W T, GUI J, LI P, WANG Y G, XIE R L, ZONG Z M. Methanolysis of extraction residue from Xianfeng lignite with NaOH and product characterizations with different spectrometries[J]. Fuel Process Technol, 2015,136(8):8-16.
11. [11]
  HAO P, BAI Z, HOU R, XU J, BAI J, GUO Z, KONG L, LI W. Effect of solvent and atmosphere on product distribution, hydrogen consumption and coal structural change during preheating stage in direct coal liquefaction[J]. Fuel, 2018,211(1):783-788.
12. [12]
  DING M, ZHAO Y P, DOU Y Q, WEI X Y, FAN X, CAO J P, WANG Y L, ZONG Z M. Sequential extraction and thermal dissolution of Shengli lignite[J]. Fuel Process Technol, 2015,135(7):20-24.
13. [13]
  WANG Z, SHUI H, PAN C, LI L, REN S, LEI Z, KANG S, WEI C, HU J. Structural characterization of the thermal extracts of lignite[J]. Fuel Process Technol, 2014,120(4):8-15.
14. [14]
  WEI X Y, WANG X H, ZONG Z M. Extraction of organonitrogen compounds from five Chinese coals with methanol[J]. Energy Fuels, 2009,23(10):4848-481. doi: 10.1021/ef900086h
15. [15]
  SHI K, GUI X, TAO X, LONG J, JI Y. Macromolecular structural unit construction of Fushun nitric-acid-oxidized coal[J]. Energy Fuels, 2015,29(6):3566-3572. doi: 10.1021/ef502859r
