Citation: WANG Zhi-gang, BAI Jin, KONG Ling-xue, LI Huai-zhu, BAI Zong-qing, LI Wen. Regulation of high temperature flow properties of ash containing V and Ni[J]. Journal of Fuel Chemistry and Technology, ;2017, 45(10): 1164-1171. shu

Regulation of high temperature flow properties of ash containing V and Ni

1.
Department of Chemistry, Dezhou University, Dezhou 253023, China
2.
State Key Lab of Coal Conversion, Institute of Coal Chemistry, Chinese Academy of Sciences, Taiyuan 030001, China

Corresponding author: BAI Jin, stone@sxicc.ac.cn
Received Date: 10 June 2017
Revised Date: 17 August 2017

Fund Project: the National Natural Science Foundation of China 21406254the National Natural Science Foundation of China 21706027The project was supported by the Natural Science Foundation of Shandong Province (ZR2016BL23), the National Natural Science Foundation of China (21706027, 21476247 and 21406254) and Science and technology project of Dezhou university (2016kjrc11)the National Natural Science Foundation of China 21476247Science and technology project of Dezhou university 2016kjrc11The Natural Science Foundation of Shandong Province ZR2016BL23

Figures(10)

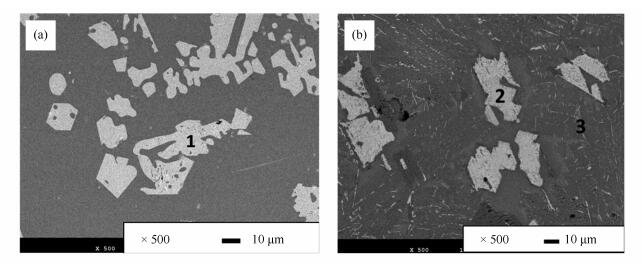

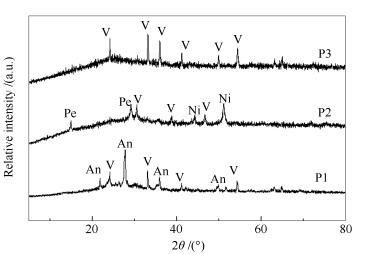

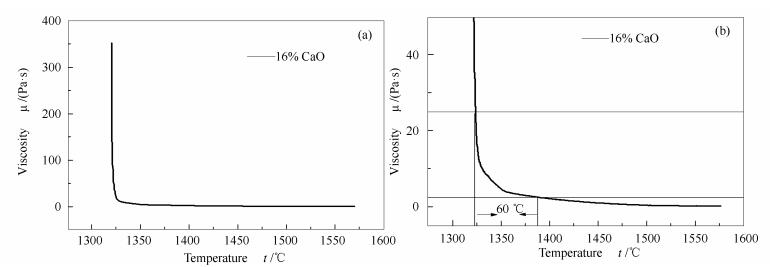

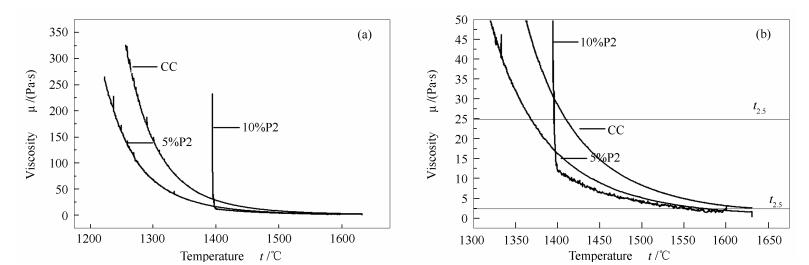

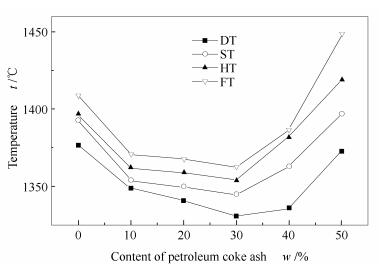

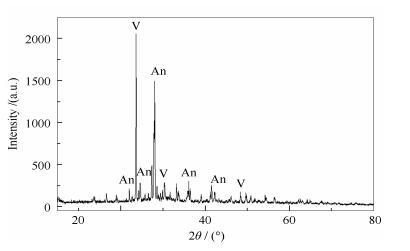

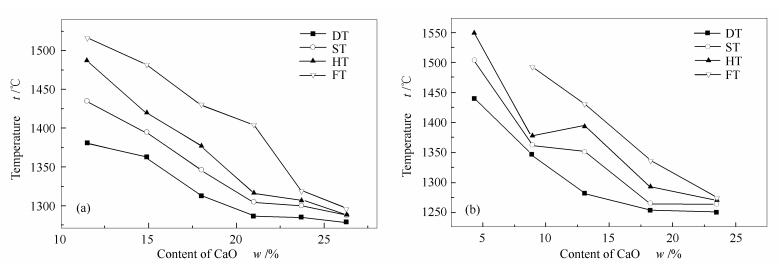

Three ashes containing V and Ni were preparation for the study. CaO addition and coal ash blending were chosen for regulation of high temperature flow properties. The regulation mechanism was explored by XRD, SEM-EDX and ternary phase diagram analysis. The results show that karelianite and Ni are main refractory matters in petroleum coke ash at high temperature. CaO addition and coal ash blending decrease the liquid temperatures of ash components except V and Ni, which reduces the ash fusion temperatures. When the contents of V and Ni are fewer than 30% in ash, CaO can obviously decrease the fusion temperature of ash, and the viscosity-temperature property becomes crystal type. When the contents of V and Ni are higher than 30% in ash, coal ash blending is an effective method to decrease the fusion temperature. In this condition, 5% of coal ash blending ratio is required, and its viscosity-temperature property is suitable for slag tapping, but when the coal ash proportion is 10% the viscosity-temperature property of ash becomes crystal type for the precipitation of vanadium-rich spinel, which cannot meet the requirement of slag tapping.
- ash,
- fusion property,
- viscosity-temperature property,
- regulation
1. [1]
  MIAO Chao, YANG Wei-jun, WANG Hao. Situation and trends in petroleum coke supply & demand by region of the world-Highlights for Argus Asia Petroleum Coke Summit[J]. Int Petrol Econ, 2014,22(5):15-20.
2. [2]
  LEE S H, YOON S J, RA H W, SON Y I, HONG J C, LEE J G. Gasification characteristics of coke and mixture with coal in an entrained-flow gasifier[J]. Energy, 2010,35(8):3239-3244. doi: 10.1016/j.energy.2010.04.007
3. [3]
  ZHAN X, ZHOU Z, KANG W, WANG F. Promoted slurry ability of petroleum coke-water slurry by using black liquor as an additive[J]. Fuel Process Technol, 2010,91(10):1256-1260. doi: 10.1016/j.fuproc.2010.04.006
4. [4]
  SUN Z, DAI Z, ZHOU Z, XU J, YU G. Comparative study of gasification performance between bituminous coal and petroleum coke in the industrial opposed multiburner entrained flow gasifier[J]. Energy Fuels, 2012,26(11):6792-6802.
5. [5]
  LI Wen, BAI Jin. Coal Ash Chemistry[M]. Beijing:Science Press, 2013.
6. [6]
  BRYERS R W. Utilization of petroleum coke and petroleum blends as a means of steam raising coke/coal[J]. Fuel Process Technol, 1995,44(1):121-141.
7. [7]
  JIA L, ANTHONY E J, CHARLAND J P. Investigation of vanadium compounds in ashes from a CFBC firing 100% petroleum coke[J]. Energy Fuels, 2002,16(2):397-403. doi: 10.1021/ef010238o
8. [8]
  PARK W, OH M S. Slagging of petroleum coke ash using Korean anthracites[J]. J Ind and Eng Chem, 2008,14(3):350-356. doi: 10.1016/j.jiec.2007.12.004
9. [9]
  DUCHENSNE M A, ILYUSHECHKIN A Y, HUGHES R W, LU D Y, MCCALDEN D J, MACCHI A, ANTHONY E J. Flow behaviour of slags from coal and petroleum coke blends[J]. Fuel, 2012,97(7):321-328.
10. [10]
  WANG Z, BAI J, KONG L, BAI Z, LI W. Effect of V and Ni on ash fusion temperatures[J]. Energy Fuels, 2013,27(12):7303-7313. doi: 10.1021/ef401651w
11. [11]
  WANG Z, BAI J, KONG L, WEN X, LI X, BAI Z, LI W, SHI Y. Viscosity of coal ash slag containing vanadium and nickel[J]. Fuel Process Technol, 2015,136:25-33. doi: 10.1016/j.fuproc.2014.07.025
12. [12]
  KONG Ling-xue, BAI Jin, LI Wen, BAI Zong-qing, GUO Zhen-xing. Effect of lime addition on slag fluidity of coal ash[J]. J Fuel Chem Technol, 2011,39(6):407-412.
13. [13]
  WANG Da-chuan, LIANG Qin-feng, GONG Xin, LIU Hai-feng, LIU Xia. Fusion properties of Zhujixi washed coal ash adding fluxes[J]. J Fuel Chem Technol, 2015,43(2):153-157.
14. [14]
  KONG Ling-xue. Study on flow properties of representative coal ashes at high temperature[D]. Taiyuan:Institute of Coal Chemistry Chinese Academy of Sciences, 2013.
15. [15]
  LIU Tao, LI Xin-xin, WANG Wei-lin, WU Jia-feng, LIANG Peng. The affecting factors and regulaton of ash fusion characteristics[J]. J Shandong Univ Sci Technol, 2014,33(4):43-49.
16. [16]
  BAI J, LI W, LI C, BAI Z, LI B. Influence of coal blending on mineral transformation at high temperatures[J]. Min Sci Tech, 2009,19(3):300-305.
17. [17]
  XU Rong-sheng, WANG Yong-gang, LIN Xiong-chao, YANG Sa-sha, AI Sha-jiang, YANG Yuan-ping. Mineralogical properties of lowering coal ash melting temperature using blending coal and fluxing agent[J]. J Fuel Chem Technol, 2015,43(11):1303-1308.
18. [18]
  LI H, YOSHIHIKO N, DONG Z, ZHANG M. Application of the FactSage to predict the ash melting behavior in reducing conditions[J]. Chinese J Chem Eng, 2006,14(6):784-789. doi: 10.1016/S1004-9541(07)60012-3
19. [19]
  NAKANO J, KWONG K S, BENNETT J, LAM T, FERNADEZ L, KOMLWIT P, SRIDHAR S. Phase equilibria in synthetic coal-pet coke slags(Al₂O₃-CaO-FeO-SiO₂-V₂O₃) under simulated gasification conditions[J]. Energy Fuels, 2011,25(7):3298-3306. doi: 10.1021/ef200633q
