Citation: LI Wei, XIE Xin-an, TANG Cheng-zheng, LI Yan, LI Lu, WANG Ya-li, WEI Xing, FAN Di. Effects of hydroxyl and hydrogen free radicals on the liquefaction of cellulose in sub/supercritical ethanol[J]. Journal of Fuel Chemistry and Technology, ;2016, 44(4): 415-421. shu

Effects of hydroxyl and hydrogen free radicals on the liquefaction of cellulose in sub/supercritical ethanol

College of Food Science, South China Agricultural University, Guangzhou 510642, China

Corresponding author: XIE Xin-an, xinanxie@scau.edu.cn
Received Date: 12 November 2015
Revised Date: 3 January 2016

Figures(8)

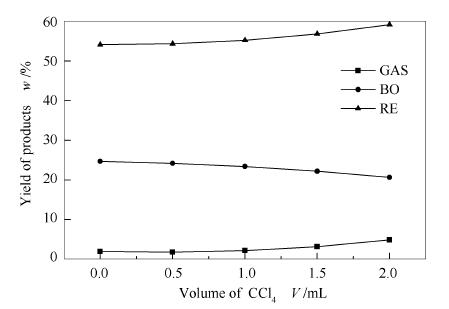

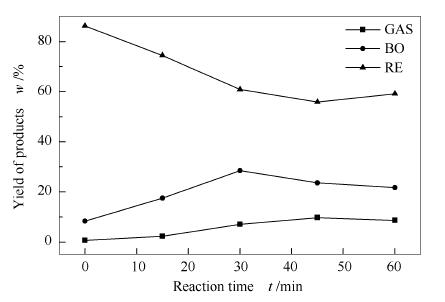

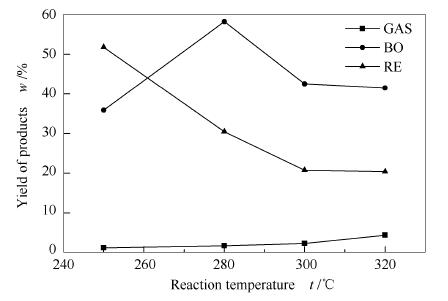

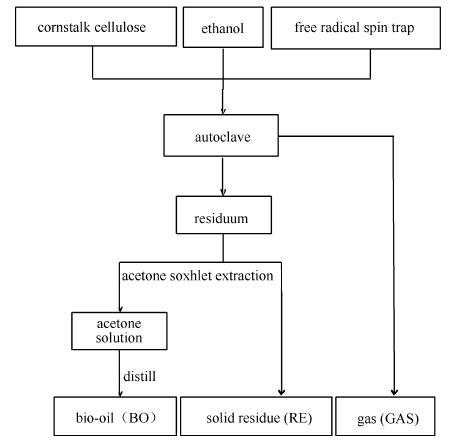

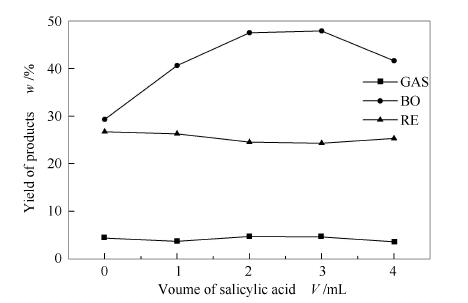

With salicylic acid as hydroxyl radical (HO·) trap and carbon tetrachloride as hydrogen radical (H·) trap, the effects of HO· and H· radicals on the liquefaction of cornstalk cellulose in sub/supercritical ethanol was investigated in an autoclave. The results indicated that the concentration of HO· radical increases with the increase of salicylic acid amount added in the feed from 0 to 4 mL; meanwhile, the bio-oil yield is increased from 29.3% to 47.9%, whereas the residue yield is decreased from 26.7% to 24.3%. The activity of HO· increases with the increase of reaction temperature from 250 to 320 ℃; meanwhile, the bio-oil yield is increased from 35.9% to 58.2%, whereas the residue yield is reduced from 51.8% to 20.4%. On the other hand, the concentration of H· radical decreases with the increase of carbon tetrachloride from 0 to 2 mL; meanwhile, the bio-oil yield is decreased from 24.7% to 20.7%, whereas the residue yield is increased from 54.1% to 59.1%. The liquefaction of cellulose is enhanced within 30 min due to the increase of H· activity; after that, the bio-oil yield begins to decline due to the inhibition of H· activity by CCl₄. Current results proved that ethanol can produce HO· and H· radicals under sub/supercritical state; the concentration and activity of HO· and H· radicals are dependent on the reaction conditions, which may determine the product yield and distribution for the liquefaction of cellulose in sub/supercritical ethanol.
- cellulose,
- liquefaction,
- sub/supercritical ethanol,
- free radical,
- radical trap
1. [1]
  CHEN Xiao-fei. Analysis of the products from alkanolysis of the rice-stalk powder and related mechanism study[D]. Wuhan: Wuhan University of Science and Technology, 2008.
2. [2]
  HIROIKU K, FUMIO K. Free radical behavior in thermal cracking reaction using petroleum oil and model compounds[J]. Catal Today, 1998,43:281-289. doi: 10.1016/S0920-5861(98)00157-6
3. [3]
  HUANG Jin-bao, LIU Chao, WEI Shun-an. Thermodynamic studies of pyrolysis mechanism of cellulose monomer[J]. Asta Chim Sin, 2009,67(18):2081-2086.
4. [4]
  EDITA J, MATJAZ K, MATIJA S. Cellulose liquefaction in acidified ethylene glycol[J]. Cellulose, 2009(16):393-405.
5. [5]
  HESSEIN M, KEAT T L, SUBHASH B, ABDUL R M. Sub/supercritical liquefaction of oil palm fruit press fiber for the production of bio-oil: Effect of solvent[J]. Bioresour Technol, 2010,101:7641-7647. doi: 10.1016/j.biortech.2010.04.072
6. [6]
  TAO Hong-xiu, XIE Xin-an, ZHENG Chao-yang, TANG Cheng-zheng, ZHAN Xiao-qing. Liquefaction of cornstalk cellulose in sub/super-critical ethanol[J]. J Northwest A & F Univ (Nat Sci Ed), 2014(01):196-204.
7. [7]
  YAO Bo, ZHU Tong, LIN Wei-li. Silanization of DHBAs and measurement of gas phase hydroxyl radicals using Gas Chromatography-Mass Spectrometry[J]. Environ Chem, 2006,25(6):773-775.
8. [8]
  ZHOU Jian-zheng, DONG Hua-jin. Determination of hydroxyl radical in fenton reaction by using high performance liquid chromatograph (HPLC) connected with electrochemical detector[J]. Chin J Pharmacol Toxicol, 1995,9(4):299-302.
9. [9]
  RICHMOND R, HALLIWELL B. Formation of hydroxyl radicals from the paraquat radical cation, demonstrated by a highly specific gas chromatographic technique. the role of superoxide radical anion, hydrogen peroxide, and glutathione reductase[J]. J Inorg Biochem, 1982,17(2):95-107. doi: 10.1016/S0162-0134(00)80078-1
10. [10]
  NIE Min, WANG Qi, QIU Gui-hua. Effect of Hydrogen radical scavenger on ultrasonically initiated emulsion polymerization of styrene[J]. Acta Polym Sin, 2007(7):633-637.
11. [11]
  ZHENG Chao-yang, XIE Xin-an, TAO Hong-xiu, ZHENG Lu-si, LI Yan. Depolymerization of stalk cellulose during its liquefaction in sub-and supercritical ethanol[J]. J Fuel Chem Technol, 2012,40(5):526-532.
12. [12]
  SHARYPOV V I, KUZNETSOV B N. Catalytic hydroliquefaction of barzass liptobiolitic coal in a petroleum residue as a solvent[J]. Fuel, 2006,85(7):918-922.
13. [13]
  PÜTÜN A E, ÖZCAN A, PÜTÜN E. Pyrolysis of hazelnut shells in a fixed-bed tubular reactor: Yields and structural analysis of bio-oil[J]. J Anal Appl Pyrolysis, 1999,52(1):33-49. doi: 10.1016/S0165-2370(99)00044-3
14. [14]
  WU Jing-li, WANG Cong-wei, YIN Xiu-li, WU Chuang-zhi, MA Long-long, ZHOU Zhao-qiu, CHEN Han-ping. Study on pyrolysis of heavy fractions of bio-oil by using TG-FTIR analysis[J]. Acta Energ Sol Sin, 2010,31(1):113-117.
15. [15]
  LIAO Yan-fen, LUO Zhong-yang, WANG Shu-rong, YU Chun-jiang, CEN Ke-fa. Mechanism of fast pyrolysis of celluloseⅠ. Experimental research[J]. J Fuel Chem Technol, 2003,31(2):133-138.
16. [16]
  TAO Hong-xiu, XIE Xin-an, TANG Cheng-zheng, TIAN Wen-guang. Mechanism of ketones formation from cellulose liquefaction in sub-and supercritical ethanol[J]. J Fuel Chem Technol, 2013,41(1):60-66.
17. [17]
  SHAO Qian-jun, PENG Jin-xing, XIU Shu-dong, WEN Xian-hong. Analysis of oil products by pyrolysis of bamboo in supercritical methanol[J]. Acta Energ Sol Sin, 2007,28(9):984-987.
18. [18]
  SOARES S, RICARDO N M P S, JONES S, HEATLEY F. High temperature thermal degradation of cellulose in air studied using FT-IR and 1H and 13C solid-state NMR[J]. Eur Polym J, 2001,37(4):737-745. doi: 10.1016/S0014-3057(00)00181-6
19. [19]
  GUO Z, BAI Z, BAI J, WANG Z, LI W. Co-liquefaction of lignite and sawdust under syngas[J]. Fuel Process Technol, 2011,92(1):119-125. doi: 10.1016/j.fuproc.2010.09.014
