Citation: CHEN Meng-wei, GUO Da-liang, WANG Lin-fang, XUE Guo-xin. Depolymerization mechanism of alkali lignin in sub- and supercritical ethanol[J]. Journal of Fuel Chemistry and Technology, ;2016, 44(10): 1203-1210. shu

Depolymerization mechanism of alkali lignin in sub- and supercritical ethanol

1.
College of Materials and Textiles, Zhejiang Sci-Tech University, Hangzhou 310018, China
2.
Key Laboratory of Recycling and Eco-Treatment of Waste Biomass of Zhejiang Province, Zhejiang University of Science and Technology, Hangzhou 310023, China

Corresponding author: XUE Guo-xin, xueguoxin@126.com
Received Date: 5 April 2016
Revised Date: 12 June 2016

Figures(6)

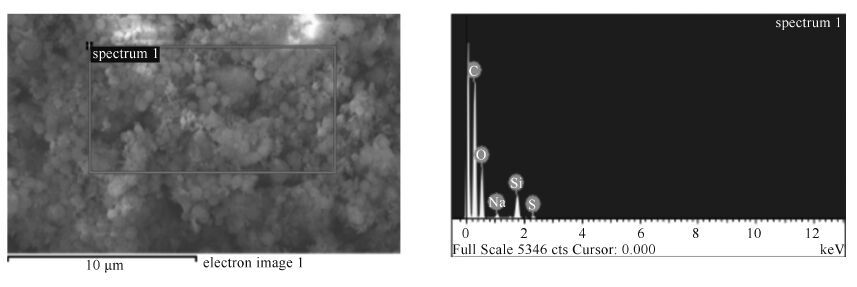

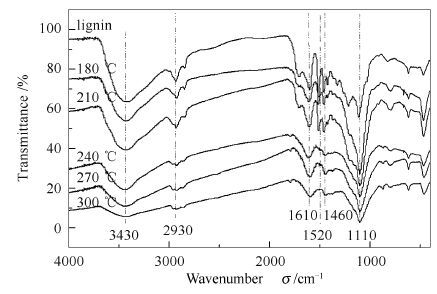

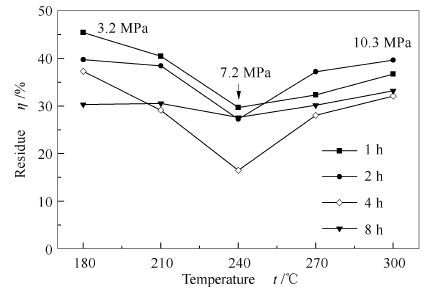

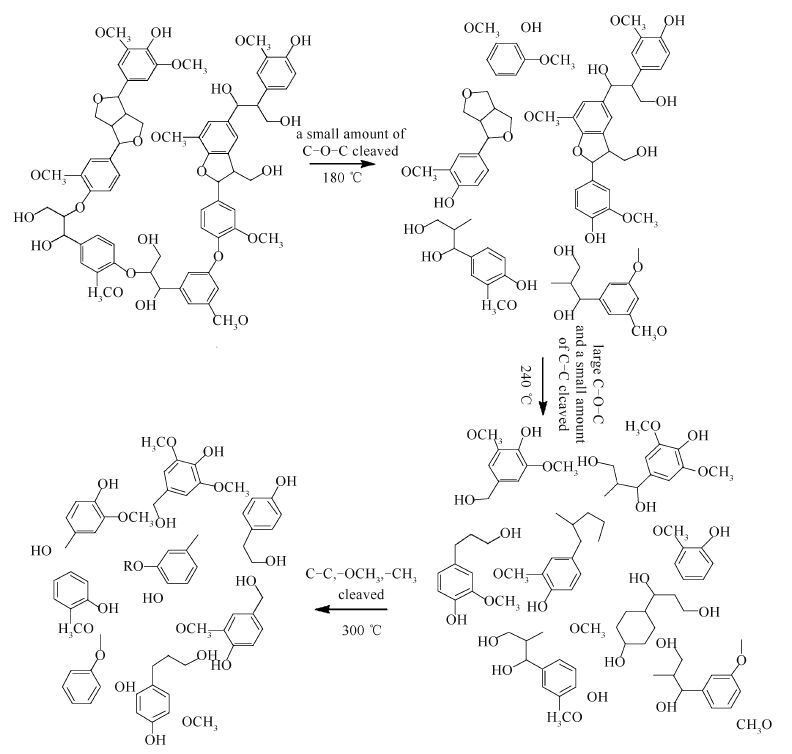

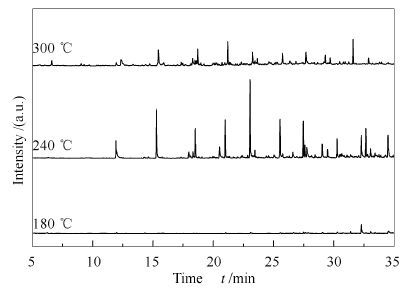

The depolymerization process of wheat straw alkali lignin in sub- and supercritical ethanol was investigated with a micro autoclave reactor. The degraded product properties and the depolymerization mechanism of lignin structure were studied by scanning electron microscopy (SEM), gas chromatography/mass spectrometry (GC/MS) and infrared spectroscopy (FT-IR). The experimental results show that the minimum residual char yield (16.5%) is obtained at the condition of ethanol supercritical point (240℃, 7.2 MPa). Under subcritical ethanol conditions, alkali lignin firstly melts and disperses in ethanol as 1.0-2.0 μm diameter of microspheres, then a small amount of ether linkages and benzene ring side chain C_α are broken to form phenols, esters, ketones and acids products. Under supercritical ethanol conditions, the diameter of molten microsphere is significantly reduced, and plenty of ether linkages and benzene ring side chain C_α are continuously broken, meanwhile, the lipid products are subjected to secondary decomposition reaction. The yield of lipid is decreased (11.94%), while the yield of phenolic products from depolymerization is increased (52.14%).
- alkali lignin,
- sub- and supercritical ethanol,
- depolymerization
1. [1]
  AZADI P, INDERWILDIA O, FARNOOD R, KING D A. Liquid fuels, hydrogen and chemicals from lignin:A critical review[J]. Renewable Sustainable Energy Rev, 2013,21:506-523. doi: 10.1016/j.rser.2012.12.022
2. [2]
  YOSHIKAWA T, YAGI T, SHINOHARA S, FUKUNAGA T, NAKASAKA Y, TAGO T, MASUDA T. Production of phenols from lignin via depolymerization and catalytic cracking[J]. Fuel Process Technol, 2013,108:69-75. doi: 10.1016/j.fuproc.2012.05.003
3. [3]
  PANDEY M P, KIM C S. Lignin depolymerization and conversion:A review of thermochemical methods[J]. Chem Eng Technol, 2011,34(1):29-41. doi: 10.1002/ceat.v34.1
4. [4]
  TOLEDANO A, SERRANO L, LABIDI J. Improving base catalyzed lignin depolymerization by avoiding lignin repolymerization[J]. Fuel, 2014,116:617-624. doi: 10.1016/j.fuel.2013.08.071
5. [5]
  YUAN Z, CHENG S, LEITCH M, XU C C. Hydrolytic degradation of alkaline lignin in hot-compressed water and ethanol[J]. Bioresour Technol, 2010,101(23):9308-9313. doi: 10.1016/j.biortech.2010.06.140
6. [6]
  MAHMOOD N, YUAN Z, SCHMIDT J, XU C C. Hydrolytic depolymerization of hydrolysis lignin:Effects of catalysts and solvents[J]. Bioresour Technol, 2015,190:416-419. doi: 10.1016/j.biortech.2015.04.074
7. [7]
  ZHOU Jing-hui, XIE Zhang-hong, WANG Xing, ZHENG Lai-jiu. Advance in lignin-depolymerization and reaction mechanism by supercritical fluids technique[J]. J Dalian Polytech Univ, 2013,32(6):426-431.
8. [8]
  PIŃKOWSKA H, WOLAK P, ZŁOCIŃSKA A. Hydrothermal decomposition of alkali lignin in sub-and supercritical water[J]. Chem Eng J, 2012,187:410-414. doi: 10.1016/j.cej.2012.01.092
9. [9]
  KIM J Y, OH S, WANG H H, CHO T S, CHOI I G, CHOI J W. Effects of various reaction parameters on solvolytical depolymerization of lignin in sub-and supercritical ethanol[J]. Chemosphere, 2013,93(9):1755-1764. doi: 10.1016/j.chemosphere.2013.06.003
10. [10]
  TAN S S, MACFARLANE D R, UPFAL J, EDYE L A, DOHERTY W O, PATTI A F, SCOTT J L. Extraction of lignin from lignocellulose at atmospheric pressure using alkylbenzenesulfonate ionic liquid[J]. Green Chem, 2009,11(3):339-345. doi: 10.1039/b815310h
11. [11]
  CHENG S, WIKS C, YUAN Z, LEITCH M, XU C C. Hydrothermal degradation of alkali lignin to bio-phenolic compounds in sub/supercritical ethanol and water-ethanol co-solvent[J]. Polym Degrad Stab, 2012,97(6):839-848. doi: 10.1016/j.polymdegradstab.2012.03.044
12. [12]
  HU J, SHEN D, WU S, ZHANG H, XIAO R. Effect of temperature on structure evolution in char from hydrothermal degradation of lignin[J]. J Anal Appl Pyrolysis, 2014,106:118-124. doi: 10.1016/j.jaap.2014.01.008
13. [13]
  SHARMA R K, WOOTEN J B, BALIGA V L, LIN X, CHAN W G, HAJALIGOL M R. Characterization of chars from pyrolysis of lignin[J]. Fuel, 2004,83(11):1469-1482.
14. [14]
  LORA J H, GLASSER W G. Recent industrial applications of lignin:A sustainable alternative to nonrenewable materials[J]. J Polym Environ, 2002,10(1/2):39-48. doi: 10.1023/A:1021070006895
