Citation: MENG Yu, LIU Xiao-yan, BAI Miao-miao, WANG Ying, MA Ya-jun, CAO Zhi. First-principles study on the CO adsorption and electronic properties of Fe (111) modified by Cu single atom[J]. Journal of Fuel Chemistry and Technology, ;2020, 48(4): 440-447. shu

First-principles study on the CO adsorption and electronic properties of Fe (111) modified by Cu single atom

MENG Yu ^1,2,, ,
LIU Xiao-yan ¹ ,
BAI Miao-miao ¹ ,
WANG Ying ¹ ,
MA Ya-jun ¹ ,
CAO Zhi ²

1.
Shaanxi Key Laboratory of Low Metamorphic Coal Clean Utilization, Yulin University, Yulin 719000, China
2.
State Key Laboratory of Coal Conversion, Institute of Coal Chemistry, Chinese Academy of Sciences, Taiyuan 030001, China

Corresponding author: MENG Yu, mengyu@yulinu.edu.cn
Received Date: 19 January 2020
Revised Date: 15 April 2020

Fund Project: Scientific Research Program Funded by Yulin Government 2019-83-1Natural Science Foundation Research Program of Shaanxi province 2019JQ-905Scientific Research Program Funded by Shaanxi Provincial Education Department 19JS071Natural Science Foundation Research Program of Shaanxi province 2018JZ2004PhD Research Startup Foundation of Yulin University 17GK13PhD Research Startup Foundation of Yulin University 17GK12The project was supported by the Natural Science Foundation Research Program of Shaanxi province (2019JQ-905, 2018JZ2004), Scientific Research Program Funded by Shaanxi Provincial Education Department (19JS071), Scientific Research Program Funded by Yulin Government(2019-83-1), PhD Research Startup Foundation of Yulin University (17GK12, 17GK13) and the Foundation of State Key Laboratory of Coal Conversion (J20-21-908)Foundation of State Key Laboratory of Coal Conversion J20-21-908

Figures(6)

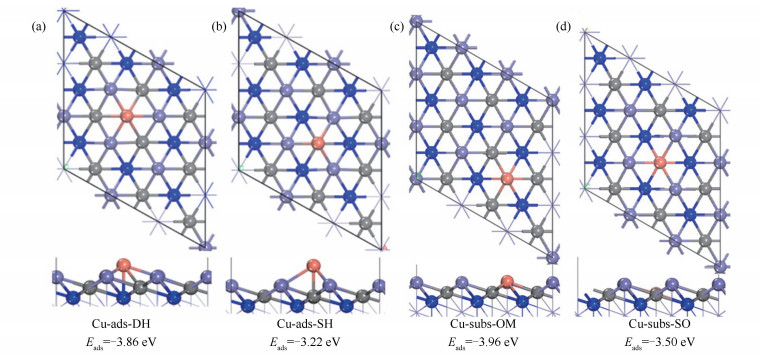

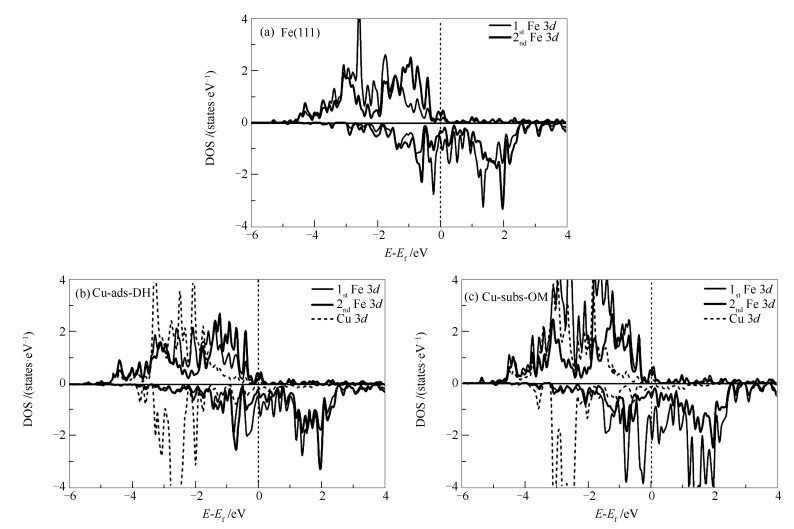

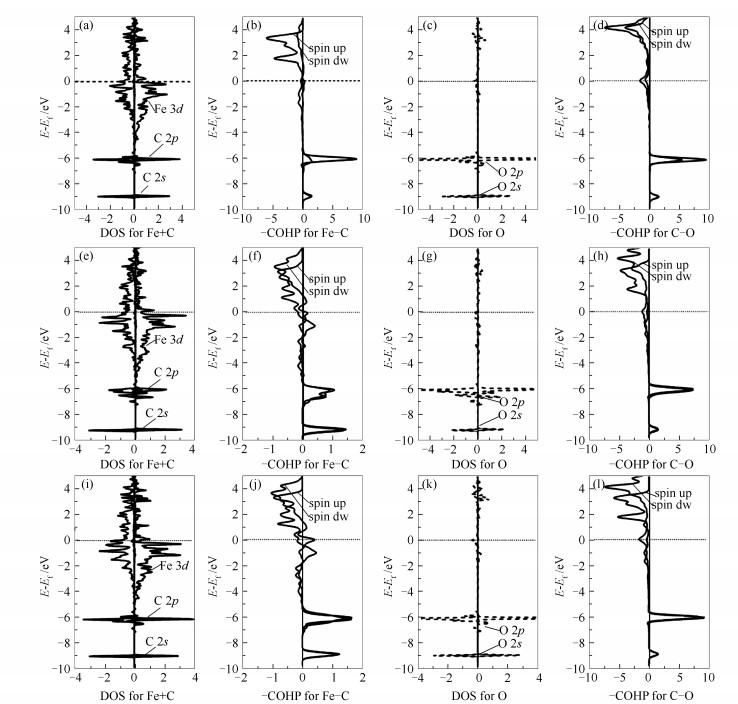

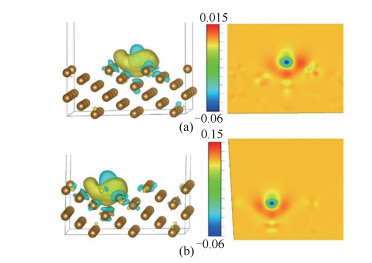

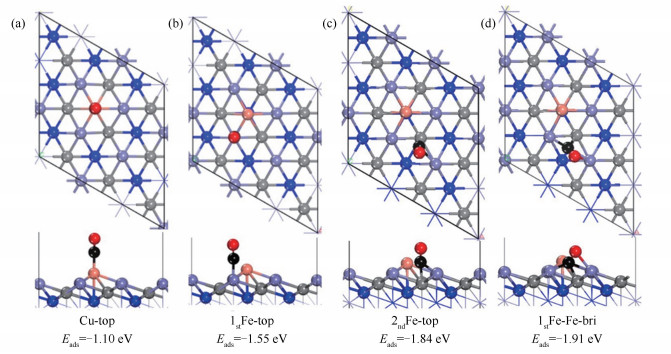

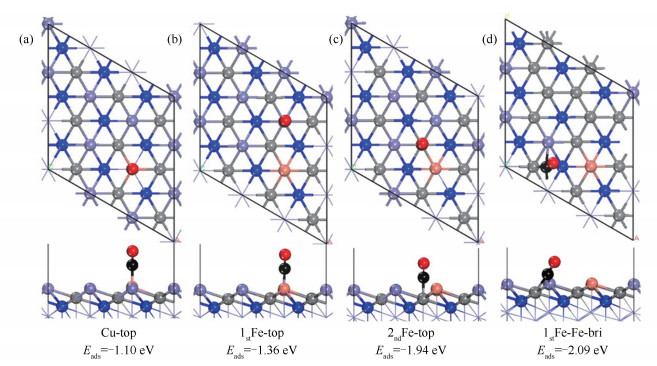

In this paper, the effect of Cu single atom modification on the adsorption of CO and electronic properties of Fe (111) surface has been studied by density functional theory (DFT). Two ways of adsorption and substitution have been studied for Cu mono-atom modification. The results show that the adsorption capacity of CO on the Cu modified Fe (111) becomes weak. One reason is that the sites provided by the Cu atom itself are weak for CO, and the other is that Cu weakens the adsorption of CO on the Fe nearby Cu. The analysis of electronic properties indicates that when Cu acts on the Fe (111), the part electrons of Fe can be transferred to the Cu, which weakens the electronic interaction between Fe and adsorbed molecules, and adjusts its adsorption capacity. Therefore, the Fe surface modified by Cu atom can well adjust the adsorption, dissociation and subsequent reaction catalytic activity of CO, which provides basic information to further explore the syngas catalytic reaction mechanism of Cu modified Fe surface.
- Fe (111),
- density functional theory,
- monoatomic Cu modification,
- CO adsorption
1. [1]
  ZHANG Q, KANG J, WANG Y. Development of novel catalysts for Fischer-Tropsch synthesis:Tuning the product selectivity[J]. ChemCatChem, 2010,2:1030-1058. doi: 10.1002/cctc.201000071
2. [2]
  WANG Run-ping, MAO Shu-hong, CHI Yong-hong, DUAN Xiu-qin, LIU Jun. Overview of the study on FT synthesis of iron-based catalyst auxiliaries[J]. Tianjin Chem Ind, 2008,22:17-19.
3. [3]
  HUO C F, WU B S, GAO P, YANG Y, LI Y W, JIAO H. The mechanism of potassium promoter:Enhancing the stability of active surfaces[J]. Angew Chem Int Ed, 2011,50:7403-7406. doi: 10.1002/anie.201007484
4. [4]
  VAN STEEN E, CLAEYS M. Fischer-Tropsch catalysts for the biomass-to-liquid process[J]. Chem Eng Technol, 2008,31:655-666. doi: 10.1002/ceat.200800067
5. [5]
  CHONCO Z H, FERREIRA A, LODYA L, CLAEYSM , VAN STEEN E. Comparing silver and copper as promoters in Fe-based Fischer-Tropsch catalysts using delafossite as a model compound[J]. J Catal, 2013,307:283-294. doi: 10.1016/j.jcat.2013.08.005
6. [6]
  CHONCO Z H, LODYA L, CLAEYS M, VAN STEEN E. A model for investigating the role of copper in the dynamic iron-based Fischer-Tropsch catalyst[J]. J Catal, 2013,308:363-373. doi: 10.1016/j.jcat.2013.08.012
7. [7]
  O'BRIEN R J, DAVIS B H. Impact of copper on an alkali promoted Iron Fischer-Tropsch catalyst[J]. Catal Lett, 2004,94:1-6. doi: 10.1023/B:CATL.0000019322.69160.ef
8. [8]
  HU Wei. Preparation Of Cu-Fe Catalysts For Low Carbon Alcohols And Mechanism Research[D]. Shanghai: East China University of Science and Technology, 2017.
9. [9]
  LI Ming-yang, LI Tao. Effect of Fe modified Cu/Zn/MgO catalyst on the synthesis of lower alcohol from syngas[J]. Fine Chem, 2015,32(6):646-651.
10. [10]
  HE S, WANG W, SHEN Z. Carbon nanotube-supported bimetallic Cu-Fe catalysts for syngas conversion to higher alcohols[J]. Mol Catal, 2019,479110610. doi: 10.1016/j.mcat.2019.110610
11. [11]
  SHI X, YU H, GAO S. Synergistic effect of nitrogen-doped carbon-nanotube-supported Cu-Fe catalyst for the synthesis of higher alcohols from syngas[J]. Fuel, 2017,210:241-248. doi: 10.1016/j.fuel.2017.08.064
12. [12]
  WANG T, TIAN X X, LI Y W, WANG J, BELLER M, JIAO H. Coverage-dependent CO adsorption and dissociation mechanisms on iron surfaces from DFT computations[J]. ACS Catal, 2014,4(6):1991-2005. doi: 10.1021/cs500287r
13. [13]
  WANG T, TIAN X, YANG Y, LI Y, WANG J, BELLER M, JIAO H. Co-adsorption and mutual interaction of nCO+mH₂ on the Fe(110) and Fe(111) surfaces[J]. Catal Today, 2015,261:82-92.
14. [14]
  LIU S, LI Y, WANG J, JIAO H. Reactions of CO, H₂O, CO₂, and H₂ on the clean and precovered Fe(110) surfaces-A DFT investigation[J]. J Phys Chem C, 2015,119(51):28377-28388. doi: 10.1021/acs.jpcc.5b07497
15. [15]
  CAO D B, WANG S G, LI Y W, WANG J, JIAO H. What is the product of ketene hydrogenation on Fe₅C₂(001):Oxygenates or hydrocarbons?[J]. J Mol Catal A:Chem, 2007,272(1/2):275-287.
16. [16]
  LING L, WANG Q, ZHANG R. Formation of C₂ oxygenates and ethanol from syngas on an Fe-decorated Cu-based catalyst:Insight into the role of Fe as a promoter[J]. Phys Chem Chem Phys, 2017,19(45):30883-30894. doi: 10.1039/C7CP05411D
17. [17]
  TIAN X, WANG T, YANG Y, LI Y W, JIAO H J. Structures and energies of Cu clusters on Fe and Fe₃C surfaces from density functional theory computation[J]. Phys Chem Chem Phys, 2014,16(48):26997-27011. doi: 10.1039/C4CP04012K
18. [18]
  ZHAO Xun-hua, LI Yong-wang, WANG Jian-guo, HUO Chun-fang. CO adsorption, CO dissociation, and CC coupling on Cu monolayer-covered Fe (100)[J]. J Fuel Chem Technol, 2011,39(12):956-960. doi: 10.3969/j.issn.0253-2409.2011.12.013
19. [19]
  KRESSE G, FURTHMVLLER J. Efficiency of Ab-initio total energy calculations for metals and semiconductors using a plane-wave basis set[J]. Comput Mater Sci, 1996,6:15-50. doi: 10.1016/0927-0256(96)00008-0
20. [20]
  KRESSE G, FURTHMVLLER J. Efficient iterative schemes for ab initio total-energy calculations using a plane-wave basis set[J]. Phys Rev B, 1996,54:11169-11186. doi: 10.1103/PhysRevB.54.11169
21. [21]
  BLÖCHL P E. Projector augmented-wave method[J]. Phys Rev B, 1994,50:17953-17979. doi: 10.1103/PhysRevB.50.17953
22. [22]
  KRESSE G, HAFNER J. First-principles study of the adsorption of atomic H on Ni (111), (100) and (110)[J]. Surf Sci, 2000,459:287-302. doi: 10.1016/S0039-6028(00)00457-X
23. [23]
  PERDEW J P, BURKE K, ERNZERHOF M. Generalized gradient approximation made simple[J]. Phys Rev Lett, 1996,77:3865-3868. doi: 10.1103/PhysRevLett.77.3865
24. [24]
  PERDEW J P, BURKEK , ERNZERHOF M. ERRATA:Generalized gradient approximation made simple[J]. Phys Rev Lett, 1997,781396.
25. [25]
  METHFESSEL M, PAXTON A T. High-precision sampling for brillouin-zone integration in metals[J]. Phys Rev B, 1989,403616. doi: 10.1103/PhysRevB.40.3616
26. [26]
  BLIGAARD T, NØRSKOV J K, DAHL S, MATTHIESEN J, CHRISTENSEN CH, SEHESTED J. The Brønsted-Evans-Polanyi relation and the volcano curve in heterogeneous catalysis[J]. J Catal, 2004,224:206-217. doi: 10.1016/j.jcat.2004.02.034
