Citation: Zhang Yimin, Xu Jingna, Bai Jiarui. Microwave-Assisted Synthesis and Characterations of Sulfobutyl Ether β-Cyclodextrins[J]. Chemistry, ;2017, 80(6): 585-588, 572. shu

Microwave-Assisted Synthesis and Characterations of Sulfobutyl Ether β-Cyclodextrins

Key Laboratory for Green Chemical Technology of Ministry of Education, School of Chemical Engineering & Technology, Collaborative Innovation Center of Chemical Science and Engineeing(Tianjin), Tianjin University, Tianjin 300350

Received Date: 22 October 2016
Accepted Date: 3 January 2017

Figures(5)

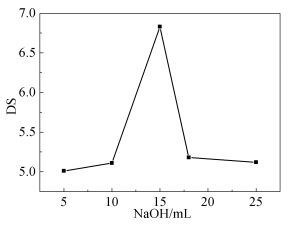

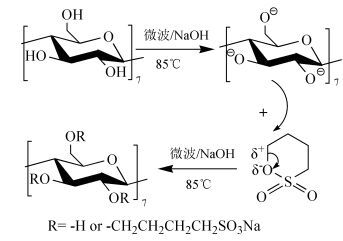

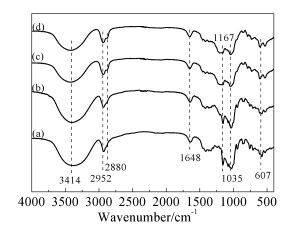

A novel process for microwave-assisted synthesis of sulfobutyl ether-β-cyclodextrins was investigated through reaction between β-cyclodextrin and 1, 4-butane sultone with adding the alkali stepwise. The effects of initial amount of alkali on the degree of substitution were evaluated. Under the synthesis conditions:the molar ratios of 1, 4-butane sultone and β-cyclodextrin are 1:1.2, 1:5, 1:8, respectively, the reaction temperature is 85℃, microwave output power is 400 W, and the reaction time is 2~3h, the average degrees of substitution of products are 1.12, 3.96, 6.83, and the yield of sulfobutyl ether β-cyclodextrin derivatives is up to 86.3%, 85.6%, 85.1%, respectively. The average degree of substitution and the characterizations of sulfobutyl ether β-cyclodextrin derivatives were investigated by means of IR, ¹H NMR, MS and capillary electrophoresis. The experimental results showed that, compared with the conventional heating process, the novel process for the synthesis of sulfobutyl ether β-cyclodextrins with specific average degree of substitution has the advantages of shorter reaction time, less alkali, milder reaction conditions, etc.
- β-cyclodextrin,
- 1, 4-butane sultone,
- Sulfobutyl ether-β-cyclodextrins,
- Microwave radiation
1. [1]
2. [2]
3. [3]
  P Rai, M Srivastava, S Yadav et al. Catal. Lett., 2015, 145(12):2020~2028.
4. [4]
5. [5]
6. [6]
  L Szente, J Szejtli. Adv. Drug Deliver. Rev., 1999, 36(1):17~28.
7. [7]
8. [8]
  S Tong, H Zhang, M Shen et al. J. Chromatogr. B, 2014, 962:44~51.
9. [9]
  P Blach, D Landy, S Fourmentin et al. Adv. Synth. Catal., 2005, 347(9):1301~1307.
10. [10]
  D Y Ma, Y M Zhang, J N Xu. Tetrahedron, 2016, 72(22):3105~3112.
11. [11]
12. [12]
  P Lidstrom, J Tierney, B Wathey et al. Tetrahedron, 2001, 57(51):9225~9283.
13. [13]
  L Perreux, A Loupy. Tetrahedron, 2001, 57(45):9199~9223.
14. [14]
  S Tongiani, D V Velde, T Ozeki et al. J. Pharm. Sci-US., 2005, 94(11):2380~2392.
15. [15]
  R Jacquet, P Favetta, C Elfakir et al. J. Chromatogr. A, 2005, 1083(1/2):106~112.
