Citation: WANG Sheng, HUANG Zhen, FANG Yue, QIN Feng, XU Hua-long, SHEN Wei. Direct synthesis of isoalkanes from syngas over ZnCrOx/HZSM-5 catalyst[J]. Journal of Fuel Chemistry and Technology, ;2018, 46(10): 1218-1224. shu

Direct synthesis of isoalkanes from syngas over ZnCrOx/HZSM-5 catalyst

  • Shanghai Key Laboratory of Molecular Catalysis and Innovative Materials, Department of Chemistry, Fudan University, Shanghai 200433, China

  • Corresponding author: SHEN Wei, wshen@fudan.edu.cn
  • Received Date: 2 April 2018
    Revised Date: 6 July 2018

    Fund Project: the Shanghai Science and Technology Committee 14DZ2273900the Ministry of Science and Technology of China 91645201the National Science and Technology Key Project of China 2017YFB0602204The project was supported by the National Science and Technology Key Project of China (2017YFB0602204), the Ministry of Science and Technology of China (91645201) and the Shanghai Science and Technology Committee (14DZ2273900)

Figures(6)

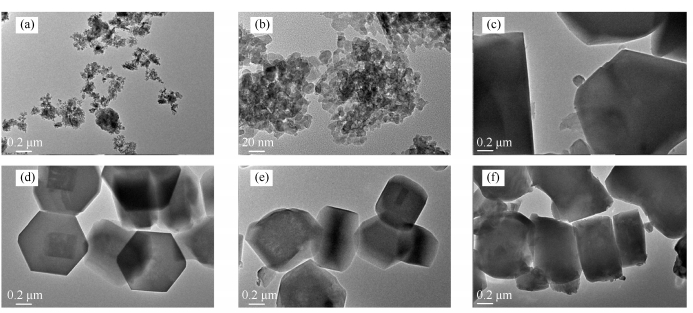

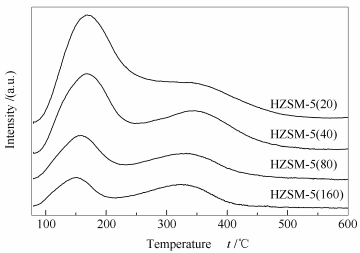

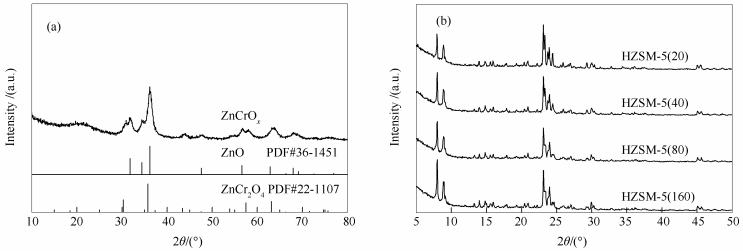

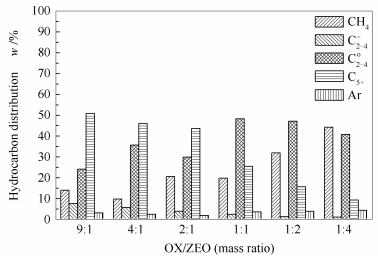

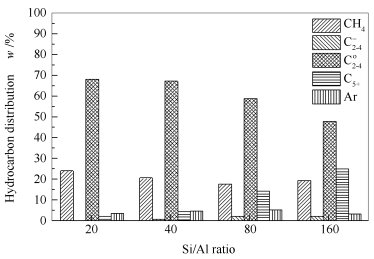

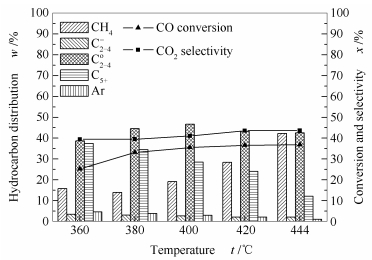

  • ZnCrOx composite oxide and HZSM-5 zeolite were prepared by using the coprecipitation and hydrothermal methods, respectively; after that, a bi-functional ZnCrOx/HZSM-5 catalyst was obtained through physical mixing of ZnCrOx with HZSM-5 and used in the direct synthesis of isoalkanes from syngas. The ZnCrOx/HZSM-5 catalyst was characterized by XRD, TEM, N2 sorption, and NH3-TPD and the effects of Si/Al ratio in HZSM-5 and the mass ratio of ZnCrOx to HZSM-5 (OX/ZEO mass ratio) on the catalytic performance of ZnCrOx/HZSM-5 in syngas conversion were investigated. The results indicated that with the increase of Si/Al ratio in HZSM-5, the catalyst acid density is decreased, resulting in a lower CO conversion but higher selectivity to C5+ products and higher isoparaffin fraction. Moreover, the selectivity to C5+ products is significantly increased by increasing the proportion of ZnCrOx components in the bifunctional catalyst without losing CO conversion. For the syngas conversion over ZnCrOx/HZSM-5 catalyst under the conditions of 400 ℃, 2.0 MPa, gas hourly space velocity (GHSV) of 3600 mL/(h·gcat), the conversion of syngas reaches 35%, with a selectivity of 44% to C5+ products and an isopentane fraction up to 65% in the C5+ products.
  • 加载中
    1. [1]

      TORRES GALVIS H M, BITTER J H, KHARE C B, RUITENBEEK M, DUGULAN A I, DE JONG K P. Supported iron nanoparticles as catalysts for sustainable production of lower olefins[J]. Science, 2012,335(6070):835-838. doi: 10.1126/science.1215614

    2. [2]

      FU X-P, SHEN Q-K, SHI D, WU K, JIN Z, WANG X, SI R, SONG Q-S, JIA C-J, YAN C-H. Co3O4-Al2O3 mesoporous hollow spheres as efficient catalyst for Fischer-Tropsch synthesis[J]. Appl Catal B:Environ, 2017,211:176-187. doi: 10.1016/j.apcatb.2017.04.036

    3. [3]

      ZHONG L, YU F, AN Y, ZHAO Y, SUN Y, LI Z, LIN T, LIN Y, QI X, DAI Y, GU L, HU J, JIN S, SHEN Q, WANG H. Cobalt carbide nanoprisms for direct production of lower olefins from syngas[J]. Nature, 2016,538:84-87. doi: 10.1038/nature19786

    4. [4]

      LI X, FENG X, GE Q, FUJIMOTO K. Direct synthesis of iso-paraffins from syngas with slurry phase reaction[J]. Fuel, 2008,87(4):534-538.

    5. [5]

      ZHAO B, ZHAI P, WANG P F, LI J Q, LI T, PENG M, ZHAO M, HU G, YANG Y, LI Y W, ZHANG Q, FAN W, MA D. Direct transformation of syngas to aromatics over Na-Zn-Fe5C2 and hierarchical HZSM-5 tandem catalysts[J]. Chem, 2017,3(2):323-333. doi: 10.1016/j.chempr.2017.06.017

    6. [6]

      JIAO F, LI J, PAN X, XIAO J, LI H, MA H, WEI M, PAN Y, ZHOU Z, LI M, MIAO S, LI J, ZHU Y F, XIAO D, HE T, YANG J H, QI F, FU Q, BAO X H. Selective conversion of syngas to light olefins[J]. Science, 2016,351(6277):1065-1068. doi: 10.1126/science.aaf1835

    7. [7]

      CHENG K, GU B, LIU X, KANG J, ZHANG Q, WANG Y. Direct and highly selective conversion of synthesis gas into lower olefins:design of a bifunctional catalyst combining methanol synthesis and carbon-carbon coupling[J]. Angew Chem Int Ed, 2016,55(15):4725-4728. doi: 10.1002/anie.201601208

    8. [8]

      CHENG K, ZHOU W, KANG J, HE S, SHI S, ZHANG Q, PAN Y, WEN W, WANG Y. Bifunctional catalysts for one-step conversion of syngas into aromatics with excellent selectivity and stability[J]. Chem, 2017,3(2):334-347. doi: 10.1016/j.chempr.2017.05.007

    9. [9]

      YANG J, PAN X, JIAO F, LI J, BAO X. Direct conversion of syngas to aromatics[J]. Chem Commun, 2017,53(81):11146-11149. doi: 10.1039/C7CC04768A

    10. [10]

      ZHANG P, TAN L, YANG G, TSUBAKI N. One-pass selective conversion of syngas to paraxylene[J]. Chem Sci, 2017,8(12):7941-7946. doi: 10.1039/C7SC03427J

    11. [11]

      HOFF T C, THILAKARATNE R, GARDNER D W, BROWN R C, TESSONNIER J-P. Thermal stability of aluminum-rich ZSM-5 zeolites and consequences on aromatization reactions[J]. J Phys Chem C, 2016,120(36):20103-20113. doi: 10.1021/acs.jpcc.6b04671

    12. [12]

      PÉREZ-URIARTE P, GAMERO M, ATEKA A, DÍAZ M, AGUAYO A T, BILBAO J. Effect of the acidity of HZSM-5 zeolite and the binder in the DME transformation to olefins[J]. Ind Eng Chem Res, 2016,55(6):1513-1521. doi: 10.1021/acs.iecr.5b04477

    13. [13]

      BORTNOVSKY O, SAZAMA P, WICHTERLOVA B. Cracking of pentenes to C2-4 light olefins over zeolites and zeotypes role of topology and acid site strength and concentration[J]. Appl Catal A:Gen, 2005,287(2):203-213. doi: 10.1016/j.apcata.2005.03.037
