Citation: WANG Lin-fang, ZOU Cheng, GUO Da-liang, XUE Guo-xin. Effect of extraction temperature on depolymerization characteristics of ethanol organosolv lignin in supercritical ethanol[J]. Journal of Fuel Chemistry and Technology, ;2017, 45(7): 798-804. shu

Effect of extraction temperature on depolymerization characteristics of ethanol organosolv lignin in supercritical ethanol

WANG Lin-fang ^1,2 ,
ZOU Cheng ^1,3 ,
GUO Da-liang ^1,2,3,*,, ,
XUE Guo-xin ^1,*,,

1.
College of Materials and Textiles, Zhejiang Sci-Tech University, Hangzhou 310018, China
2.
Institute of Chemical Industry of Forest Products Chinese Academy of Forestry, Jiangsu Key Lab of Biomass Energy & Materials, Nanjing 210042, China
3.
Tianjin Key Lab of Pulp & Paper, Tianjin University of Science & Technology, Tianjin 300457, China

Corresponding author: GUO Da-liang, guodl@zstu.edu.cn XUE Guo-xin, xueguoxin@126.com
Received Date: 16 January 2017
Revised Date: 14 March 2017

Fund Project: Zhejiang Province Natural Science Foundation of China LY16C160005Zhejiang Provincial Top Key Academic Discipline of Chemical Engineering and Technology, Zhejiang Sci-Tech University 2013YBZX06the Open Fund of Key Laboratory of Biomass Energy and Material of China JSBEM201504Zhejiang Provincial Top Key Academic Discipline of Chemical Engineering and Technology, Zhejiang Sci-Tech University ZYG2015012the Open Fund of Tianjin Key Laboratory of Pulp & Paper (Tianjin University of Science & Technology) 201601

Figures(5)

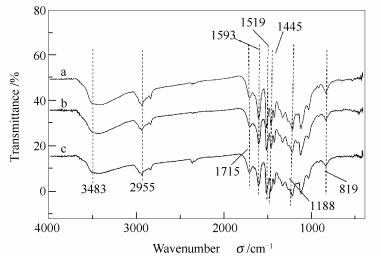

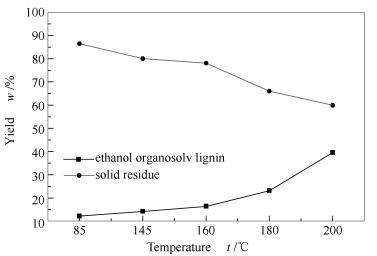

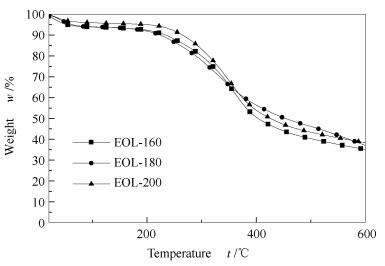

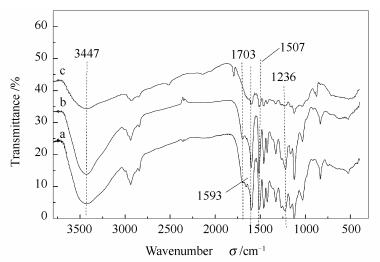

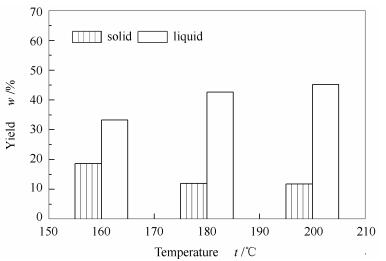

Effect of extraction temperature (160, 180 and 200 ℃) on depolymerization characteristics of ethanol organosolv lignin (EOL) was investigated with a micro autoclave reactor. Three different EOLs (EOL-160, EOL-180 and EOL-200) were prepared by controlling extraction temperature, and their properties including functional groups, molecular weight distribution and thermogravimetric properties were analyzed by infrared spectroscopy (FT-IR), gel permeation chromatography (GPC) and thermogravimetric analysis (TG). The liquid and solid products obtaining from EOLs depolymerized in supercritical ethanol were analyzed by gas chromatography/mass spectrometry (GC/MS) and FT-IR, respectively. The results show that the main phenolic compound product for EOL-160, EOL-180 and EOL-200 depolymerized in supercritical ethanol were paraethyl phenol, 2,6-dimethoxy phenol and 4-hydroxy-3-methoxy-benzoate, respectively.
- extraction temperature,
- ethanol organosolv lignin,
- supercritical ethanol,
- depolymerization
1. [1]
  KIFAYAT U, MUSHTAQ A, VINOD K, LU P, ADAM H, MUHAMMAD Z, SHAZIA S. Assessing the potential of algal biomass opportunities for bioenergy industry:A review[J]. Fuel, 2015,143(4):414-423.
2. [2]
  SUN Yong, LI Zuo-hu, XIAO Huang-xin. The research progress of lignin separation methods[J]. China Pulp Pap Ind, 2005,26(10):58-61.
3. [3]
  ZHANG J G, HIROYUKI A, JEAPHIANNE V R. Highly efficient, NiAu-catalyzed hydrogenolysis of lignin into phenolic chemicals[J]. Green Chem, 2014,16(5):2432-2437. doi: 10.1039/C3GC42589D
4. [4]
  CHEN Meng-wei, GUO Da-liang, WANG Lin-fang, XUE Guo-xin. Study on the depolymerization mechanism of alkali lignin in sub-and supercritical sthanol[J]. J Fuel Chem Technol, 2016,44(10):1203-1210. doi: 10.3969/j.issn.0253-2409.2016.10.007
5. [5]
  YUAN Z S, CHENG S, LEITCH M. Hydrolytic degradation of alkaline lignin in hot-compressed water and ethanol[J]. Bioresour Technol, 2010,101(23):9308-9313. doi: 10.1016/j.biortech.2010.06.140
6. [6]
  PARK S Y, CHANG Y H, HAN S J. Improvement of oil properties by combination of organic solvents and formic acid during supercritical depolymerization[J]. J Anal Appl Pyrolysis, 2016,121:113-120. doi: 10.1016/j.jaap.2016.07.011
7. [7]
  ANA T, LUIS S, JALEL L. Improving base catalyzed lignin depolymerization byavoiding lignin repolymerization[J]. Fuel, 2014,116:617-624. doi: 10.1016/j.fuel.2013.08.071
8. [8]
  GOSSELINK R J, TEUNISSEN W, VAN D J, DE J E, GELLERSTEDT G, SCOTT E L. Lignin depolymerisation in supercritical carbon dioxide/acetone/water fluid for the production of aromatic chemicals[J]. Bioresour Technol, 2012,106:173-177. doi: 10.1016/j.biortech.2011.11.121
9. [9]
  YUE Y Y, YU Z, JUAN F, JIE C. Novel method for production of phenolics by combining lignin extraction with lignin depolymerization in aqueous ethanol[J]. Ind Eng Chem Res, 2012,51(1):103-110. doi: 10.1021/ie202118d
10. [10]
  QIU L Y, JIAN B S, LU L. Characterization of structural changes of lignin in the process of cooking of bagasse with solid alkali and active oxygen as a pretreatment for lignin conversion[J]. Energy Fuels, 2012,26(11):6999-7004.
11. [11]
  LOU Rui. Thermal cracking characteristics of non-wood fiber lignin and product form the way of control[D]. Guangzhou:South China University of Technology, 2011.
12. [12]
  YANZ G, JING H Z, JIA L W, GUANG W S, YI J S. Structural transformations of triploid of Populus tomentosa Carr. Lignin during auto-catalyzed ethanol organosolv pretreatment[J]. Ind Crop Prod, 2015,76:522-529. doi: 10.1016/j.indcrop.2015.06.020
13. [13]
  MAURICIO Y S, BETTY M, CAROLINA N, SHAOBO P. Physicochemical characterization of ethanol organosolv lignin (EOL) from Eucalyptus globulus:Effect of extraction conditions on the molecular structure[J]. Polym Degrad Stabil, 2014,110(1s):184-194.
14. [14]
  MAHMOOD N, YUAN Z, SCHMIDT J, XU C C. Hydrolytic depolymerization of hydrolysis lignin:Effects of catalysts and solvents[J]. Bioresour Technol, 2015,190:416-419. doi: 10.1016/j.biortech.2015.04.074
15. [15]
  MIAO W, JIN H P, XUE M Z. Enhancement of lignin biopolymer Isolation from hybrid poplar by organosolv pretreatments[J]. Int J Polym Sci, 2014(3):1-10.
