Citation: Wang Yuting. Study on Preparation of WO_3-x/C Nanocomposite by PECVD Method and Their Lithium-Ion Storage Properties[J]. Chemistry, ;2020, 83(6): 557-563, 575. shu

Study on Preparation of WO_3-x/C Nanocomposite by PECVD Method and Their Lithium-Ion Storage Properties

Wang Yuting

School of Environmental Economics, Henan Finance University, Zhengzhou, 450046

Received Date: 7 January 2020
Accepted Date: 30 January 2020

Figures(5)

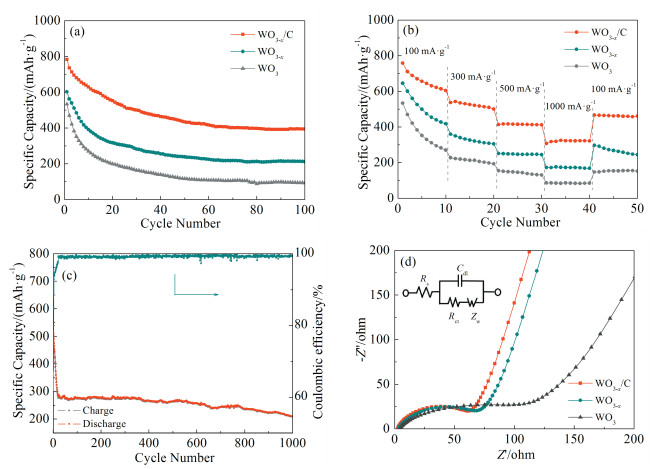

By virtue of the high theoretical capacity (~700 mAh·g^-1) in lithium-ion battery and the comparatively low cost, tungsten trioxide (WO₃) has attracted great interest of researchers. However, it still suffers from its low conductivity and the severe volume variation during the discharge/charge processes, which lead to the inferior rate performance and cycling performance. To enhance its conductivity and mitigate the adverse effects caused by the volume variation, a plasma-enhanced chemical vapor deposition (PECVD) method was successfully used to coat nitrogen-doped amorphous carbon on defective WO_3-x nanosheets. N-doped amorphous carbon coating can effectively alleviate the unsatisfactory volume variation effects, and provide more sites for lithium-ions to insert and extract. The electrochemical evaluations demonstrated that the prepared WO_3-x/C electrode exhibits superior rate and cycle performance than that of WO_3-x electrode and commercial WO₃ electrode. Dynamic simulation and analysis suggested that the WO_3-x/C electrode has smaller charge transfer resistance and the faster lithium-ion diffusion coefficient, thereby effectively improving its electrochemical performance.
- Tungsten trioxide,
- WO_3-x/C nanocomposite,
- Chemical vapor deposition,
- Lithium-ion battery
1. [1]
  Tarascon J M, Armand M. Nature, 2001, 414(6861): 359~367.
2. [2]
3. [3]
4. [4]
  Yoon S, Jo C, Noh S Y, et al. Phys. Chem. Chem. Phys., 2011, 13(23): 11060~11066.
5. [5]
  Park S K, Lee H J, Lee M H, et al. Chem. Eng. J., 2015, 281: 724~729.
6. [6]
  Wang F, Valentin C D, Pacchioni G. Phys. Rev. B, 2011, 84(7): 073103.
7. [7]
  Lee S, Lee Y W, Kwak D H, et al. Ceram. Int., 2015, 41(3): 4989~4995.
8. [8]
  Jo C, Hwang I, Lee J, et al. J. Phys. Chem. C, 2011, 115(23): 11880~11886.
9. [9]
  Bao K, Mao W, Liu G, et al. Nano Res., 2017, 10(6): 1903~1911.
10. [10]
  Liu F, Kim J G, Lee C W, et al. Appl. Surf. Sci., 2014, 316: 604~609.
11. [11]
  Lu C, Li Z, Yu L, et al. Nano Res., 2018, 11(9): 4614~4626.
12. [12]
  Li Y, Chang K, Tang H, et al. Electrochim. Acta, 2019, 298: 640~649.
13. [13]
  Kang E, An S, Yoon S, et al. J. Mater. Chem., 2010, 20(35): 7416~7421.
14. [14]
  Gupta A, Ifeacho P, Schulz C, et al. Proceed. Combust. Inst., 2011, 33(2): 1883~1890.
15. [15]
  Lu C, Li Z, Xia Z, et al. Nano Res., 2019, 12(12): 3051~3058.
16. [16]
  Luo J Y, Xu N S, Zhao F L, et al. J. Appl. Phys., 2011, 109(2): 024312.
17. [17]
  Lu Y, Lu Y, Niu Z, et al. Adv. Energy Mater., 2018, 8(17): 1702469.
18. [18]
  Chu H, Pan J, Bai S, et al. Electrochim. Acta, 2017, 258: 236~240.
19. [19]
  Liu Z, Li P, Dong Y, et al. Appl. Surf. Sci., 2017, 394: 70~77.
20. [20]
  Chang K, Chen W. ACS Nano, 2011, 5(6): 4720~4728.
21. [21]
  Zuo X, Chang K, Zhao J, et al. J. Mater. Chem. A, 2016, 4(1): 51~58.
22. [22]
  Bard A J, Faulkner L R. Electrochemical methods: fundamentals and applications. New York: Wiley, 1980: 96~99.
23. [23]
  Sasidharan M, Gunawardhana N, Yoshio M, et al. Nano Energy, 2012, 1(3): 503~508.
24. [24]
  Lian C, Xiao X, Chen Z, et al. Nano Res., 2016, 9(2): 435~441.
