Citation: WANG Hai-yan, SONG Pan-pan, WANG Yu-jia. Influence of hierarchically mesoporous Hβ zeolite on the performance of NiWP/Hβ-Al2O3 catalysts in diesel oil hydro-upgrading[J]. Journal of Fuel Chemistry and Technology, ;2016, 44(4): 470-476. shu

Influence of hierarchically mesoporous Hβ zeolite on the performance of NiWP/Hβ-Al2O3 catalysts in diesel oil hydro-upgrading

  • 1.

    Liaoning Shihua University, Fushun 113001, China

  • 2.

    China University of Petroleum (East China), Qingdao 266555, China

  • Corresponding author: WANG Hai-yan, fswhy@126.com
  • Received Date: 9 November 2015
    Revised Date: 30 January 2016

Figures(9)

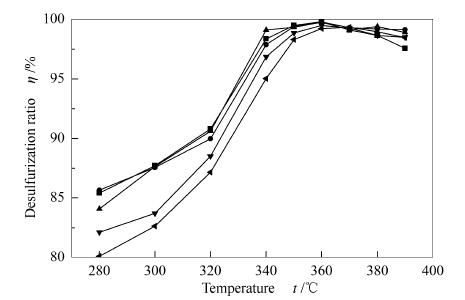

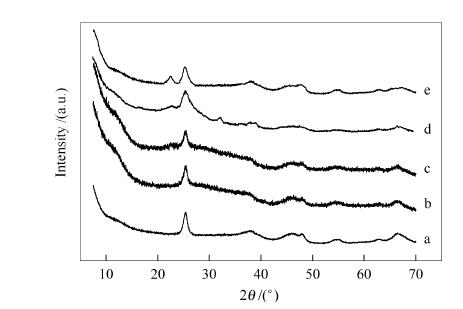

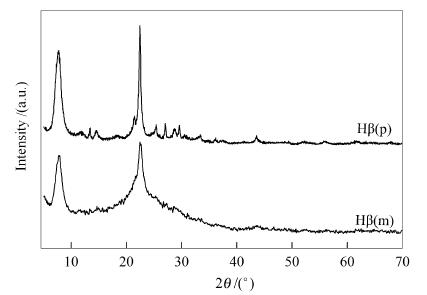

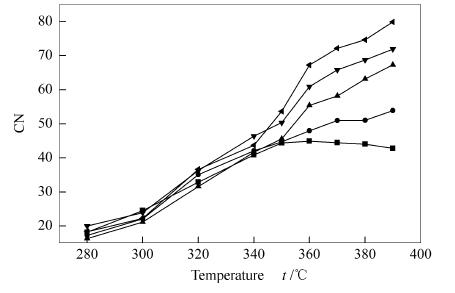

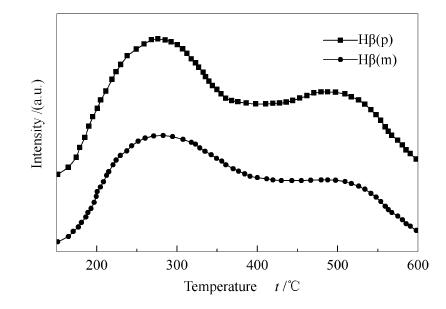

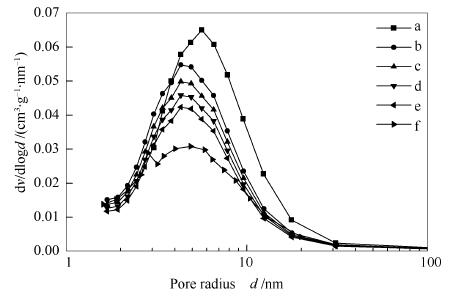

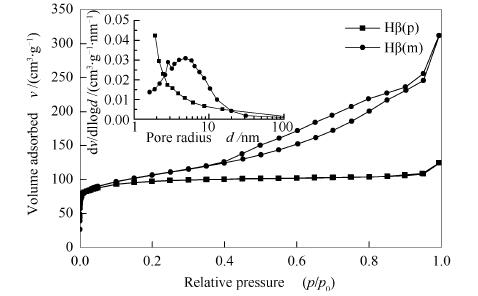

  • Hβ-Al2O3 composite supports were prepared through mechanically mixing Al2O3 with hierarchically mesoporous Hβ zeolite obtained by desilication with NaOH solution; bifunctional NiWP/Hβ-Al2O3 catalysts were then obtained by impregnation method. The composite supports and NiWP/Hβ-Al2O3 catalysts were characterized by XRD, BET and NH3-TPD; the effect of Hβ addition on the catalytic performance of NiWP/Hβ-Al2O3 in diesel oil hydro-upgrading was investigated in a fixed bed reactor with fluid catalytic cracking (FCC) diesel as the feed. The results showed that by adding 15% Hβ in the Hβ-Al2O3 composite support, NiWP/Hβ-Al2O3 catalyst performs best in diesel oil hydro-upgrading; under 360 ℃, 8 MPa, volume space velocity of 1.0 h-1 and volumetric hydrogen/oil ratio of 800, the desulfurization degree reaches 99.77%, the density of FCC diesel oil is decreased from 0.927 to 0.837 g/cm3, while the cetane value is increased from 13.78 to 55.39.
  • 加载中
    1. [1]

      WANG Fu-jiang, ZHANG Yu-ying, LONG Xiang-yun, GAO Xiao-dong. Study on cetane number improvement of LCO by hydrotreating[J]. Pet Process Petrochem, 2013,44(10):27-31.

    2. [2]

      WANG Hong-kui, WANG Jin-liang, HE Guan-wei, LÜ Hong-an, BIAN Wen. Research advance in diesel hydro-upgrading technology[J]. Ind Catal, 2013,21(10):16-20.

    3. [3]

      DU Yan-ze, QIAO Nan-sen, WANG Feng-lai, GUAN Ming-hua. Study on the catalytic performance of zeolite beta in hydrocracking[J]. Pet Process Petrochem, 2011,42(8):22-26.

    4. [4]

      ALI M A, TATSUMI T, MASUDA T. Development of heavy oil hydrocracking catalysts using amorphous silica-alumina and zaolites as catalyst supports[J]. Appl Catal A: Gen, 2002,233(1/2):77-99.

    5. [5]

      ZHANG Kong-yuan, LIU Wei-liang, LIU Chen-guang. FCC LCO hydro-upgrading catalysts with beta zeolite as acid component[J]. Ind Catal, 2014,22(1):39-43.

    6. [6]

      LIU Shu-ping, YUE Ming-bo, WANG Yi-meng. One-step synthesis of mesoporous beta zeolite using phosphate[J]. Acta Phys-Chim Sin, 2010,26(8):2224-2228.

    7. [7]

      RAC V, RAKIC V, STOSIC D, AUROUX A. Hierarchical ZSM-5, Beta and USY zeolites: Acidity assessment by gas and aqueous phase calorimetry and catalytic activity in fructose dehydration reaction[J]. Microporous Mesoporous Mater, 2014,194(30):126-134.

    8. [8]

      JIA Dan-dan, SU Ming-jin, ZHANG Xing-gang, SONG Lin-hua, JIANNG Cui-yu. Synthesis of ethyl anthraquinone over Hβ zeolites modified by acid[J]. Ind Catal, 2014,22(6):466-472.

    9. [9]

      ZHAO Pei-xia, LIU Jing. Study on physical chemistry properties of modified Naβ zeolite[J]. Henan Chem Ind, 2008,25(1):21-24.

    10. [10]

      XU Cong, HAN Ming-han, WANG De-zheng, JIN Yong. Effect of HF treatment on structure and acidity of β zeolite[J]. Chin J Catal, 2002,23(4):371-375.

    11. [11]

      PENG Peng, ZHANG Zhan-xu, WANG You-he, SUBHAN F, YAN Zi-feng. Hierarchical molecular sieves synthesis and catalytic applications[J]. Prog Chem, 2013,25(12):2028-2036.

    12. [12]

      SHEN Ben-xian. Petroleum Refining Technology[M]. 1st ed. Beijng: Sinopec Press, 2010, 86.

    13. [13]

      SHI Gang, LIN Xiu-ying, FAN Yu, BAO Xiao-jun. Desilication modification of ZSM-5 zeolite and its catalytic properties in hydro-upgrading[J]. J Fuel Chem Technol, 2013,41(5):589-600.

    14. [14]

      SONG Yue-qin, LIU Feng, KANG Cheng-lin, FENG Yan-long, ZHOU Xiao-long, DONG Ren-yao, XU Long-ya. Alkali treatment for improving isomerization performance of Pt/ZSM-5[J]. Chin J Catal, 2009,30(2):159-164.

    15. [15]

      WILLIAMS B A, BABITZ S M, MILLER J T, SNURR R Q, KUNG H H. The roles of acid strength and pore diffusion in the enhanced cracking activity of steamed Y zeolites[J]. Appl Catal A: Gen, 1999,177(2):161-175. doi: 10.1016/S0926-860X(98)00264-6

    16. [16]

      LIU Chun-yan, CHE Yan-chao, CAO Zu-bin, GAO Peng, WANG Yan-ping. Studies on FCC gasoline hydroupgrading over modified Hβ zeolite catalyst[J]. J Fuel Chem Technol, 2004,32(3):367-371.

    17. [17]

      LI Cheng-yong, HUANG Hua. Effects of acidity of the carrier on tolerance to sulfur of nickel-based catalysts for aromatic hydrogenation[J]. Ind Catal, 2006,14(6):16-19.

    18. [18]

      YASUDA H, SATO T, YOSHIMURA Y. Influence of the acidity of USY zeolite on the sulfur tolerance of Pd-Pt catalysts for aromatic hydrogenation[J]. Catal Today, 1999,50(1):63-71. doi: 10.1016/S0920-5861(98)00463-5

    19. [19]

      LIU Da-peng, LI Yong-dan. Recent advances in sulfur resistant aromatic hydrogenation catalysts[J]. Prog Chem, 2004,16(6):891-899.

    20. [20]

      WEI Qiang, ZHOU Ya-song, WEN Shi-chang, XU Chun-ming. Mixed support of Y zeolite and titania silica composite oxide for the heavy oil hydrotreating catalyst[J]. J Fuel Chem Technol, 2009,37(4):448-453.

    21. [21]

      DUAN Tong-jun. Study of the hydroupgrading catalysts and technology for poor diesel oil[D]. Qingdao: China University of Petroleum, 2011.
