Citation: Wang Guilin, Sun Jinyu, Yin Aiping, Wang Yingjin, Zhao Minggen. Synthesis and Ultrafast Third-order Nonlinear Optical Response of Two Chalcone Derivatives[J]. Chemistry, ;2019, 82(11): 1027-1032. shu

Synthesis and Ultrafast Third-order Nonlinear Optical Response of Two Chalcone Derivatives

Key Laboratory of Materials and Computational Chemistry, Department of Chemistry, Xinzhou Teachers University, Xinzhou 034000

Corresponding author: Yin Aiping, aipingyin1964@163.com
Received Date: 17 May 2019
Accepted Date: 28 June 2019

Figures(5)

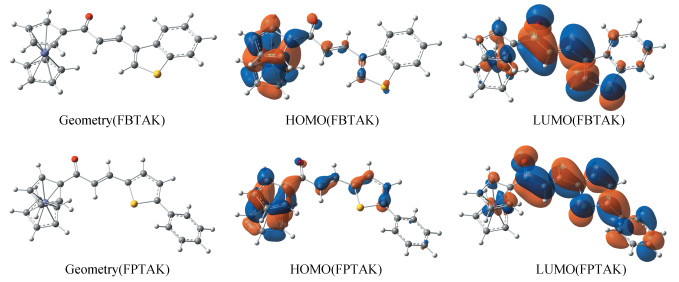

Two chalcone derivatives, 1-ferrocenyl-3-(4, 5-benzothiophen-3-yl) acrylic ketone (FBTAK) and 1-ferrocenyl-3-(5-phenylthiophen-2-yl) acrylic ketone (FPTAK), were successfully synthesized and characterized by ¹H NMR, ¹³C NMR and HR-MS. The third-order nonlinear optical (NLO) properties of the titled compounds were investigated by using Z-scan technique. Their geometrical structures, molecular orbital electron cloud images and related energies were calculated by density functional theory. Meanwhile, their UV-Vis absorption spectra and DSC curves were also measured. The molecular hyperpolarizability (γ) of FPTAK is 6.04, 4.3 and 3.7 times higher than those of FBTAK, 1-ferrocenyl-3-(4-t-butylphenyl) acrylic ketone (a) and 1-ferrocenyl-3-biphenylyl acrylic ketone (b), respectively. As far as the structure-activity relationship is concerned, the contribution of phenylthiophene is greater than that of benzothiophene and biphenyl. That is to say, thiophene ring contributes more than benzene ring. The results indicated that intramolecular electron transfer can occur and two compounds both exhibit an ultrafast third-order NLO response.
- Ferrocenyl chalcone,
- Theoretical investigation,
- Z-scan technique,
- Ultrafast third-order nonlinear optical response
1. [1]
  S R Prabhu, A Jayarama, K Chandrasekharan et al. J. Mol. Struct., 2017, 1136: 244~252.
2. [2]
  S Muhammad, A G Al-Sehemi, M Pannipara et al. Optik, 2018, 164(1): 5~15.
3. [3]
  S K Turitsyn, J E Prilepsky, S T Le et al. Optica, 2017, 4(3): 307~322.
4. [4]
  A A Ionin, I O Kinyaevskiy, Y M Klimachev et al. Opt. Spectrosc., 2015, 119(3): 356~362.
5. [5]
  S R Maidur, J R Jahagirdar, P S Patil et al. Opt. Mater., 2018, 75: 580~594.
6. [6]
  J Lin, R Sa, M Zhang et al. J. Phys. Chem. A, 2015, 119(29): 8174~8181.
7. [7]
  M H Youssoufi, P K Sahu, P K Sahu et al. Med. Chem. Res., 2015, 24(6): 2381~2392.
8. [8]
  X Fu, J Feng, Z Dong et al. Eur. J. Org. Chem., 2011, 27: 5233~5236.
9. [9]
  E M Sharshira, N M M Hamada. Am. J. Org. Chem., 2012, 2(1): 26~31.
10. [10]
  S Czemmel, S C Heppel, J Bogs. Protoplasma, 2012, 249(2): 109~118.
11. [11]
  L R Almeida, M M Anjos, G C Ribeiro et al. New J. Chem., 2017, 41(4): 1744~1754.
12. [12]
  A Ekbote, P S Patil, S R Maidur et al. J. Mol. Struct., 2017, 1129: 239~247.
13. [13]
  S Kar, K S Adithya, P Shankar et al. J. Mol. Struct., 2017, 1139(5): 294~302.
14. [14]
  T C S Shetty, S Raghavendra, C S C Kumar et al. Opt. Laser Technol., 2016, 77: 23~30.
15. [15]
  B Pramodh, N K Lokanath, S Naveen et al. J. Mol. Struct., 2018, 1161: 9~17.
16. [16]
  H Zhao, Y Zhu, C Chen et al. Carbon, 2012, 50(13): 4894~4902.
17. [17]
  P Kaur, M Kaur, G Depotter et al.J. Mater. Chem., 2012, 22(21): 10597~10608.
18. [18]
  G Li, Y L Song, H W Hou et al. Inorg. Chem., 2003, 42(3): 913~920.
19. [19]
  Y C Liu, Y H Kan, S X Wu et al. J. Phys. Chem. A, 2008, 112(35): 8086~8092.
20. [20]
  V Shettigar, P S Patil, S Naveen et al. J. Cryst. Growth, 2006, 295: 44~49.
21. [21]
22. [22]
  M J Frisch, G W Trucks, H B Schlegel et al. Gaussian 09, Revision B. 02, Gaussian, Inc., Wallingford CT, 2010.
23. [23]
24. [24]
  M Sheikbahae, A A Said, T H Wei et al. IEEE J Quantum Elect., 1990, 26(4): 760~769.
25. [25]
  N Ono, S Ito, C H Wu et al. Chem. Phys., 2000, 262(2-3): 467~473.
