Citation: ZHANG Qian-yu, XU Zhi-ming, ZHAO Suo-qi. Separation and characterization of C5-asphaltene from low temperature coal tar[J]. Journal of Fuel Chemistry and Technology, ;2016, 44(11): 1318-1325. shu

Separation and characterization of C5-asphaltene from low temperature coal tar

State Key Laboratory of Heavy Oil Processing, China University of Petroleum (Beijing), Beijing 102249, China

Corresponding author: XU Zhi-ming, scf@cup.edu.cn
Received Date: 8 July 2016
Revised Date: 1 September 2016

Figures(8)

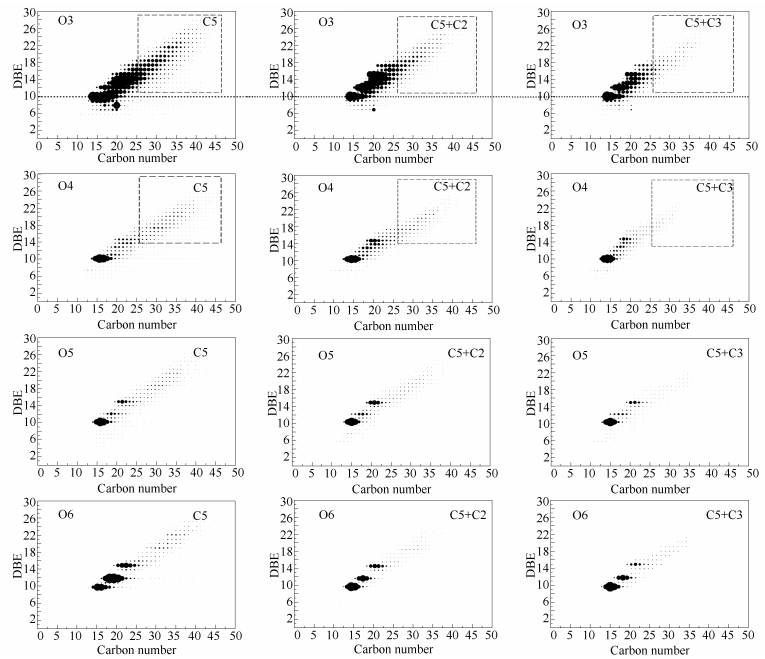

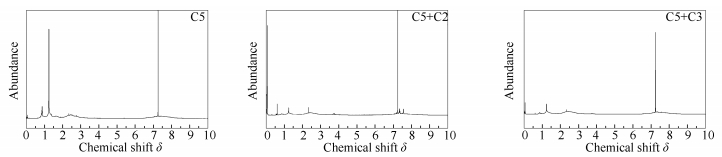

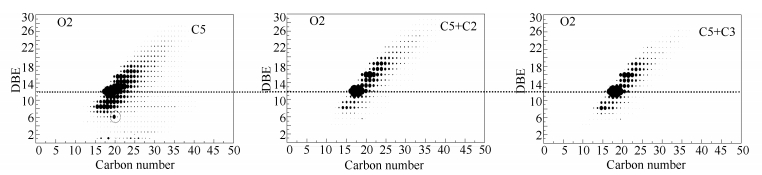

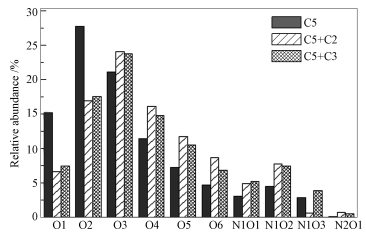

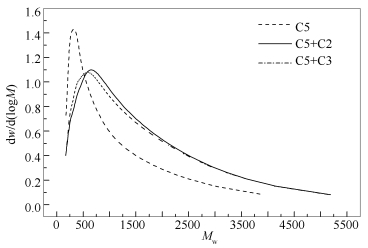

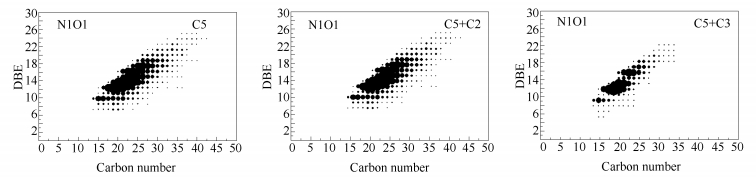

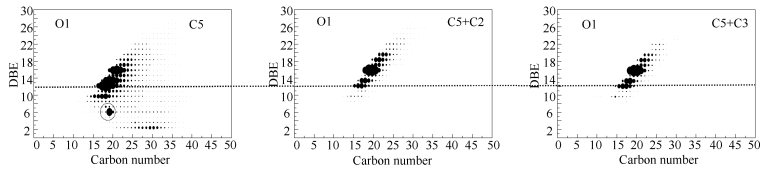

The asphaltene was obtained from the low temperature coal tar heavy fraction by solvent precipitation with three kinds of solvents; n-pentane, n-pentane with 5% ethanol and n-pentane with 5% isopropanol. The properties such as structure parameters and hetero atom distribution were analyzed by ¹H-NMR, ¹³C-NMR, FT-ICR MS, elemental analysis and average molecular weight determination (GPC). Some possible average molecular structures containing hetero atoms were constructed and discussed. The results show that after adding polar solvent, the yield of C5-asphaltene is significantly reduced, while the aromaticity and average molecule weight are enhanced. The average molecular structure of the C5-asphaltene exhibits shorter side-chains and higher condensation degree. Though the type of heteroatom compounds in the asphaltene is barely changed by the addition of polar solvents, the relative abundance of O3-O6 class species is increased. Meanwhile, some O1-O2 class species with low condensation degree are transferred into maltene, indicating that the mixed solvent has a larger solubility with these compounds.
- low temperature coal tar,
- C5-asphaltene,
- average molecular structure,
- heteroatom compound
1. [1]
  WU Le-le, DENG Wen-an, LI Chuan, ZHANG Ying-hong, WANG Xiao-jie. Properties of coal tar heavy fraction and its relevance to coking in hydrocracking[J]. J Fuel Chem Technol, 2014,42(8):938-944.
2. [2]
  SUN Yu-dong, YANG Chao-he, HAN Zhong-xiang. Influence of asphaltene content on yield and properties of hydrotreated residue[J]. J Fuel Chem Technol, 2012,40(5):545-549.
3. [3]
  KERSHAW J R, BLACK K J T. Structure characterization of coal-tar and petroleum pitches[J]. Energy Fuels, 1993,7(3):420-425. doi: 10.1021/ef00039a014
4. [4]
  PEI Xian-feng. Separation and characterization of low temperature coal tar asphaltene and resin[J]. Clean Coal Technol, 2011,17(4):43-45.
5. [5]
  SUN Zhi-hui, LI Wen-hong, MA Hai-xia, LI Dong, TIAN Pan-pan, NIU Meng-long. Separation and characterization of middle and low temperature coal tar heavy fraction[J]. J China Coal Soc, 2015,40(9):2187-2192.
6. [6]
  HOU Cui-li, QIN Zhi-hong, CHEN De-ren, CHEN Juan, ZHANG Li-ying, LI Bao-min. Analysis of extracts from solvent extraction of group components to Tongting coal[J]. Clean Coal Technol, 2010,16(1):94-98.
7. [7]
  XIE Ke-chang. Coal Structure and Its Reactivity[M]. Beijing:Science Press, 2002.
8. [8]
  GU Xiao-hui. Study on the structure characteristics from the Shenhua coal direct liquefaction residue[D]. Beijing:China Coal Research Institute, 2005.
9. [9]
  ZHU Yong-hong, HUANG Jiang-liu, DAN Yong, WANG Lei, LI Wen-hong, LI Dong. Analysis and characterization of medium low temperature coal tar asphaltene[J]. Acta Pet Sin (Pet Process Sect), 2016,32(2):334-342.
10. [10]
  RODGERS R P, HENDRICKSON C L, EMMETT M R, MARSHALL A G, GREANEY M, QIAN K. Molecular characterization of petroporphyrins in crude oil by electrospray ionization fourier transform ion cyclotron resonance mass spectrometry[J]. Can J Chem, 2001,79(5/6):546-551.
11. [11]
  WU Z, JERNSTROM S, HUGHEY C A, RODGERS R P, MARSHALL A G. Resolution of 10000 compositionally distinct components in polar coal extracts by negative-ion electrospray ionization Fourier transform ion cyclotron resonance mass spectrometry[J]. Energy Fuels, 2003,17(4):946-953. doi: 10.1021/ef030026m
12. [12]
  SHI Q, YAN Y, WU X, LI S, CHUNG K, ZHAO S, XU C. Identification of dihydroxy aromatic compounds in a low-temperature pyrolysis coal tar by gas chromatography-mass spectrometry (GC-MS) and fourier transform ion cyclotron resonance mass spectrometry (FT-ICR MS)[J]. Energy Fuels, 2010,24(10):5533-5538. doi: 10.1021/ef1007352
13. [13]
  LONG Hai-yang. Composition of low temperature coal tar[D]. Beijing:University of Petroleum, 2012.
14. [14]
  LÜ Jun, GAO Li-juan, ZHU Ya-ming, ZHAO Xue-fei, WANG Zhi-yu. Compositions and structure characterizations of medium and low temperature coal tar pitch[J]. Mater Rev, 2016,30(4):127-131.
