Citation: WU Yi-min, LI Shuo, LI Chun-yi. Influence of Li loading on the catalytic performance of Li/MgO in the oxidative dehydrogenation of propane to olefins[J]. Journal of Fuel Chemistry and Technology, ;2016, 44(11): 1334-1340. shu

Influence of Li loading on the catalytic performance of Li/MgO in the oxidative dehydrogenation of propane to olefins

State Key Laboratory of Heavy Oil Processing, China University of Petroleum (East China), Qingdao 266580, China

Corresponding author: LI Chun-yi, chyli@upc.edu.cn
Received Date: 23 June 2016
Revised Date: 21 July 2016

Fund Project: The project was supported by the Key Project of National Nature Science Foundation of China Petroleum and Chemical Joint Funds U1362201

Figures(6)

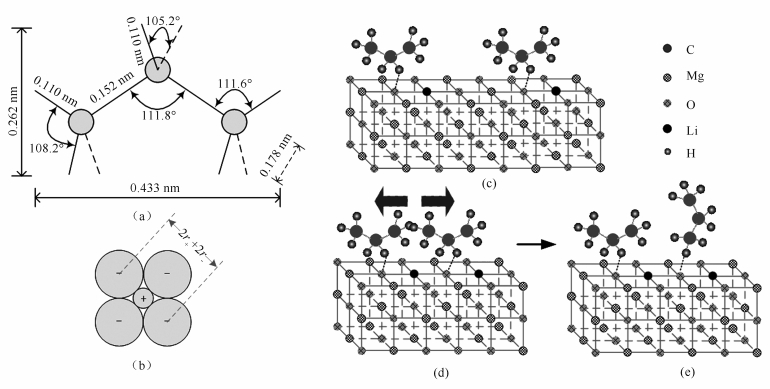

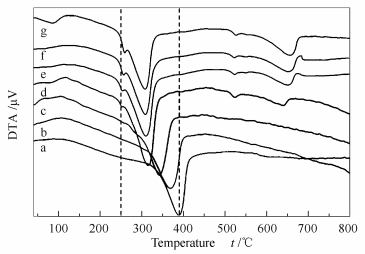

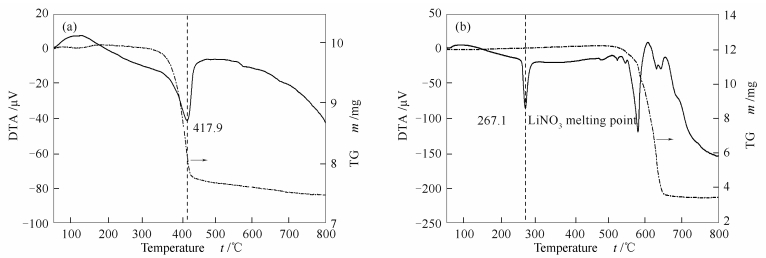

A series of Li/MgO catalysts with different Li loadings were prepared by incipient wetness impregnation method and characterized by TG-DTA, N₂ sorption and XRD; two modes for propane adsorption on Li/MgO were considered by calculation with Material Studio and the influence of Li loading on the catalytic performance of Li/MgO in the oxidative dehydrogenation of propane to olefins was investigated. The result indicated that with the increase of Li loading, the conversion of propane and the selectivity to C₂H₄, C₂H₆, CH₄, CO_x increases at first, reaches the highest values at a Li loading of 3% and then decreases with further increasing the Li loading, whereas the selectivity to propene changes in an opposite trend. The adsorption and dehydrogenation of propane on Li/MgO surface are controlled by both thermodynamic and kinetic factors, whilst the dispersion of the active Li⁺O^- sites is related to the loading of Li. Over the highly-dispersed active Li⁺O^- sites, the dehydrogenation is thermodynamically controlled, which favors the formation of propene, whereas over the poorly-dispersed Li⁺O^- sites, the reaction is dominated by the kinetic factor, leading to a high selectivity to ethene and other by-products.
- propane,
- oxidative dehydrogenation,
- Li/MgO,
- olefins,
- Li loading,
- dispersion
1. [1]
  LI Fu-chao, ZHANG Jiu-shun, YUAN Qi-min. Advances in catalytic processing of paraffin for propylene production[J]. Pet Process Petrochem, 2013,44(10):1-7.
2. [2]
  HU Yuan-jue. How to choose the raw material routes at low oil price period[J]. Chin Pet Chem Ind, 2015(6):35-38.
3. [3]
  China Petroleum and Chemical Industry Federation International Exchanges and Foreign Committee . China's petrochemical industry development direction and focus in the next decade[J]. Chin Pet Chem Ind Econ Anal, 2015(7):18-22.
4. [4]
  SATTLER J J H B, RUIZ-MARTINEZ J, SANTILLAN-JIMENEZ E, WECKHUYSEN B M. Catalytic dehydrogenation of light alkanes on metals and metal oxides[J]. Chem Rev, 2014,114(20):10613-10653. doi: 10.1021/cr5002436
5. [5]
  ZHANG Ling-feng, LIU Ya-lu, HU Zhong-pan, YANG Yu-wang, YU Hai-bin, YUAN Zhong-yong. Advance in catalysts for propane dehydrogenation to propylene[J]. Acta Pet Sin:Pet Process Sect, 2015,31(2):400-417.
6. [6]
  WANG Hai-nan, WANG Hong. Progress in studying of catalysts for propane oxidative dehydrogenation to propylene[J]. Nat Gas Chem Ind, 2003,28(6):25-31.
7. [7]
  WANG Yu, XIE Song-hai, YUE Bin, FENG Su-jiao, HE He-yong. Oxidative dehydrogenation of propane to propene over mesoporous alumina-supported vanadium oxide catalyst[J]. Chin J Catal, 2010,31(8):1054-1060.
8. [8]
  ABELLO M C, GOMEZ M F, FERRETTI O. Mo/g-Al₂O₃ catalysts for the oxidative dehydrogenation of propane[J]. Wien Med Wochenschr, 2001,121(19):398-399.
9. [9]
  ITO T, WANG J, LIN C H, LUNSFORD J H. Oxidative dimerization of methane over a lithium-promoted magnesium oxide catalyst[J]. J Am Chem Soc, 1985,107(18):5062-5068. doi: 10.1021/ja00304a008
10. [10]
  FEI Jin-hua, ZHAO Lei-hong, ZHU Bo, CAI Bing-xin, ZHENG Xiao-ming. Effect of addition of Li⁺ on properties of MgO catalyst[J]. Chem J Chin Univ, 1993,14(2):248-251.
11. [11]
  SINEV M. Y. Elementary steps of radical-surface interactions in oxidative coupling of methane[J]. Catal Today, 1992,13(4):561-564. doi: 10.1016/0920-5861(92)80081-W
12. [12]
  GAAB S, MACHLI M, FIND J, GRASSELLI R K, LERCHER J A. Oxidative dehydrogenation of ethane over novel Li/Dy/Mg mixed oxides:Structure-activity study[J]. Top Catal, 2003,23(1):151-158.
13. [13]
  TRIONFETTI C, BABICH I V, SESHAN K, LEFFERTS L. Presence of lithium ions in MgO lattice:Surface characterization by infrared spectroscopy and reactivity towards oxidative conversion of propane[J]. Langmuir, 2008,24(15):8220-8228. doi: 10.1021/la8006316
14. [14]
  LANDAU M V, KALIYA M L, OOSTERKAMP P F V D, BOCQUE P S G, HERSKOWITZ M. Produce light olefins from paraffins by catalytic oxidation[J]. Chemtech, 1996,26(2).
15. [15]
  TRIONFETTI C, BABICH I V, SESHAN K, LEFFERTS L. Formation of high surface area Li/MgO-Efficient catalyst for the oxidative dehydrogenation/cracking of propane[J]. Appl Catal A:Gen, 2006,310(8):105-113.
16. [16]
  LANDAU M V, KALIYA M L, GUTMAN A, KOGAN L O, HERSKOWITZ M, OOSTERKAMP P F V D. Oxidative conversion of LPG to olefins with mixed oxide catalysts:Surface chemistry and reactions network[J]. Stud Surf Sci Catal, 1997,110(97):315-326.
17. [17]
  TRIONFETTI C, BABICH I V, SESHAN K, LEFFERTS L. Efficient catalysts for olefins from alkanes:Sol-gel synthesis of high surface area nano scale mixed oxide clusters[J]. Top Catal, 2006,39(3/4):191-198.
18. [18]
  TRIONFETTI C, CRAPANZANO S, BABICH I V, SESHAN K, LEFFERTS L. Lithium ions incorporation in MgO for oxidative dehydrogenation/cracking of propane:Active site characterization and mechanism of regeneration[J]. Catal Today, 2009,145(1/2):19-26.
19. [19]
  LEVELES L, SESHAN K, LERCHER J A, LEFFERTS L. Oxidative conversion of propane over lithium-promoted magnesia catalyst:Ⅱ. Active site characterization and hydrocarbon activation[J]. J Catal, 2003,218(2):307-314. doi: 10.1016/S0021-9517(03)00113-1
20. [20]
  CAI Bing-xin, ZHENG Xiao-ming. Studies on oxidative dehydrogenation of ethane to ethylene (Ⅱ)--The mechanism of catalytic action[J]. Chem J Chin Univ, 1995,16(6):929-932.
21. [21]
  CAI Bing-xin, MAO Jian-xin, ZHENG Xiao-ming. The effect of soaker on surface properties of magnesium oxide[J]. Chin J Catal, 1998,19(2):177-180.
22. [22]
  WANG J X, LUNSFORD J H. Characterization of (LiO/sup -/) centers in lithium-doped MgO catalysts[J]. J Phys Chem; (United States), 1986,90(22):5883-5887.
23. [23]
  LEVELES L, SESHAN K, LERCHER J A, LEFFERTS L. Oxidative conversion of propane over lithium-promoted magnesia catalyst:Ⅰ. Kinetics and mechanism[J]. J Catal, 2003,28(2):296-306.
24. [24]
  TRIONFETTI C, AĞIRAL A, LEFFERTS L, SESHAN K. Oxidative conversion of propane in a microreactor in the presence of plasma over MgO-based catalysts:An experimental study[J]. J Phys Chem C, 2008,112(11):4267-4274. doi: 10.1021/jp710642c
25. [25]
  ZHU Hong-juan. The investigation on the oxidative dehydrogenation of propane to propylene[D]. Dalian:Dalian Institute of Chemical Physics, Chinese Academy of Science, 2002.
26. [26]
  GUCZI L. Mechanism of reactions on multimetallic catalysts[J]. J Mol Catal, 1984,25(1/3):13-29.
