Citation: Feng Xiaojuan, Shi Yanglong, Li Yongyan, Yang Xiaoxia, Chen Jianpeng. Preparation of Co-Al Bimetallic Sulfide/Nickel Foam Electrodes and Their Supercapacitor Properties[J]. Chemistry, ;2017, 80(6): 553-557. shu

Preparation of Co-Al Bimetallic Sulfide/Nickel Foam Electrodes and Their Supercapacitor Properties

College of Chemistry and Chemical Engineering, Key Laboratory of Hexi Corridor Resources Utilization of Gansu Universities, Hexi University, Zhangye 734000

Received Date: 5 October 2016
Accepted Date: 26 December 2016

Figures(7)

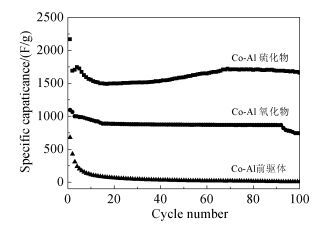

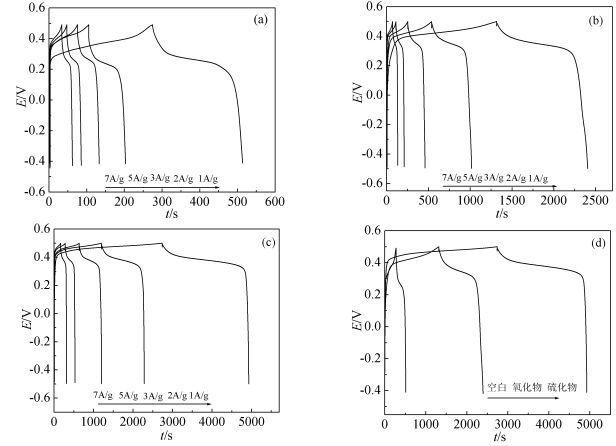

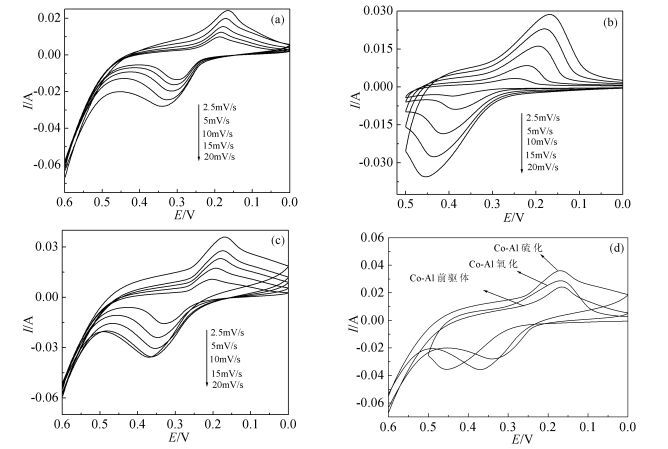

The binary Co-Al sulfide was grown directly on Ni foams via a two-step hydrothermal method. The CoAl₂S₄/Ni electrode material were successfully prepared. The structure, surface morphology and supercapacitor property were characterized by X-ray diffraction analysis, field emission scanning electron microscopy (FESEM), and electrochemical method respectively. The results showed that the CoAl₂S₄/Ni electrode material exhibits 3D porous petal-like structure and rough surface with high conductivity, capacitance and transport rate for electrolyte ions and electrons. The specific capacitance of the electrode can reach 2187.1 F/g under current density of 1A/g. It displayed good electrochemical stability with 90.1% of the initial capacitance over consecutive 100 cycles. The results of this work can provide a reference for the fabrication and properties study of supercapacitor electrode materials.
- Co-Al binary sulfide,
- Hydrothermal method,
- Porous structure,
- Supercapacitance performance
1. [1]
  L Huang, D Chen, Y Ding et al. Nano Lett., 2013, 13:3135~3139.
2. [2]
  X Peng, L Peng, C Wu et al. Chem. Soc. Rev., 2014, 43:3303~3323.
3. [3]
  Y J Zou, Q Y Wang, C L Xiang et al. Electrochim. Acta, 2016, 188:126~134.
4. [4]
5. [5]
  K B Wang, Z Y Zhang, X B Shi et al. RSC Adv., 2015, 5:1943~1948.
6. [6]
  H Pang, J Deng, J Du et al. Dalton Transac., 2012, 41:10175~10181.
7. [7]
  J Wang, Y Song, Z Li et al. Energy Fuels, 2010, 24:6463~6467.
8. [8]
  J Liu, J Jiang, M Bosmanc et al. J. Mater. Chem., 2012, 22:2419~2426.
9. [9]
  B Wang, Q Liu, Z Qian et al. J. Power Sources, 2014, 246:747~753.
10. [10]
  X Q Chen, Y M Zhang, H B Lin et al. J. Power Sources, 2016, 312:137~145.
11. [11]
  Y Liu, J N Zhang, S P Wang et al. New J. Chem., 2014, 38:4045~4048.
12. [12]
  L Yu, L Zhang, H B Wu et al. Angew. Chem. Int. Ed., 2014, 53:3711~3714.
13. [13]
  X H Xia, C R Zhu, J S Luo et al. Small, 2014,10:766~773.
14. [14]
15. [15]
  P V Kamath, M Dixit, M Indira. J. Electrochem. Soc., 1994, 141(11):2956~2959.
16. [16]
  S Akiko, I Shintaro, H Kenzo. J. Electrochem. Soc., 1999, 146:1251~1255.
17. [17]
  D Wang, W Ni, H Pang et al. Electrochim. Acta, 2010, 55:6830~6835.
18. [18]
  R Li, S Wang, Z C Huang et al. J. Power Sources, 2016, 312:156~164.
19. [19]
  W Hu, R H Chen, W Xie. ACS Appl. Mater. Interf., 2014, 6(21):19318~19326.
20. [20]
  C Long, M T Zheng, Y Xiao et al. ACS Appl. Mater. Interf., 2015, 44:24419~24429.
21. [21]
  N D Kim, S J Kim, G P Kim et al. Electrochim. Acta, 2012, 78:340~346.
22. [22]
  G P Wang, L Zhang, J J Zhang. Chem. Soc. Rev., 2012, 41:797~828.
