Citation: QIN Tao, BI Ya-dong, LEI Xiao-juan, XU Gui-hua, CHEN Hui, HU Jian-li. Effect of NaOH post-treatment on the catalytic performance of hierarchical Hβ zeolites in the pyrolysis of lignin[J]. Journal of Fuel Chemistry and Technology, ;2018, 46(9): 1074-1078. shu

Effect of NaOH post-treatment on the catalytic performance of hierarchical Hβ zeolites in the pyrolysis of lignin

QIN Tao ¹ ,
BI Ya-dong ^1,, ,
LEI Xiao-juan ¹ ,
XU Gui-hua ¹ ,
CHEN Hui ¹ ,
HU Jian-li ²

1.
School of Chemistry and Chemical Engineering, Tianjin University of Technology, Tianjin 300384, China
2.
Department of Chemical and Biomedical Engineering, West Virginia University, Morgantown, WV 26506, USA

Corresponding author: BI Ya-dong, easecloud_801@sina.com
Received Date: 18 May 2018
Revised Date: 4 July 2018

Fund Project: the Training Project of Innovation Team of Colleges and Universities in Tianjin TD13-5020The project was supported by the Training Project of Innovation Team of Colleges and Universities in Tianjin (TD13-5020)

Figures(6)

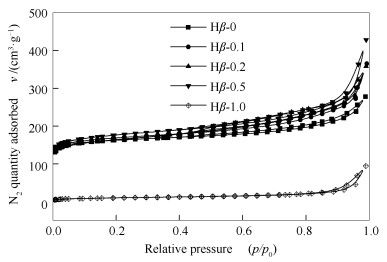

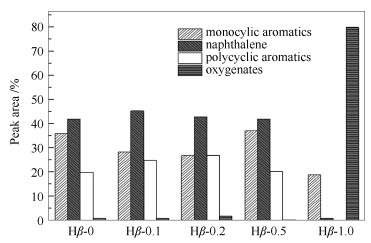

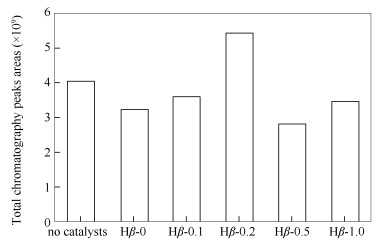

A series of hierarchical Hβ zeolites were prepared by using NaOH post-treatment methods, viz., desilication under alkaline conditions; the effect of NaOH concentration on the catalytic performance of hierarchical Hβ zeolites in the pyrolysis of lignin was investigated. The results illustrated that with the increase of NaOH concentration up to 0.2 mol/L, the amount of mesopores in the hierarchical Hβ zeolites is increased, accompanying with a significant increase in the yield of liquid products for the lignin pyrolysis over Hβ zeolites. By the alkaline treatment with a NaOH concentration lower than 0.5 mol/L, the microporous structure of hierarchical Hβ zeolites remains basically intact and over them a good deoxidation effect is observed for the lignin pyrolysis; the product is mainly composed of aromatic hydrocarbons and the yield of oxygenates is always less than 3%. However, if the NaOH concentration for post-treatment is further increased to 1 mol/L, the microporous structure of Hβ zeolites is substantially destroyed, leading to a decrease in the yield of liquid products for lignin pyrolysis as well as a poor deoxidization effect.
- lignin,
- catalytic pyrolysis,
- hierarchical Hβ zeolites,
- NaOH post-processing,
- desilication
1. [1]
  LIU C J, WANG H M, KARIM A M, SUN J M, WANG Y. Catalytic fast pyrolysis of lignocellulosic biomass[J]. Chem Soc Rev, 2014,43:7594-7623. doi: 10.1039/C3CS60414D
2. [2]
  PATWARDHAN P, BROWN R, SHANKS B. Understanding the fast pyrolysis of lignin[J]. ChemSusChem, 2011,4:1629-1636. doi: 10.1002/cssc.v4.11
3. [3]
  REZAEI P, SHAFAGHAT H, DAUD W. Aromatic hydrocarbon production by catalytic pyrolysis of palm kernel shell waste using a bifunctional Fe/HBeta catalyst:Effect of lignin-derived phenolics on zeolite deactivation[J]. Green Chem, 2016,18:1684-1693. doi: 10.1039/C5GC01935D
4. [4]
  WANG K, KIM K, BROWN R. Catalytic pyrolysis of individual components of lignocellulosic biomass[J]. Green Chem, 2014,16:727-735. doi: 10.1039/C3GC41288A
5. [5]
  ZHOU J, LIU Z C, LI L Y, WANG Y D, GAO H X, YANG W M, XIE Z K, TANG Y. Hierarchical mesoporous ZSM5 zeolite with increased external surface acid sites and high catalytic performance in o-xylene isomerization[J]. Chin J Catal, 2013,34:1429-1433. doi: 10.1016/S1872-2067(12)60602-0
6. [6]
  JIA L Y, RAAD M, HAMIEH S, TOUFAILY J, HAMIEH T, BETTAHAR M M, MAUVIEL G, TARRIGHI M, PINARD L, DUFOUR A. Catalytic fast pyrolysis of biomass:Superior selectivity of hierarchical zeolites to aromatics[J]. Green Chem, 2017,19:5442-5459. doi: 10.1039/C7GC02309J
7. [7]
  PENG P, ZHANG Z Q, WANG Y H, FAZLE S, YAN Z F. Hierarchical molecular sieves:Synthesis and catalytic applications[J]. Prog Chem, 2013,25(12):2028-2036.
8. [8]
  KOU L, WANG Y, PENG P, YAN Z F. Synthesis of mesoporous zeolite[J]. Prog Chem, 2014,26(4):522-528.
9. [9]
  PUERTOLAS B, VESES A, CALLEN M S, MITCHELL S, GARCIA T, PEREZ-RAMIREZ J. Porosity-acidity interplay in hierarchical ZSM-5 zeolites for pyrolysis oil valorization to aromatics[J]. ChemSusChem, 2015,8:3283-3293. doi: 10.1002/cssc.201500685
10. [10]
  HOFF T C, GARDNER D W, THILAKARATNE R, PROANO-AVILES J, BROWN R C, TESSONNIER J P. Elucidating the effect of desilication on aluminum-rich ZSM-5 zeolite and its consequences on biomass catalytic fast pyrolysis[J]. Appl Catal A:Gen, 2017,529:68-78. doi: 10.1016/j.apcata.2016.10.009
11. [11]
  WANG K G, ZHANG J, SHANKS B H, BROWN R C. Catalytic conversion of carbohydrate-derived oxygenates over HZSM-5 in a tandem micro-reactor system[J]. Green Chem, 2015,17:557-564. doi: 10.1039/C4GC01784F
12. [12]
  KARAGOZ S, KAWAKAMI T, KAKO A, ⅡGUNI Y, OHTANI H. Single shot pyrolysis and on-line conversion of lignocellulosic biomass with HZSM-5 catalyst using tandem microreactor GC-MS[J]. RSC Adv, 2016,6:46108-46115. doi: 10.1039/C6RA04225B
13. [13]
  FREEMAN R R, WATANABE A, WATANABE C, TERAMAE N, WANG K. Material characterization using a tandem micro reactor GC-MS[J]. J Anal Appl Pyrolysis, 2015,111:41-46. doi: 10.1016/j.jaap.2014.12.014
